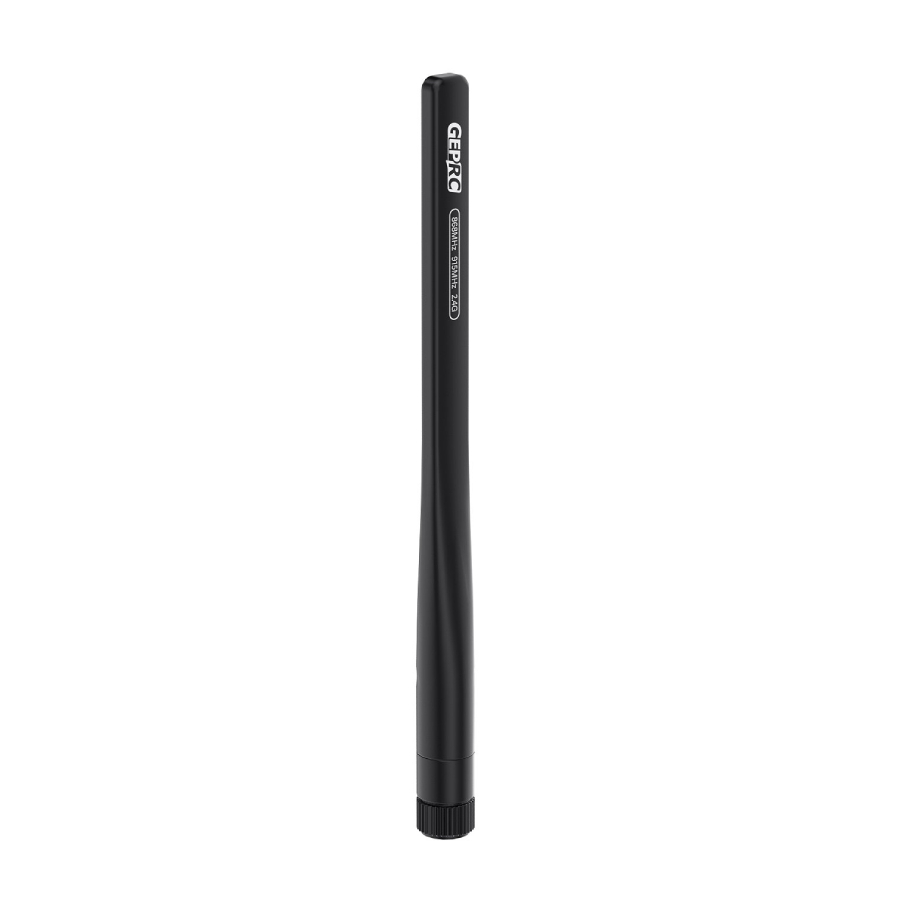

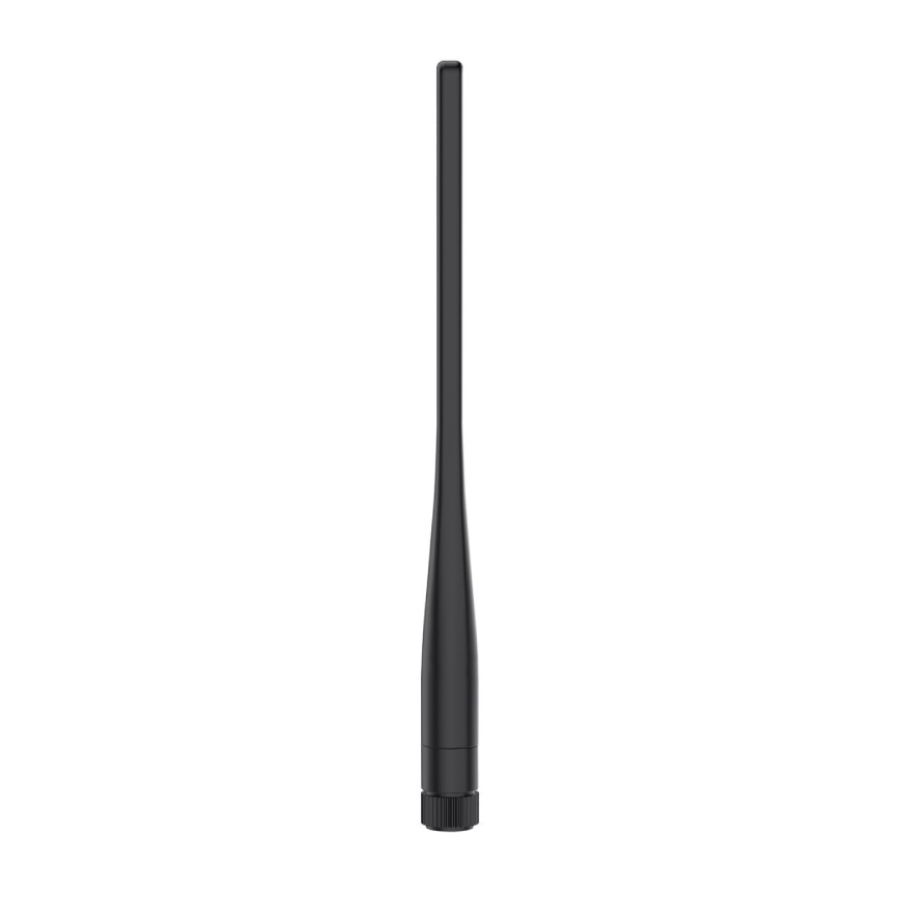

GEPRC 868MHz/915MHz 2.4G Tri-Band Stick Antenna

Overview:
The GEPRC 868MHz/915MHz/2.4GHz tri-band stick antenna features a PCB design with linear polarisation for omnidirectional signal reception. It maintains strong connectivity even during dynamic flight manoeuvres. With excellent cross-polarisation suppression, it performs well in high-interference environments, minimising signal disruption.

Features:
- Triple-band design, 868MHz covers 860-870MHz, 915MHz covers 900-930MHz, 2.4Gz covers 2400-2500MHz
- Optimised for stronger signal reception at a vertical angle
- Durable, low-drag oval shape with an injection-moulded ABS shell
- High-quality SMA connector minimises signal loss
- Each antenna undergoes testing with a spectrum analyser to ensure VSWR compliance with standards

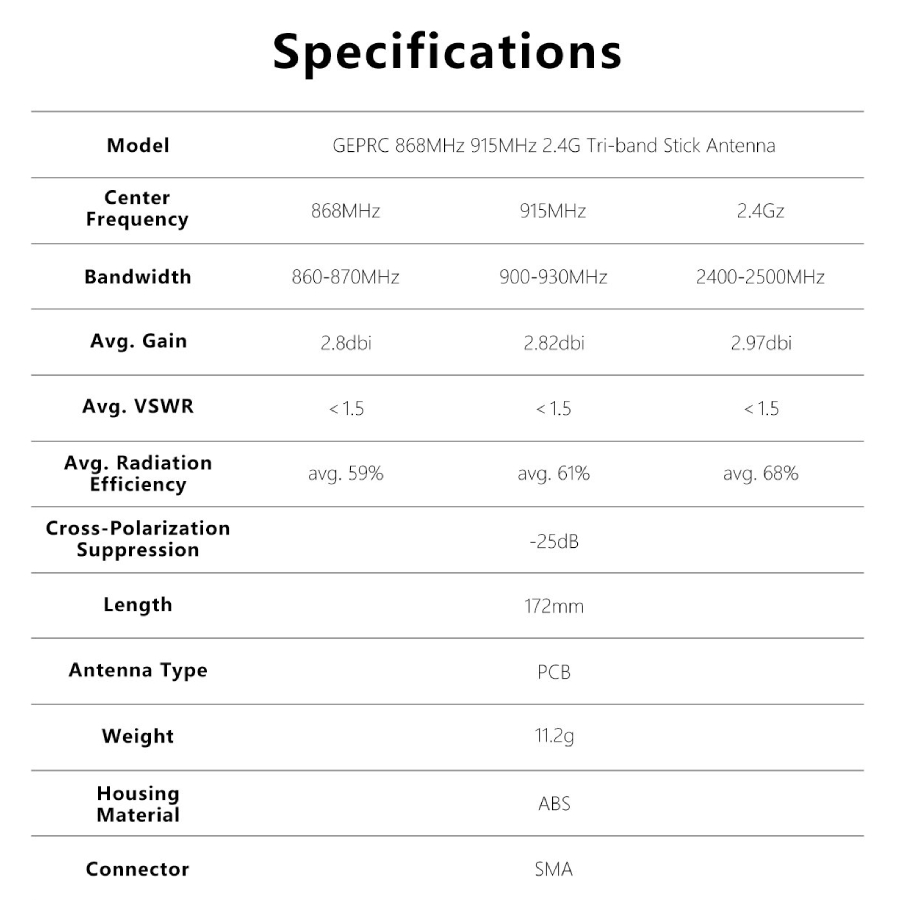

Specification:
- Model: GEPRC 868MHz/915MHz/2.4GHz Tri-Band Stick Antenna
- Polarisation: Linear
- 868MHz Gain: 2.8dBi
- 915MHz Gain: 2.82dBi
- 2.4Gz Gain: 2.97dBi
- VSWR: ≤1.5
- 868MHz Radiation Efficiency: 49%
- 915MHz Radiation Efficiency: 51%
- 2.4Gz Radiation Efficiency: 68%
- Cross-Polarisation Suppression: -25dB
- Length: 172mm
- Antenna Type: PCB
- Weight: 11.2g
- Housing Material: ABS

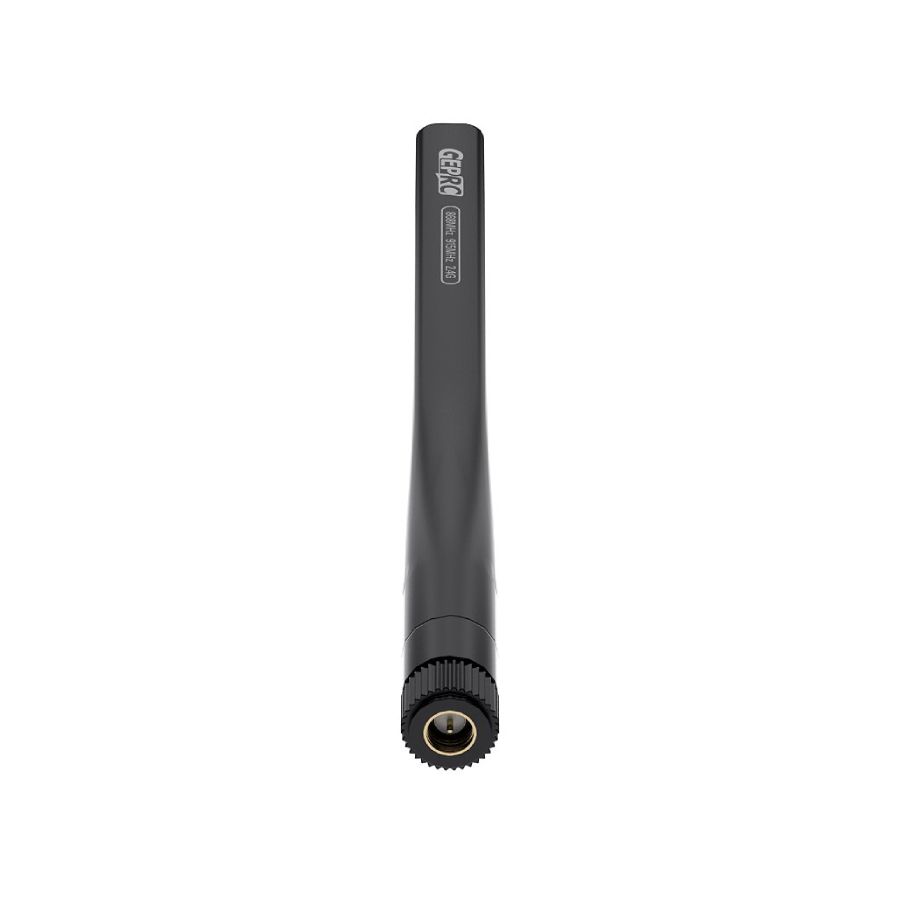

- Connector: SMA

Included:
- 1x GEPRC 868MHz/915MHz/2.4GHz Tri-Band Stick Antenna (SMA)
