Overview:

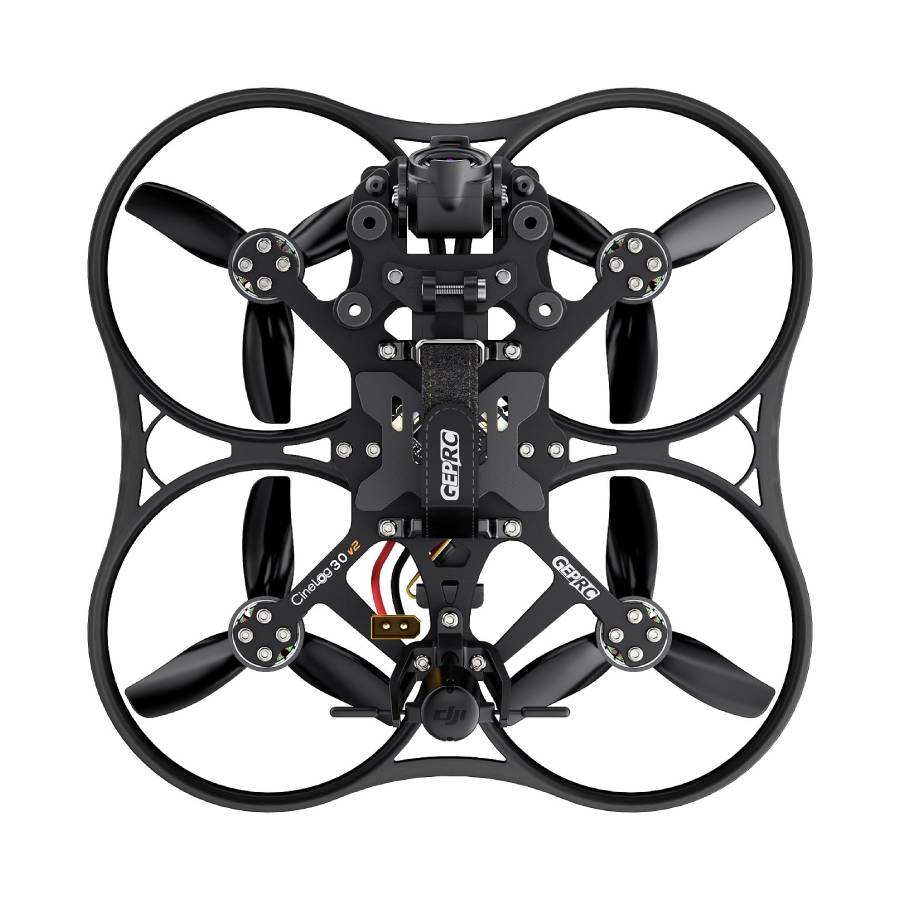

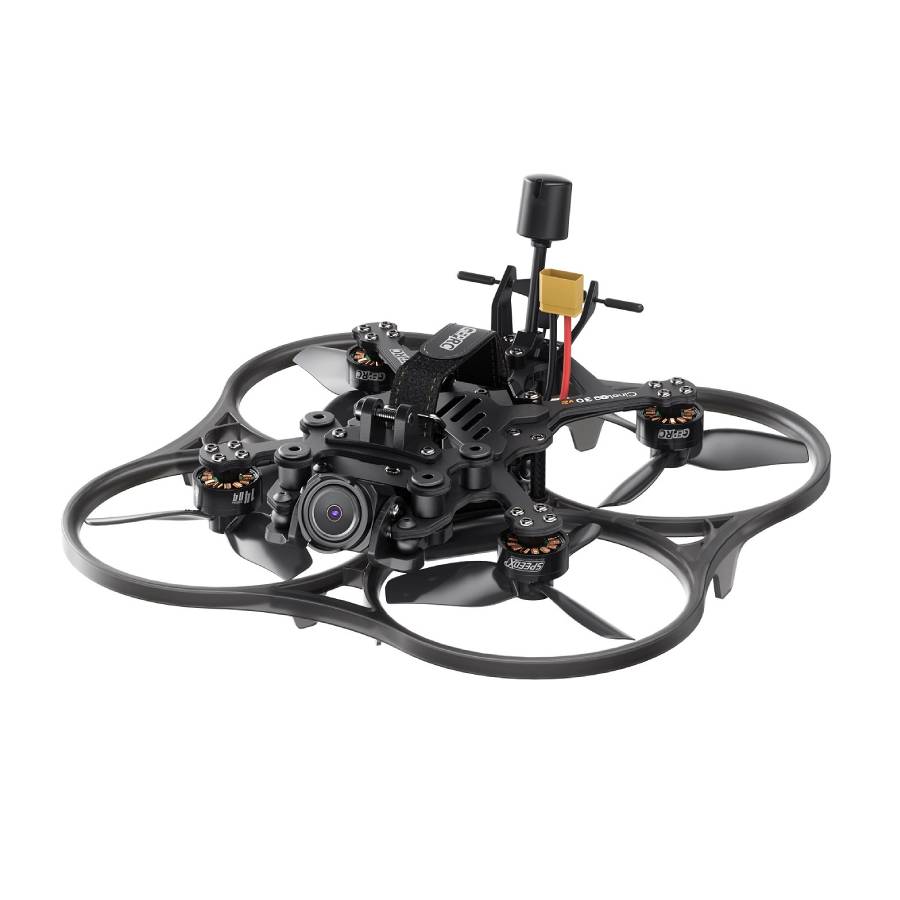

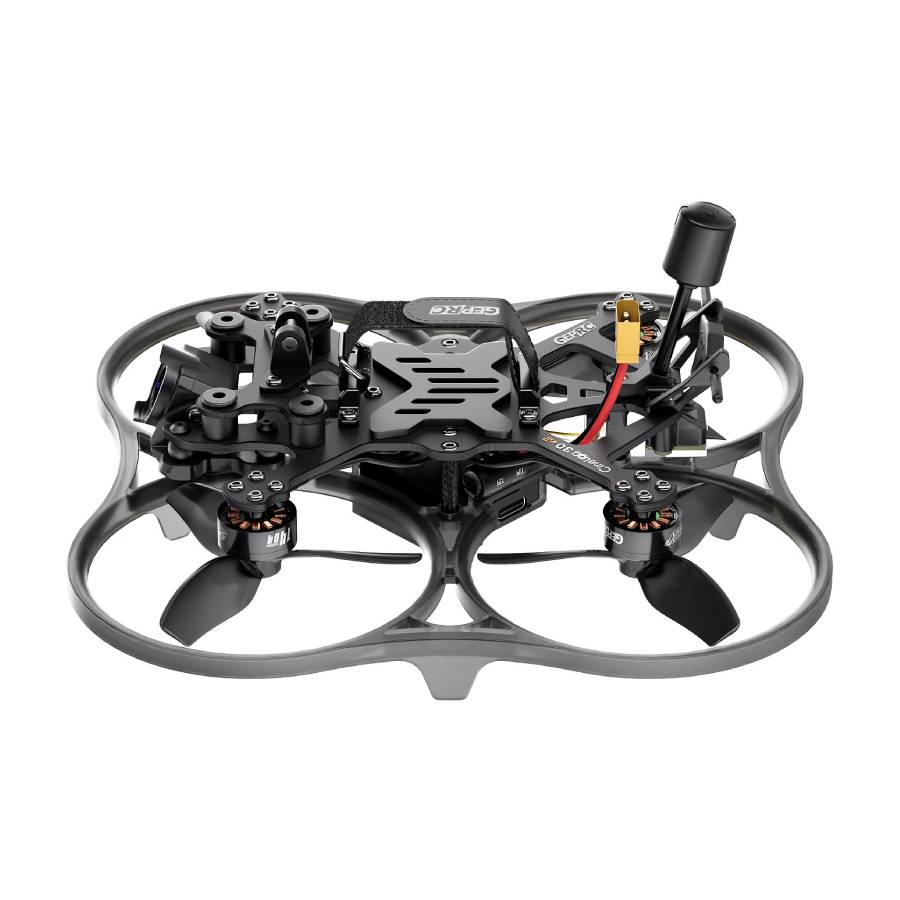

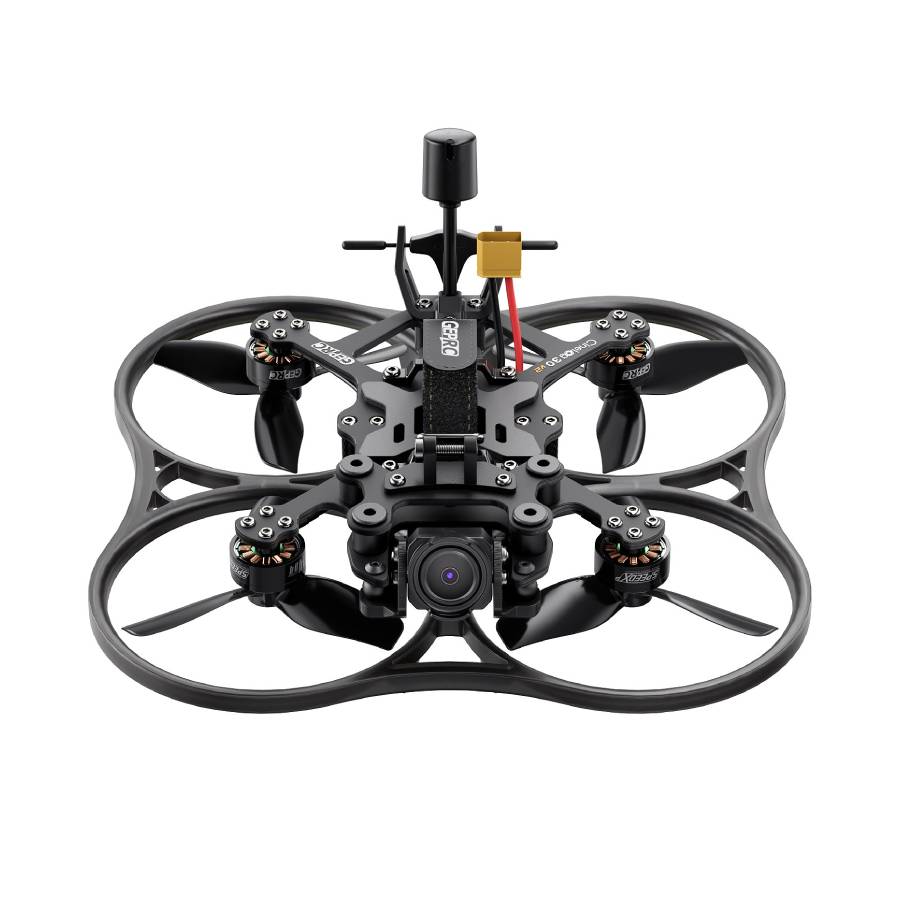

The Cinelog30 V2 is a 3 inch FPV drone designed for both cinematic shots and recreational flying. It features an advanced protective frame and builds on the Cinelog series’ superior handling and stability. With extensive upgrades, it takes everything you loved about the Cinelog series and cranks it up for even better filming and flying.
The advanced shock-absorbing system drastically minimises instability, ensuring exceptionally stable and high-quality footage. Its quiet operation makes it ideal for various filming scenarios.
Powered by the TAKER F722 45A 32Bit AIO flight controller, 1404 3850KV motors, and HQprop DT76mm propellers, the Cinelog30 V2 offers up to 8’30” of flight time with a LiHV 4S 720mAh battery. Compatible with Naked GoPro, Action2, and Insta360 cameras for multiple shooting options.
Features:
- Constructed from advanced materials, the frame is both lightweight yet strong.
- When used with a 4S 720mAh lipo battery, the take-off weight is around 249g.
- The shock-absorbing gimbal delivers smooth, stable footage with the O3.
- The rear USB port allows for easy parameter adjustments.
- The O3-compatible memory card slot and optimized USB port simplify card removal.
- The drone operates with minimal noise
Specification:
- Model: Cinelog30 V2 O3 Quadcopter
- Frame: GEP-CL30 V2
- Carbon Plate Thickness: 2.5mm
- Wheelbase: 124mm
- Flight System: TAKER F722 45A 32Bit AIO
- MCU: STM32F722RET6
- Gyroscope: ICM 42688-P
- FC Firmware: GEPRC_F722_AIO
- Flash: 16MB
- ESC: 32Bit 45A
- Motor: SPEEDX2 1404 3850KV
- Propeller: HQprop DT76mmx3 V2
- Battery Connector: XT30
- VTX: O3 AIR Unit
- Camera: O3
- Antenna: O3 original
- Battery Connector: XT30
- Recommended Battery: LiHV 4S 660mAh-720mAh
Available Versions (See below for purchase options):
- GEPRC Cinelog30 V2 HD O3 ELRS 2.4G version
- GEPRC Cinelog30 V2 HD O3 PNP version
Included:
- 1x GEPRC Cinelog30 V2 HD O3
- Accessories
