Overview:

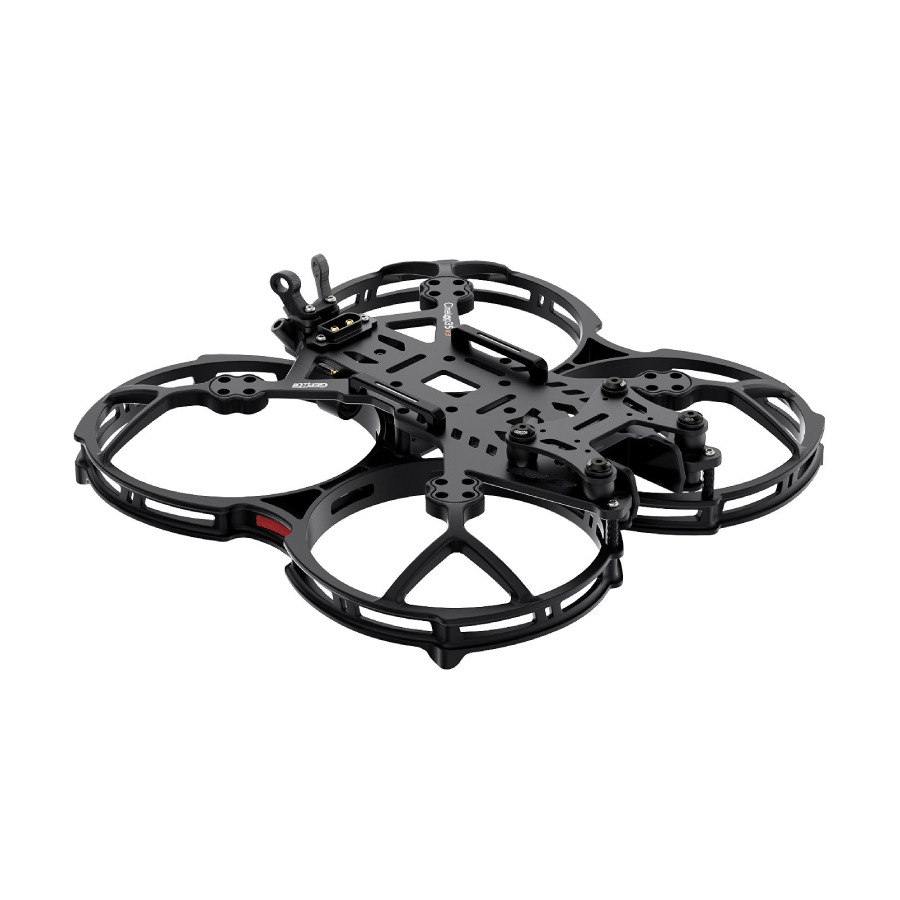

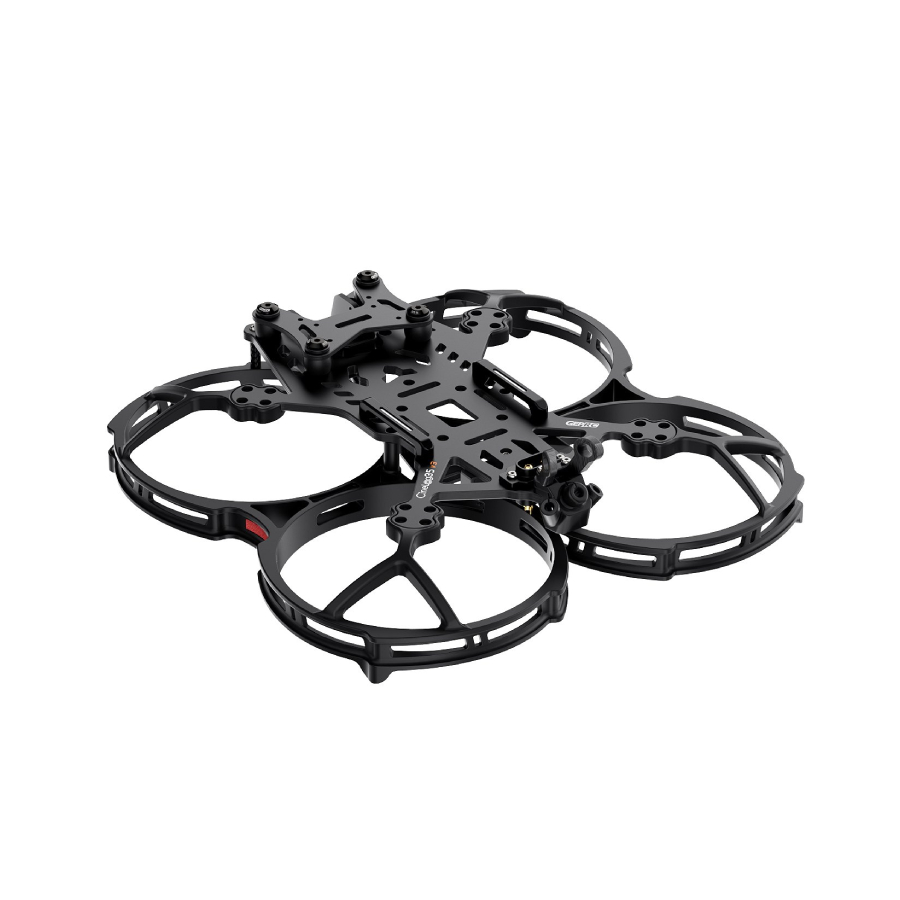

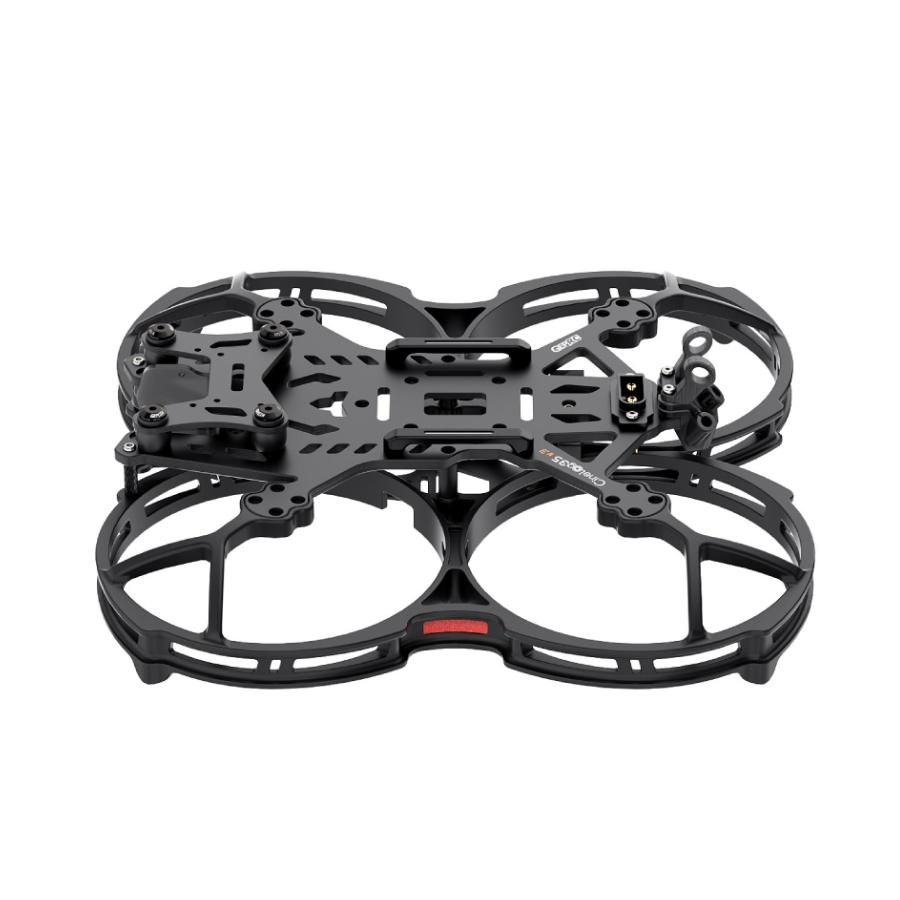

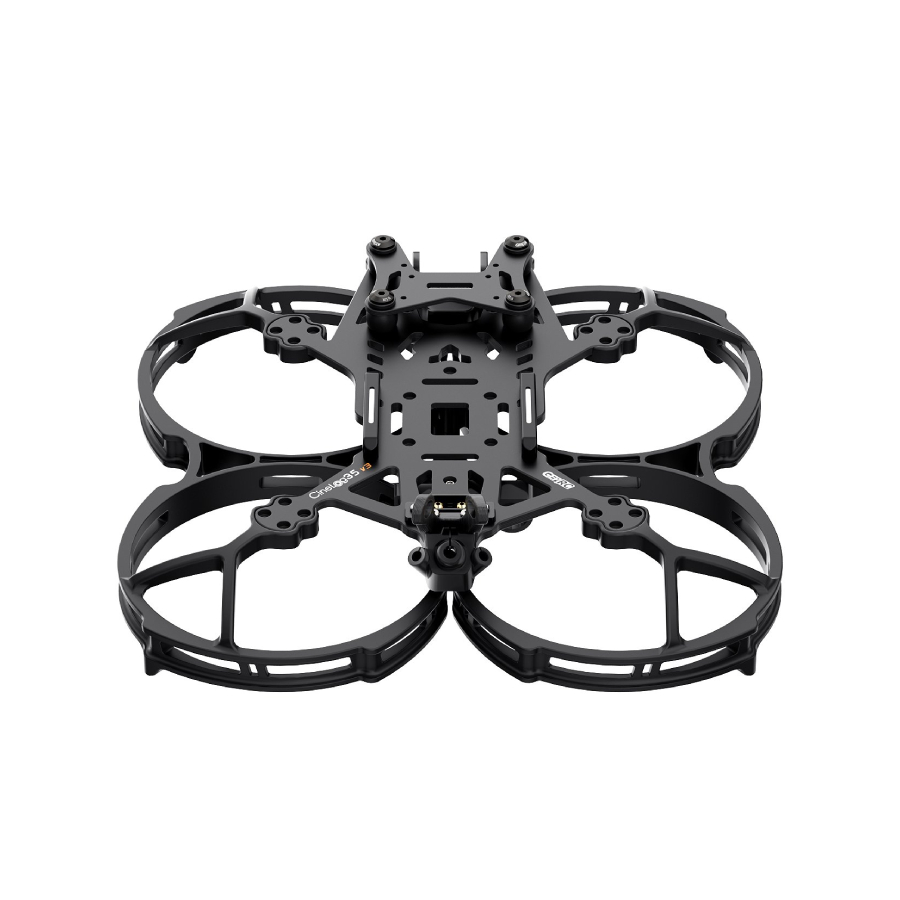

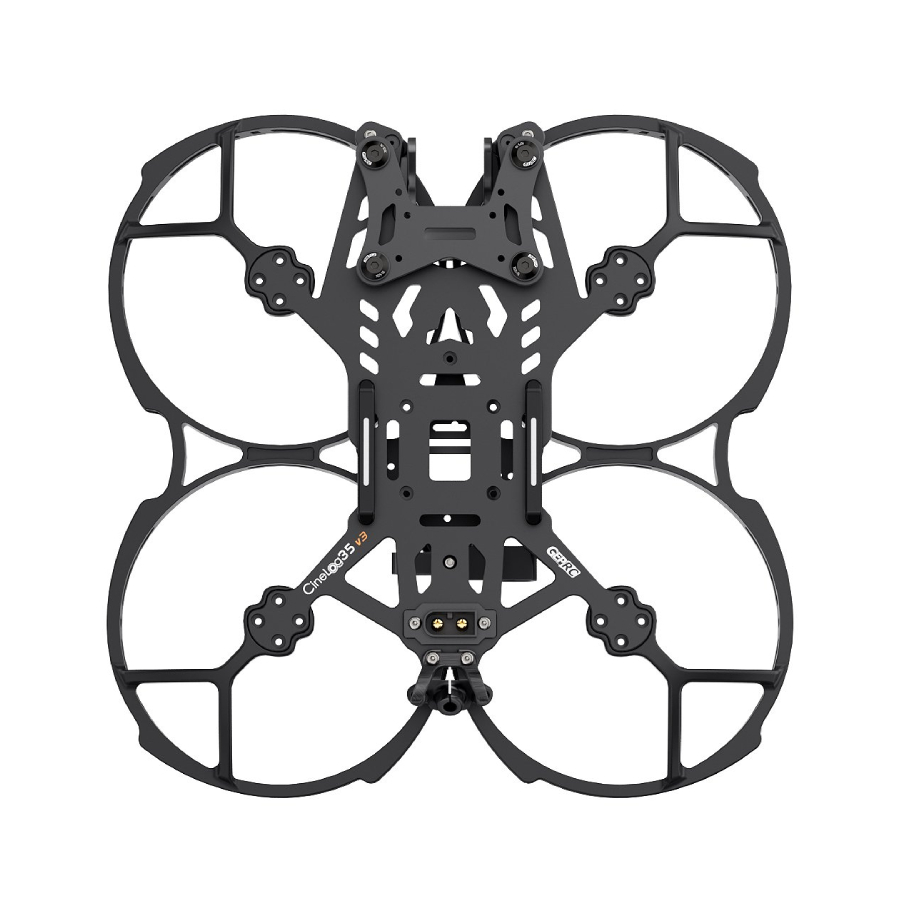

The GEPRC GEP-CL35 V3 Frame is a 3.5-inch cinewhoop frame designed for compact cinematic FPV builds using HD digital video systems. The V3 revision retains the ducted propeller protection and carbon fibre construction of the CineLog series while optimising the frame layout for the Walksnail Avatar HD system.
The frame combines reinforced injection-moulded ducts with a strengthened carbon fibre plate structure to improve durability, structural strength and vibration resistance during flight. Its compact layout provides flexible mounting space for FPV electronics while maintaining the protected cinewhoop.

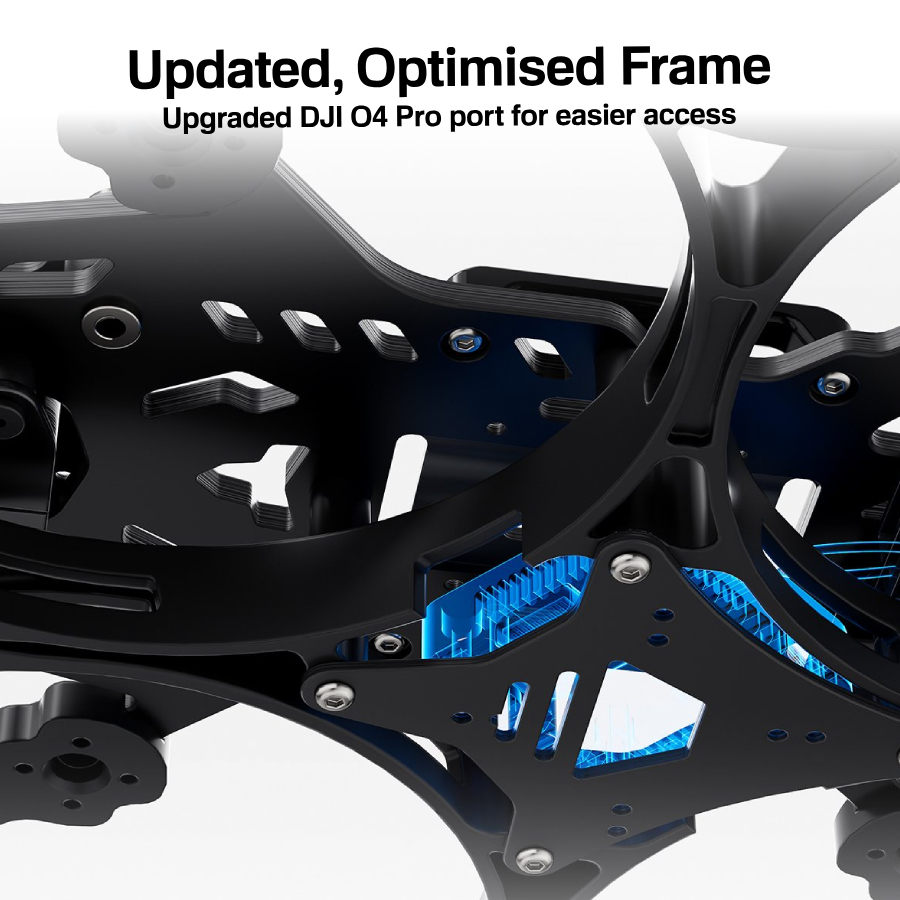

The GEP-CL35 V3 frame has been specifically remoulded to fit the O4 Pro module, allowing users to easily access the Type-C port for data transfer and conveniently insert or remove the memory card.

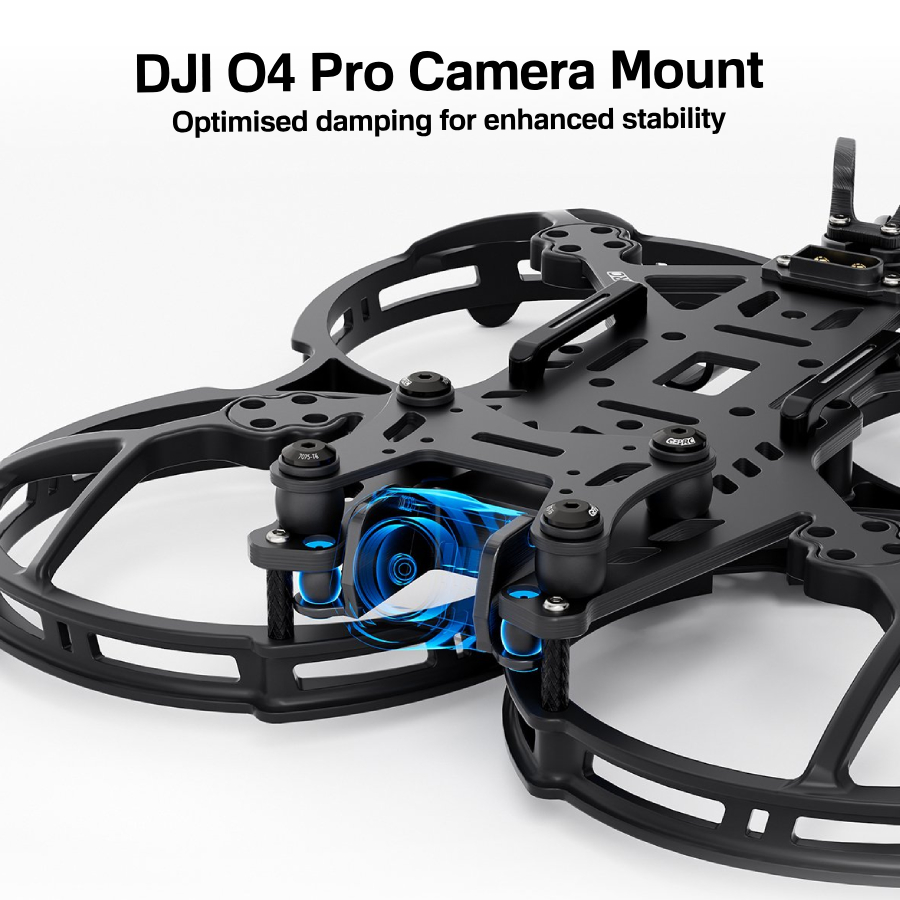

The frame utilises newly tuned damping balls, featuring improved damping ratios, effectively minimising the camera’s jello effect for clearer and more stable footage.
The GEP-CL35 V3 Frame is suited to cinematic FPV flying, smooth low-altitude cruising and controlled freestyle flight where prop protection and stable handling are top of your list.
Features:
- Reinforced injection-moulded propeller guards for increased durability
- Carbon fibre structure designed for improved rigidity and vibration resistance
- Compatible with the O4 Air Unit Pro HD digital transmission system.
- Compact internal layout providing flexible mounting options for FPV electronics
- Ducted design offers additional propeller protection
- Modular frame structure for easier maintenance and component replacement
- Bottom-mounted camera design connected via tuned damping balls for effective vibration isolation.
- Updated molds allowing easy Type-C access for data transfer and quick memory card insertion/removal.
- Designed with a GPS mount compatible with 22×22×8.2mm GPS units
Specification:
- Model: GEPRC GEP-CL35 V3 Frame
- Frame type: 3.5-inch cinewhoop

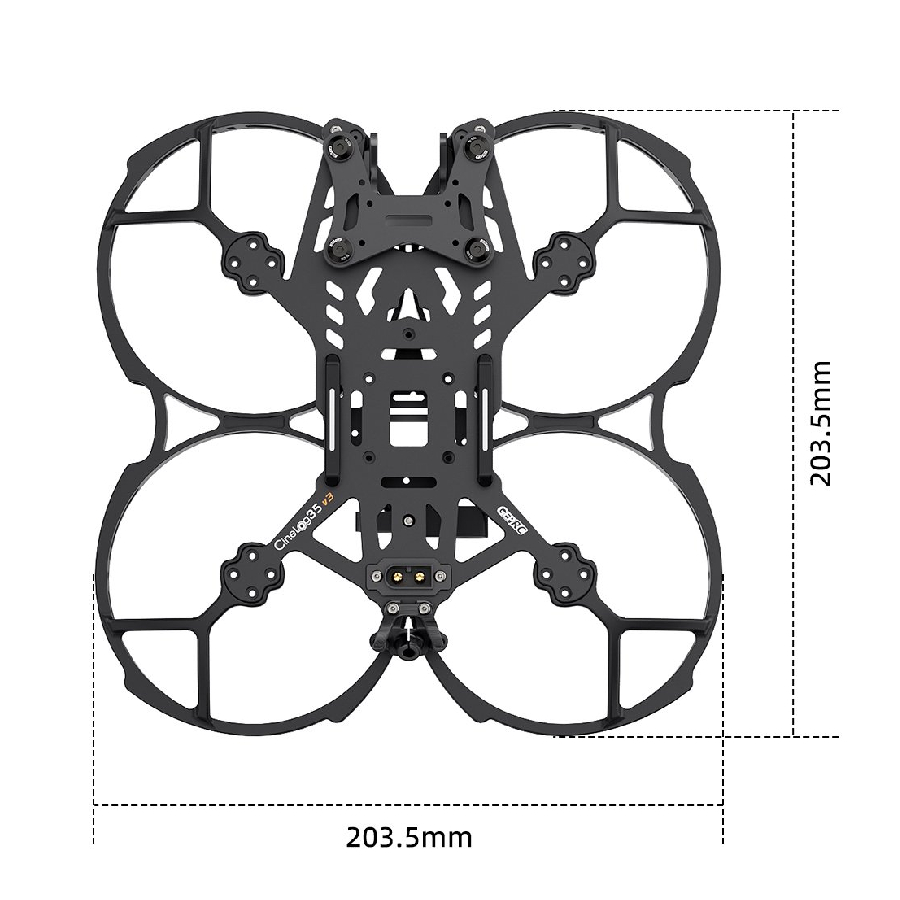

- Wheelbase: 142mm
- Gimbal Plate Thickness: 2mm
- Main Plate Thickness: 3.5mm
- Bottom Plate Thickness: 1.5mm
- FC Mounting: 25.5 × 25.5mm
- VTX Mounting: 20 × 20mm / 25.5 × 25.5mm
- Motor Mounting: 12 × 12mm
- Camera Mounting Width: 20mm
- Duct Inner Diameter: 95mm
- Prop Size: 3.5"
- Frame Weight: 126.8g
Included:

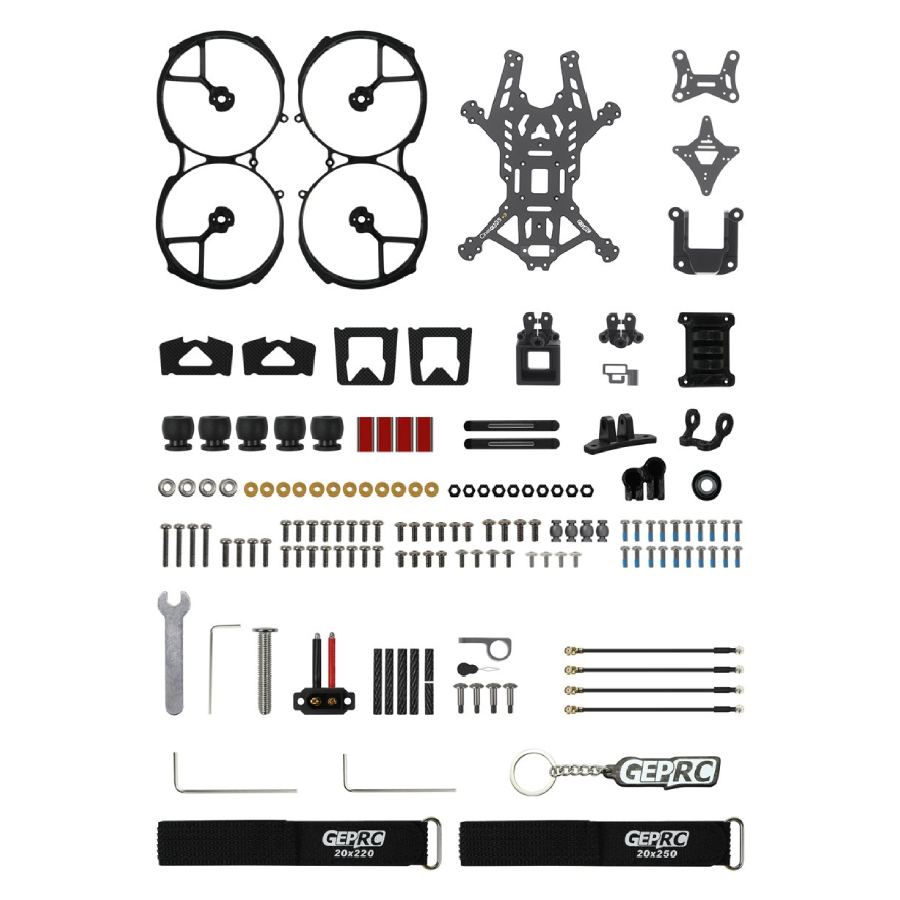

- 1x GEPRC GEP-CL35 V3 Frame Kit
