Overview:

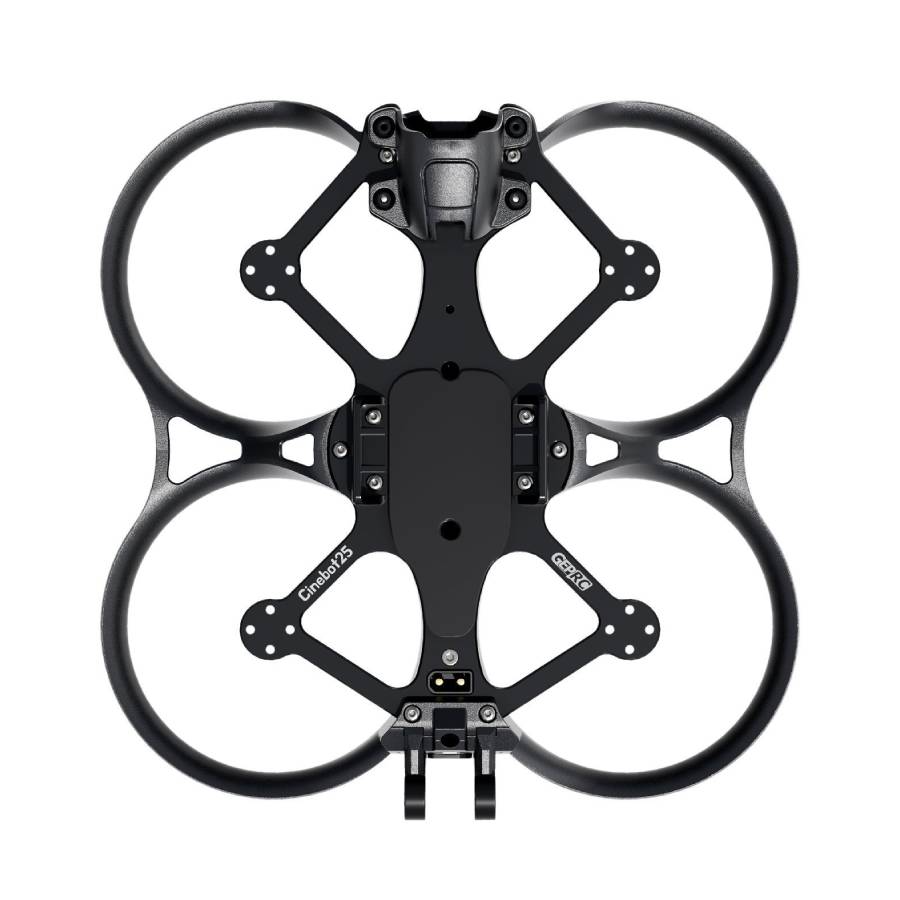

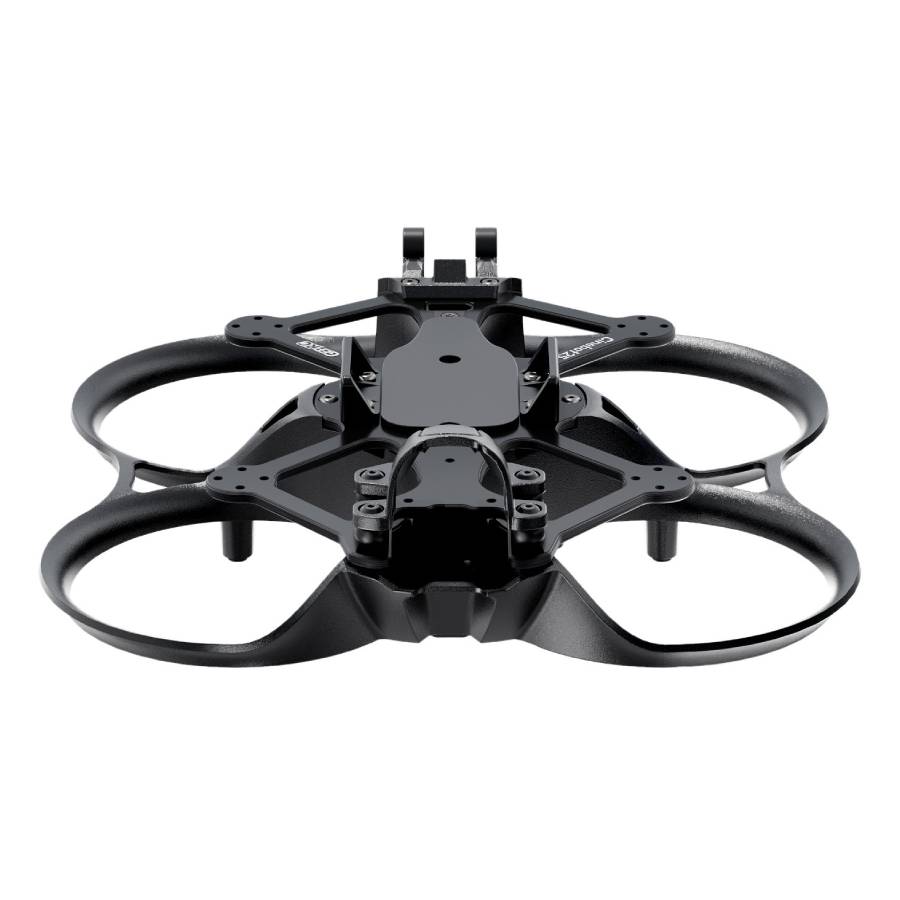

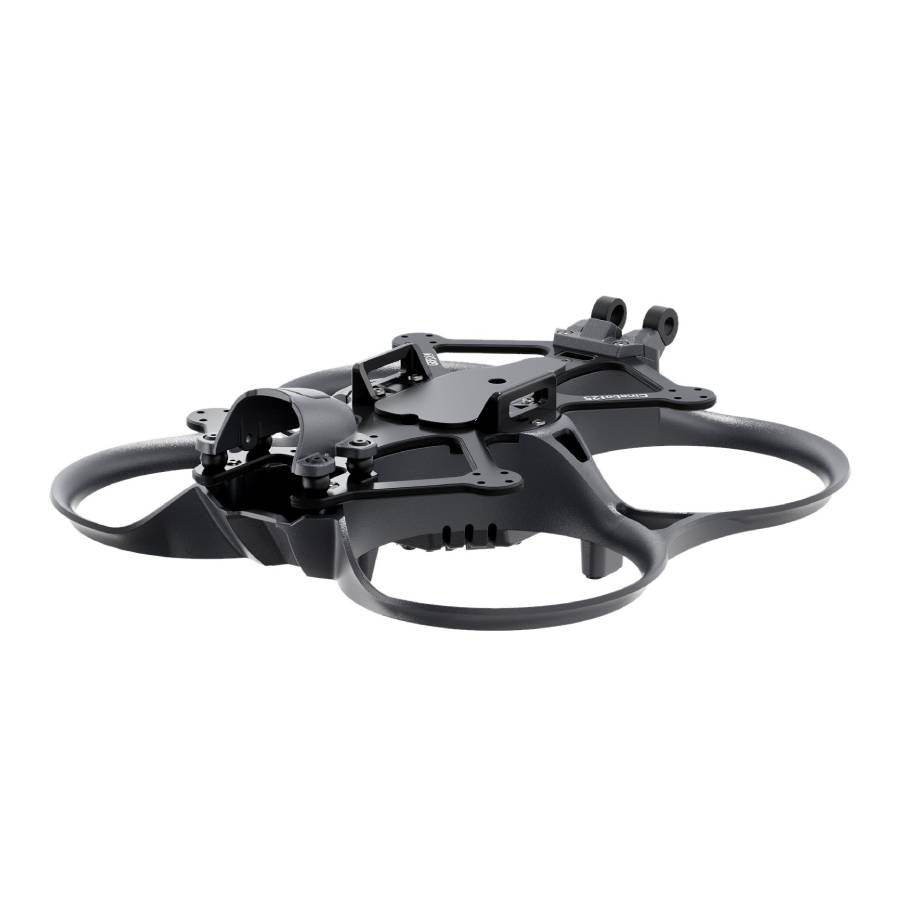

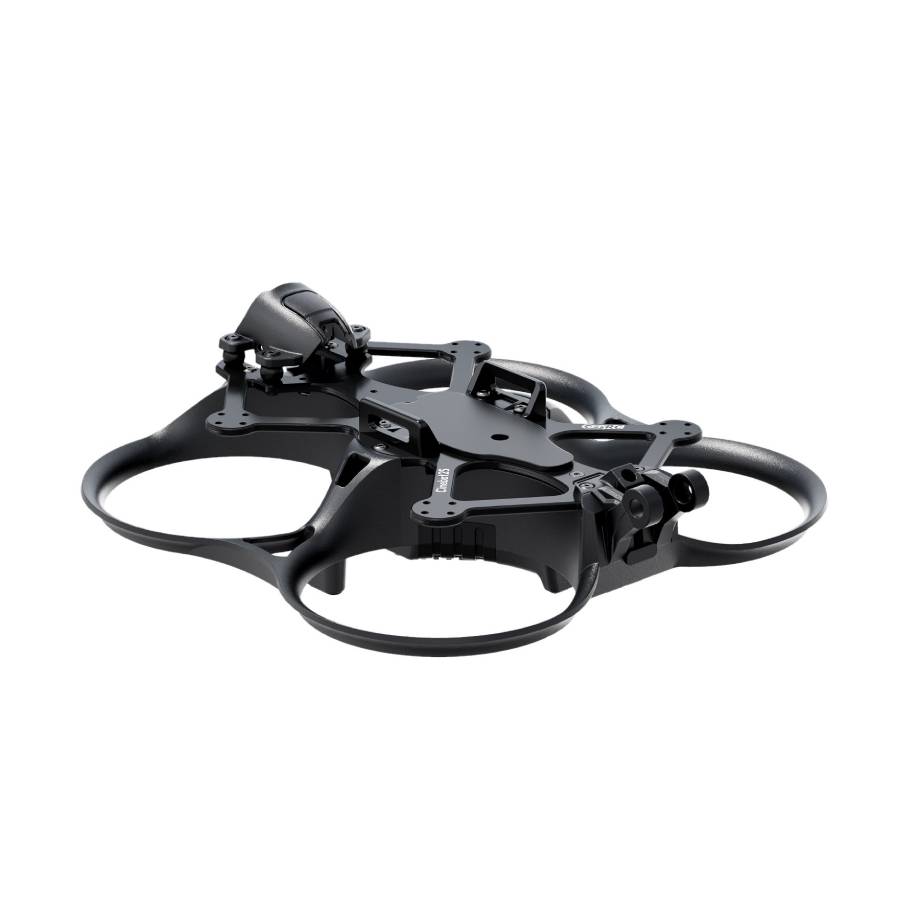

The GEPRC GEP-CT25 is a 2.5" cinewhoop frame is engineered for compact HD FPV builds. It uses injection-moulded protective components alongside high-quality carbon plates to balance rigidity with impact resistance.
The frame is designed for internal VTX installation, allowing direct access to memory and USB ports without disassembly. A silicone T-shaped antenna holder keeps the receiver antenna secure and optimally positioned.
Battery mounting is achieved with aluminium standoffs and straps, ensuring strong retention even during aggressive manoeuvres. The frame is designed to support O3 and similar digital VTX systems with ease.
Features:
- Injection-moulded protective components that blend with carbon structure to absorb impacts
- Internal VTX mounting for easy access to SD card and USB without disassembling the frame
- Silicone T-shaped antenna holder provides stable antenna orientation and protection
- Aluminium posts and battery straps secure lithium packs firmly to the top plate
- Boot button access at rear mount makes firmware updates and parameter changes easier
- Quick-release design for easier maintenance and quicker access to internals
Specification:
- Model: GEPRC GEP-CT25 Frame Kit (GP106313)
- Wheelbase: 115mm
- Mid carbon plate thickness: 2.5mm
- FC mounting holes: 25.5×25.5mm
- VTX mounting holes: 20×20 and 25×25mm
- Motor mounting holes: 9×9mm
- Camera size compatibility: 19mm/20mm
- Power connector: XT30
- Recommended propellers: 2.5"
- Frame weight: ~87g
- Colour: Grey
Included:
- 1x GEPRC GEP-CT25 Frame Kit
