Overview:

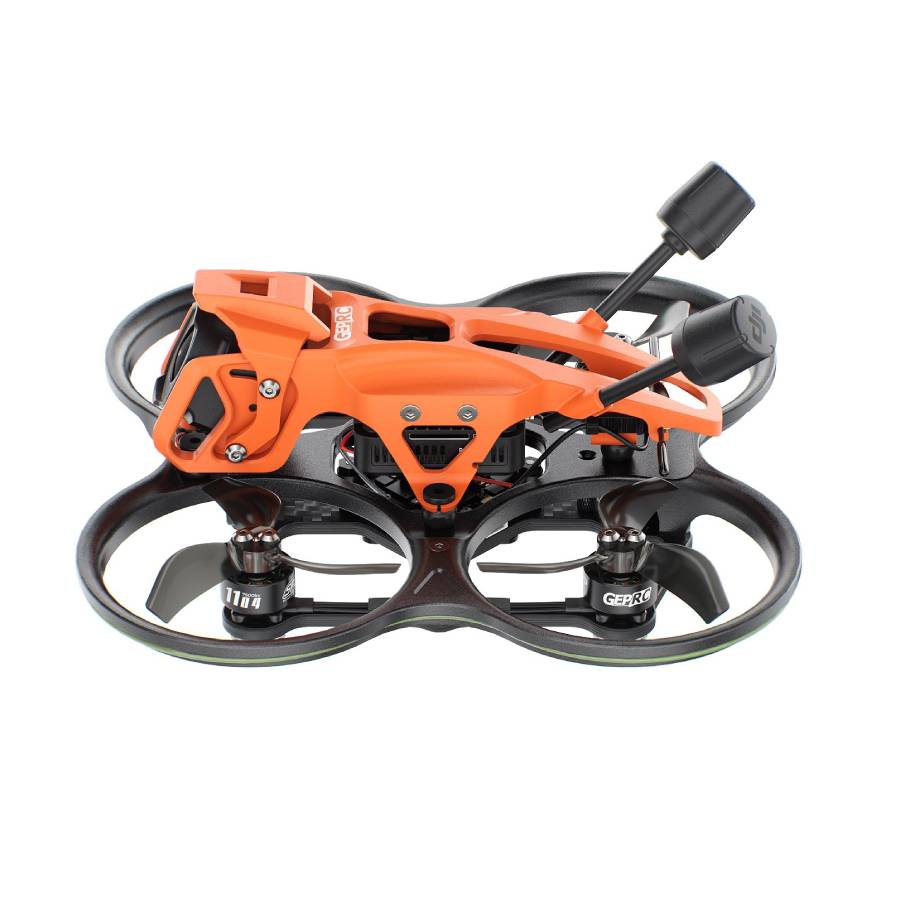

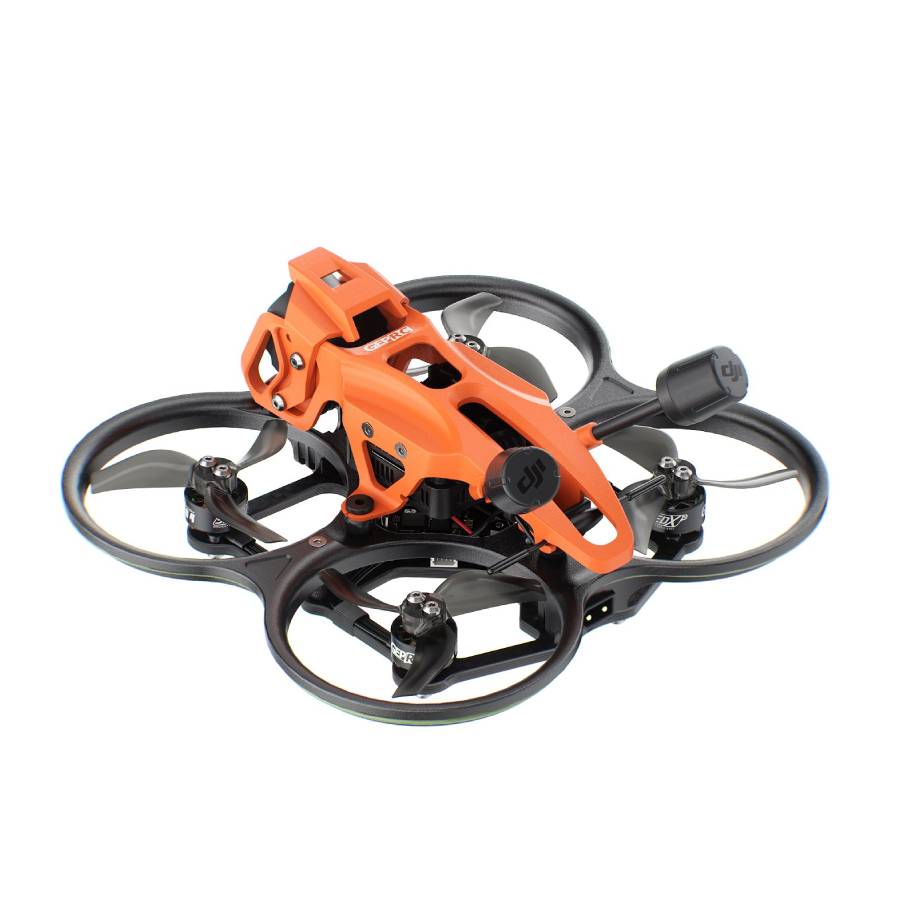

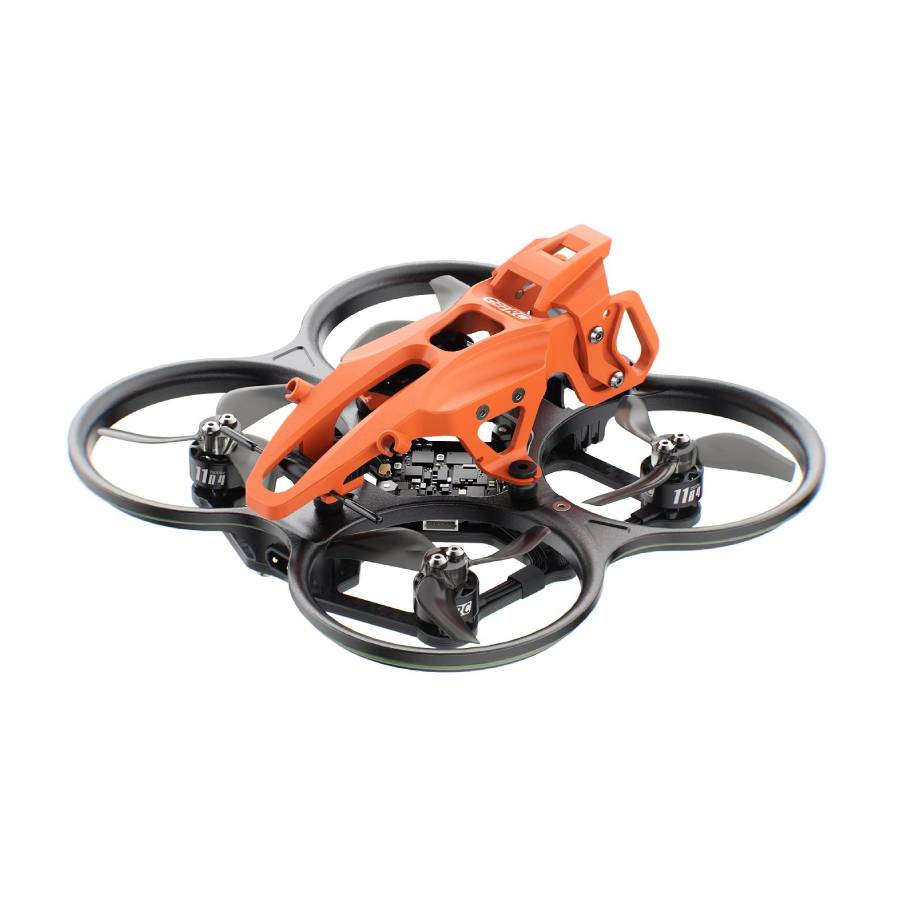

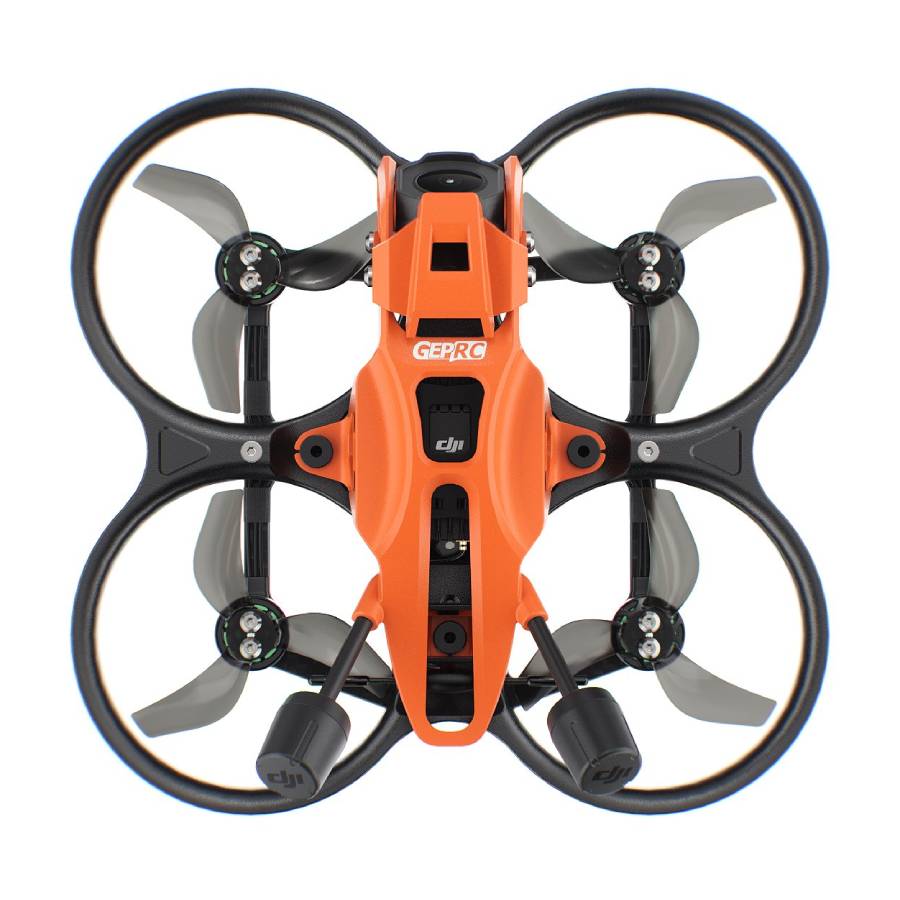

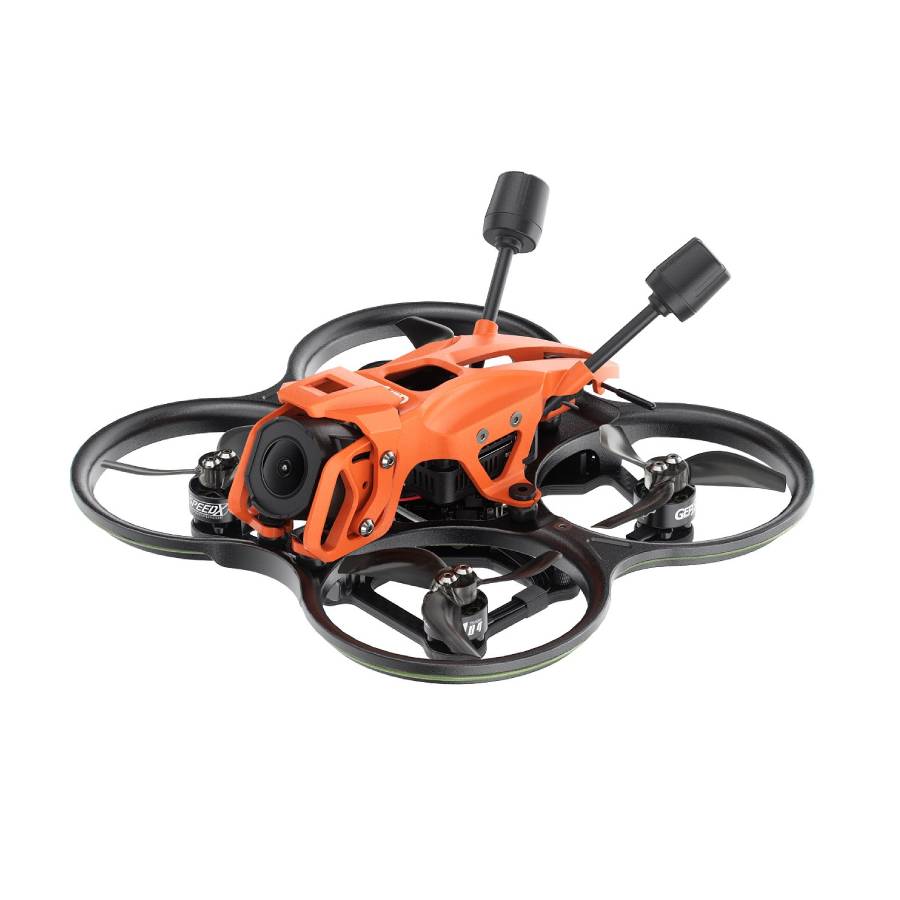

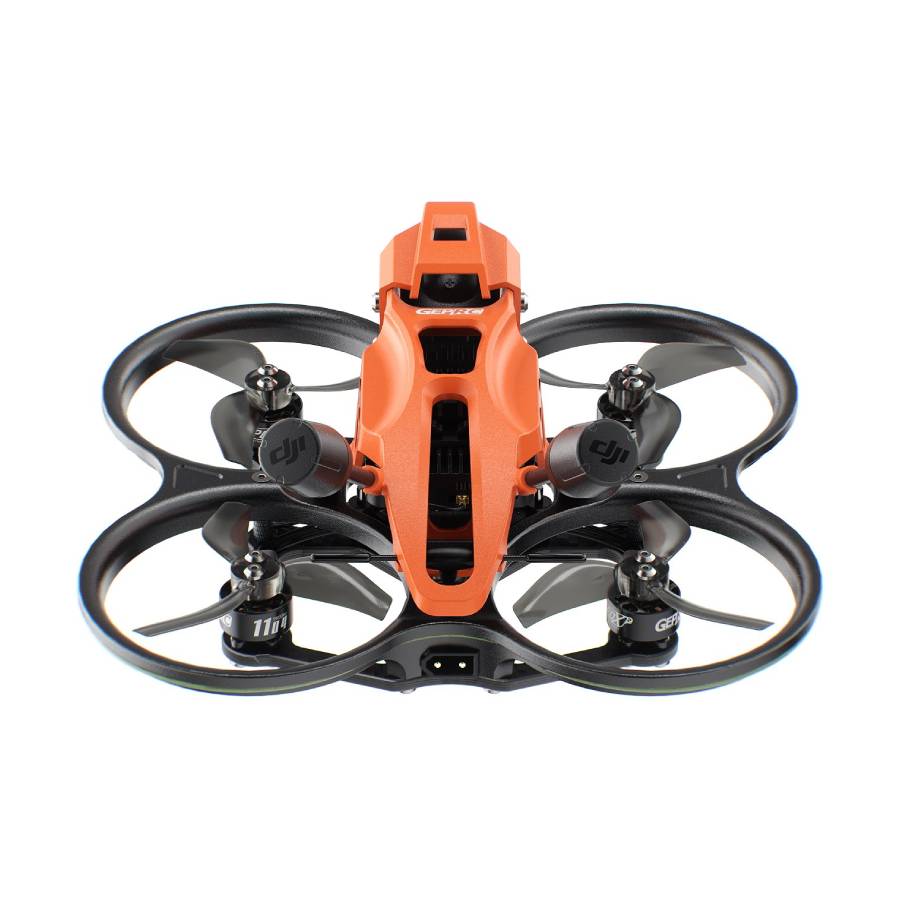

The GEPRC DarkStar22 O4 Pro is a compact cinewhoop drone designed for pilots who want high-quality digital video alongside agile, controlled flight. Depedning on your chosen model, it will either come fitted with a DJI O4 Air Unit Pro or you can fit your own. The DJI O4 Pro can provide superior HD video quality and onboard recording up to 4K 120fps for the ultimate cinewhoop FPV view.
The robust 100mm frame is fitted with SPEEDX2 1104 7500KV motors, paired with newly designed high-efficiency 2219 props, to deliver a strong punch while maintaining an excellent balance of power and endurance for a top flight experience tuned by GEPRC.
It features the latest TAKER F405 20A 2-4S AIO flight controller with an integrated ELRS 2.4GHz receiver, eliminating the need for an additional RX and ensuring compatibility with all mainstream ELRS protocol radios.
The protective canopy and prop guards improve durability, making it suitable for extreme indoor/outdoor flying where smooth, stable footage matters.
Features:
- Five-point floating damping system to reduce vibration reaching the O4 Air Unit Pro camera module.
- Reinforced canopy and prop guards offer impact protection for the camera, electronics and props.
- Compact frame design disassembles with just four screws for straightforward maintenance.
- Controllable LED strip powered via a mini BEC adds visibility and customisation.
- Reserved mounting space for a mini GPS module provides room for navigation add-ons.
Specification:
- Model: GEPRC DarkStar22 O4 Pro
- Frame: GEP-DS22
- Main carbon plate thickness: 2.5mm
- Wheelbase: 100mm
- Flight controller: TAKER F405 20A ELRS2.4 2-4S AIO with STM32F405 MCU
- Gyro sensor: ICM42688-P
- Firmware: GEPRC TAKER F405 AIO with 16MB flash
- ESC: 8-bit 20A
- Motors: SPEEDX2 1104 7500KV
- Props: GEMFAN GP2219-3
- Power connector: XT30
- Video transmitter (on selected models): DJI O4 Air Unit Pro
- Camera (on selected models): DJI O4 Air Unit Pro module
- Receiver options (dependent on model chosen): PNP, (O4 Pro built-in RX), or ELRS 2.4G
- Weight: 126.8g
- Battery holder: Velcro strap with buckle
- Recommended batteries (see 'Related Products' below): LiHV 3S 550-720mAh
- Manufacturer's typical flight time using a 720mAh battery flying at a smooth cruise: ~6min 45s
Available versions (see below for purchase options):

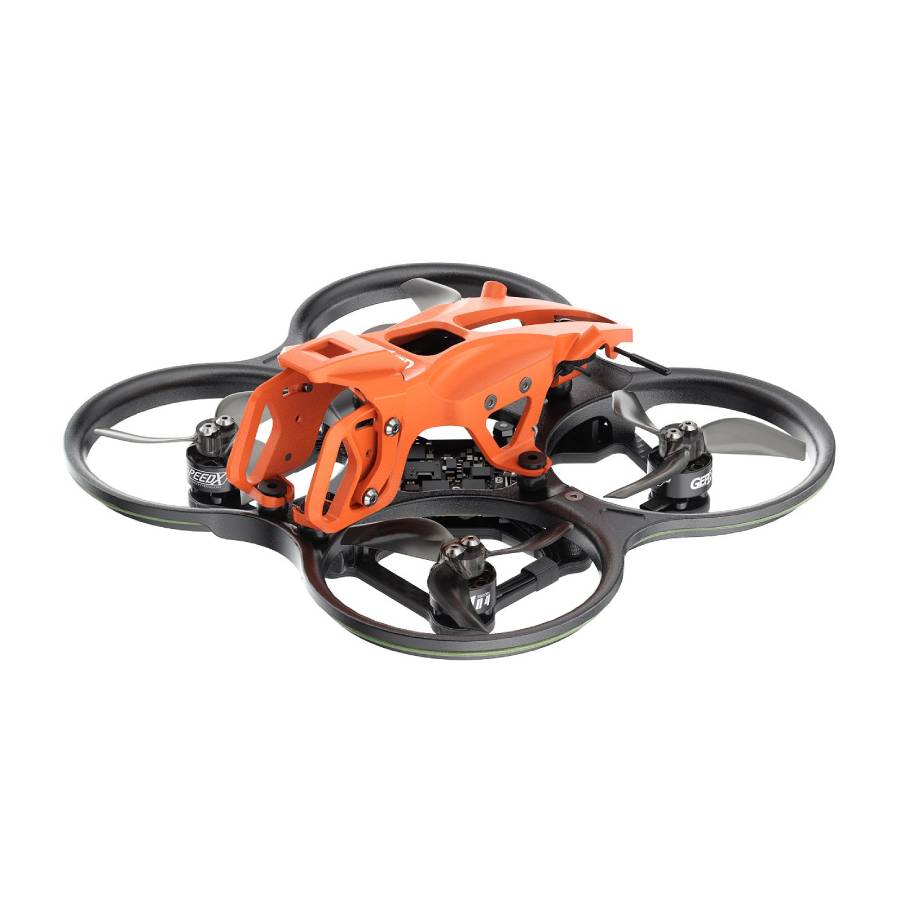

- GEPRC DarkStar22 WTFPV PNP (No O4 Pro fitted) GP107984
- GEPRC DarkStar22 WTFPV ELRS (No O4 Pro fitted, but antenna is fitted for ELRS) GP107985
- GEPRC DarkStar22 O4 Pro PNP (O4 Pro fitted) GP107981
- GEPRC DarkStar22 O4 Pro ELRS (O4 Pro & ELRS Antenna fitted) GP107982
Included:
- 1x GEPRC DarkStar22
- Accessories
