Overview:

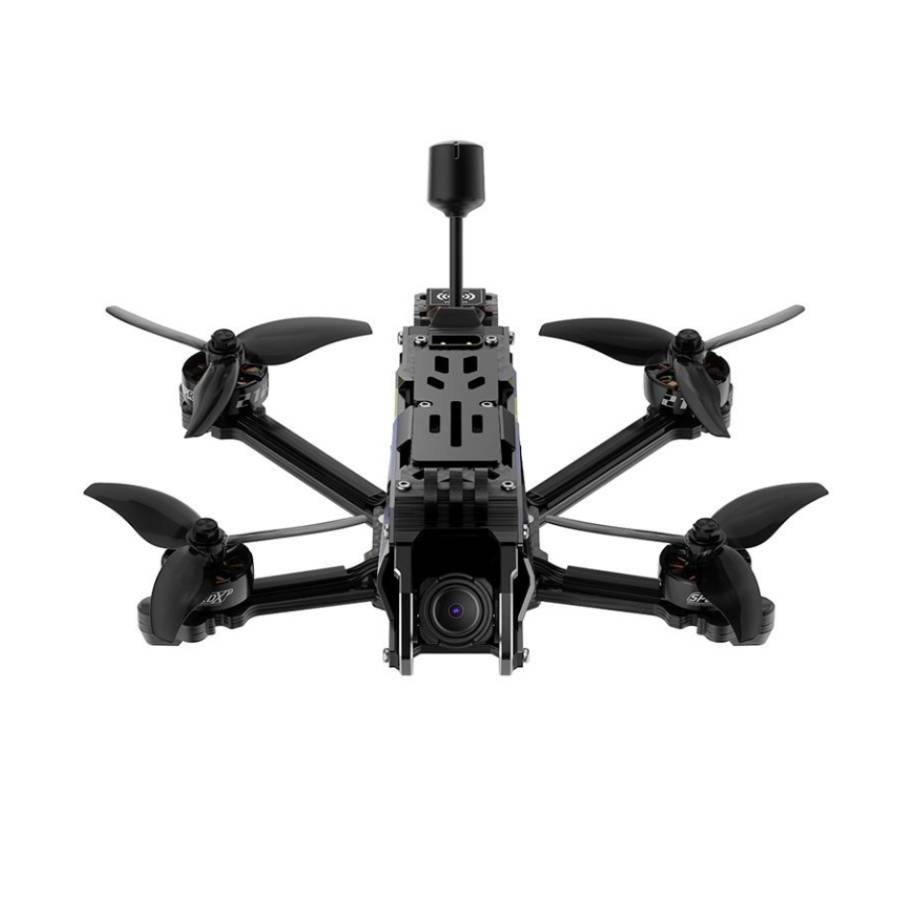

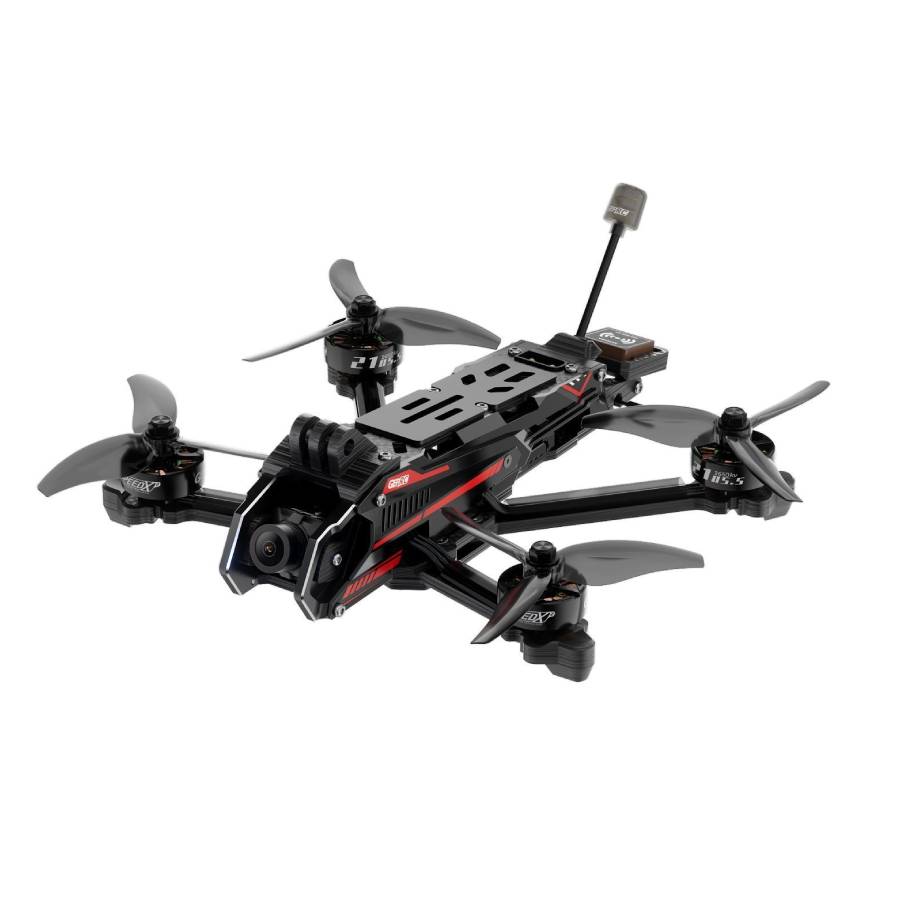

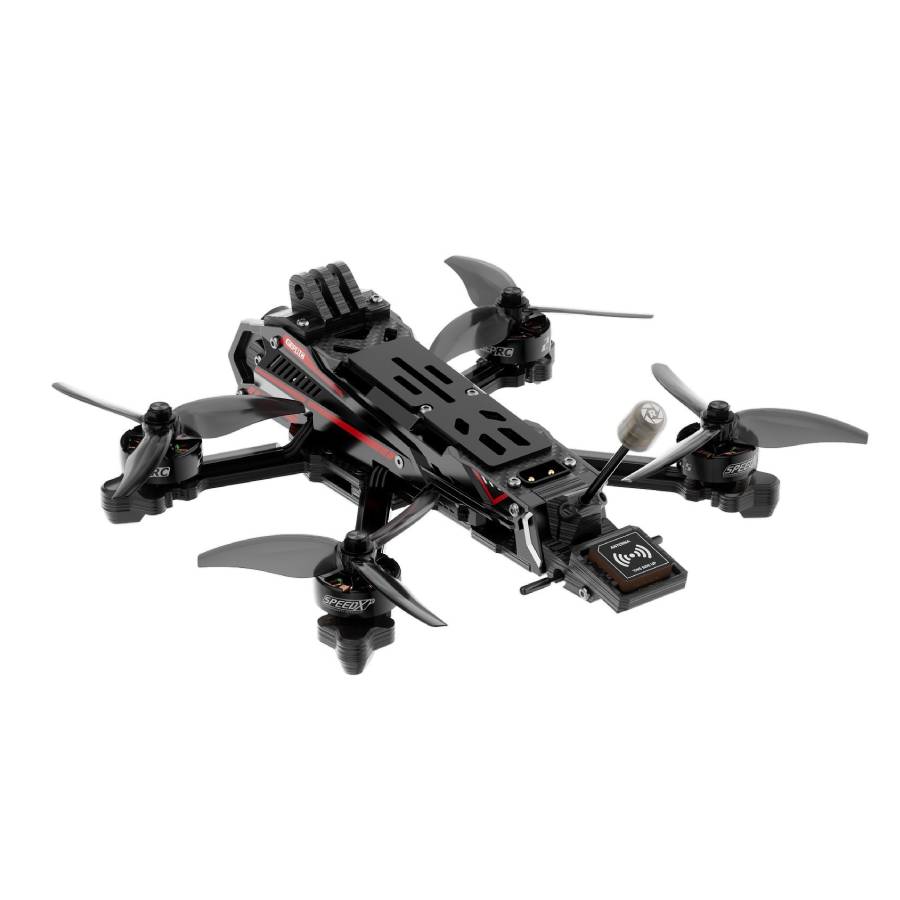

The GEPRC DoMain is GEPRC’s new generation of consumer Freestyle FPV drone, It brings pilots the GEPRC team’s comprehensive technical evolution, as well as a deep comprehension of the Freestyle quadcopters , DoMain is made for the dream Freestyle FPV drone what we’ve been looking for. This version is the 3.6" inch version.
Features:
- Unique structure design,Increase the stability of the frame structure.
- The new side panel design is integrated, supporting DIY side panel decals.Higher creativity and diversity.
- Equipped with sufficient power, it can complete difficult freestyle flight.
- Support full-size GOPRO or naked GOPRO on itself, Shooting all perfect footages in the view
- DC structure design, the frame looks neat and compact.The extraordinary high integration, Without Prop in the view, showing you a pure picture.
- Optionally available with M-10 GPS to ensure the safety of every flight with rescue mode.
- Customisable side plate with different designs included.
Specifications:
- Product name: 3.6DoMain
- Frame：GEP-DoMain
- Wheelbase：170mm
- Roof thickness：2mm
- Base plate thickness: 2.5mm
- Arm thickness:4.0mm
- Midplate thickness：3mm
- FC：TAKER F722 SE
- ESC：TAKER E55A 32Bit 4IN1
- MCU： STM32F722RET6
- Gyro: MPU6000
- OSD：AT7456E
- VTX：O3 Air Unit
- Camera：O3 camera
- Antenna：5.8G&2.4G
- Motor：SPEEDX2 2105.5 2650KV
- Propellers: GEMFAN 3630 – 3
- Weight: 295g ±5g
- Receiver：PNP/ELRS (See below for available optons)
- Recommend battery：Lipo 6S 1050-1300mah
- Connector:XT60
Available Models (See below for purchase options):
- GEPRC DoMain3.6 Freestyle FPV HD DJI O3 (PNP)
- GEPRC DoMain3.6 Freestyle FPV HD DJI O3 (ELRS)
- GEPRC DoMain3.6 Freestyle FPV HD DJI O3 (ELRS with GPS)
* PNP - Version is compatible with the DJI FPV Controller V2 OR provide your own receiver for compatiblity with FrSky/TBS Crossfire etc
* ELRS - Version is compatible with ELRS V3+. The receiver is a UART type so updating firmware is easier.
Includes:
- GEPRC DoMain3.6 Freestyle FPV HD O3 (See available versions below)
- Accessories
