Overview:
The GEPRC GEP-DS20 is a lightweight 2-inch cinewhoop frame engineered for cinematic HD FPV builds. It features a robust injection-moulded body reinforced with a triangular support structure for rigidity. The frame is designed with modular components and accommodates DJI O3 Air Unit, Link systems, or analog VTX configurations. It also includes a frame-type battery compartment for easy battery installation and removal.
Features:
- Fully injection-moulded body with multidirectional triangular support structure for enhanced durability
- Modular parts allow for easier assembly, maintenance, and repairs
- Antenna shield and mounting designed to be both functional and aesthetically integrated
- Frame supports DJI O3, Link, and analog video systems
- Battery compartment built into the frame for simplified battery swapping
Specification:
- Model: GEP-DS20 Frame
- Dimension: 126×126×57mm
- Wheelbase: 90mm
- FC mount pattern: 25.5×25.5mm
- VTX mount options: 20×20mm and 25.5×25.5mm
- Motor mount holes: 3×M1.4 through 6.6mm
- Camera supports: 19mm/20mm type
- Battery slot width: 17.3×13.5mm
- Propeller: 2-inch
- Weight: 26g
Available versions (see below for purchase options):

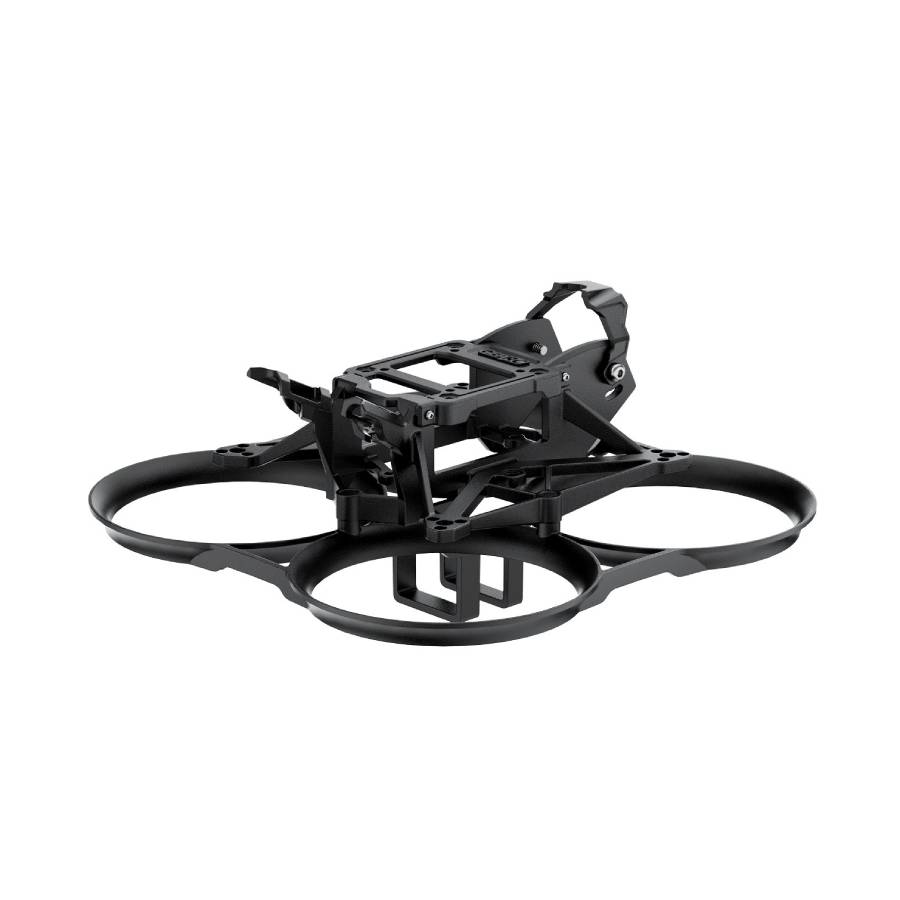

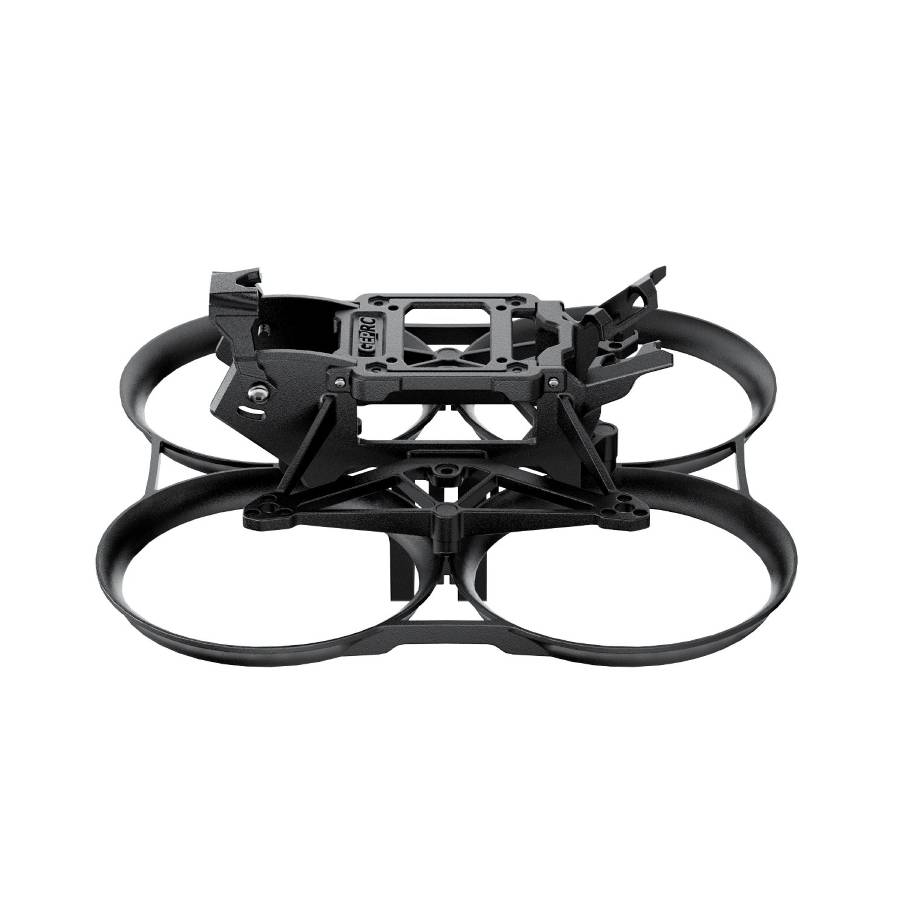

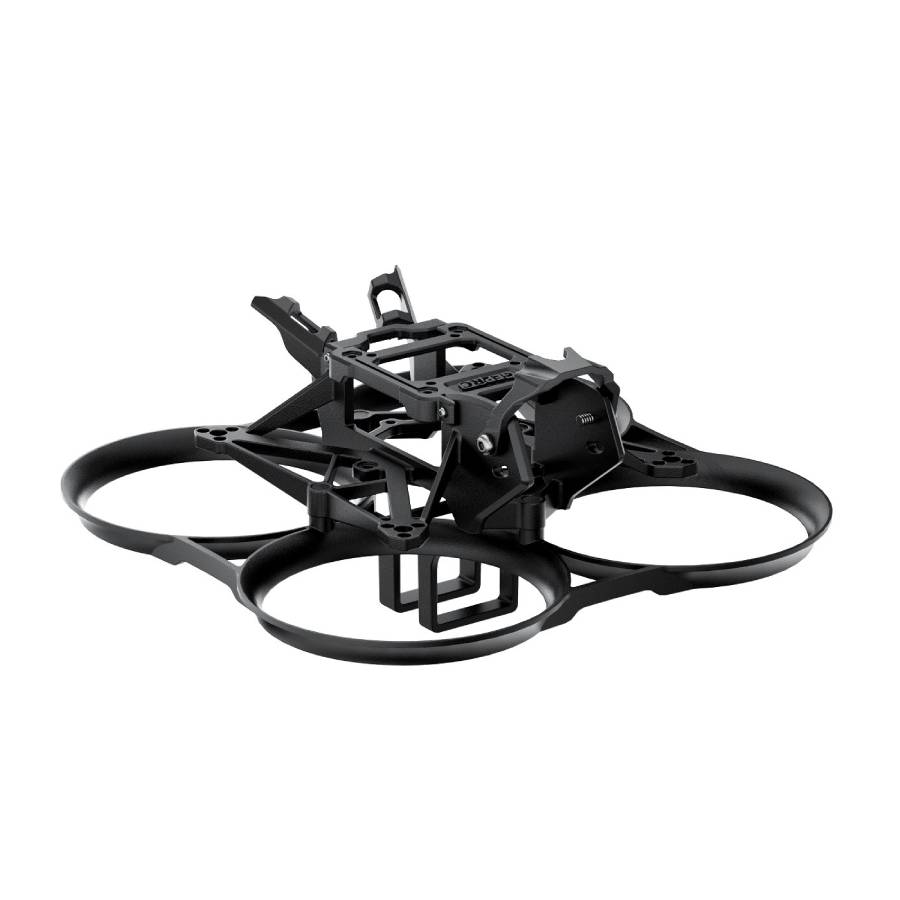

- GEPRC GEP-DS20 Frame Black (GP106066)

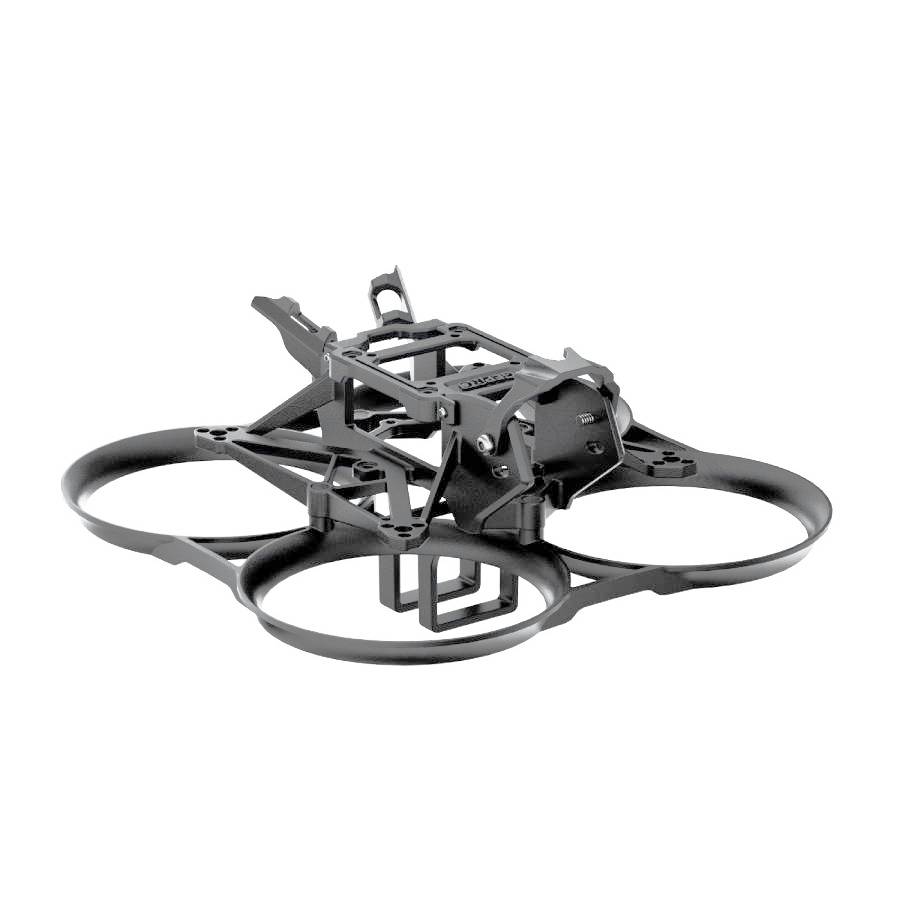

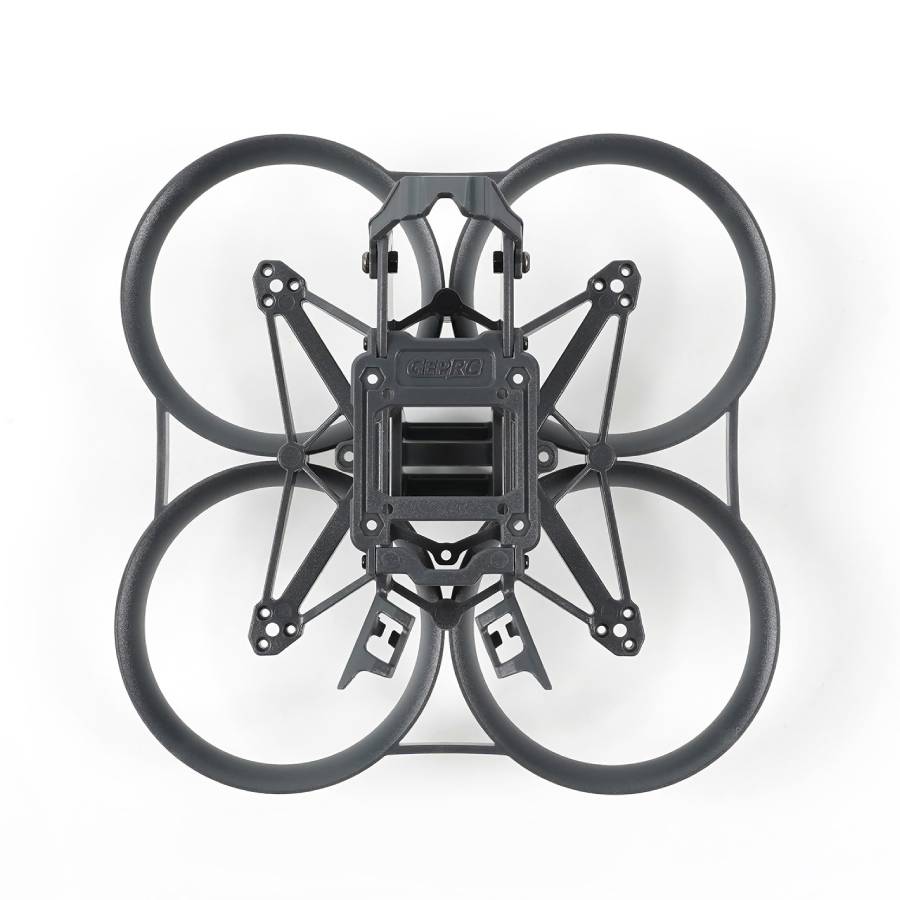

- GEPRC GEP-DS20 Frame Grey (GP106109)

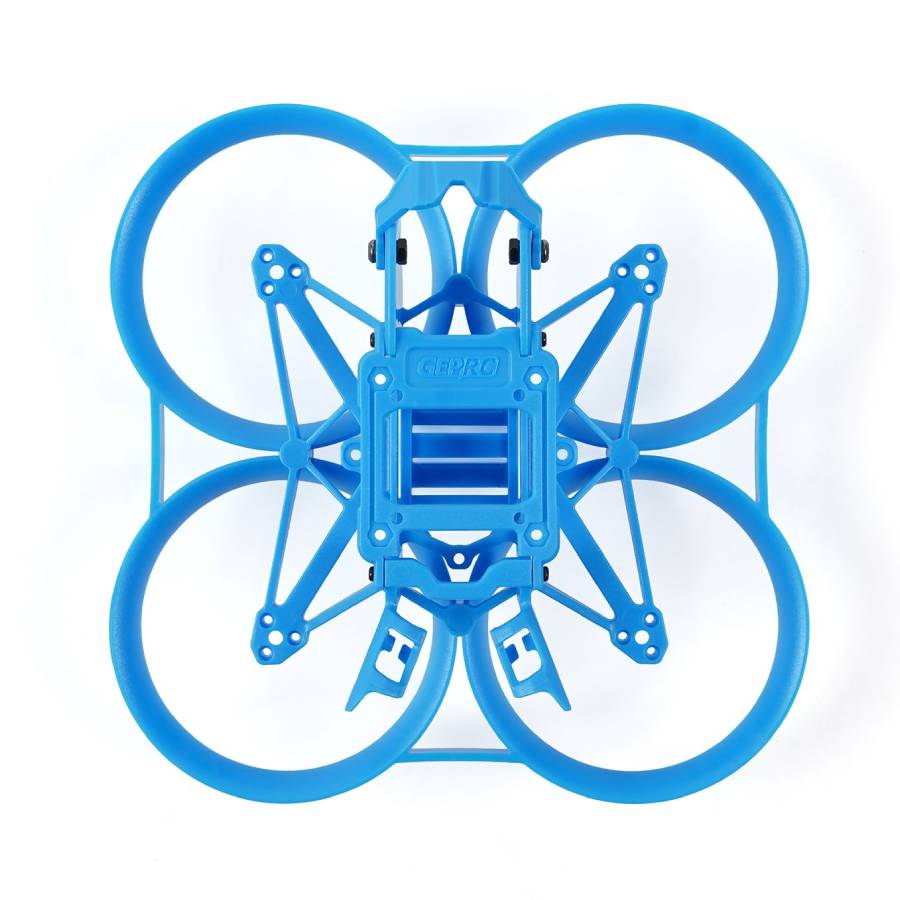

- GEPRC GEP-DS20 Frame Blue (GP106107)

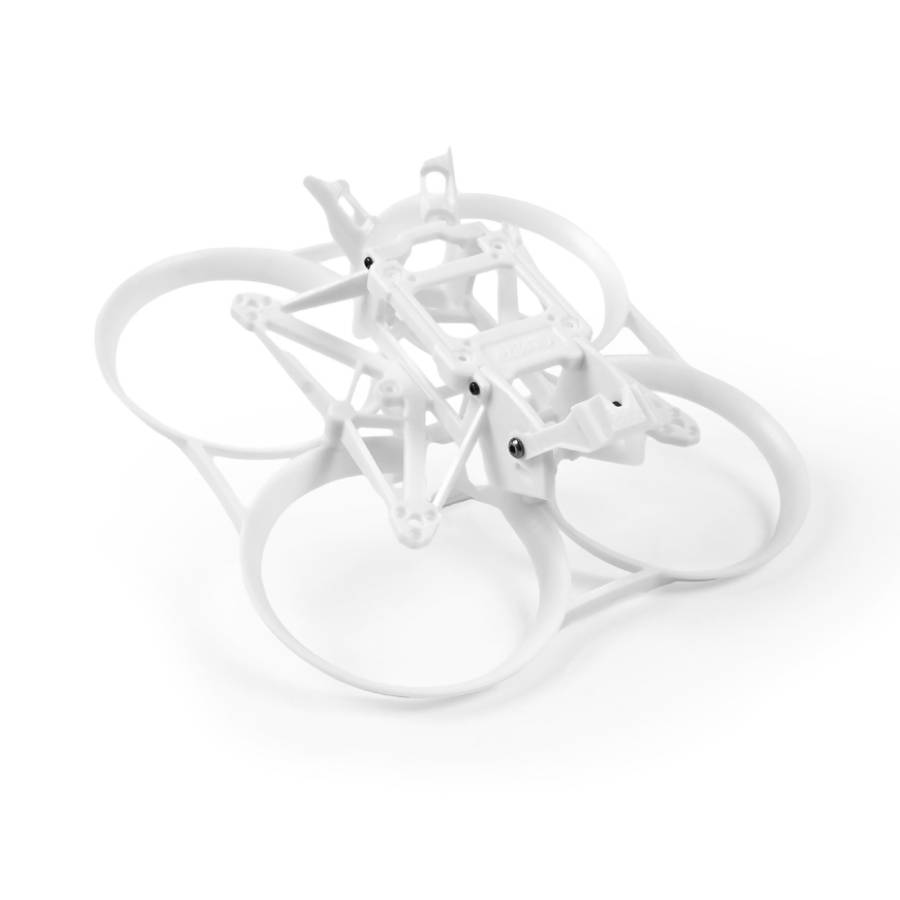

- GEPRC GEP-DS20 Frame White (GP106106)

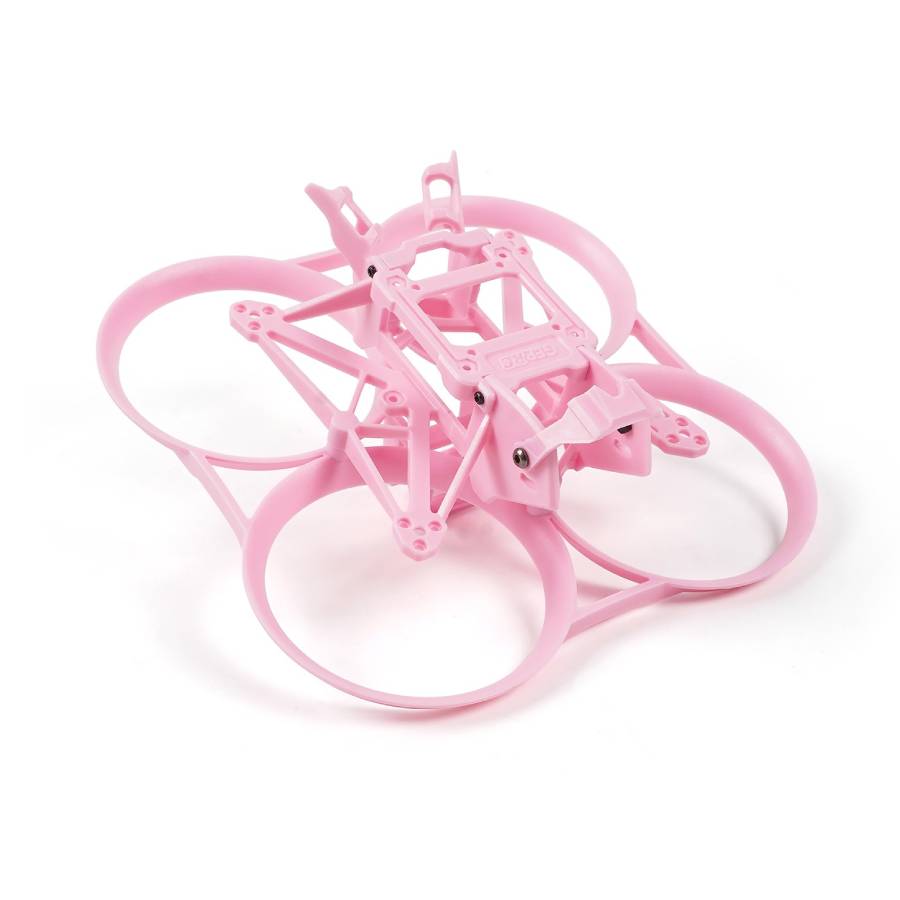

- GEPRC GEP-DS20 Frame Pink (GP106108)
Included:
- 1x GEPRC GEP-DS20 Frame
- Accessories
