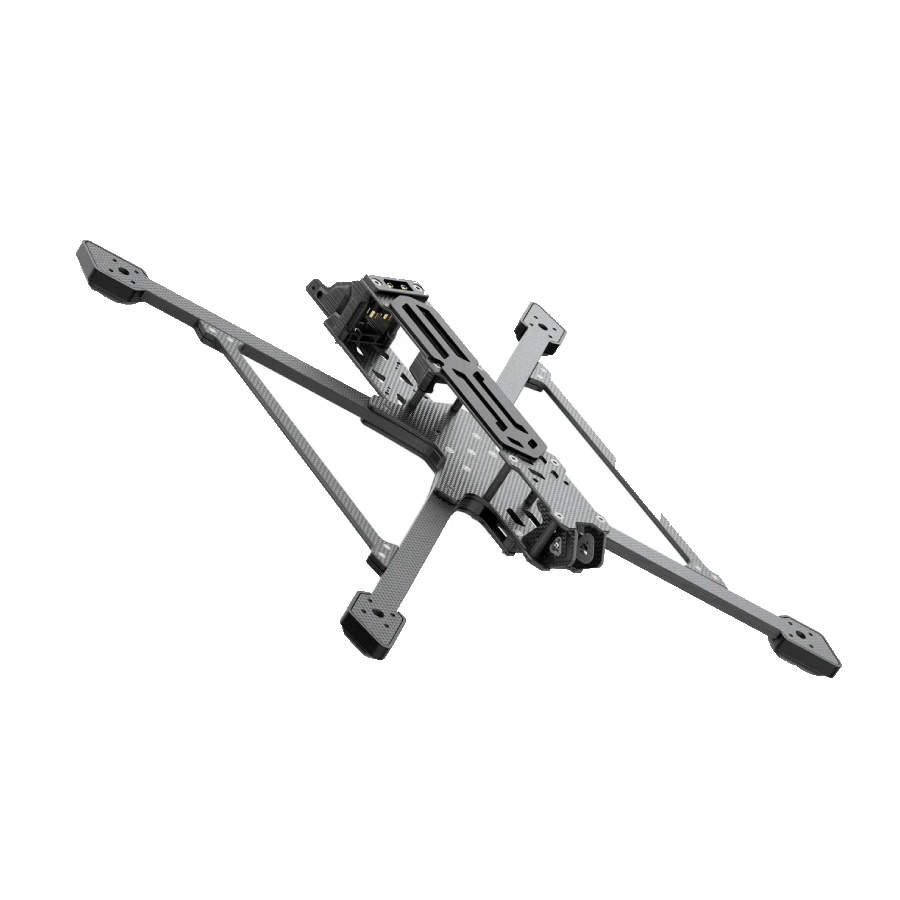

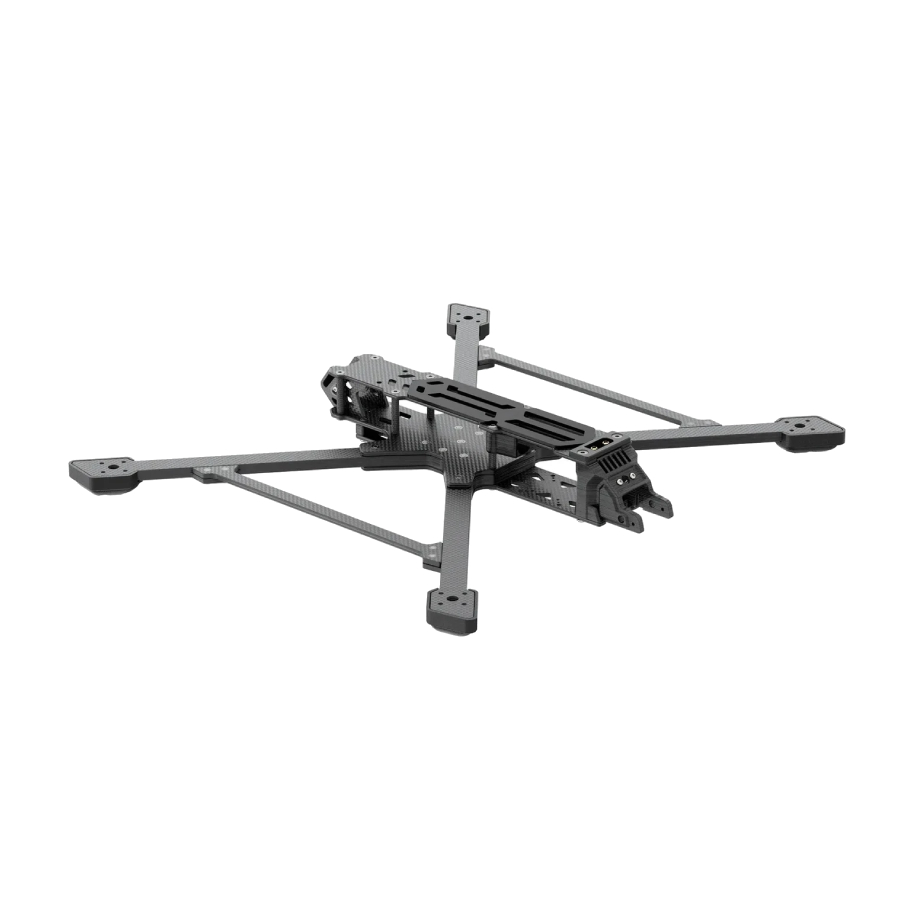

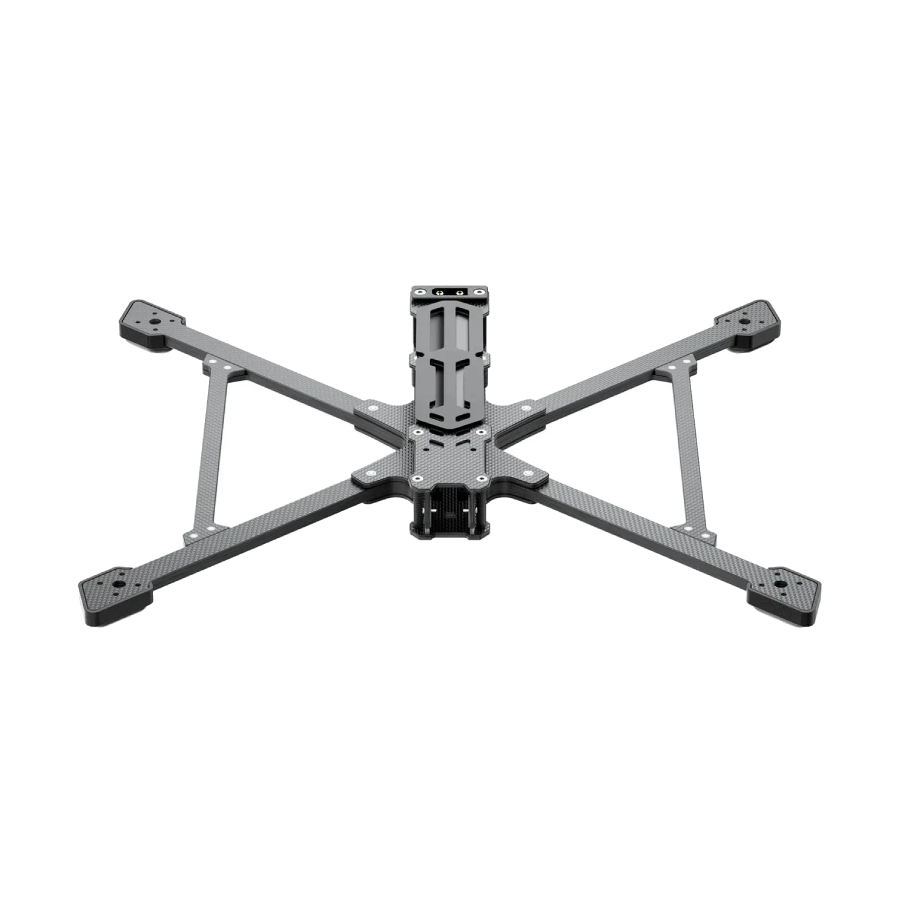

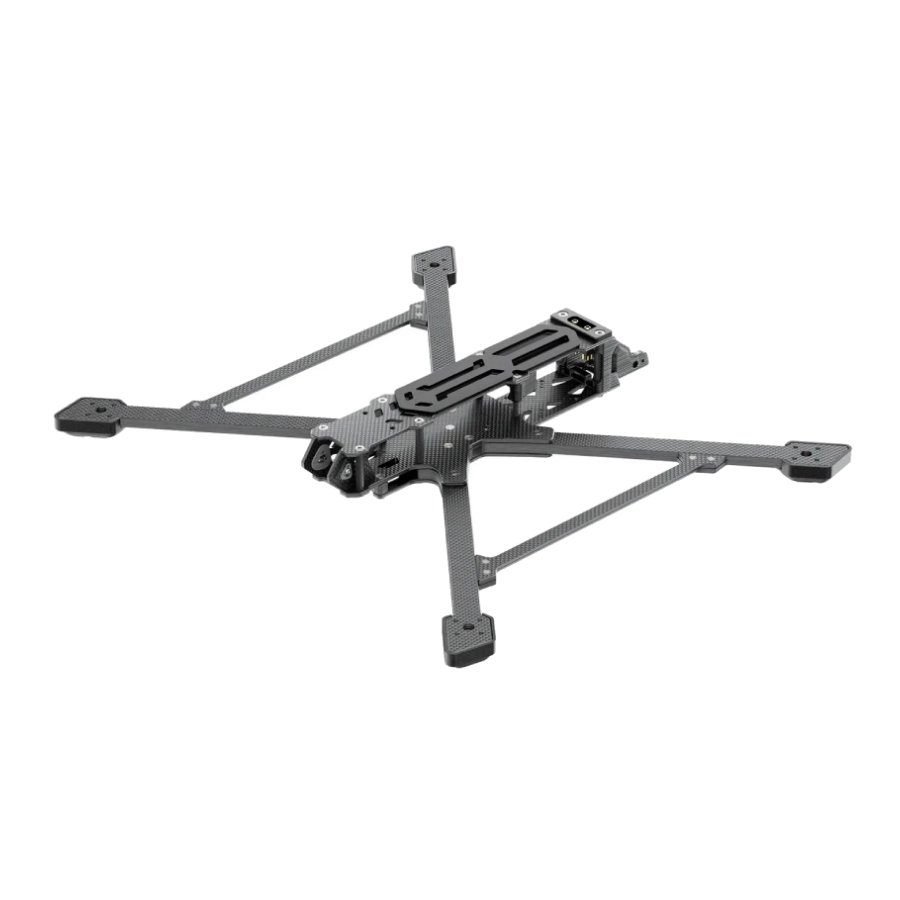

GEPRC EF10 10" Frame

Overview:
The GEPRC GEP-EF10 Frame Kit is a 10" class long-range frame designed for high-stability, heavy-lift capable drone builds. Built around a rigid wide X-shape layout, it prioritises structural strength and vibration resistance, making it suitable for efficient long-range cruising and loaded cinematic configurations where durability and consistent handling are essential.

The frame uses a reinforced carbon fibre architecture with oversized arm construction and additional stiffening elements to improve torsional rigidity under load. Its layout provides generous internal space for electronics.

Features:

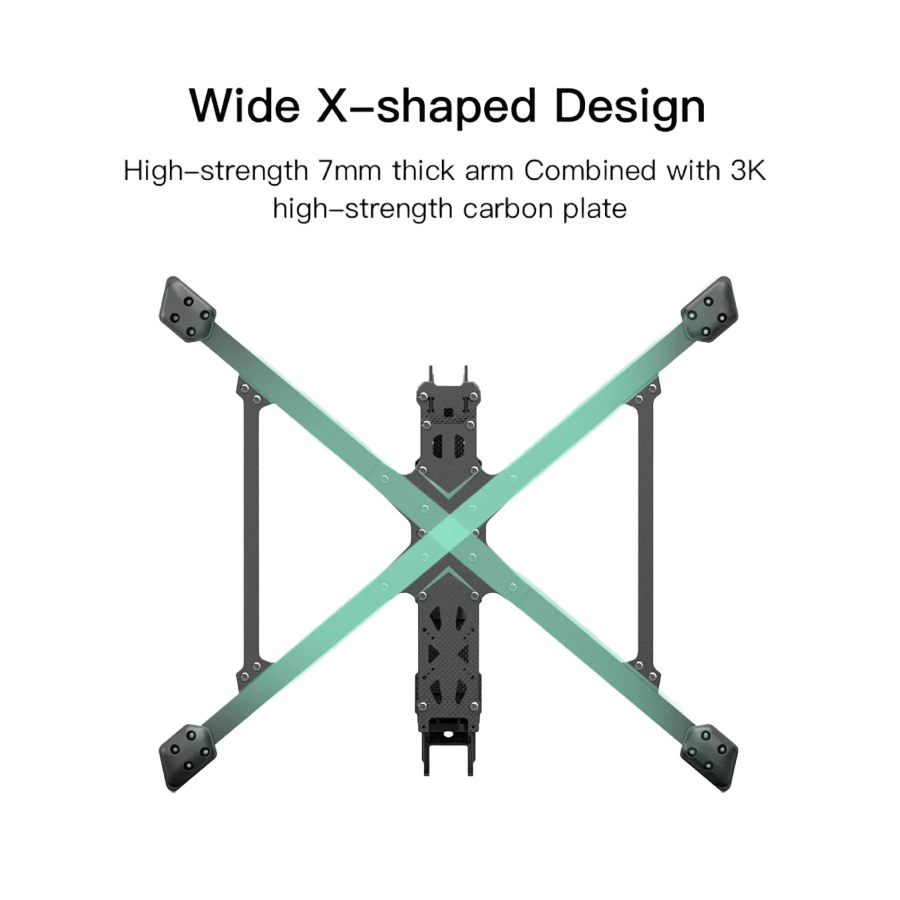

- Wide X-frame geometry for stable flight characteristics and predictable handling under load
- 7mm thick high-strength arms for improved rigidity and crash resistance
- Reinforced structure with 3.5mm arm stiffener bars to reduce flex during aggressive throttle inputs
- Multiple stack mounting standards supported, including 30.5x30.5mm, 25.5x25.5mm, and 20x20mm patterns
- Designed to support extended flight durations and heavy payload long-range builds

Specification:
- Model: GEPRC GEP-EF10 Frame Kit (GP106181)
- Frame type: Wide X-shape
- Motor-to-motor distance: 430mm
- Frame dimensions: 370x320mm
- Weight: 366g (without pads)
- Top plate thickness: 2mm
- Mid plate thickness: 3mm
- Base plate thickness: 3mm
- Side plate thickness: 2.5mm
- Arm thickness: 7mm
- Front stiffener plate thickness: 7mm
- Stack mounting pattern: 30.5x30.5mm M3
- VTX mounting pattern: 30.5x30.5mm M3, 25.5x25.5mm M2, 20x20mm M3
- Motor mounting pattern: 19x19mm M3
- Arm stiffener bar size: 19x19mm
- Camera side plate spacing: 35mm
- Stack mounting height: 25mm

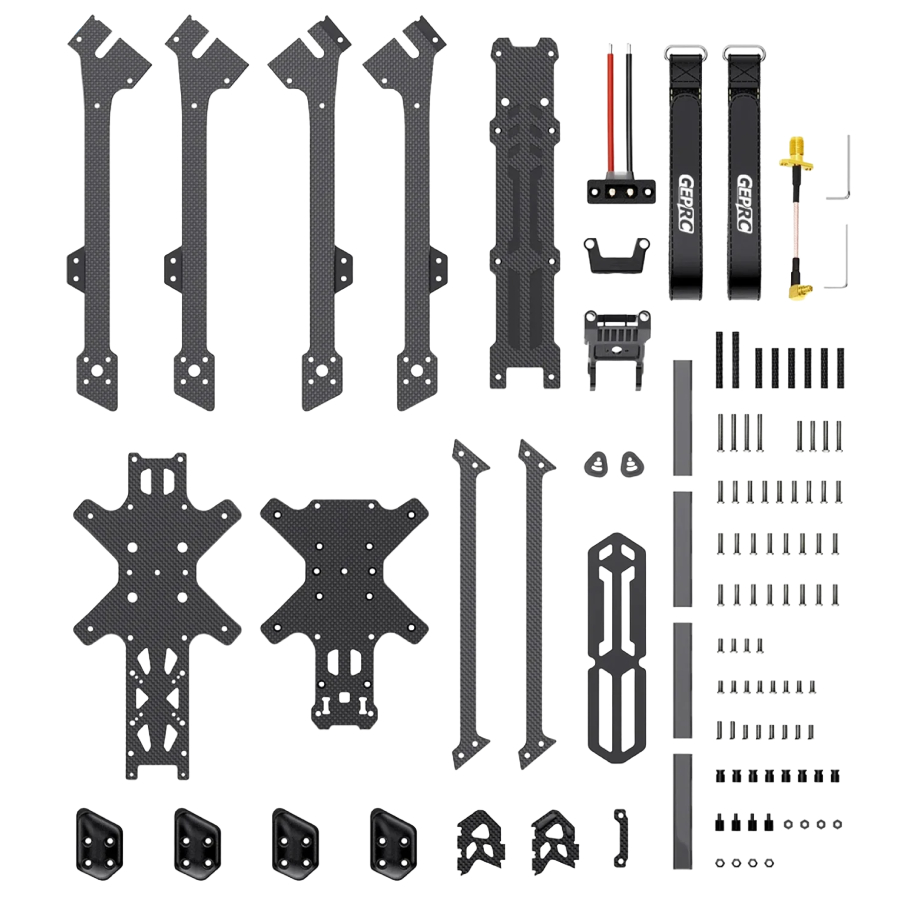

Included:
- 1x GEPRC GEP-EF10 Frame Kit
- Accessories
