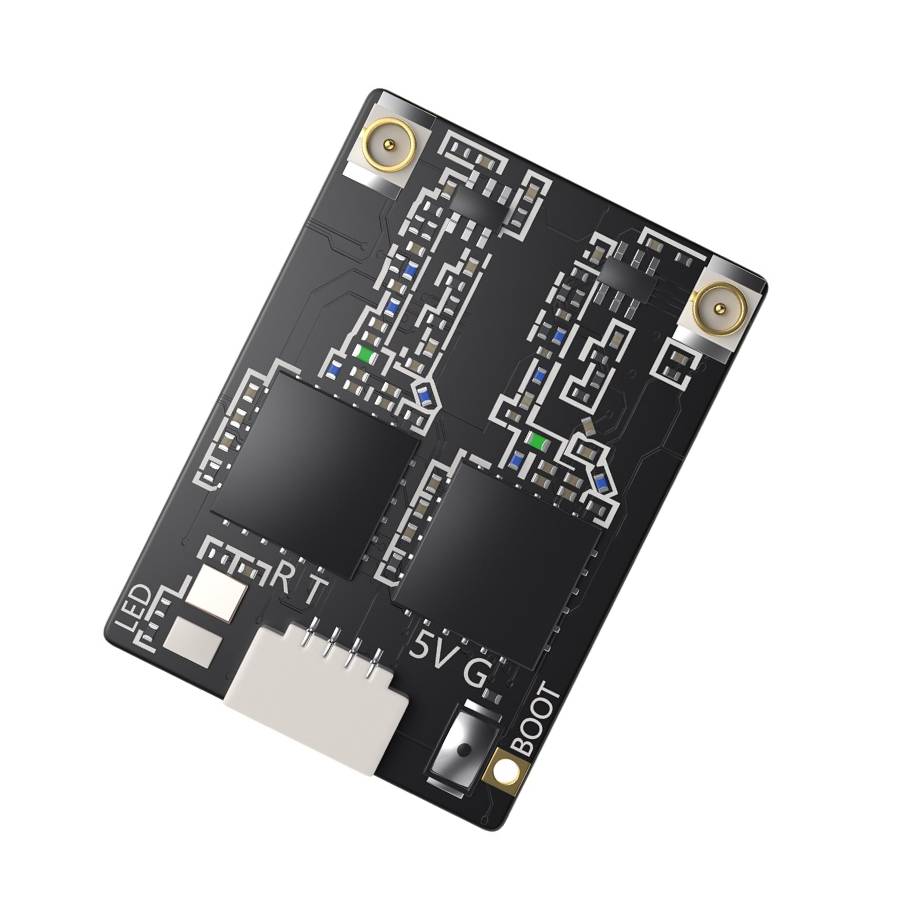

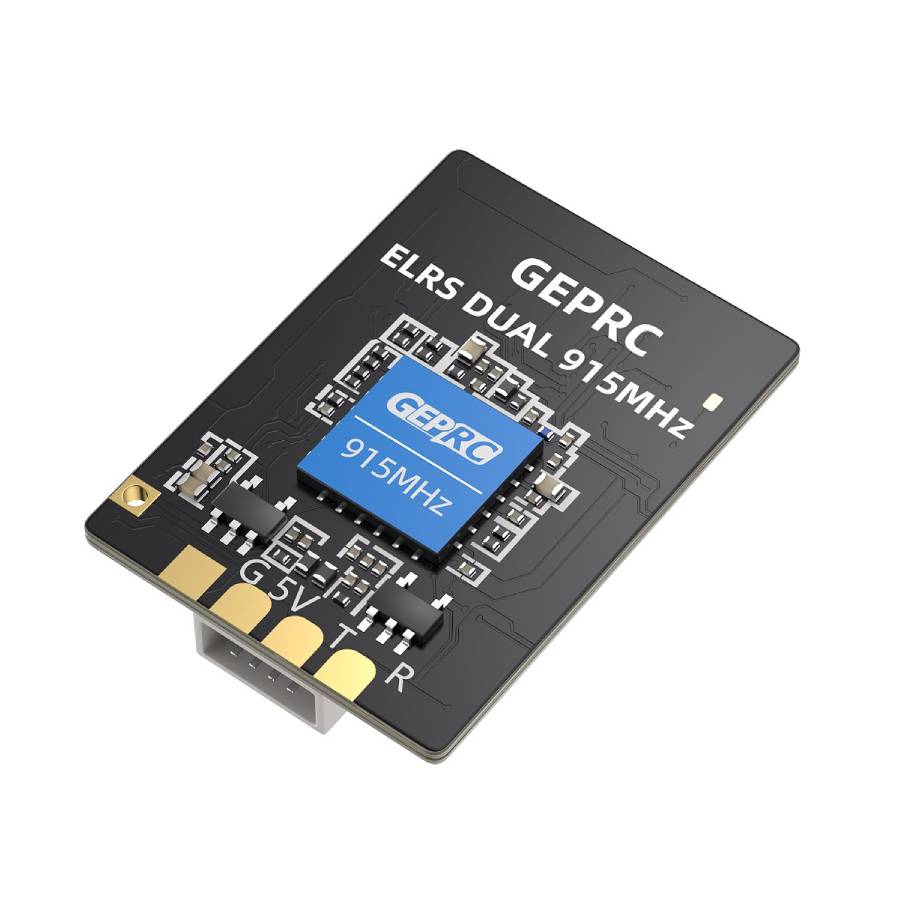

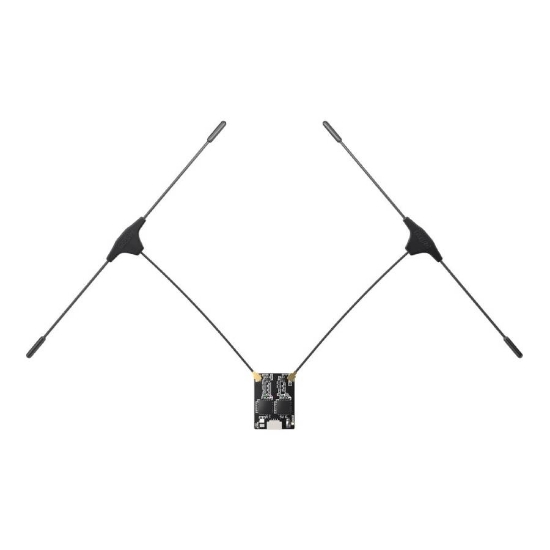

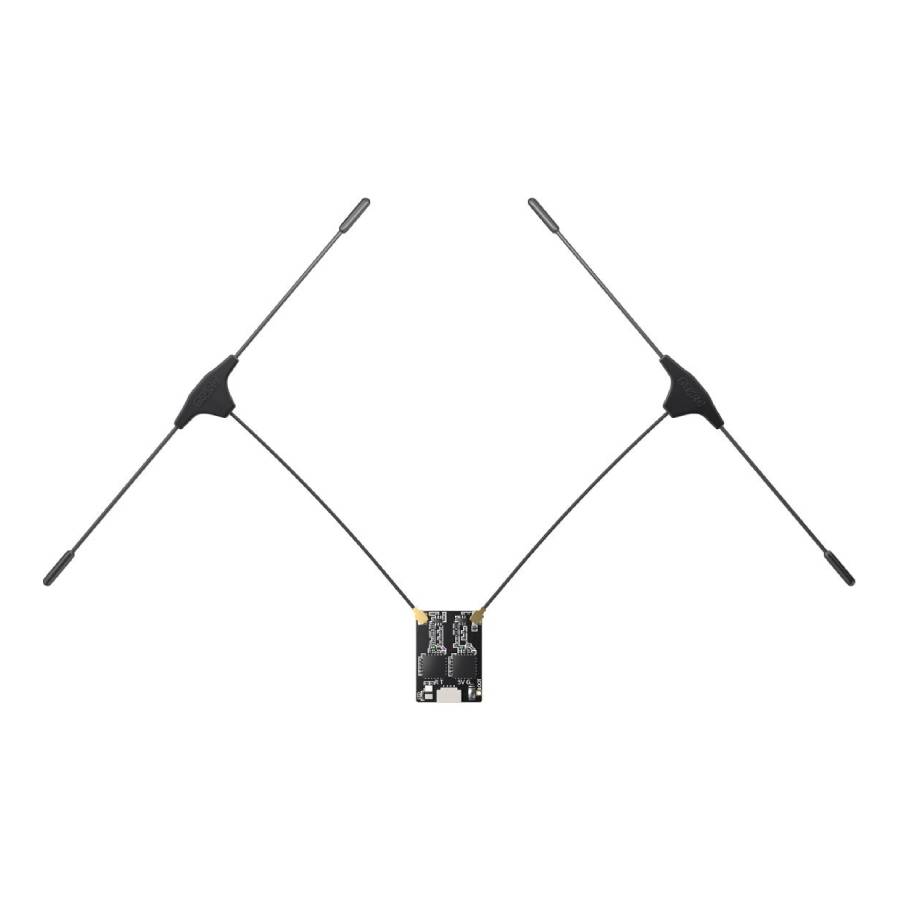

GEPRC ELRS Dual 868/915MHz Diversity Receiver

Overview:
The GEPRC ELRS Dual Diversity Receiver is a high-performance true-diversity ExpressLRS receiver designed for long-range FPV drones and fixed-wing craft. With dual independent RF chains, strategic antenna placement, a TCXO for stable frequency control and a built-in WiFi antenna for firmware updates, mean this RX delivers enhanced signal reliability and outstanding control fidelity in demanding conditions.

Features:
- True dual-antenna diversity with two independent RF receive chains for improved signal reliability
- Temperature-compensated crystal oscillator (TCXO) to maintain frequency stability across temperature variations
- Built-in WiFi antenna enables firmware upgrades and binding without disassembly
- Compact, lightweight design ideal for FPV drones and long-range models
- Optimised specifically for the chosen frequency band, offering both excellent range and performance.

Specification:
- Model: ELRS Dual Diversity Receiver
- Frequency band: 868/915MHz
- Maximum refresh rate: up to 200Hz
- Input voltage: 5V DC
- Size: 18×25×5.5mm
- Weight: 1.7g (receiver only)
- Antenna connector: IPEX1
- Telemetry output power: up to 50mW
- Firmware: GEPRC True Diversity

Available versions (see below for purchase options):
- GEPRC ELRS Dual 915MHz Diversity Receiver (GP106416)
- GEPRC ELRS Dual 868MHz Diversity Receiver (GP106417)

Included:
- 1x GEPRC ELRS Dual Diversity Receiver
- Accessories
