Overview:

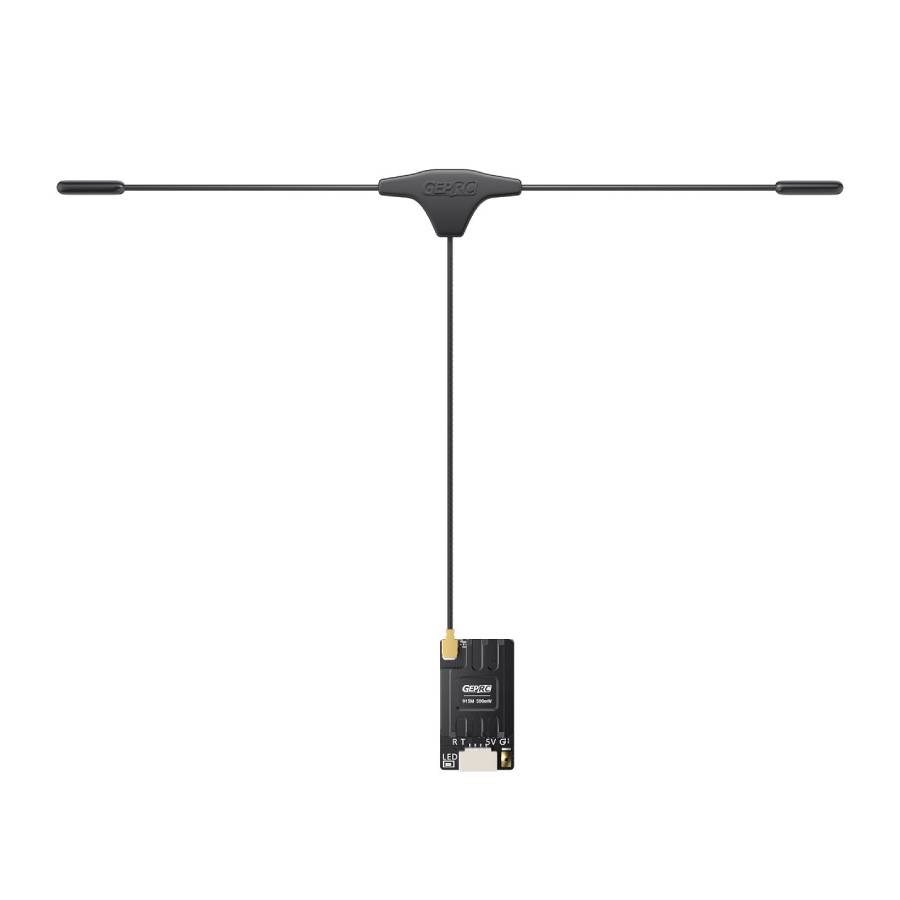

The GEPRC ELRS Nano PA500 Receiver is a high-performance ExpressLRS receiver optimised for long-range FPV applications. It comes in two frequency variants- 868MHz and 915MHz allowing pilots to choose the version that best suits their regional regulations and flying conditions.
Despite its compact size, the PA500 delivers up to 500mW telemetry output thanks to a built-in power amplifier and features a TCXO (temperature-compensated crystal oscillator) for enhanced frequency stability in extreme temperatures.
With a refresh rate up to 200Hz (potentially for up to 500Hz depending on firmware) and compact dimensions, make it ideal for tight builds where weight and performance matter.
Features:
- High‐power telemetry output up to 500mW for extended range control
- TCXO oscillator ensures reliable frequency stability across fluctuating temperatures
- Compact size and ultra‐lightweight design minimize impact on build weight
- Built-in WiFi module enables firmware updates and binding with ease

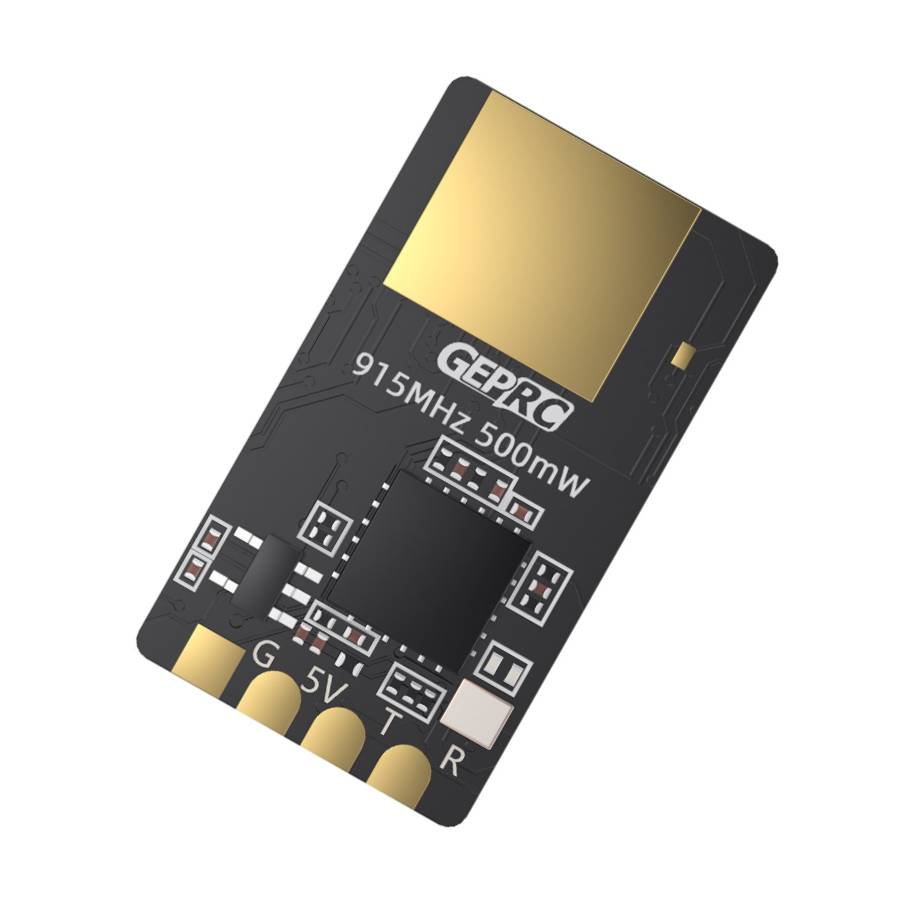

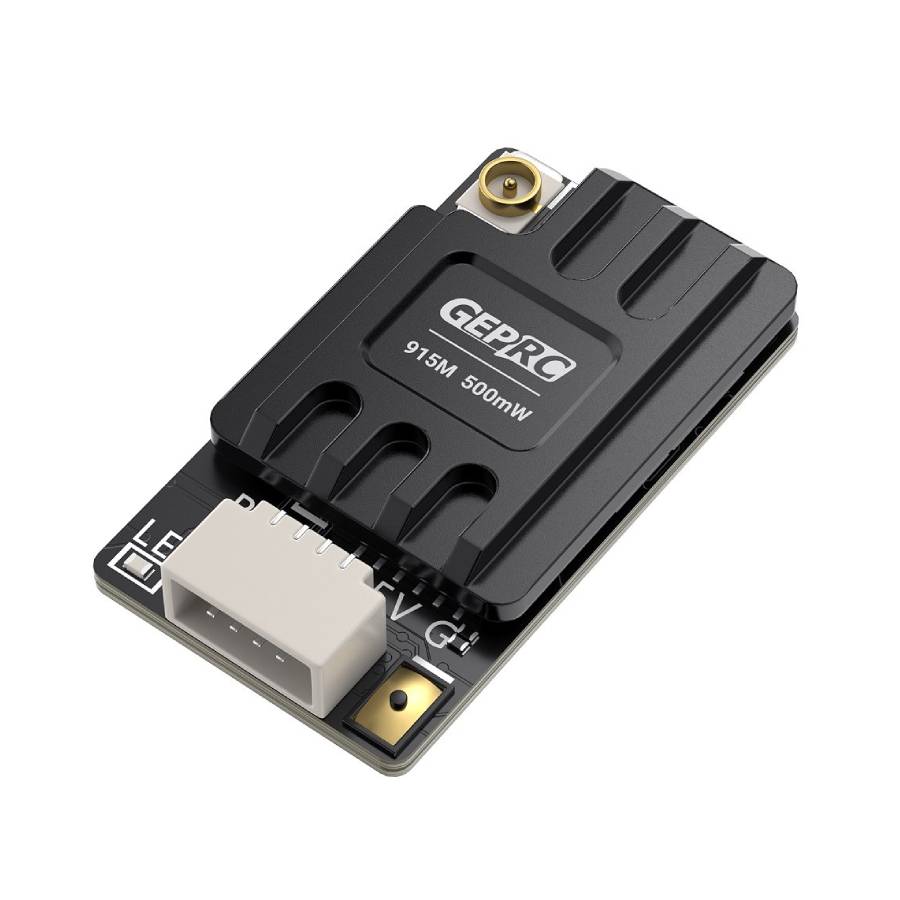

- SH1.0 connector support simplifies wiring in micro and nano builds
Specification:
- Model: ELRS Nano PA500
- Frequency band: 868MHz or 915MHz
- Refresh rate: 25-200Hz (firmware dependent, up to 500Hz possible)
- Operating voltage: 5V
- Telemetry output power: Up to 500mW
- Dimensions: 13×23×5.5mm
- Weight: 1.9 g (receiver only)
- Antenna connector: IPEX1
- MCU/Chips: ESP8285 + SX1276 (variant dependent)
Available versions (see below for purchase options):
- GEPRC ELRS Nano 915M PA500 Receiver (GP106596)
- GEPRC ELRS Nano 868M PA500 Receiver (GP106597)
Included:
- 1x GEPRC ELRS Nano PA500 Receiver
- Accessories
