GEPRC ELRS Nano PA100 2.4GHz Receiver

Overview:
GEPRC ELRS Nano 2.4G PA100 Receiver is a new generation of 2.4GHz receiver system based on the ExpressLRS open source project. The ExpressLRS protocol features long-range operation, low latency, and a maximum 1000Hz refresh rate.

The receiver uses a TCXO temperature-compensated crystal oscillator to avoid frequency shifts caused by temperature changes.

Features:
- Compact size
- WIFI Upgradeable firmware
- Built-in PA + LNA, up to 100mW telemetry power

Specification:
- Model: GEPRC ELRS Nano 2.4G PA100 Receiver (GP106195)

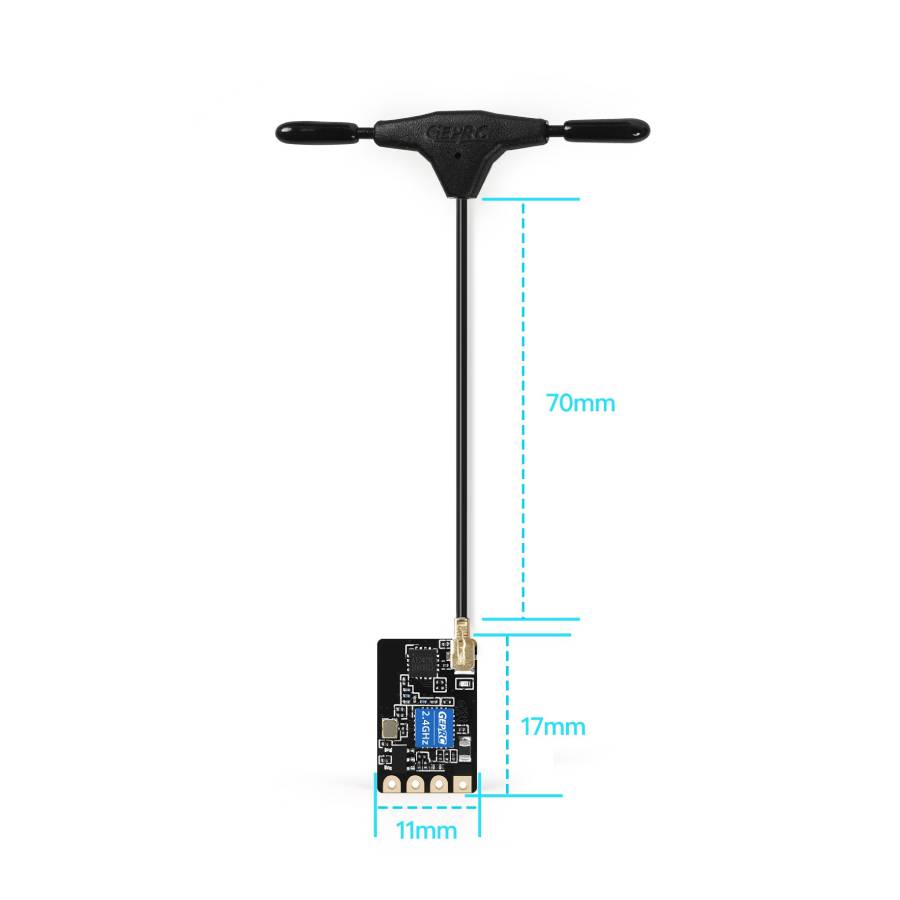

- Size: 17x11mm
- Weight: 0.7g (RX only)

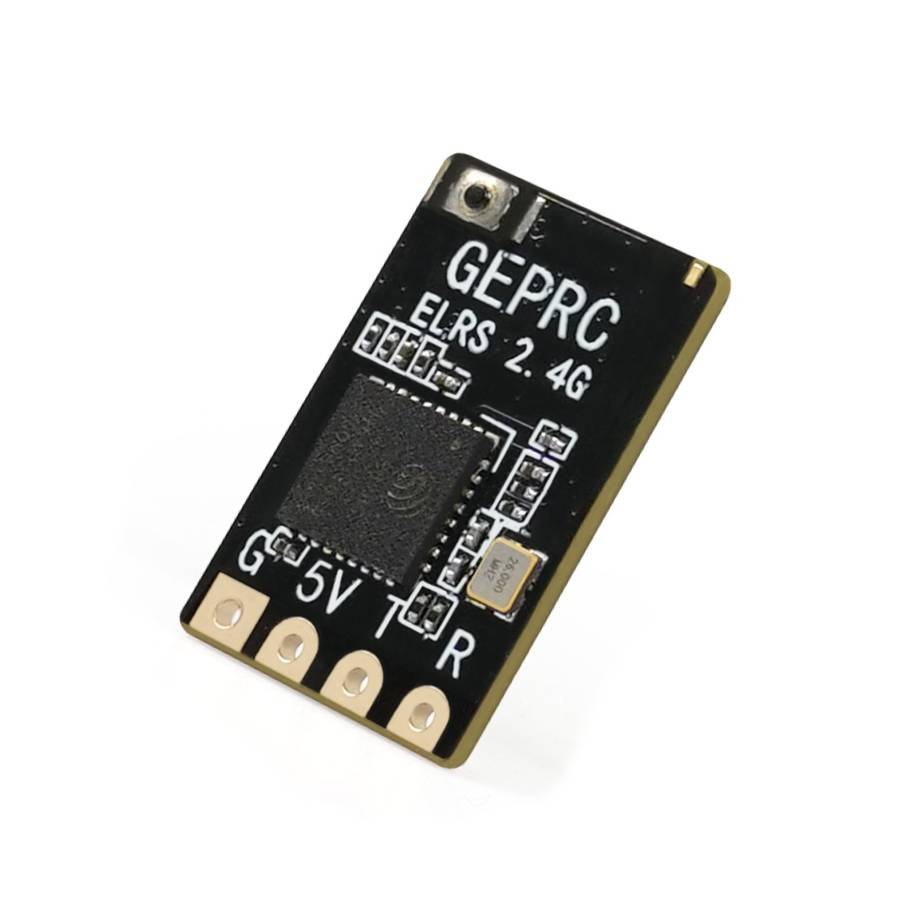

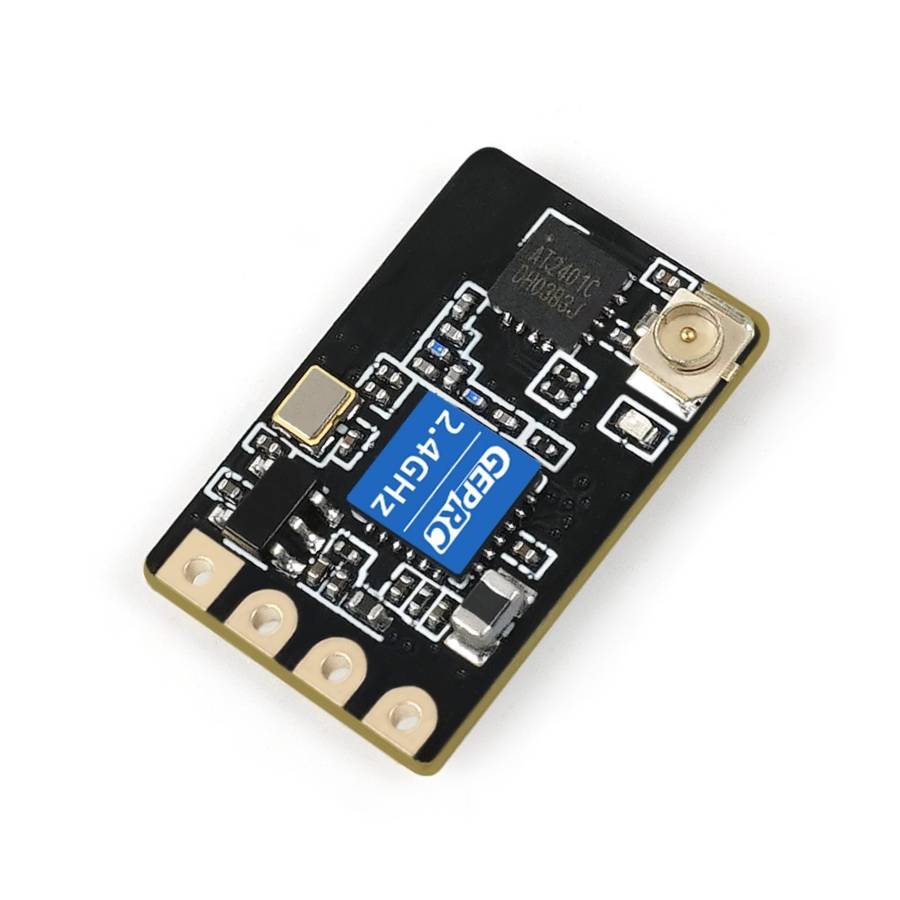

- Chips: ESP8285, SX1281
- Crystal Oscillator: TCXO
- Frequency Band: 2.4GHz ISM
- Refresh Rate: 25Hz-1000Hz
- Input Voltage: 5V
- Antenna Connector: ipex1
- TLM Power: 100mW

Included:
- 1x GEPRC ELRS Nano 2.4G PA100 Receiver
- 1x Antenna
- Accessories
