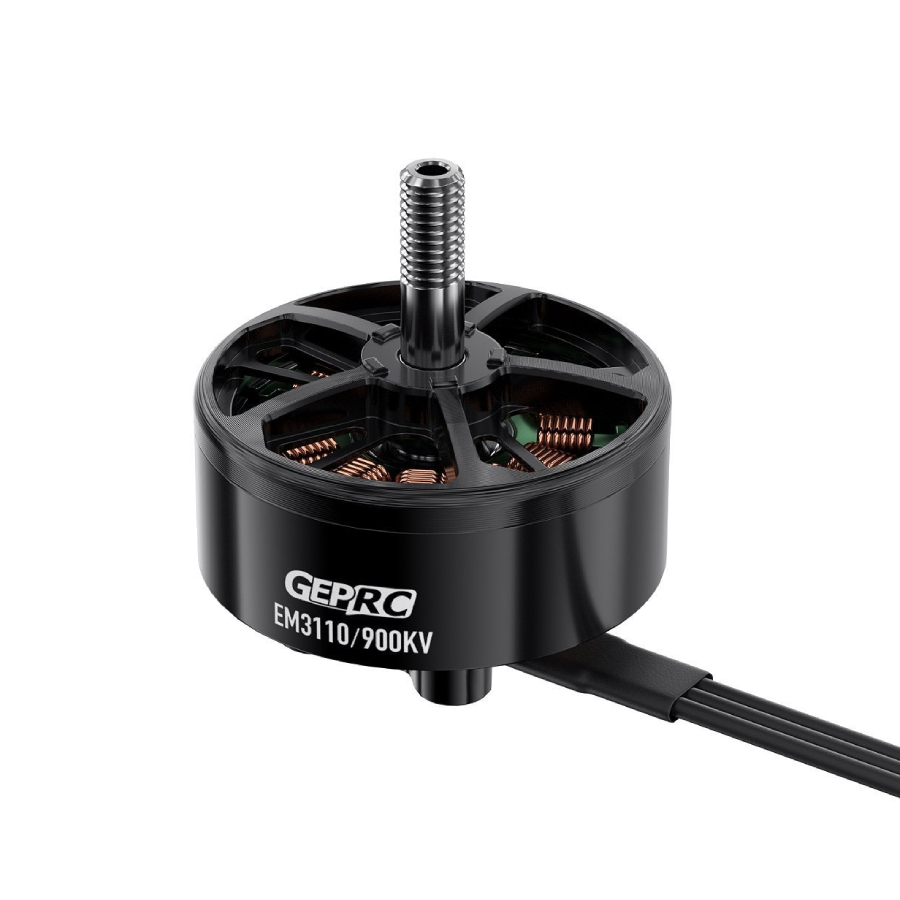

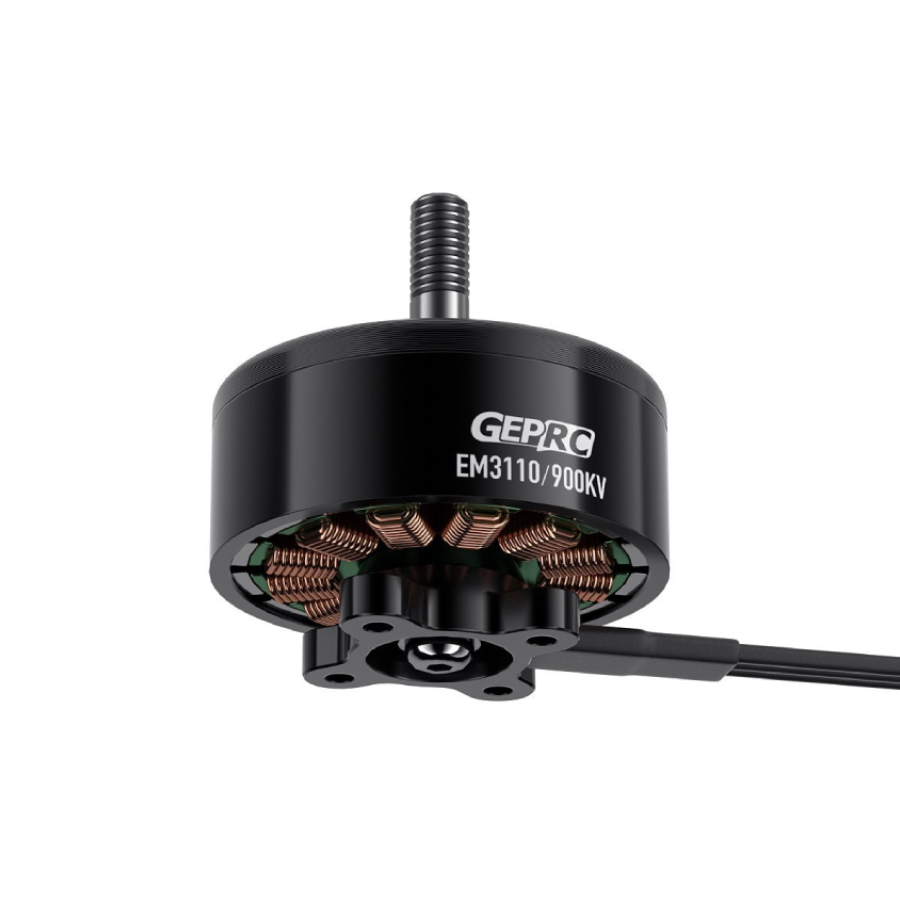

GEPRC EM3110 900KV Brushless Motor

Overview:
The GEPRC EM3110 900KV is a brushless motor designed for 8 to 10 inch FPV drone builds, particularly long-range and heavier load configurations using 6S LiPo systems. Part of GEPRC’s EM series, it combines a 3110 stator size with a 900KV winding to deliver high torque output and stable, efficient propeller control on larger prop sizes, making it suitable for cruising, cinematic setups, and endurance-focused builds.

The motor is built around a high-torque 12N14P magnetic structure and uses a reinforced M5 steel shaft for mechanical durability under sustained load. Precision NSK/NMB bearings are used to support smooth rotation and consistent performance over extended flight times. The design follows a standard 19x19mm mounting pattern for compatibility with typical 8–10 inch FPV frames.

Features:
- Designed for 8–10inch FPV drone builds
- Optimised for long-range and endurance-focused 6S setups
- High-torque magnetic circuit design for stable propeller control
- 12N14P motor configuration for smooth operation under load
- M5 steel shaft for improved mechanical strength
- NSK/NMB precision bearing system for smooth rotation and durability
- Single-strand copper winding construction
- 19x19mm mounting pattern for standard FPV frame compatibility
- Suitable for larger propeller applications in the 8–10inch class

Specification:
- Model: EM3110 900KV Motor
- Configuration: 12N14P
- Max output power: 1480W
- Peak current: 57A
- Interphase resistance: 74mΩ
- Input voltage: 25.2V (6S LiPo)
- Recommended prop size: 8–10"
- Motor dimensions: φ33x26.1mm
- Shaft diameter: 5mm
- Shaft protruding length: 16mm
- Mounting pattern: 19x19mm
- Lead length: 310mm
- Wire specification: 18AWG
- Recommended ESC: 60–80A
- Weight: 87.5g (including wires)
- Magnet type: N52H

Included:
- 1x GEPRC EM3110 900KV Motor
- Accessories
