Overview:

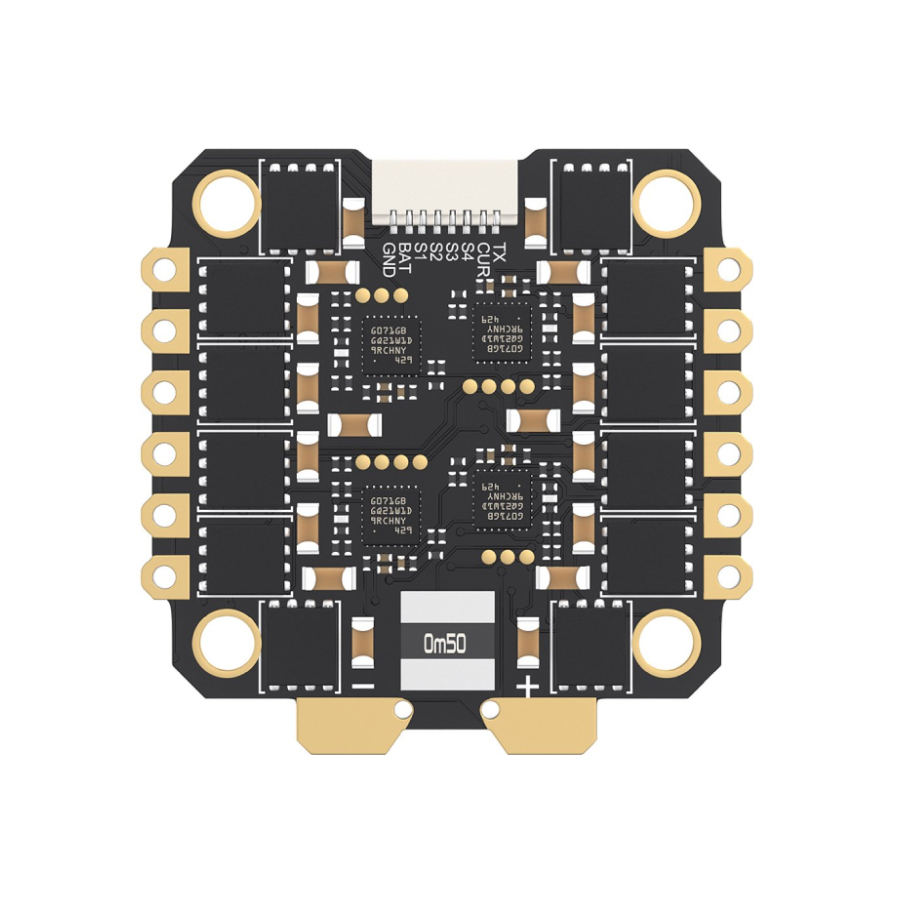

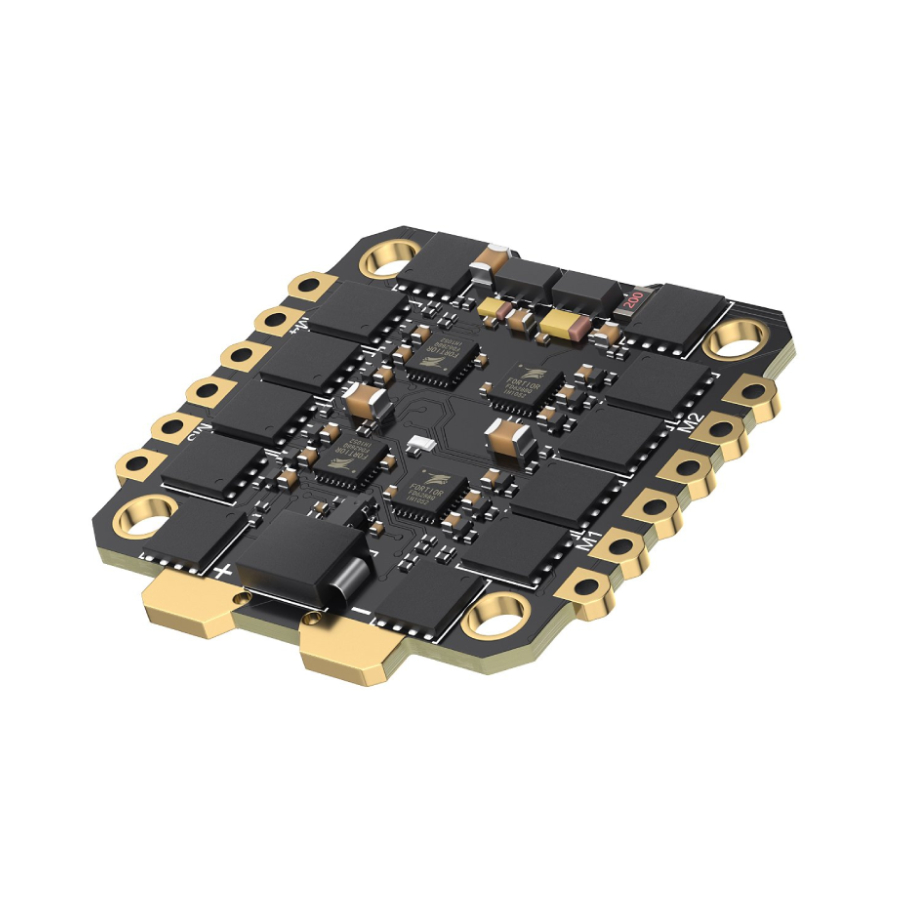

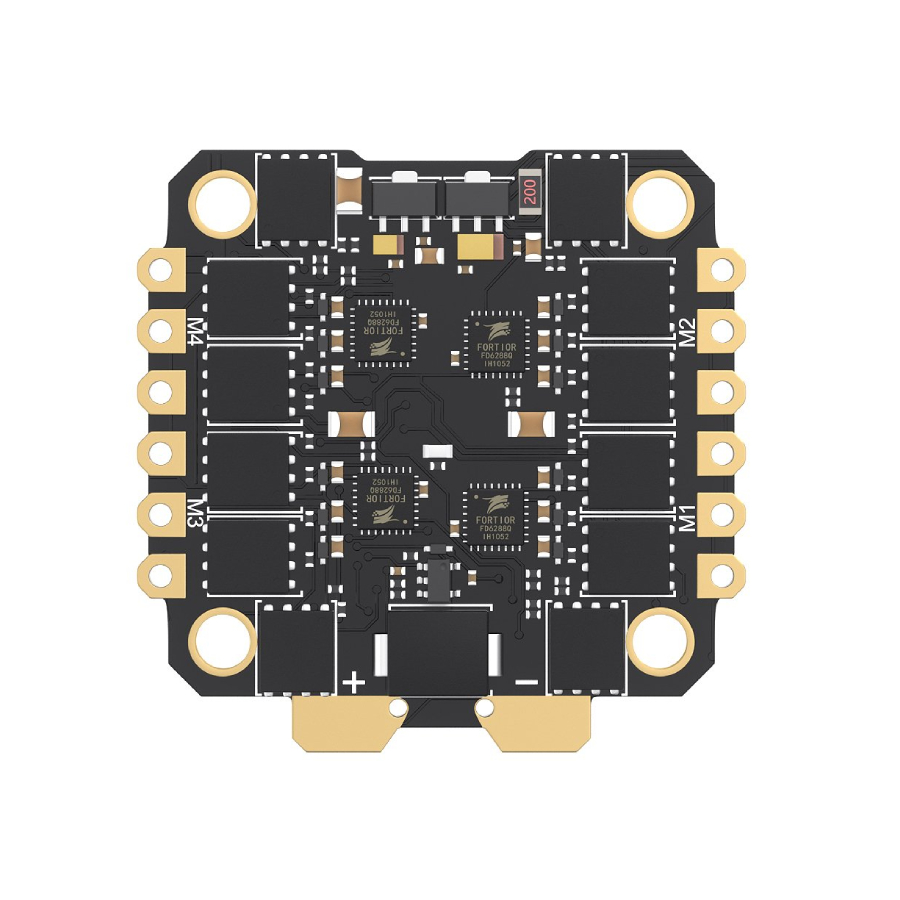

The GEPRC GEP-BL32 50A 96K 4in1 ESC is a high-performance electronic speed controller designed for demanding FPV drone builds requiring smooth motor control and reliable power delivery. Supporting 3S–6S LiPo operation, it combines a compact 30.5x30.5mm form factor with powerful 50A continuous current handling, making it well suited to freestyle, racing and cinematic platforms.
Built around a 32-bit processor, the ESC supports PWM frequencies up to 96kHz for refined throttle response and efficient motor operation. High-quality MOSFETs and a robust PCB design help maintain reliability under sustained load, while compatibility with modern digital motor protocols ensures seamless integration with current flight control systems.
Features:
- 32-bit ESC architecture
- Supports PWM frequencies up to 96kHz
- Compatible with modern digital throttle protocols, including DShot
- High-current design for demanding motor and propeller combinations
- Optimised for smooth throttle response and efficient motor operation
- Improved PCB design for added durability and reliability
Specification:
- Model: GEPRC GEP-BL32 50A 96K 4in1 ESC
- Continuous current: 50A
- Burst current: 55A (10sec)
- Input voltage: 3S–6S LiPo
- PWM frequency: Up to 96kHz
- Supported protocols: DShot150/DShot300/DShot600/MultiShot/OneShot
- Mounting pattern: 30.5x30.5mm (M3)
- Dimensions: 44x41x6.5mm
- Weight: 14g
- FC Connector: SH1.0-8Pin
- Galvanometer: Supported
- Telemetry: Supported
Included:
- 1x GEPRC GEP-BL32 50A 96K 4in1 ESC
- Accessories
