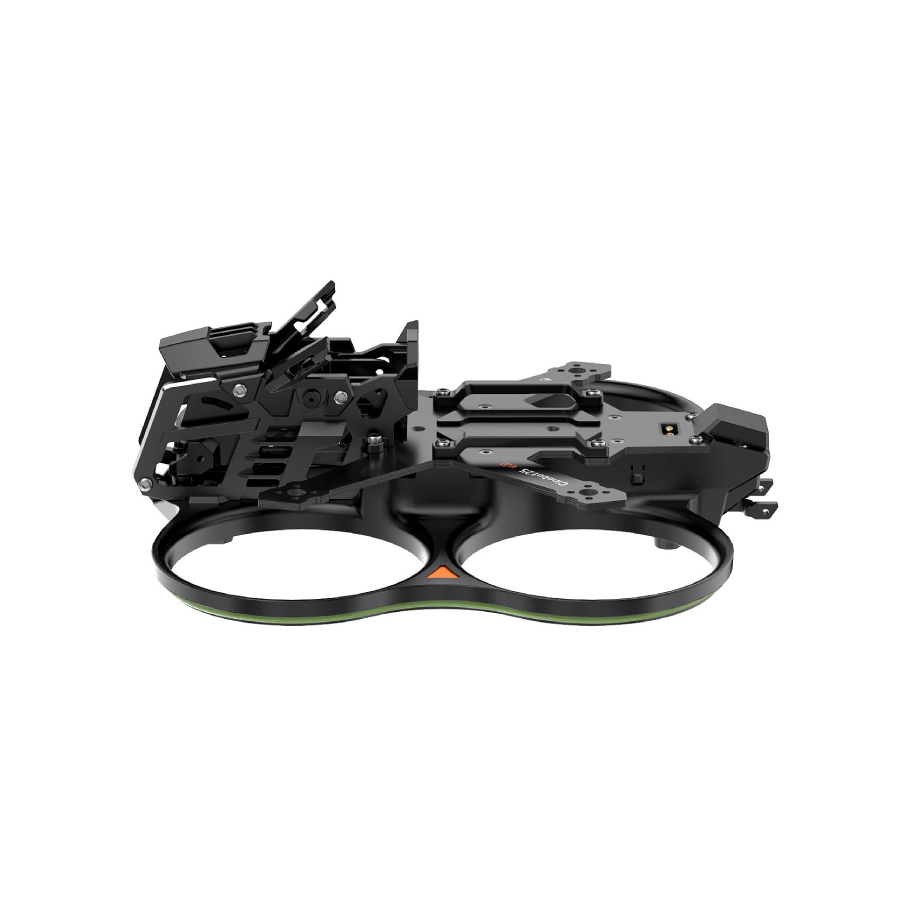

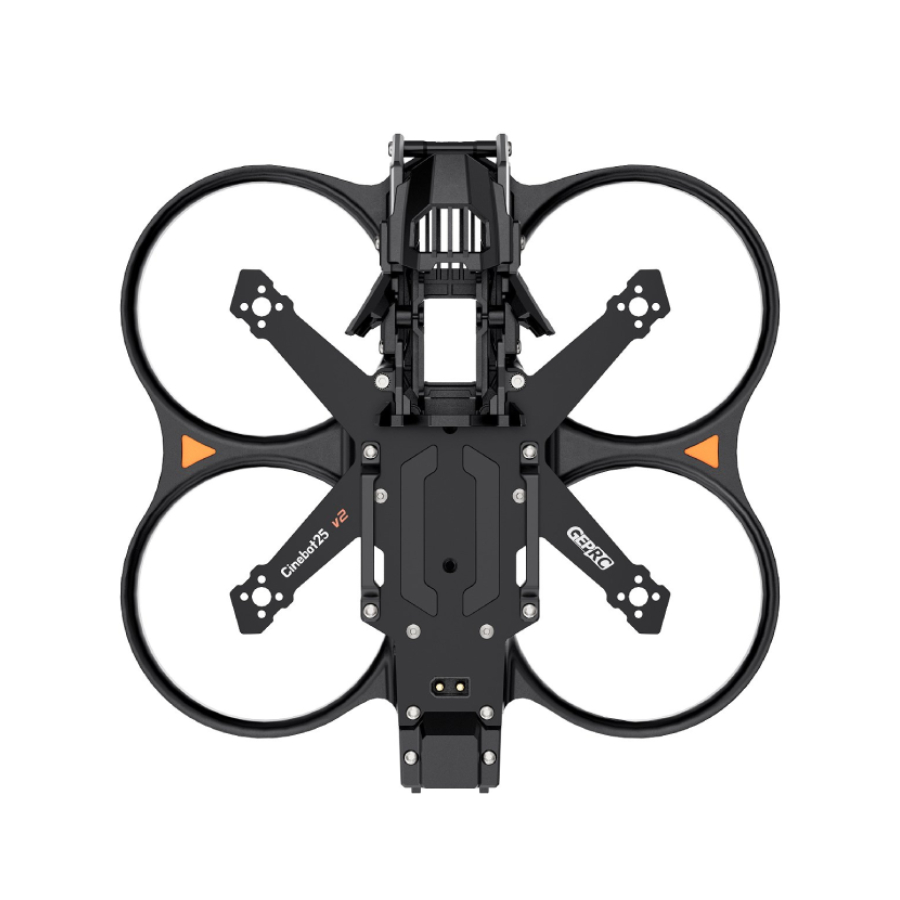

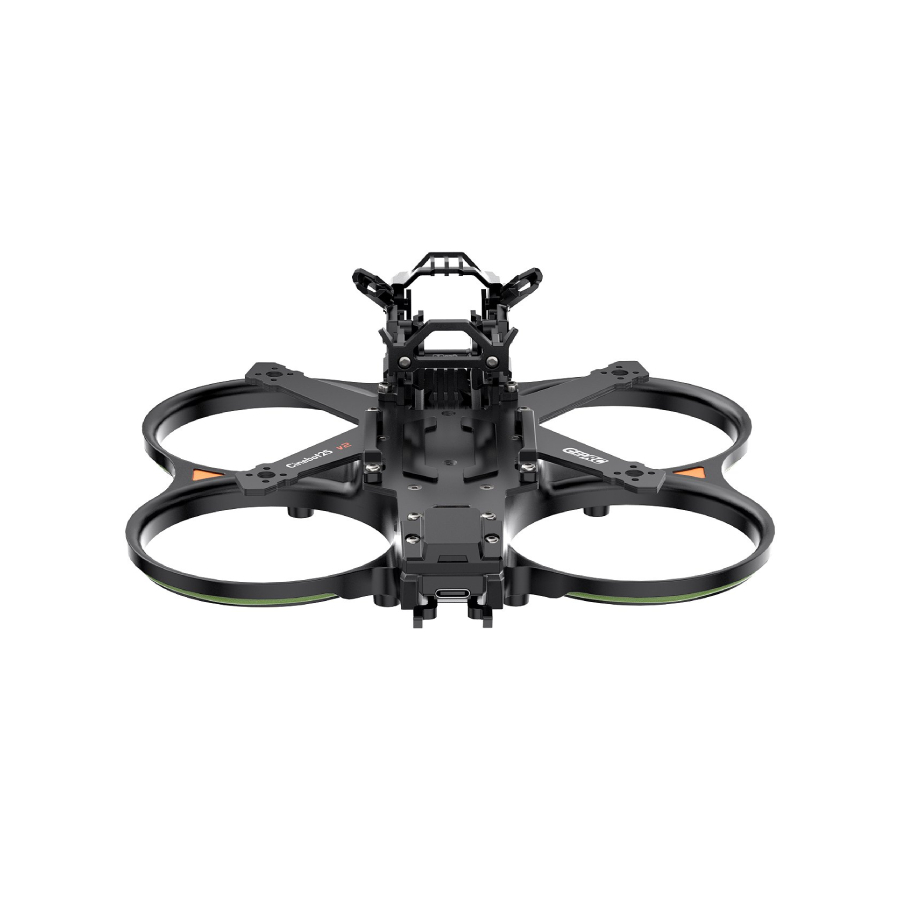

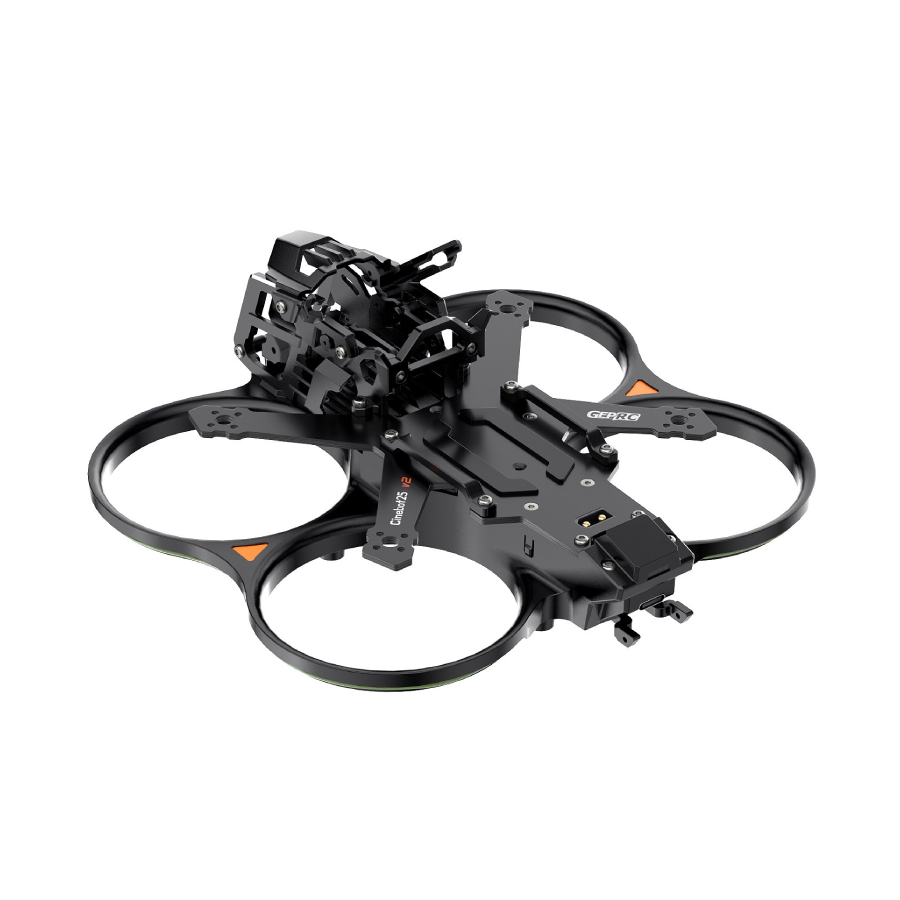

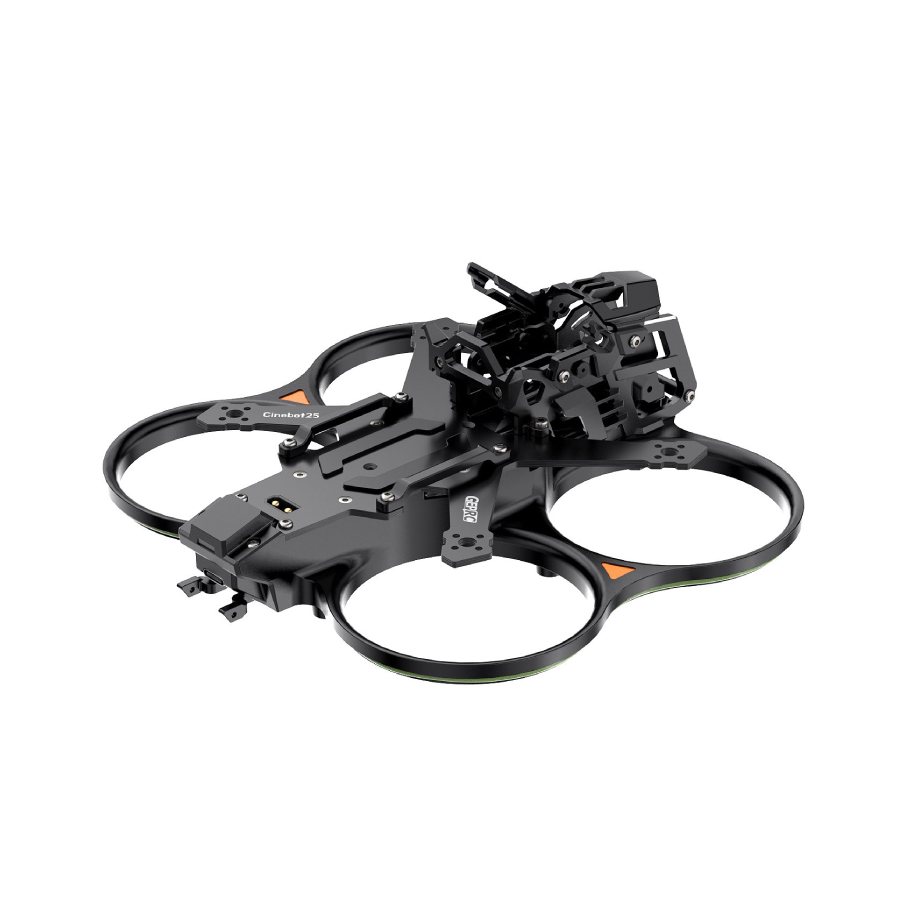

GEPRC GEP-CT25 V2 Frame & Parts (Cinebot25 V2)

Overview:
The GEPRC GEP-CT25 V2 is a 2.5inch cinewhoop frame designed for pilots building a compact FPV platform around a digital VTX. Developed as the foundation of the Cinebot25 V2, the frame combines a lightweight carbon structure with injection-moulded protective components to create a durable airframe suited to cinematic flying.

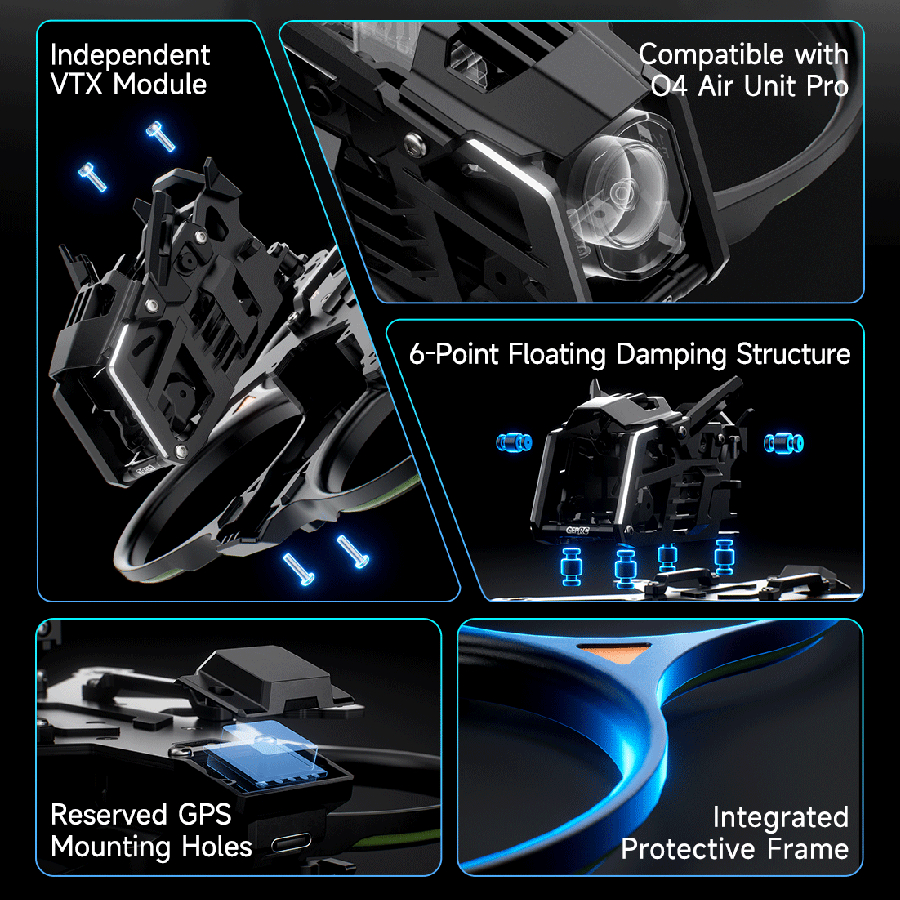

A redesigned frame layout provides improved protection for onboard electronics while maintaining easy access for installation and maintenance. The modular construction allows individual frame components to be replaced as required, making repairs more straightforward after crashes. The frame is also designed to accommodate digital FPV systems, including the DJI O4 Air Unit Pro, with dedicated mounting provisions and a protected electronics bay.

Replacement frame parts are available separately, allowing pilots to maintain, repair or customise their airframe without replacing the complete frame kit.

Features:
- Modular construction simplifies maintenance and replacement of damaged components
- Injection-moulded protective structure helps shield the electronics and propellers
- Optimised layout with electronics housed within its bodyshell for extra protection
- Dedicated camera mounting for HD FPV systems
- Suitable for both complete custom builds and frame repair/rebuilds

Specification:
- Model: GEP-CT25 V2 (GP108269)
- Wheelbase: 123mm
- Main carbon plate thickness: 2.0mm
- Recommended props: 2.5"
- Flight controller mounting pattern: 25.5x25.5mm
- Motor Mounting: 9×9mm
- Camera Mount Width: 20mm
- Battery Connector: XT30
- Frame Weight: 110g

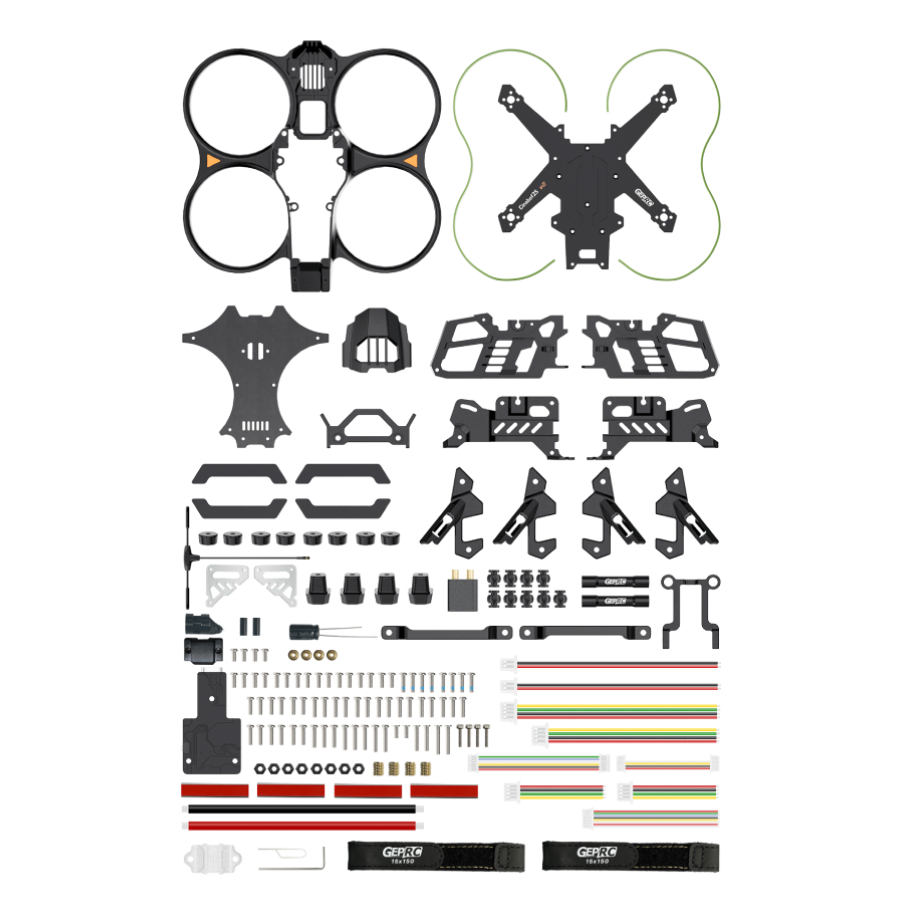

Included*:
- 1× Prop Guard
- 1× Top Plate
- 1× Bottom Plate
- 2× Battery Straps
- 2× Aluminium Battery Strap Mounts
- 4× Anti-Slip Battery Pads
- 1× Function Board
- 1× Receiver Antenna
- 1× Receiver Antenna Injection-Moulded Mount
- 1× Receiver 3D Printed Mount
- 1× Capacitor 3D Printed Mount
- 2× Acrylic Plates
- 1× Screw Kit
- 1× Cinebot Front Module Kit
- 1× Front Module/Landing Injection-Moulded Parts Pack
- 1× Cable Set

*NOTE: Actual accessories may vary by configuration and manufacturer product updates.
