Overview:

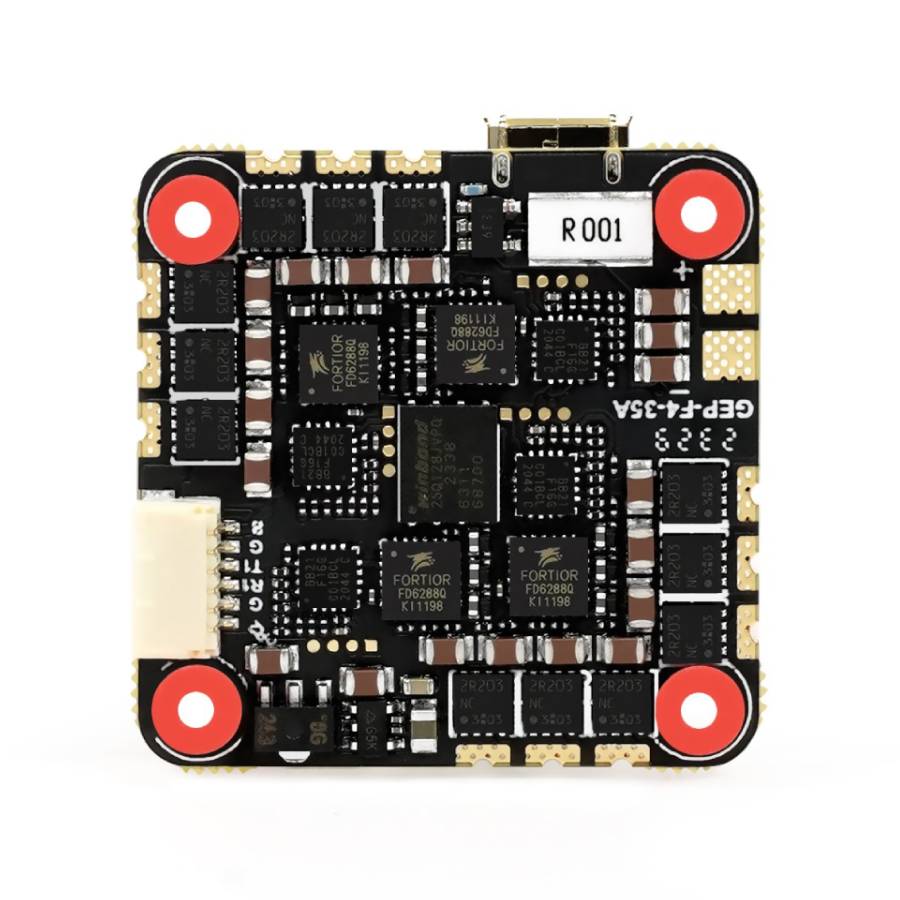

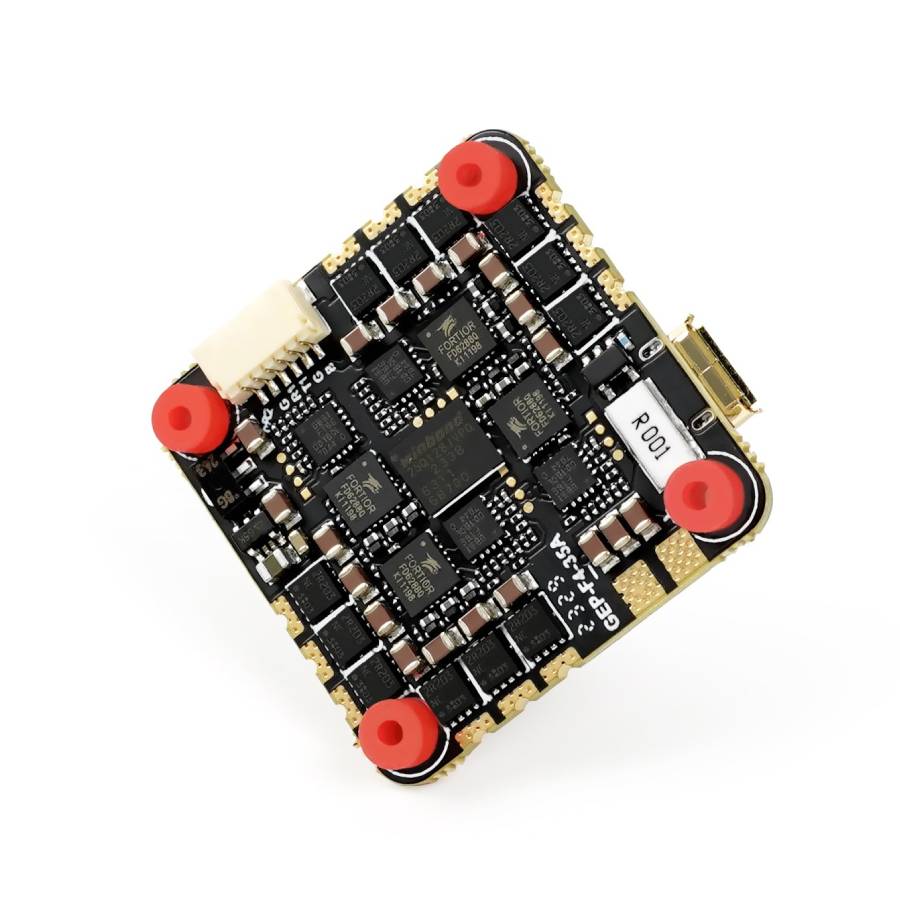

The GEPRC GEP-F411-35A AIO is an integrated flight controller and ESC (Electronic Speed Controller) board designed for compact FPV drones such as toothpicks, cinewhoops and lightweight freestylers. It combines an STM32F411 flight controller with a 35A BLHeli_S ESC in a single 32×32mm board. With support for 2–6S LiPo input, OSD (On-Screen Display), LC noise filtering and all major ESC protocols, it offers strong performance in a compact package. The board weighs approximately 8.8g and is compatible with standard 25.5×25.5mm mounting pattern.
Features:
- Integrated AIO design combining flight controller and 35A ESC into one board
- Built-in Betaflight OSD for direct on-screen telemetry and configuration
- LC filter included for cleaner signal and less electrical noise
- Compact size and mounting hole layout suited to small drone frames
Specification:
- Model: GEP-F411-35A AIO (GP104683)
- MCU: STM32F411
- IMU: BMI270/accelerometer(SPI)
- ESC MCU: BB21F16G
- OSD: Betaflight OSD w/ AT7456Ev
- Continuous ESC current rating: 35A
- Burst current rating: 40A
- Input voltage: 2S-6S LiPo
- ESC protocols supported: DShot600 / Oneshot / Multishot

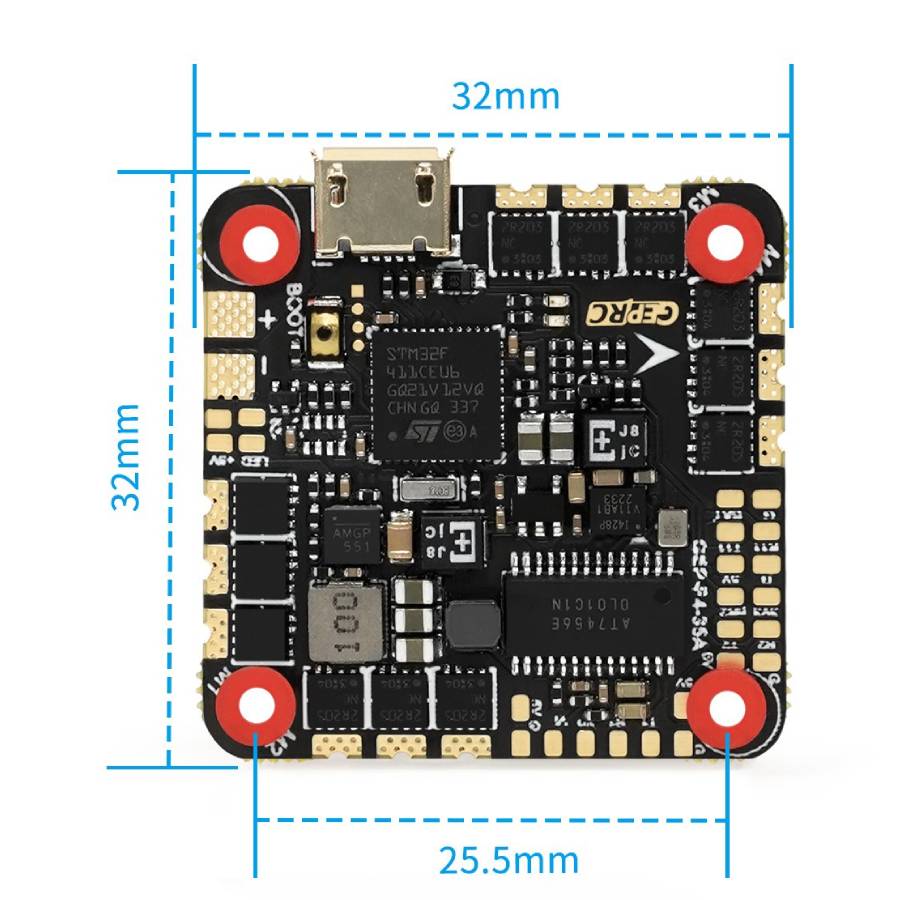

- - Board dimensions: 32×32mm
- Mounting holes: 25.5×25.5mm (M2)
- Weight: 8.8g
- Blackbox memory: 16 MB
- BEC output: 5V @ 1A
- USB connector: micro
Included:
- 1x GEPRC GEP-F411-35A AIO
- Accessories
