Overview:

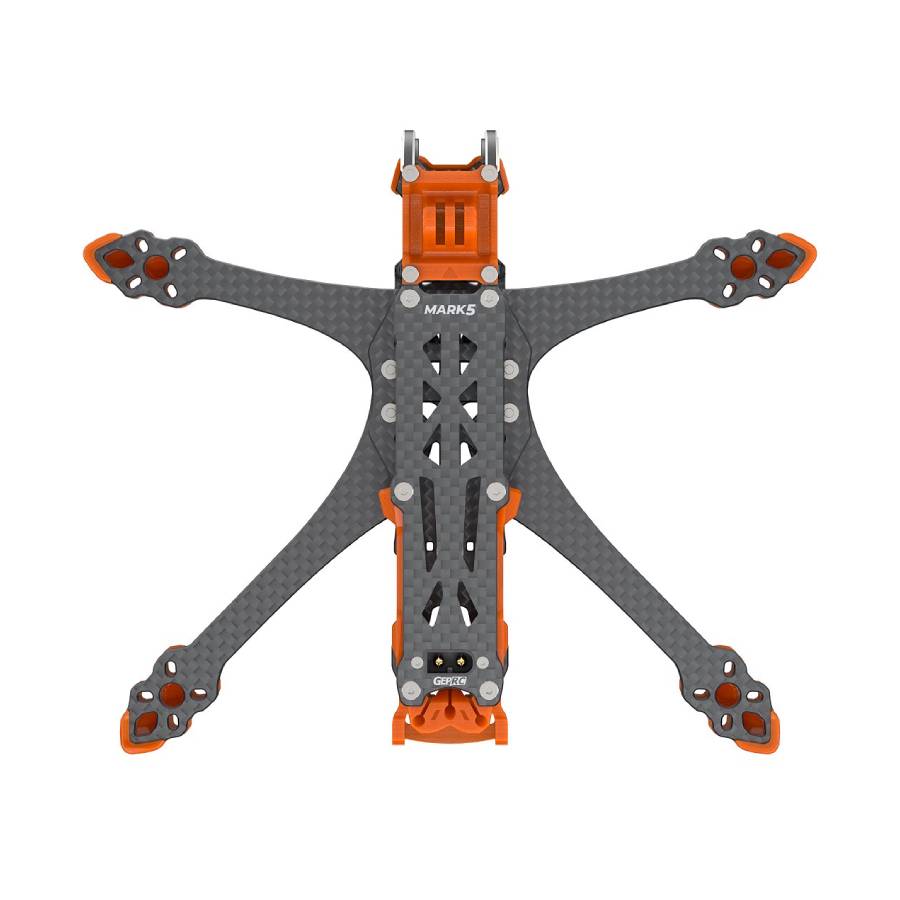

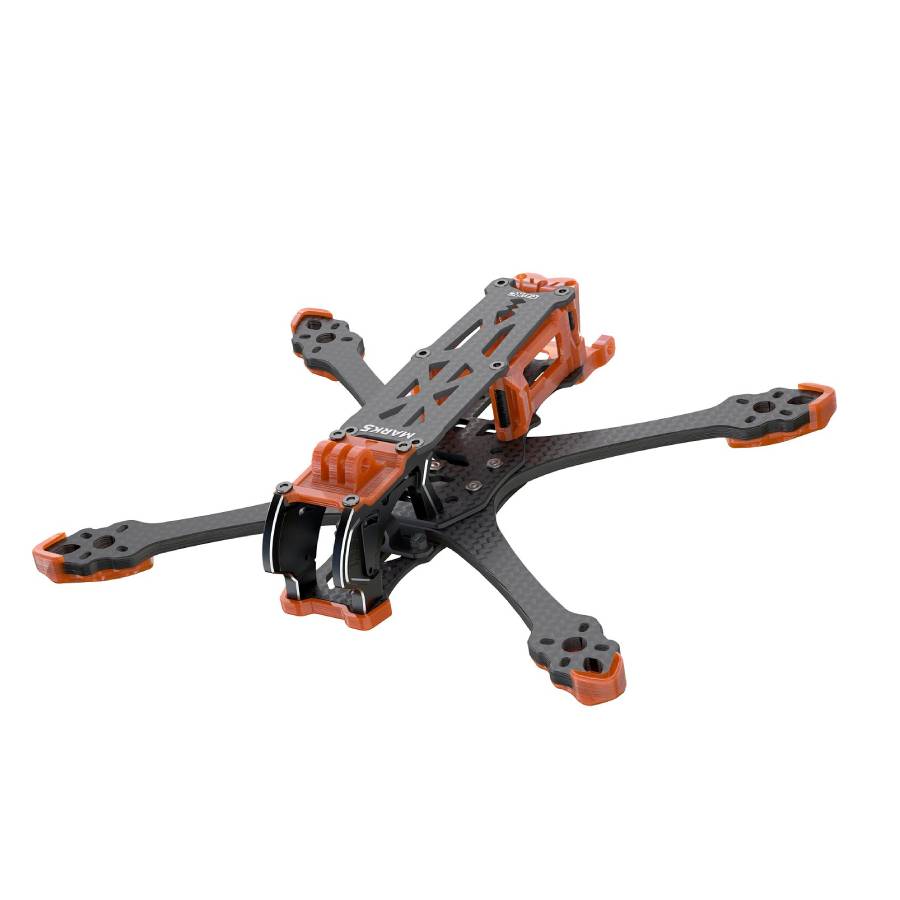

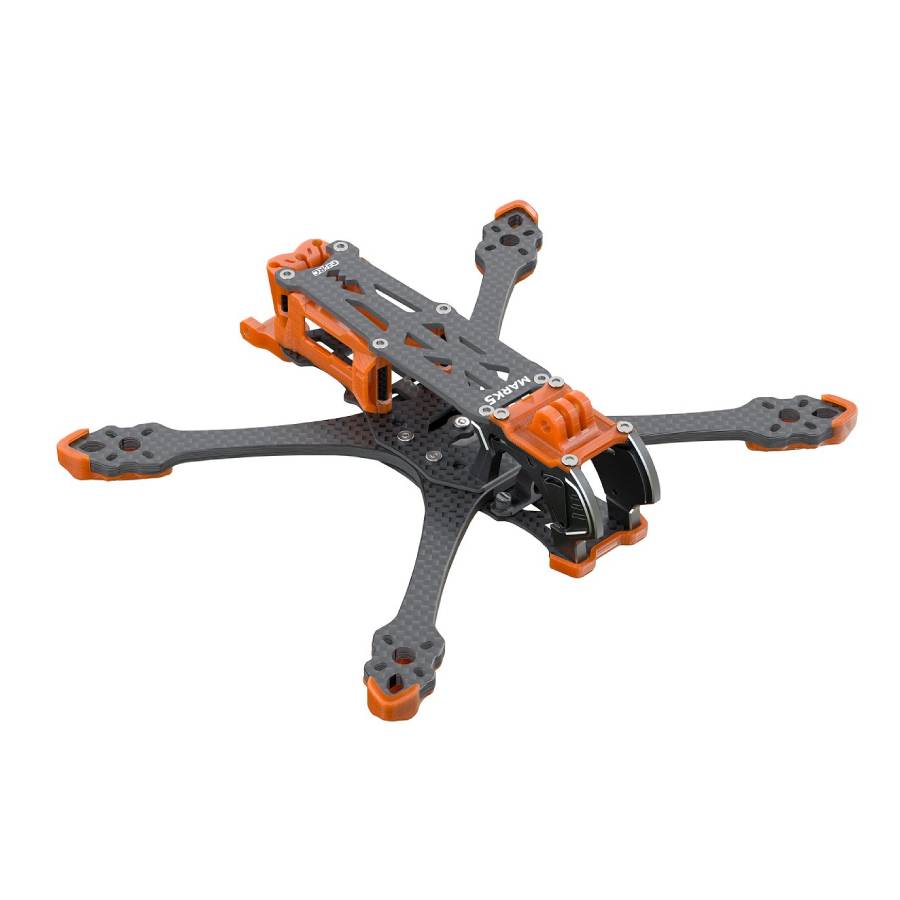

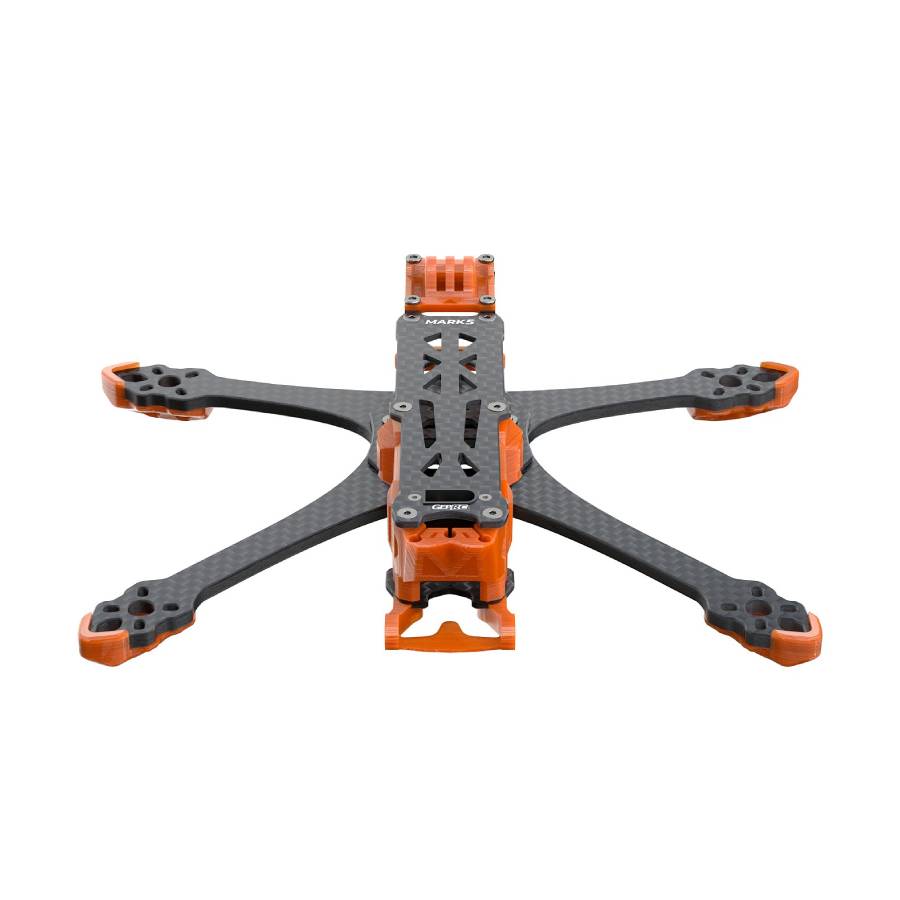

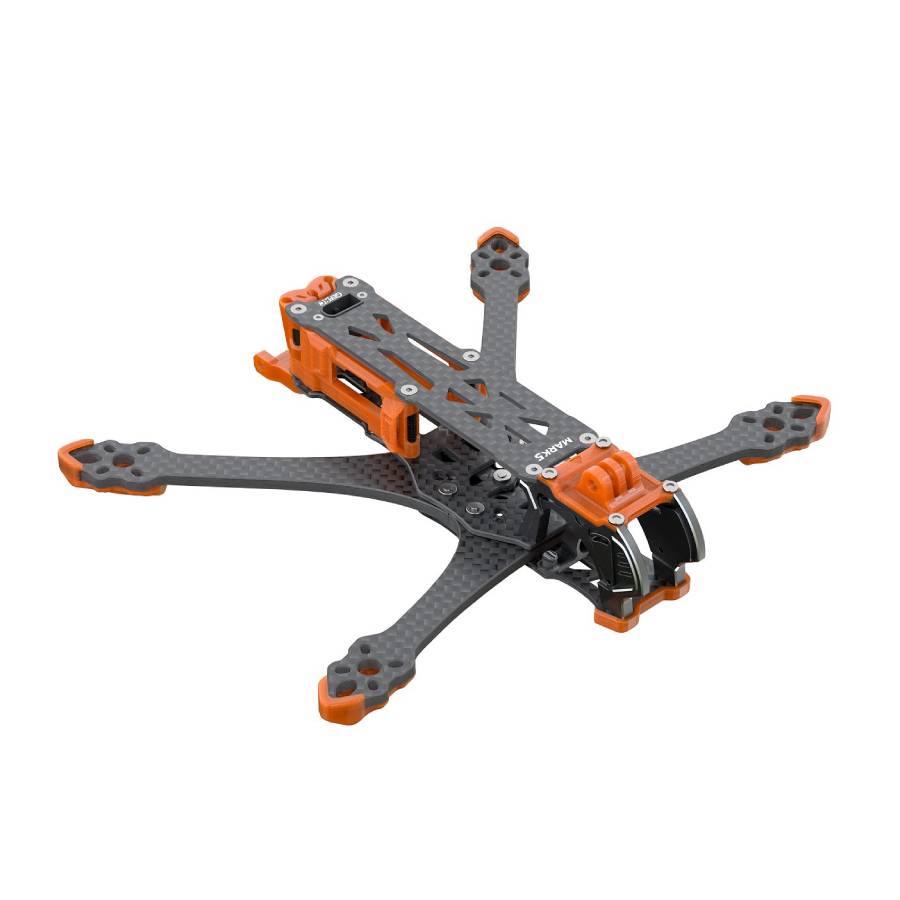

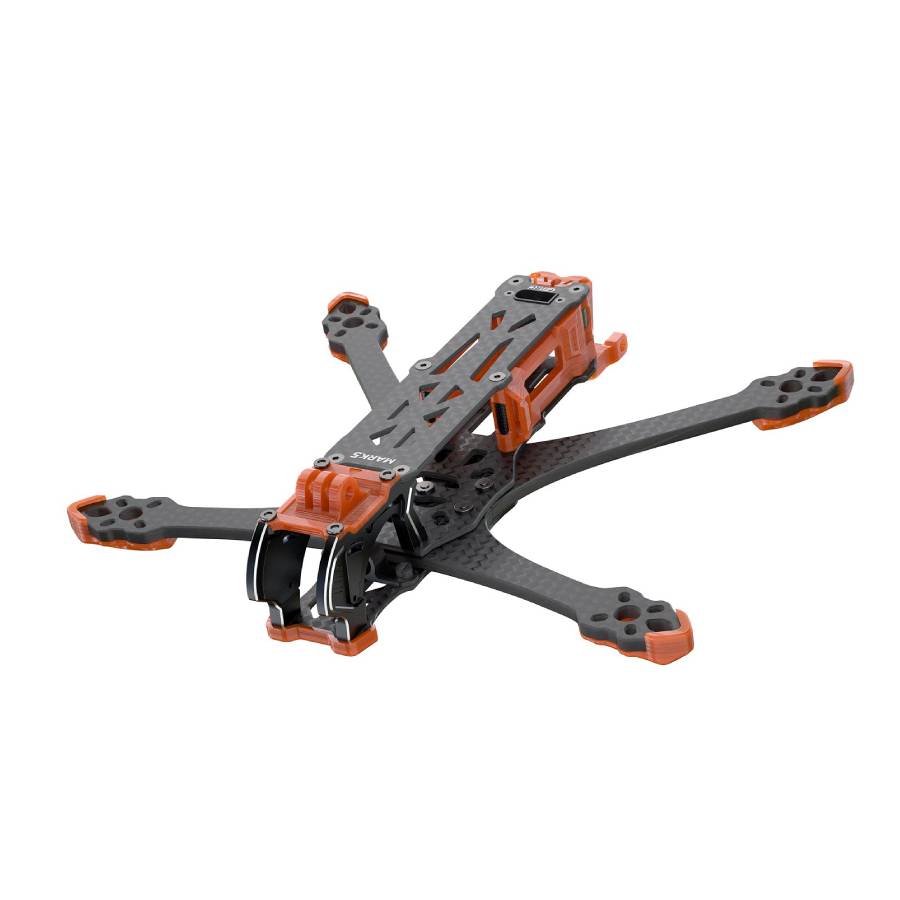

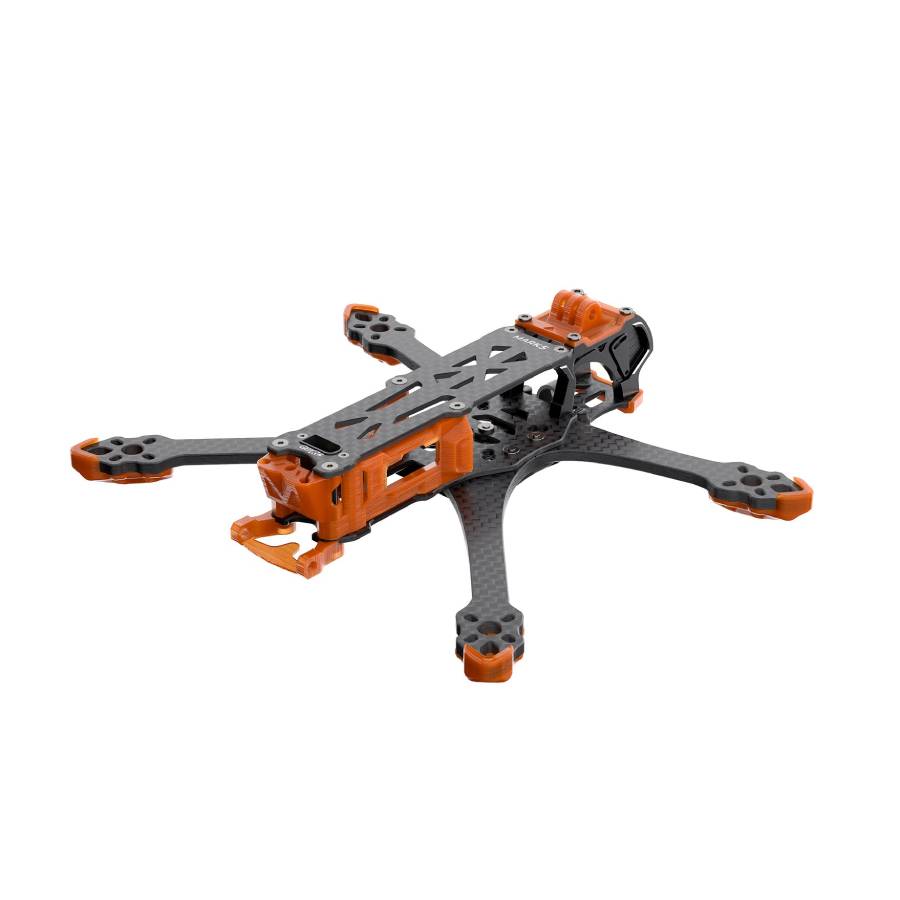

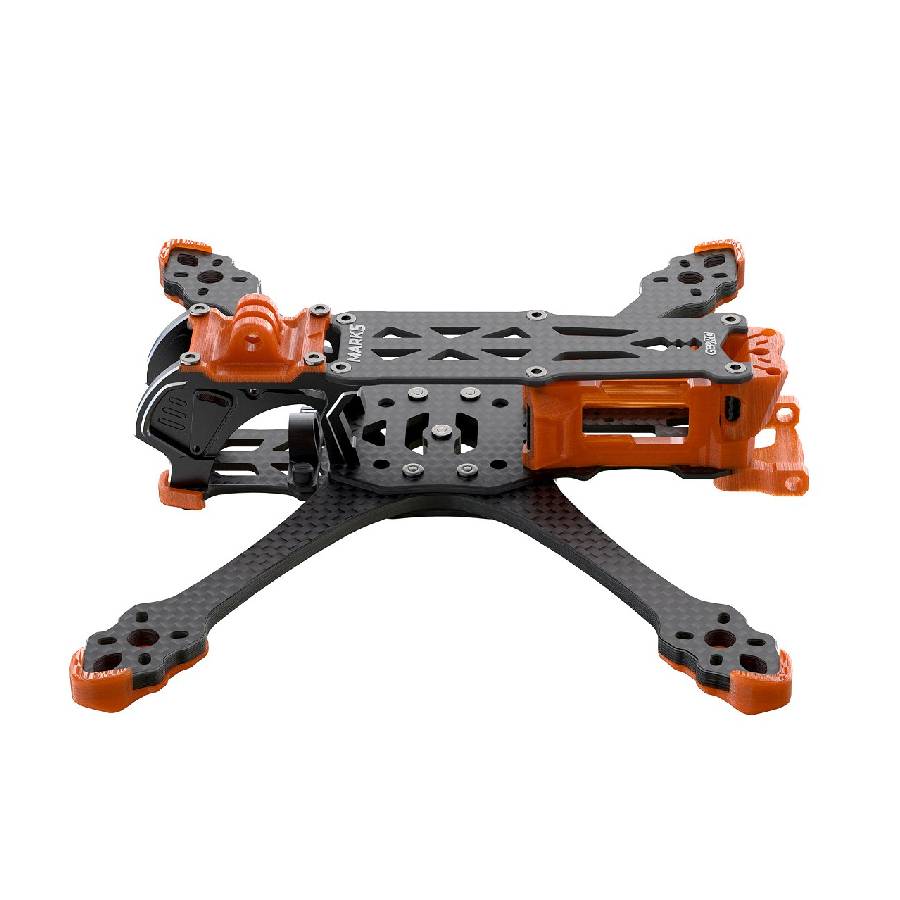

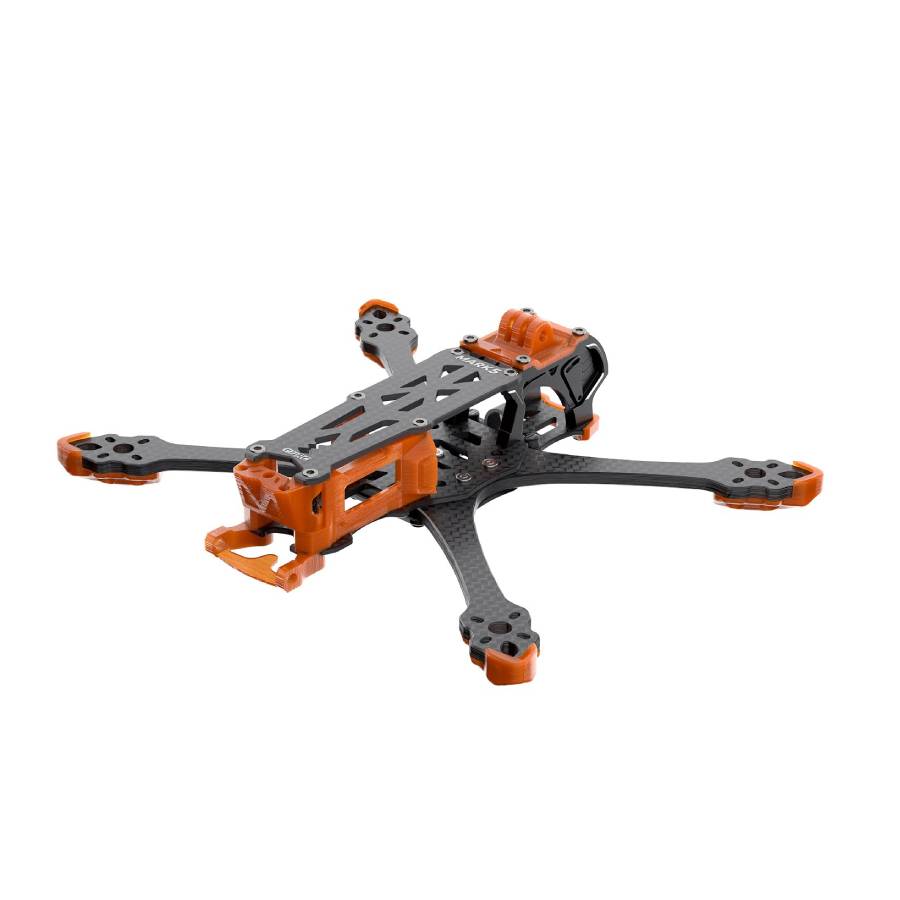

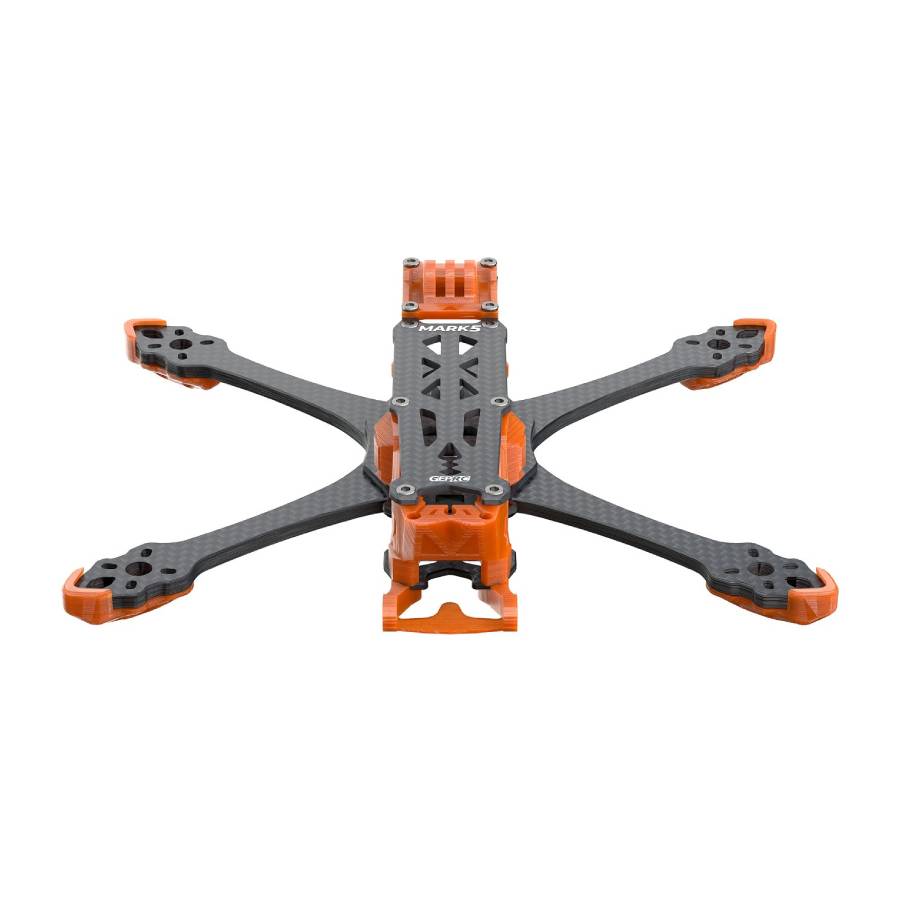

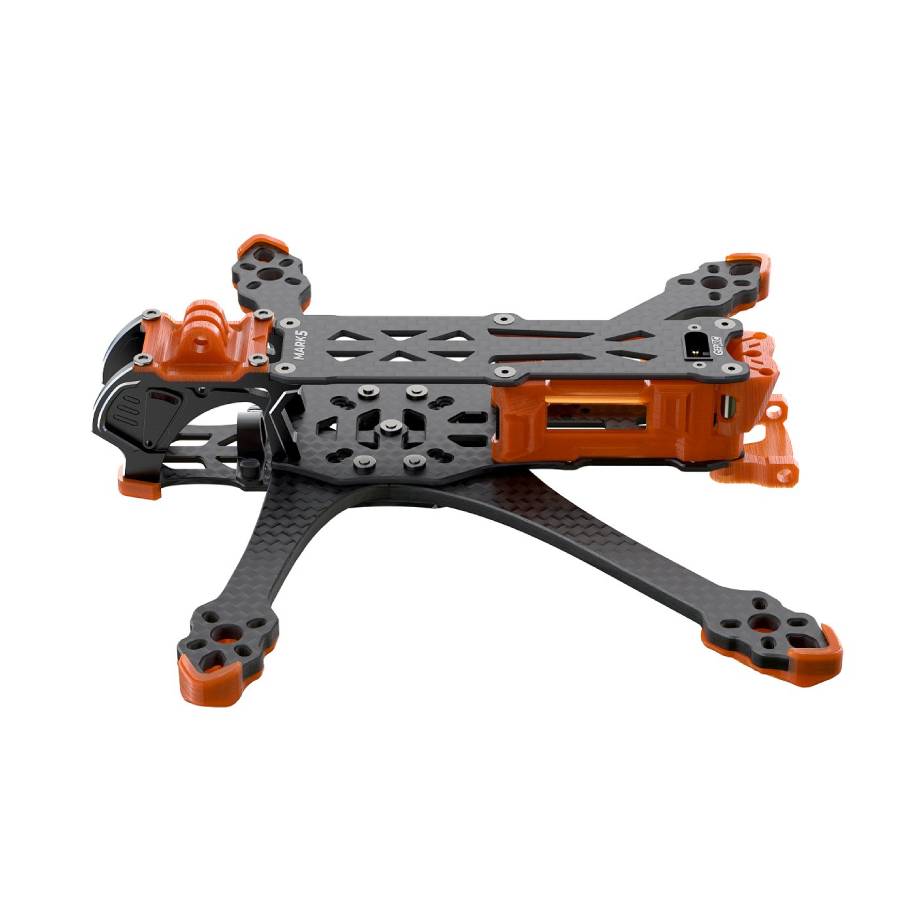

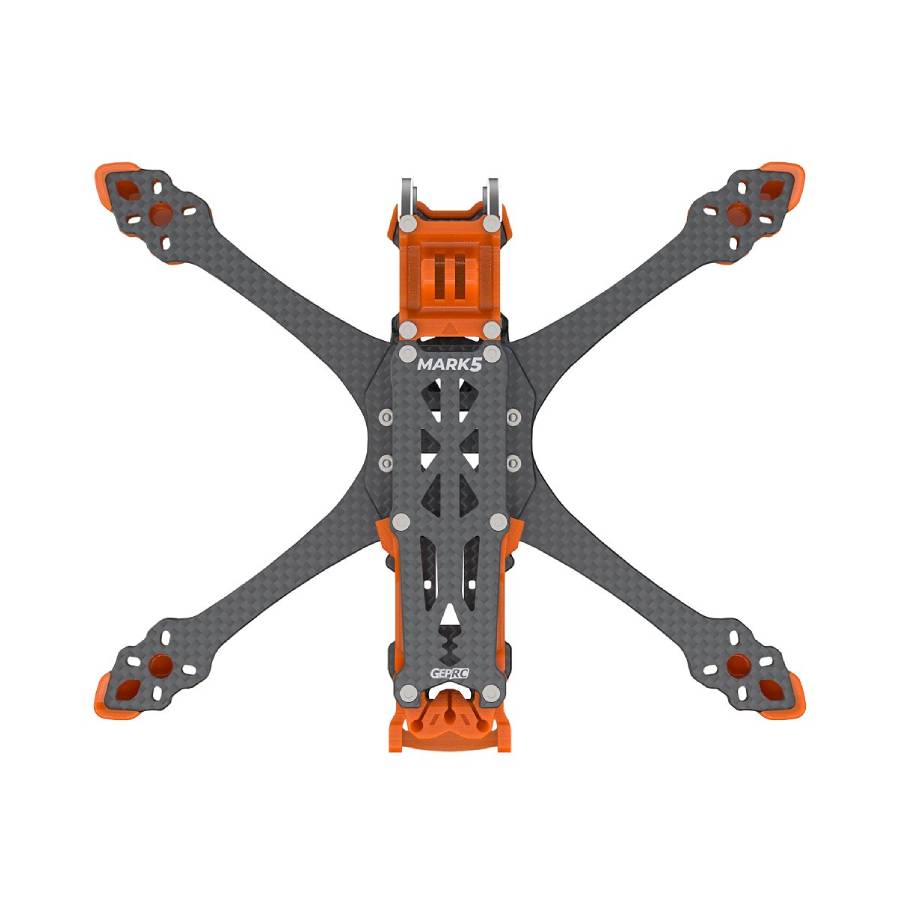

The GEP-MK5 O4 Pro frame is a robust, versatile 5" platform designed specifically to house the DJI O4 Air Unit Pro, offering flexibility for both freestyle and cinematic builds. With two layout variants - “Wide-X” for agile, responsive flying and “DC” for larger prop and long-flight setups with no props in view. Its 3K carbon fibre construction, damped camera mount and quick-release arms emphasise durability and ease of build, making it a solid foundation for serious FPV drone pilots.
Features:
- Purpose-built support for DJI O4 Air Unit Pro ensures clean fitment, stable video and vibration resistance.

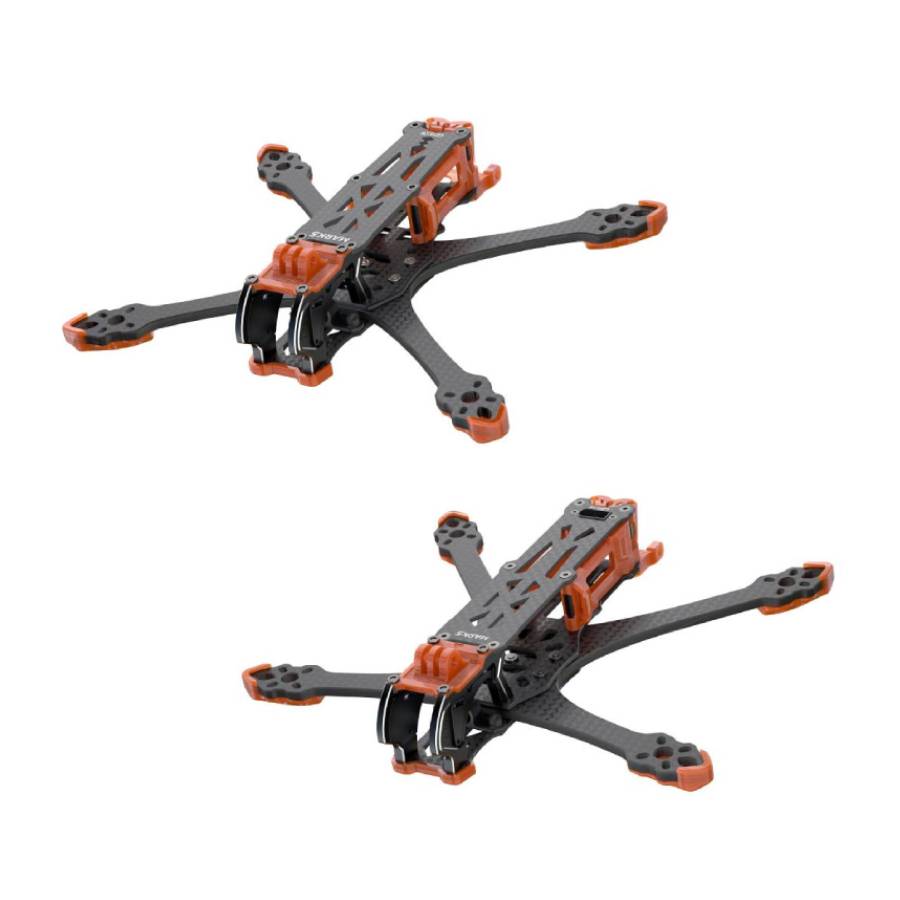

- Choice of two frame layouts: “Wide-X” for nimble freestyle or “DC” for larger props and smoother high-thrust flight without props in view.
- Quick-release arms with two-screw system - simplifies maintenance and arm replacement.
- Dual TPU camera mounts for action cameras adding flexibility for HD filming.
- 3K carbon fibre plates (top, bottom and arms) deliver strength, light weight and crash resilience.
- Compatible with standard 30.5×30.5mm flight-controller mounting patterns, offering a wide compatibility of ESC & FC's.
Specification:
- Model: GEPRC GEP-MK5 O4 Pro Frame
- Wheelbase: 225mm (Wide X), 230mm (DC)
- Frame weight: 165.1g (Wide X), 197.0g (DC)
- Top/bottom plate thickness: 2.5mm
- Arm thickness 5mm
- Mounting patterns (FC): 30.5×30.5mm
- Motor mount pattern: 16×16mm or 19×19mm
- Camera mount spacing: 20mm
- Propeller size: 5″
Available versions (see below for purchase options):
GEPRC GEP-MK5 O4 Pro X Frame (GP107629)
GEPRC GEP-MK5 O4 Pro DC Frame (GP107631)
Included:
- Carbon Fibre Frame
- Heavy-duty Velcro battery strap
- Rubber anti-slip pads/straps
- 3D-printed parts pack
- Hardware/Screw kit
- Hex drivers
