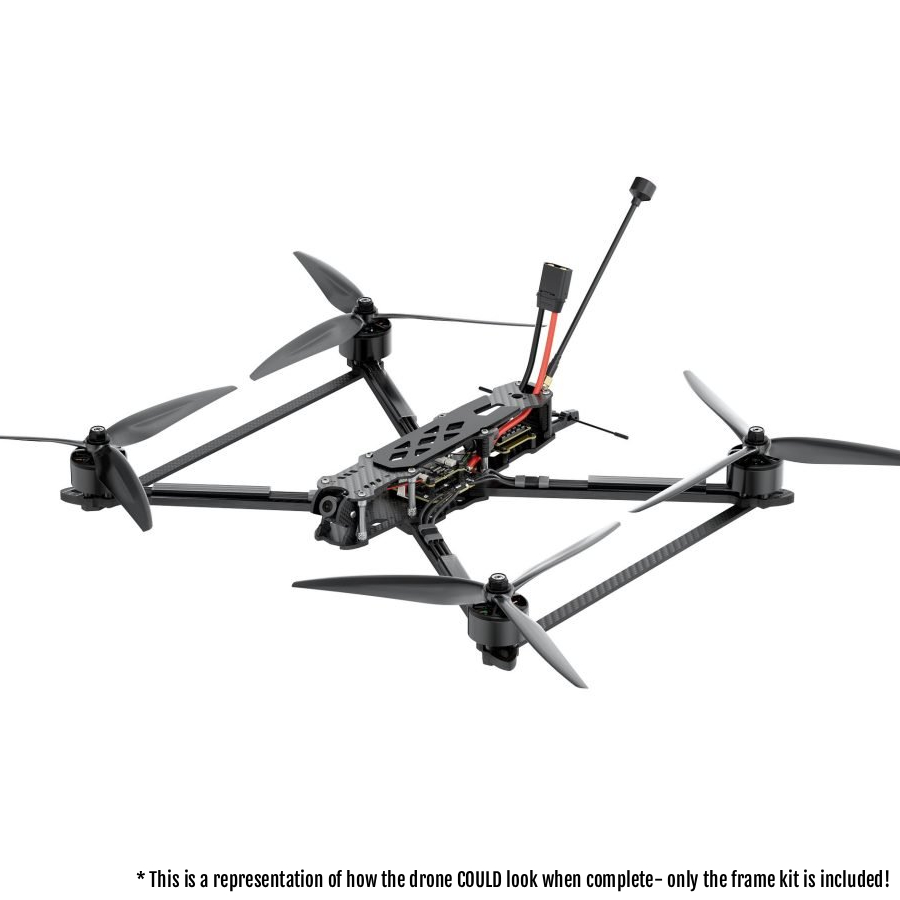

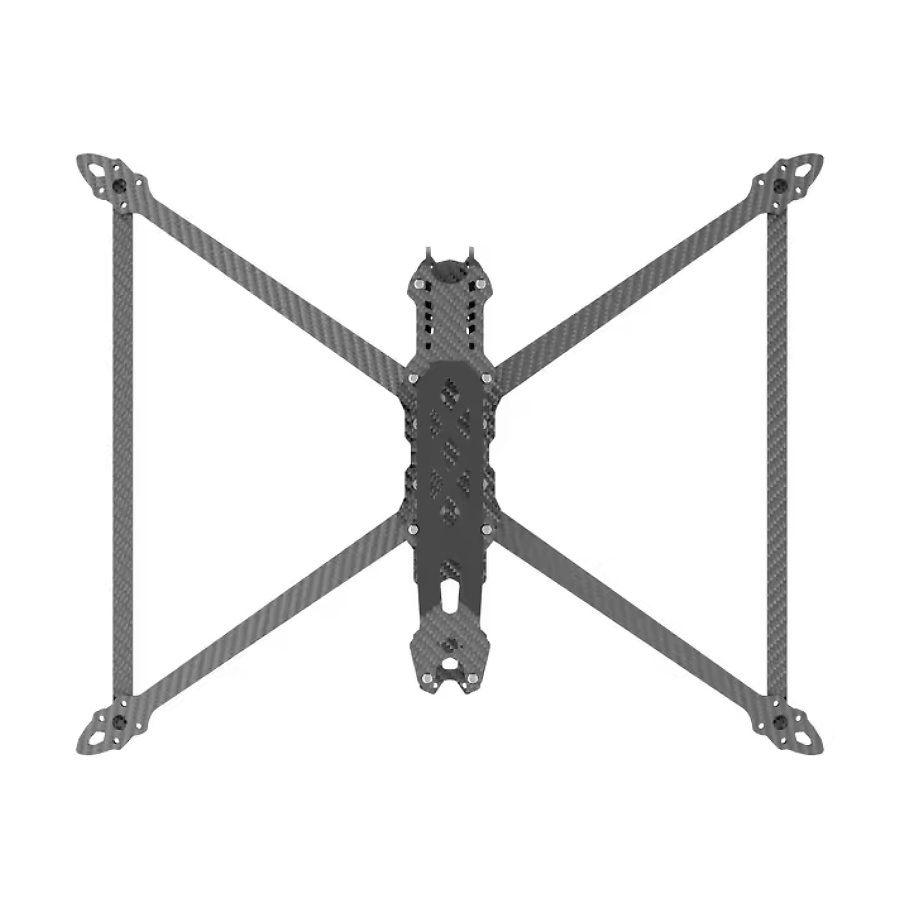

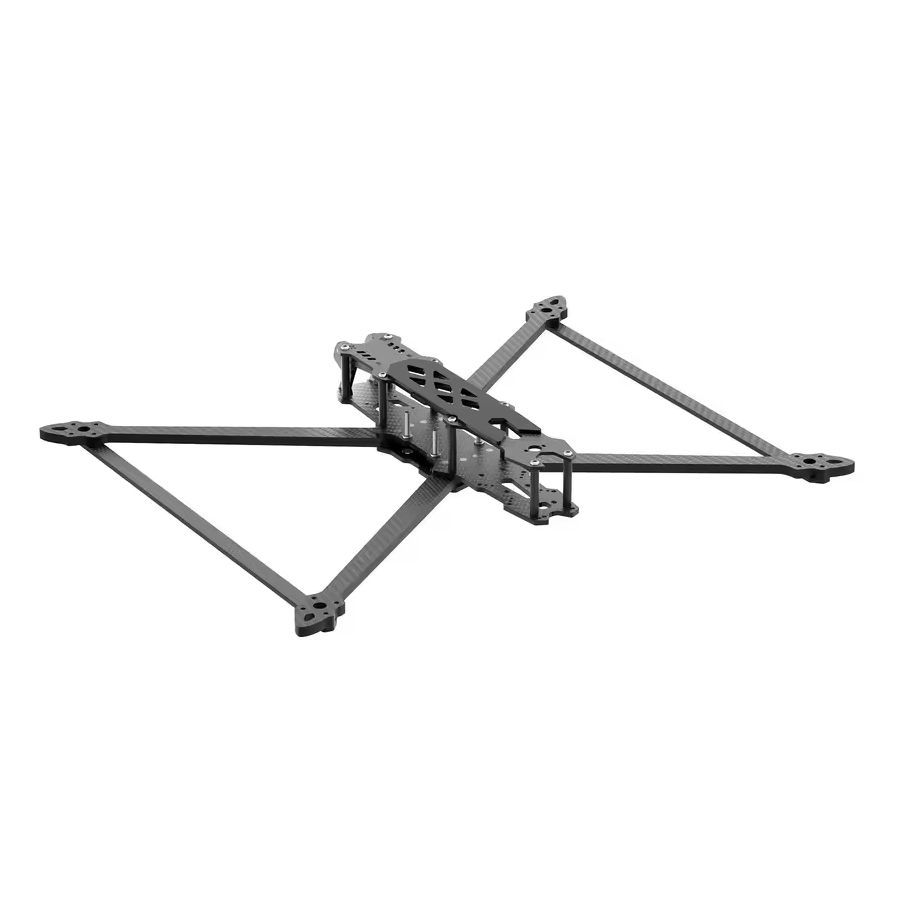

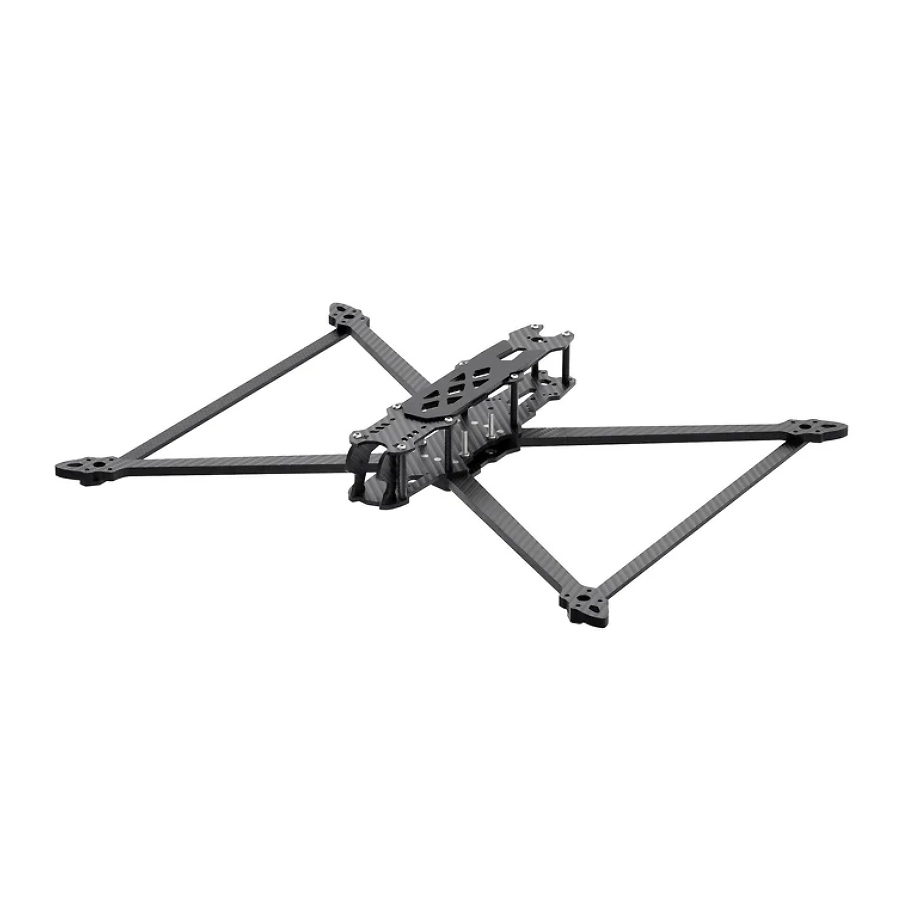

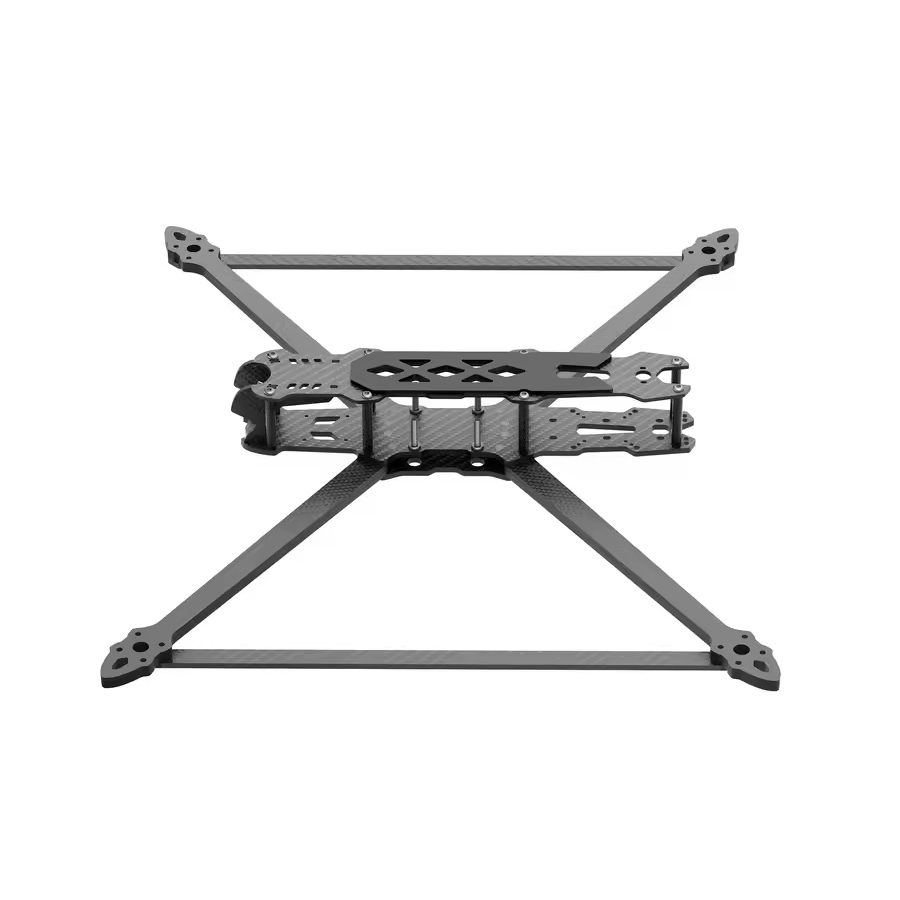

GEPRC Mark4 10" Long Range Drone Frame

Overview:
The GEPRC Mark4 10 Long Range Drone Frame is a large-format 10" carbon fibre frame engineered to provide exceptional rigidity, stability and equipment capacity for endurance-focused FPV applications.

The frame utilises thick 7mm carbon fibre arms and multiple reinforced structural plates to improve torsional rigidity and reduce resonance during flight. This robust construction helps maintain flight stability when carrying larger batteries, HD FPV systems or autonomous flight equipment, making the frame particularly suitable for cinematic long-range exploration builds.

Compatibility has been carefully considered throughout the design, with support for multiple flight controller and VTX mounting standards including 30.5x30.5mm, 25.5x25.5mm and 20x20mm patterns. The frame also accommodates larger motors through its 19x19mm motor mounting pattern and supports standard FPV camera installations via 19mm camera spacing.

Features:
- Spacious fuselage area for larger electronics and battery configurations
- Suitable for cinematic, exploration and endurance-focused FPV platforms
- Compatible with multiple FC and VTX mounting standards
- Supports large propulsion systems and high-capacity LiPo setups
- Reinforced multi-plate construction for reduced vibration and resonance
- Designed to fit both digital and analogue FPV systems
- Compatible with standard micro FPV cameras
- Optimised for long-range and heavy-lift multirotor applications

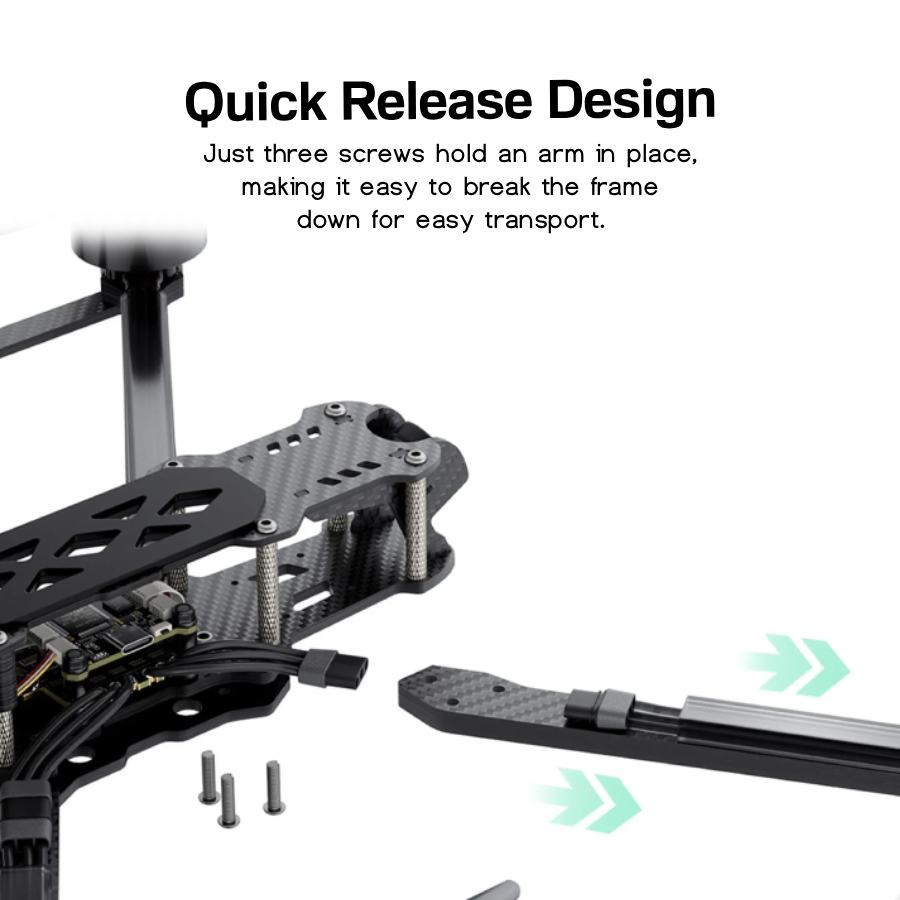

- Modular frame structure for easier maintenance and component access
- Supports a maximum payload of 3kg with a 3214 or 3115 900KV motor, ideal for freestyle drones.
- Accommodates up to 6S 8000mAh batteries, increasing flight time for long-range missions.

Specification:
- Model: GEPRC Mark4 10 Long Range Drone Frame (GP106265)

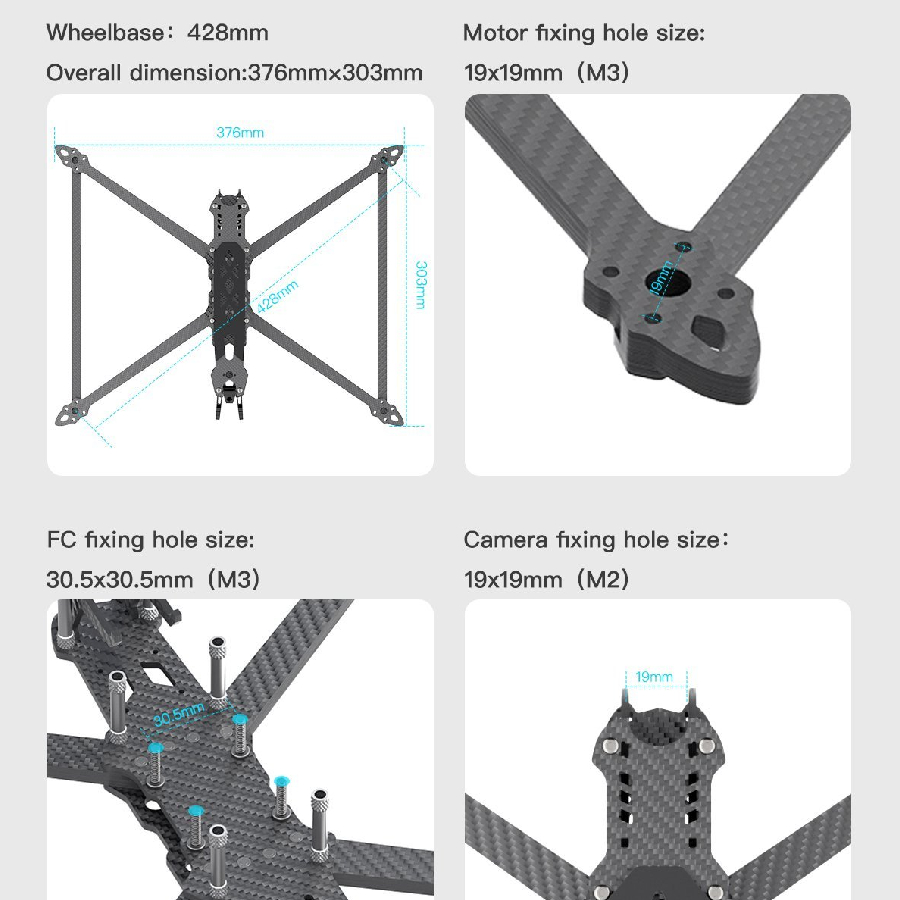

- Wheelbase: 428mm
- Dimensions: 376x303mm
- Bottom Plate Thickness: 3mm
- Top Plate Thickness: 2mm
- Camera Side Plate Thickness: 2.5mm
- Mid Plate Thickness: 3mm
- Arm Thickness: 7mm
- Stiffener Bar Thickness: 3mm
- Flight Controller Mounting: 30.5x30.5mm (M3)

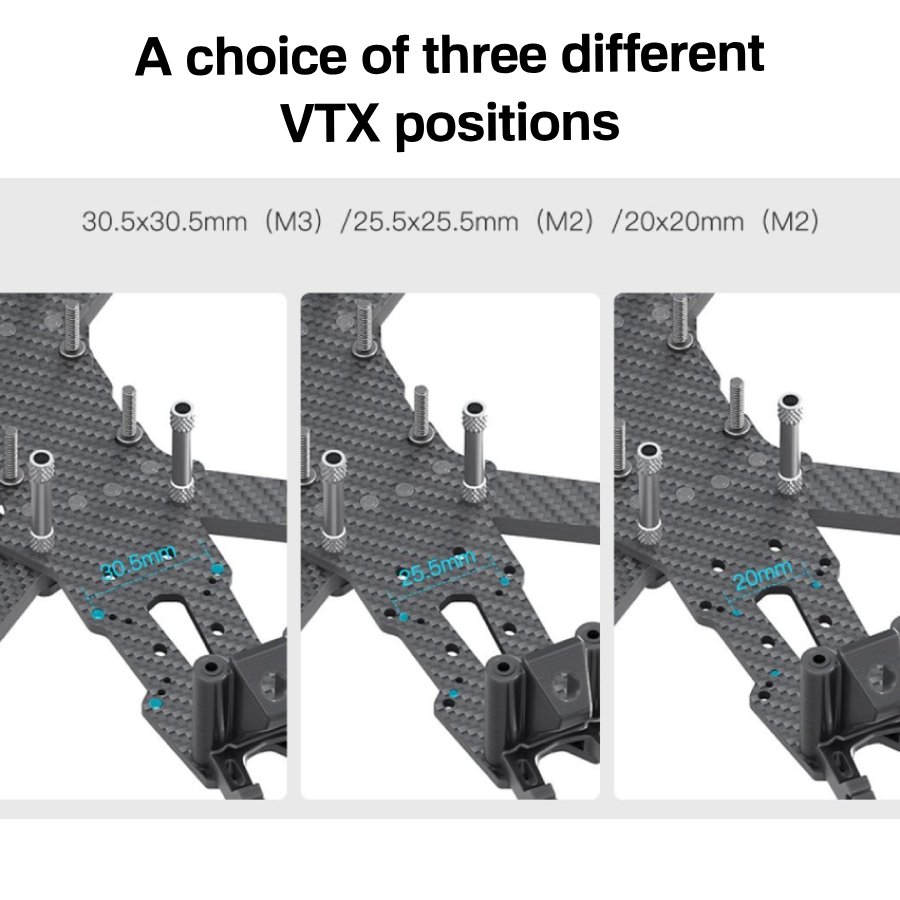

- VTX Mounting: 30.5x30.5mm(M3), 25.5x25.5mm(M2), 20x20mm(M2)
- Motor Mounting Pattern: 19x19mm (M3)
- Camera Mounting Width: 19mm (M2)
- Internal Fuselage Height: 30mm
- Weight: 270g
- Material: Carbon fibre
- Recommended Propeller Size: 10"

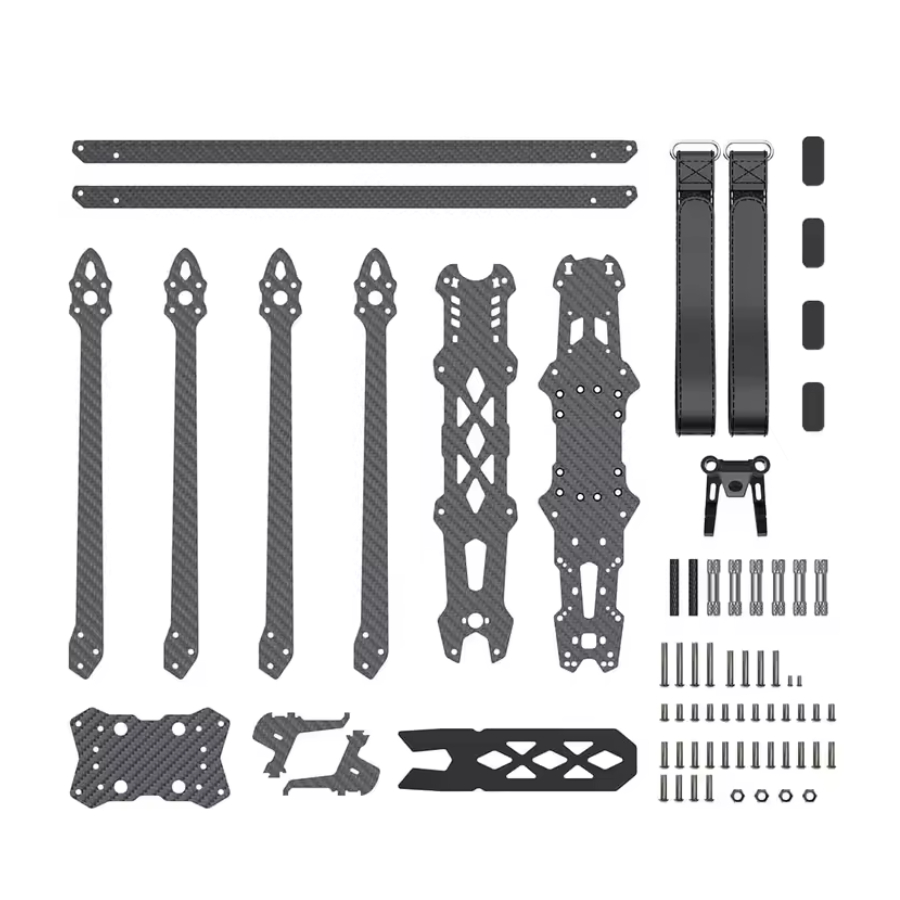

Included:
- 1x GEPRC Mark4 10" Long Range Drone Frame
- Accessories
