Overview:

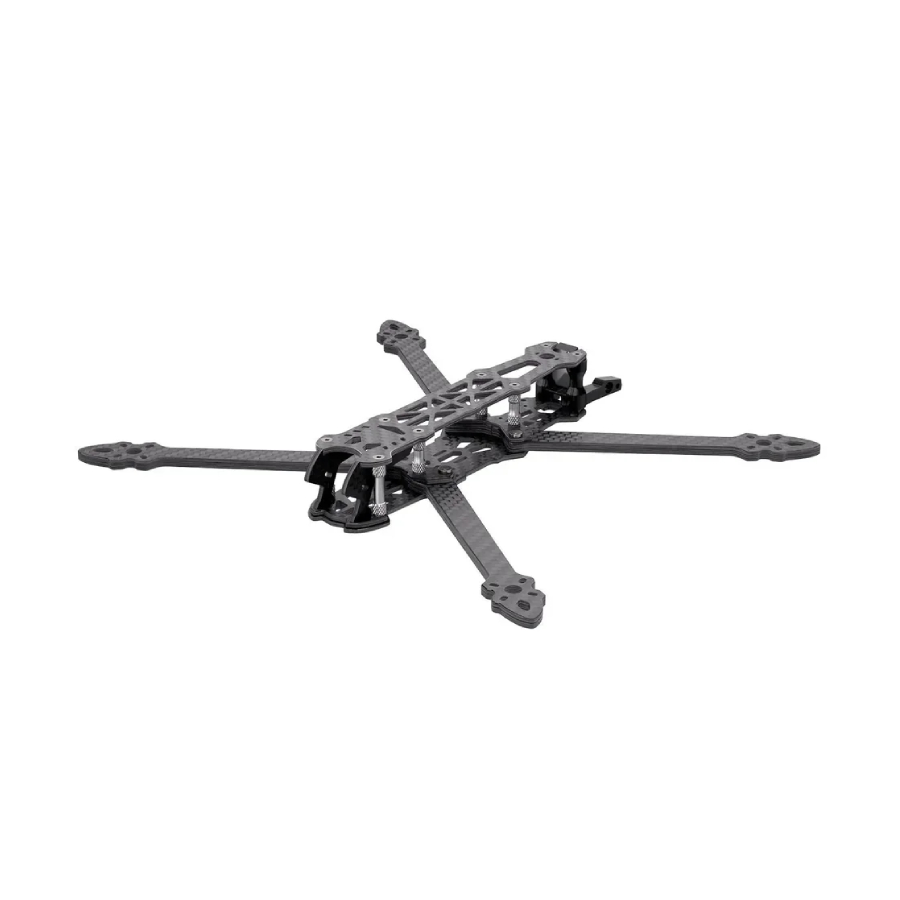

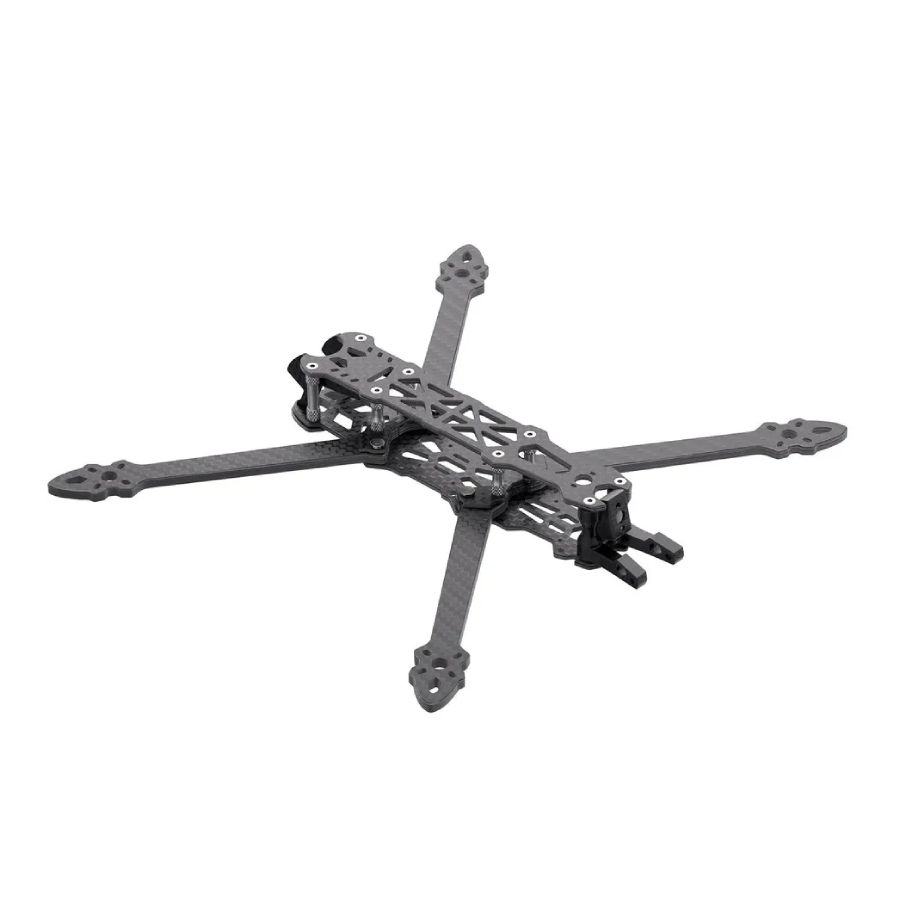

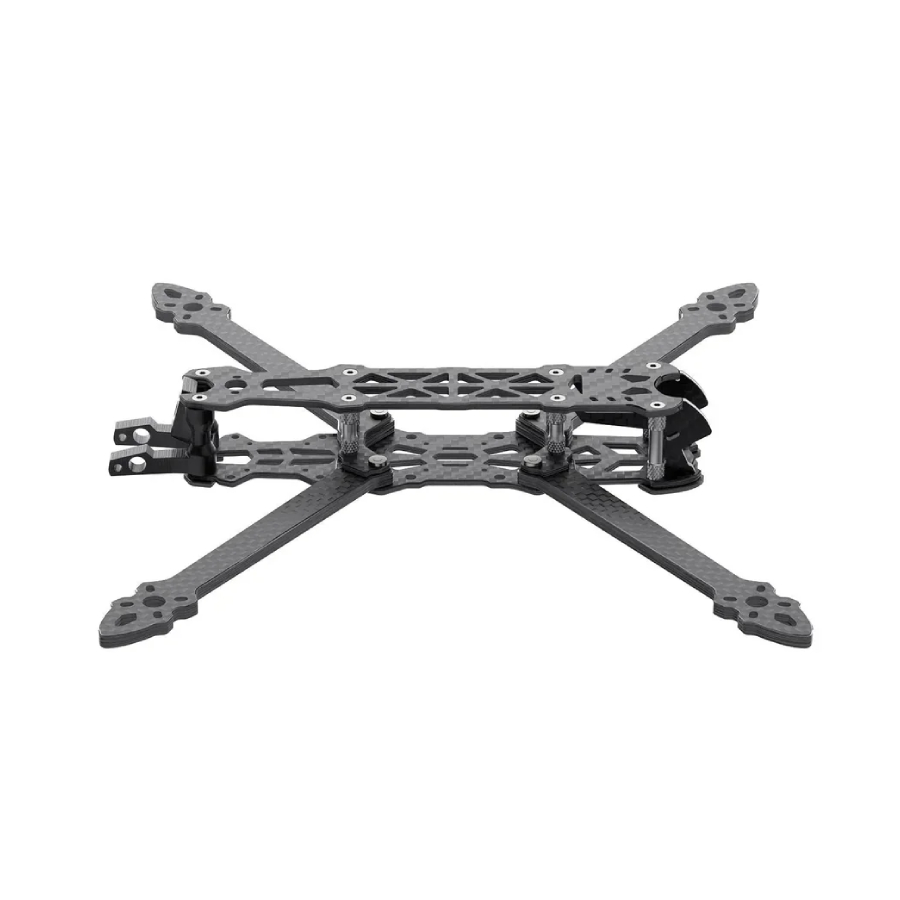

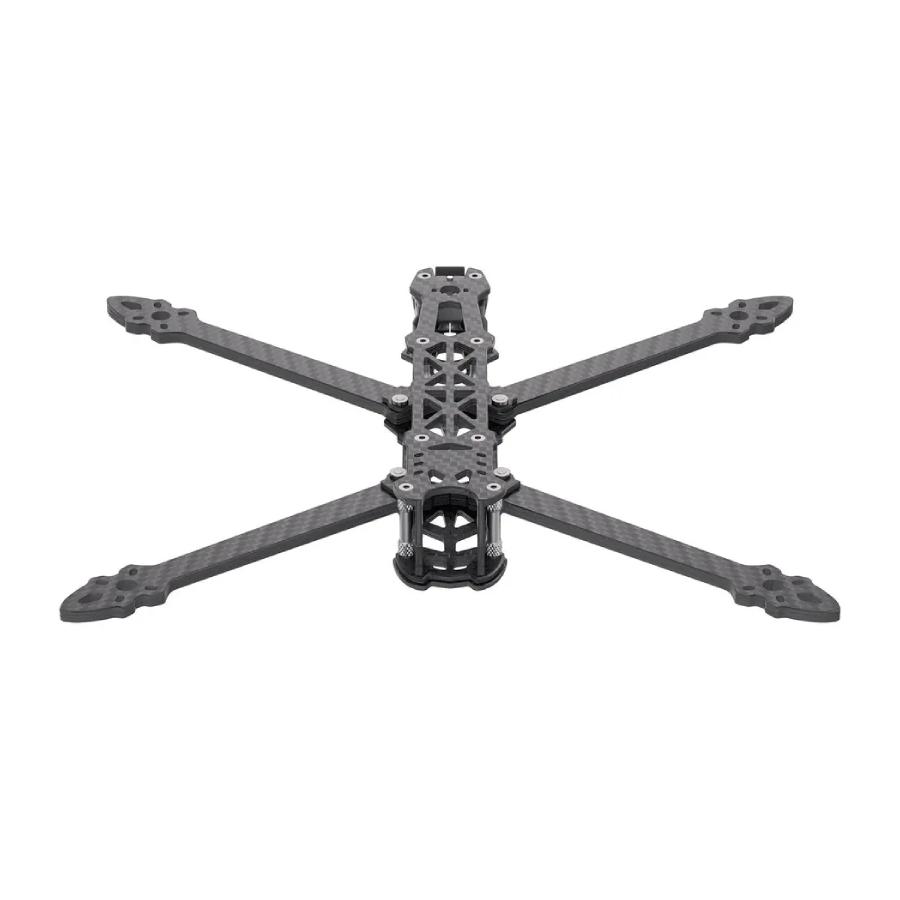

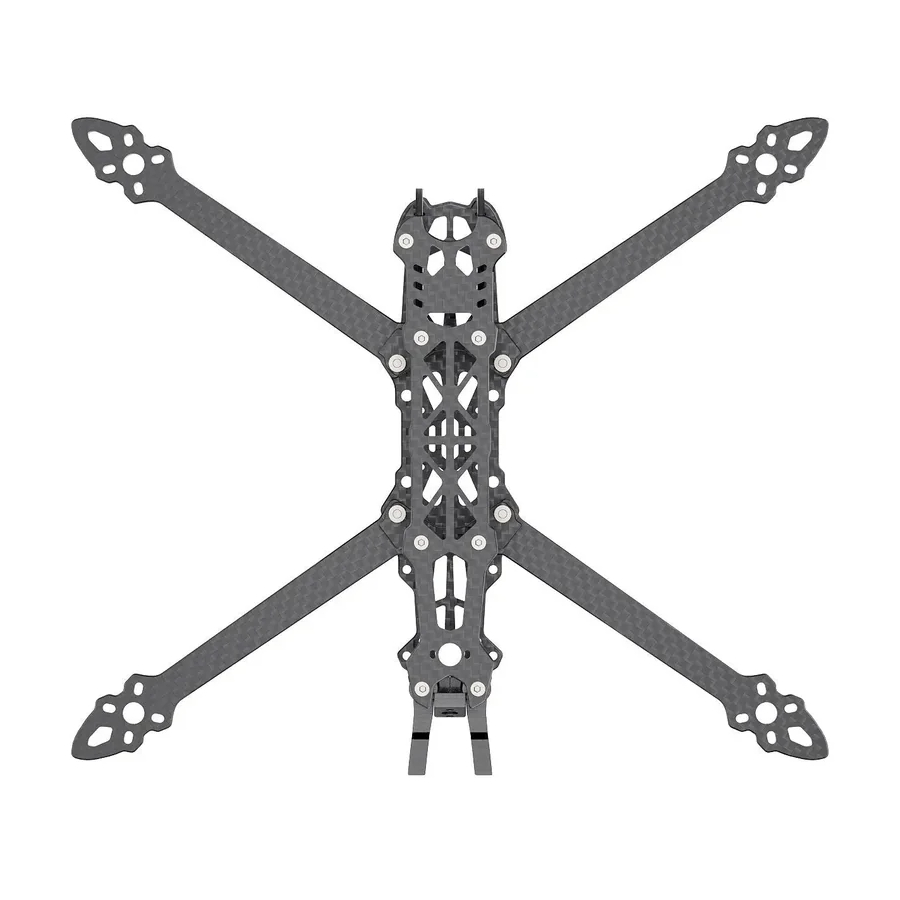

The GEPRC GEP-Mark4-7 Frame is a lightweight 7inch carbon fibre FPV frame developed for freestyle and long-range quadcopter builds requiring a strong structure, clean component layout, and straightforward maintenance access. Designed around an H-style geometry, the Mark4-7 offers a balanced layout with generous internal space for modern electronics while maintaining a relatively low overall weight for its class.
Built from high-quality CNC-machined 3K carbon fibre, the frame uses robust 5mm arms to improve durability during hard landings and rigid structural strength for aggressive flying. The wide body layout provides ample room for larger stacks, HD VTX, GPS modules, whilst making it well suited to both analogue and digital FPV setups. The removable arm design also simplifies repairs and maintenance without requiring a complete strip-down of the quad.
The Mark4-7 supports both 30.5x30.5mm and 20x20mm mounting patterns in the centre section and rear electronics area, allowing flexible installation options for electronics. A 25mm internal frame height gives additional clearance for taller component stacks and wiring management, helping create a cleaner and more accessible build.
With its combination of lightweight construction, practical layout, and proven Mark4 platform design, the GEP-Mark4-7 remains a popular option for pilots building reliable 7inch freestyle and long-range FPV drones.
Features:
- Lightweight H-style 7inch FPV frame design
- Durable 5mm carbon fibre arms
- Designed for freestyle and long-range quadcopter builds
- Spacious internal layout for modern FPV electronics
- Removable arm structure for easier maintenance and repairs
- Supports both analogue and digital FPV systems
- Dual stack mounting support for 30.5x30.5mm and 20x20mm electronics
- Rear mounting area suitable for VTX installation
- 25mm internal frame height for increased component clearance
- High-precision CNC-machined 3K carbon fibre construction
- Reinforced camera side plates for additional front-end protection
- Optimised layout for balanced weight distribution and clean wiring
Specification:
- Model: GEPRC GEP-Mark4-7 Frame (GP106119)
- Wheelbase: 295mm
- Frame dimensions: 226x266mm
- Weight: 121g
- Arm thickness: 5mm
- Base plate thickness: 3mm
- Top plate thickness: 3mm
- Side plate thickness: 2.5mm
- Front and rear protective plate thickness: 2.5mm
- Reinforcement plate thickness: 2mm
- Stack mounting pattern: 30.5x30.5mm M3 and 20x20mm M2
- VTX mounting pattern: 30.5x30.5mm M3 and 20x20mm M2
- Motor mounting pattern: 16x16mm and 19x19mm
- Camera compatibility: Micro size 19mm
Included:
- 1x GEPRC GEP-Mark4-7 Frame
- Accessories
