Overview:

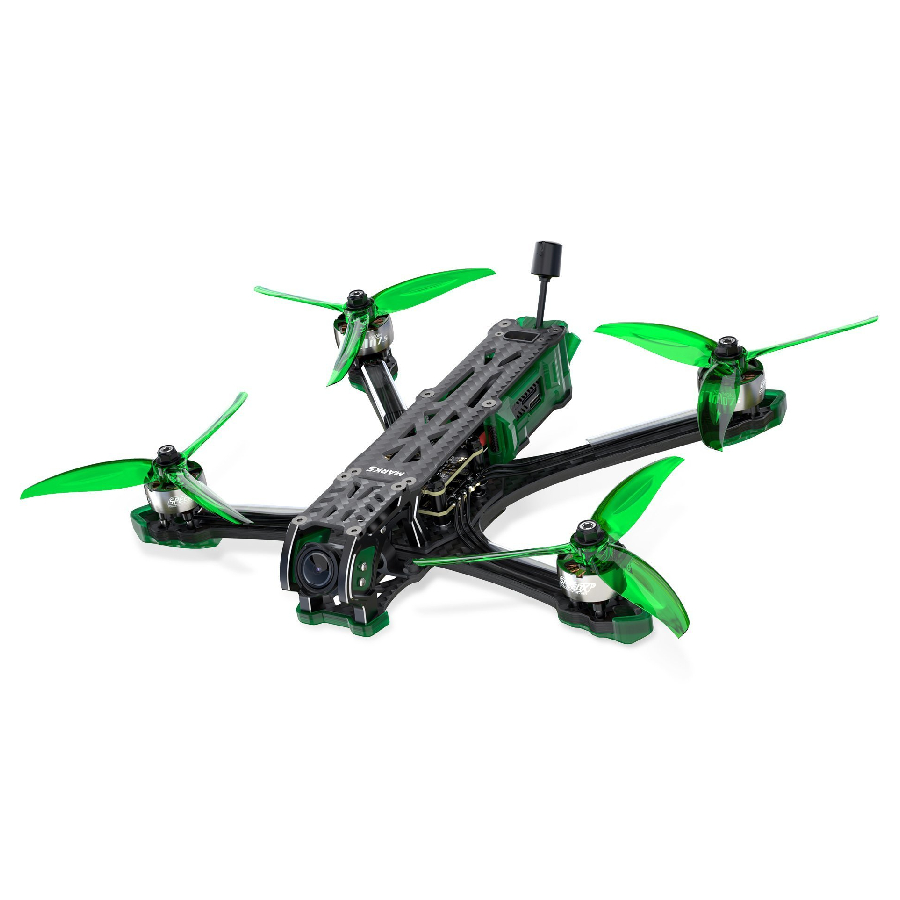

GEPRC’s MARK5 DC DJI O3 Air Unit version is developed specifically for FPV Freestyle/filming!
MARK5 is developed specifically for freestyle with Deadcat arm design. Unique shock absorbing structure design, less vibrations and resonance provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning but reduce weight and add more endurance. MARK5 is equipped with GEPRC’s latest SPAN F722-BT-HD v2 with high performance and lots of ports, supporting Bluetooth wireless connection for easy field tuning. Freshly upgraded SPAN 50A BLHeli_32 ESC with GEPRC’s latest 2107.5 motor, has great explosive power and very fast response speed. The new GEMFAN Freestyle propellers provide delicate and silky smooth flight experience. The MARK5 is shipped with two different 3D printed action cam mounts that can be fitted with GoPro8/10, Naked GoPro8, Naked GoPro10, Insta 360 GO2, Caddx Peanut and DJI Action 2 cameras. After continuous testing and tuning by GEPRC R&D team, we are proud to say, this is yet another GEPRC drone that comes perfectly tuned right out of the box. Just take it out, plug the battery and have fun!
Features:
- Aluminum alloy side plates not only look stunning but reduce weight and add more endurance.
- Supports Bluetooth wireless connection for easy field tuning.
- Developed specifically for freestyle with Deadcat arm design.
- The HD version comes with the Caddx Vista HD System & Nebula Pro cam.
- Freshly upgraded GEP-50A ESC 4in1 ESC with GEPRC’s latest 2107.5 motor, has great explosive power and very fast response speed.
- Unique shock absorbing structure design, less vibrations and resonance.
- With independent capacitor and buzzer cabin, the operating environment of the whole drone is extremely stable, no shaking, no jitter
- Two kinds of 3D printing camera mounts are designed, which can be mounted with a full range of GoPro cameras, as well as Naked GoPro 8, Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear
- MARK5 is the most ideal for freestyle flying and bando-bashing resistant.
- The DC structure is suitable for O3 internal recording when no propeller is visible during flight, while the X structure is more suitable for freestyle when the propeller is slightly visible during O3 internal recording.
Specifications:
- Model: MARK5 DC (Deadcat) HD DJI O3 Quadcopter
- Brand: GEPRC
- Frame: GEP-MK5D O3
- Wheelbase: 225mm
- Top plate: 2.5mm
- Bottom plate: 2.5mm
- Arm plate: 5mm
- FC system: SPAN F722-BT-HD v2 (No barometer but more stable)
- MCU: STM32F722
- IMU: 42688-P (SPI)
- OSD: BetaFlight OSD w/AT7456E chip
- ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
- VTX: DJI O3 Air Unit
- Camera: DJI O3
- Propeller: Gemfan 5136
- Antenna: DJI O3 antenna
- Motor: SPEEDX2 2107.5-1950KV (6S Version)
- Recommended Battery: LiPo 6S 1050mAh-1550mAh(6S Version)
Available Versions (See below for purchase options):
PNP Version:
- No receiver included. Add your own supporting SBUS or Serial connection e.g Crossfire, FrSky, ELRS. DJI FPV Controller 2 can be used.
ELRS Version:
- ELRS - ELRS UART based receiver included
Includes:
- GEPRC MARK5 DC HD DJI O3 (See below for versions available)
- Accessories
