Overview:

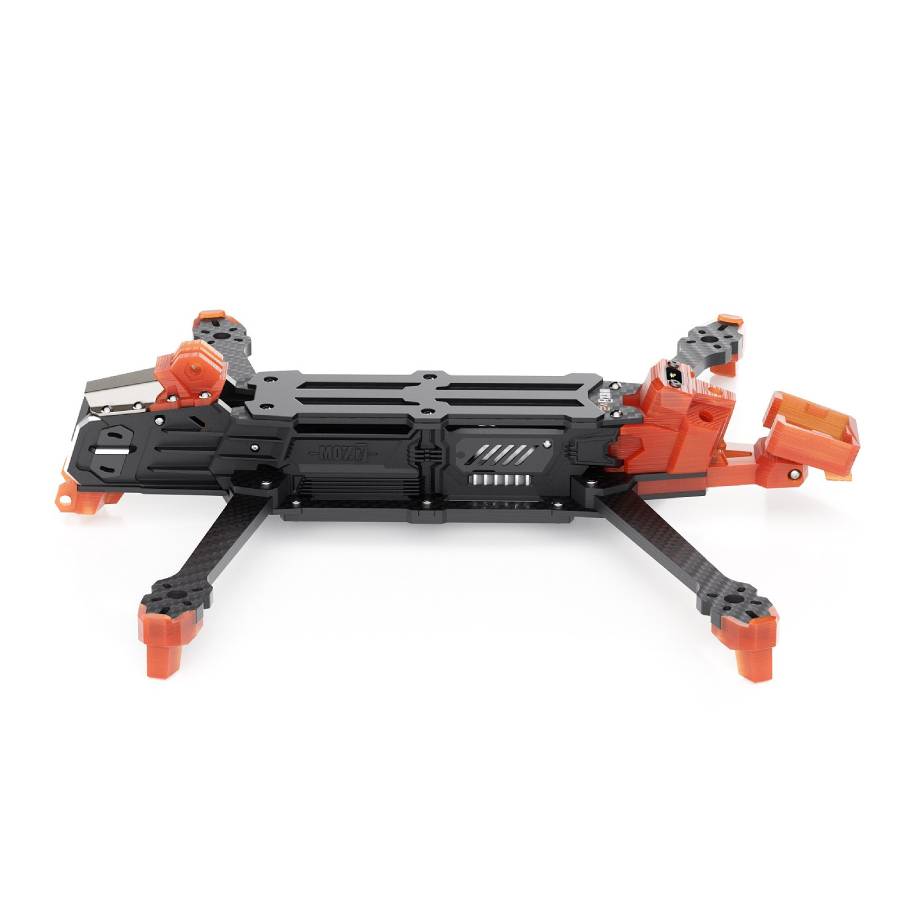

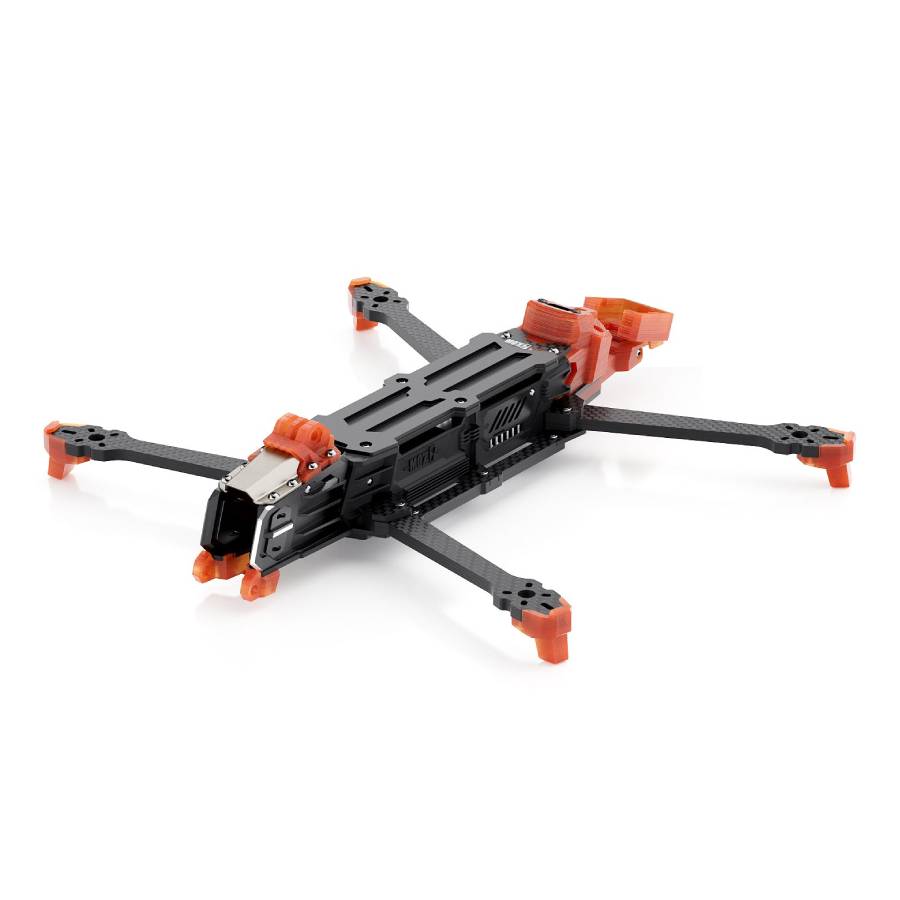

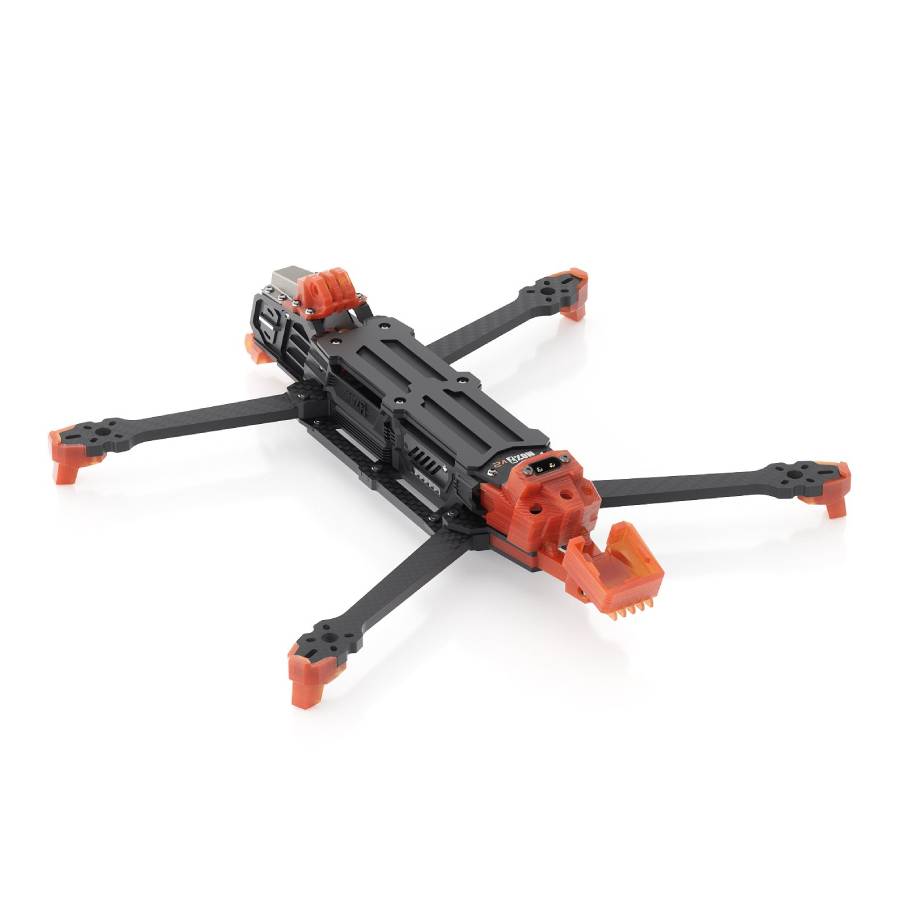

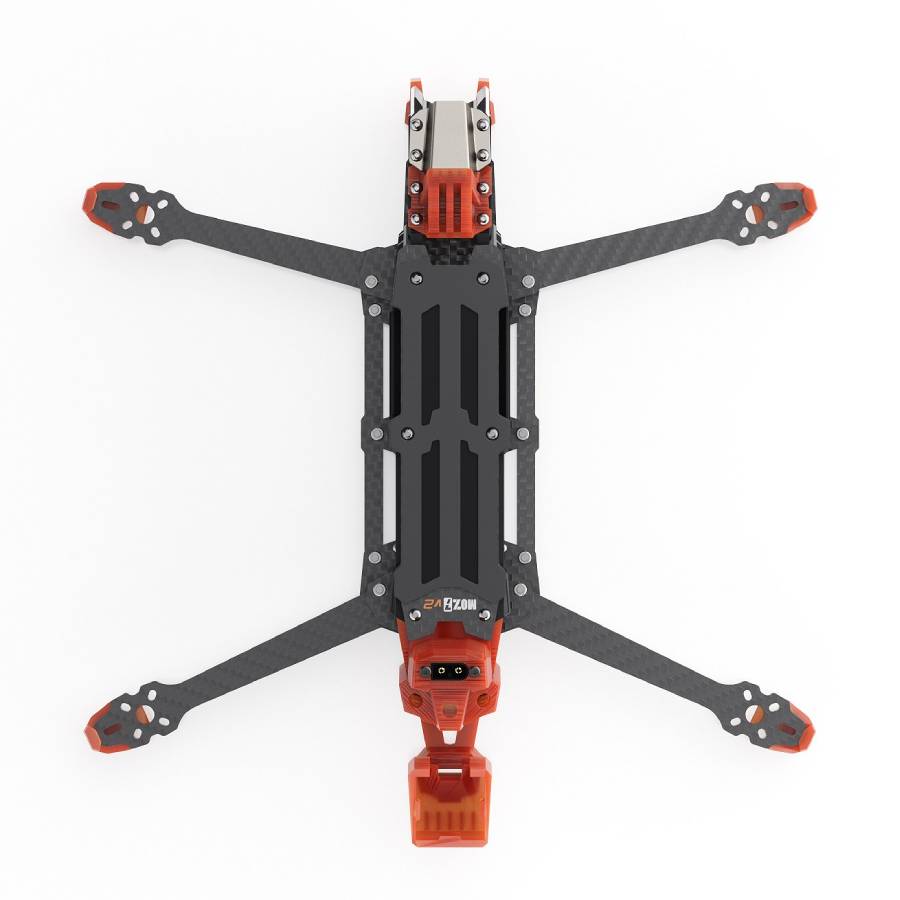

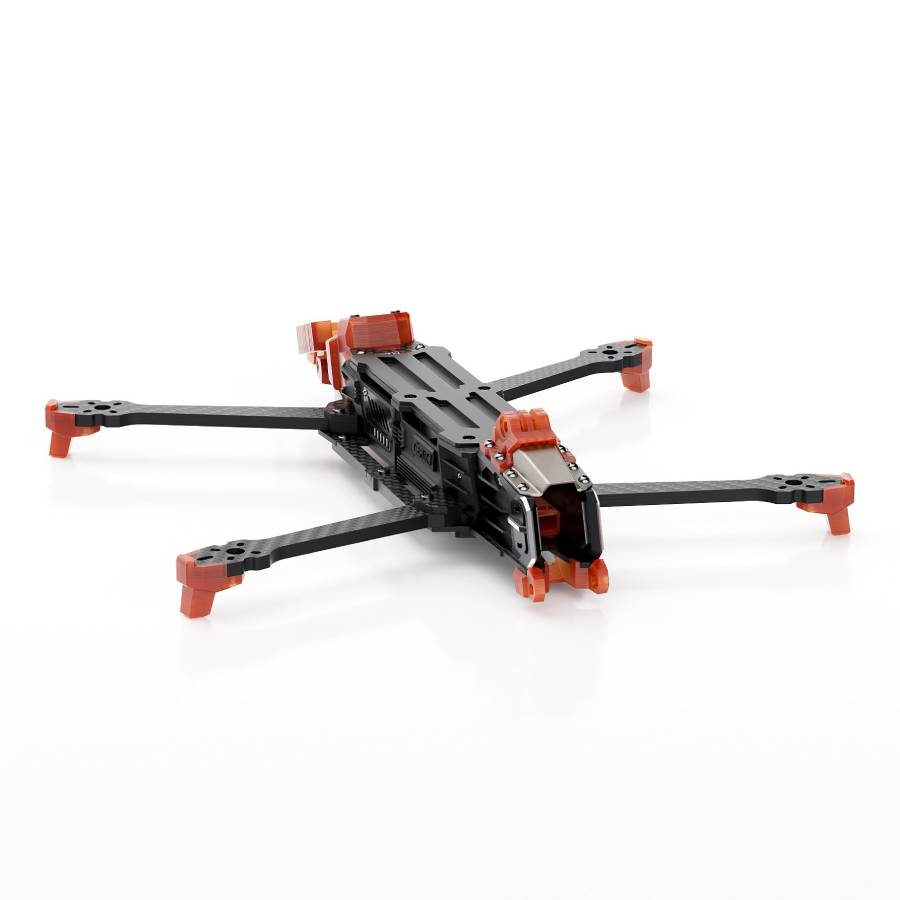

The GEP-MOZ7 V2 is a 7.5-inch long-range frame designed for the O4 Air Unit Pro HD VTX. It also supports 8-inch propellers and a wide range of compatible electronic setups.
Its extended front design ensures a clear, unobstructed view when using the O4 Pro VTX. The metal top plate protects the camera lens. Reinforced side arms increase rigidity and support bottom-mounted battery configurations. The VTX mount accommodates larger heat sinks for improved cooling performance, and the GPS mount supports M1025-series GPS units.
Features:
- Compatible with the O4 Air Unit Pro HD VTX, with no props visible in the camera view.
- Tech-inspired design featuring aerospace-grade aluminium camera mounts and a metal top plate for lens protection.
- Vertical reinforcement structure and 6mm-thick arms ensure flight stability and support for bottom-mounted batteries.
- O4 Air Unit Pro heat sink with fin and vent design for efficient cooling.

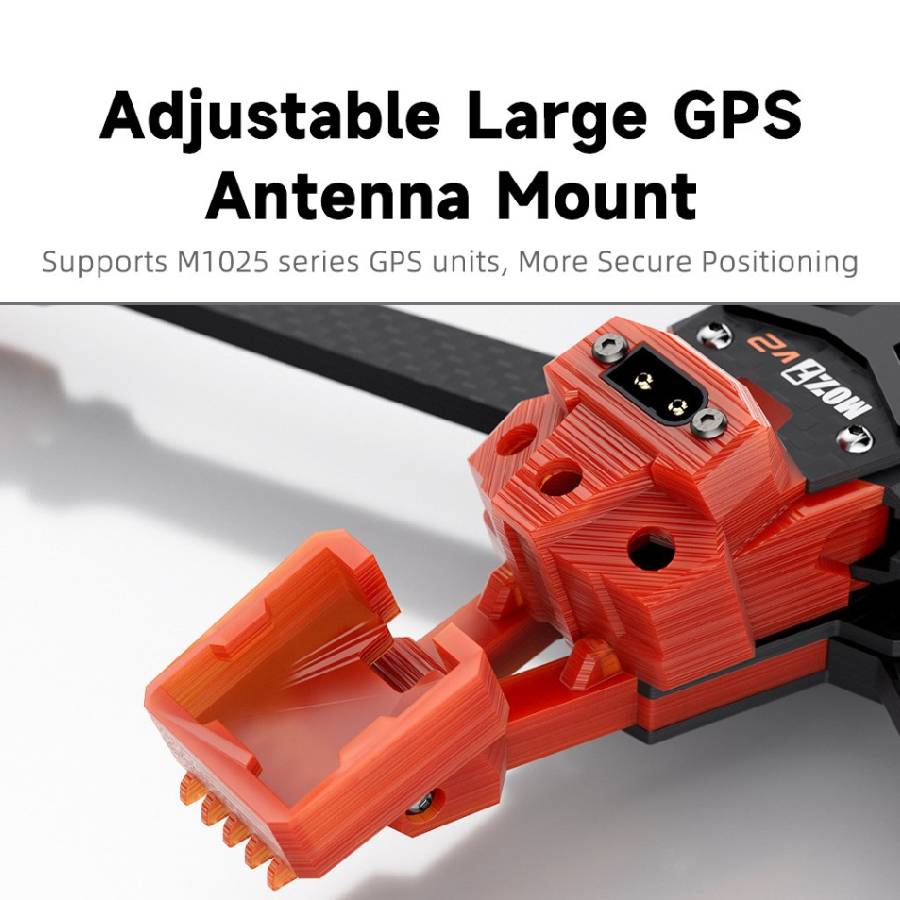

- Adjustable 25x25mm GPS antenna mount, supports larger GPS units for faster satellite lock.
- Front T-shaped antenna mount and rear vertical antenna for dual-frequency reception.

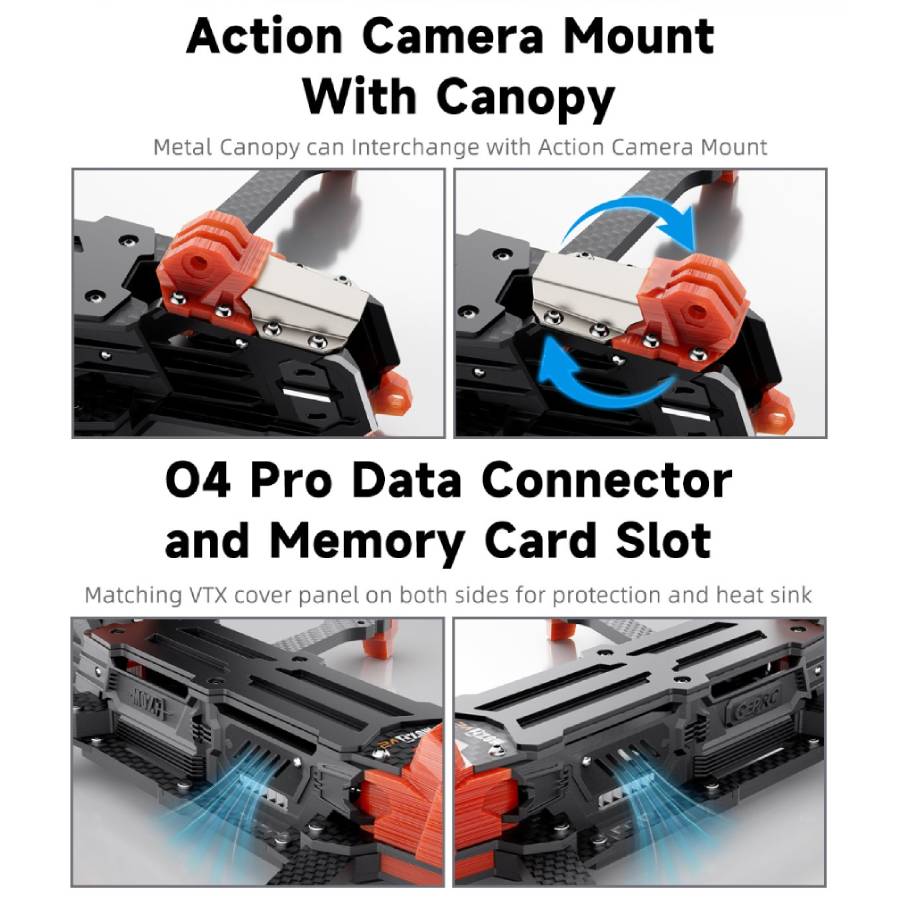

- The action camera mount is interchangeable with the metal canopy for centre of gravity adjustment.
- Durable feet prevent the bottom plate from scraping during landings.
Specification:
- Model: GEPRC GEP-MOZ7 V2 Frame (GP107754)
- Dimension: 376x303x35.5mm
- Weight: ~270g
- Wheelbase: 336mm
- Top Plate & Bottom Plate Thickness: 2.5mm
- Arm Thickness: 6mm
- Clamp Plate Thickness: 3mm
- FC Mounting Holes: 30.5x30.5mm(M3), 25.5x25.5mm(M2), 20x20mm(M3)
- VTX Mounting Holes: 25.5x25.5mm(M2，20x20mm(M2）
- Motor Mounting Holes: 16x16mm/19x19mm(M3)
- Lens Mounting Holes: 20mm(M2)
Included:

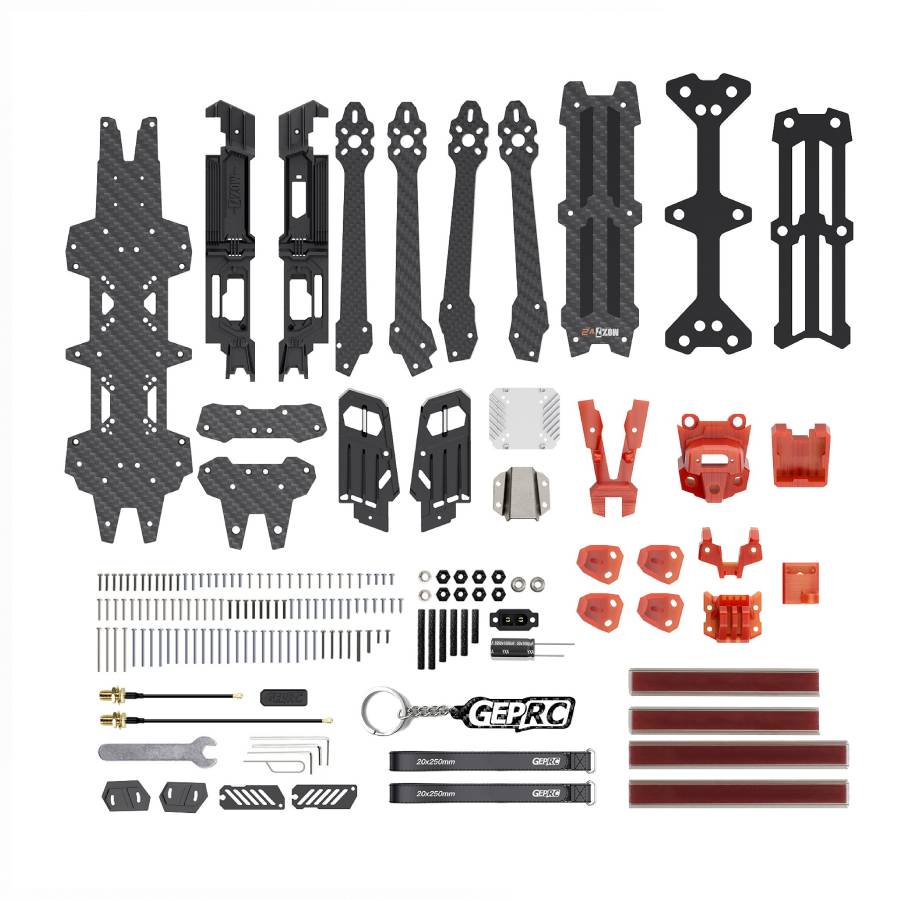

- 1x GEP-MOZ7 V2 Frame Kit
