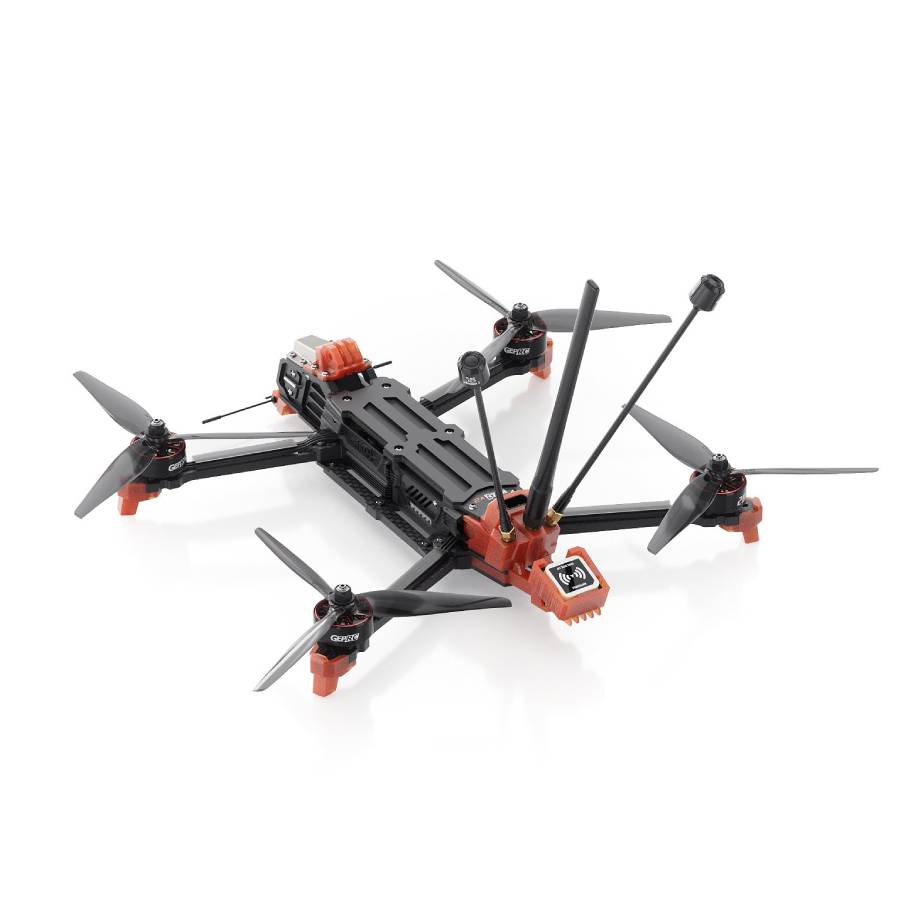

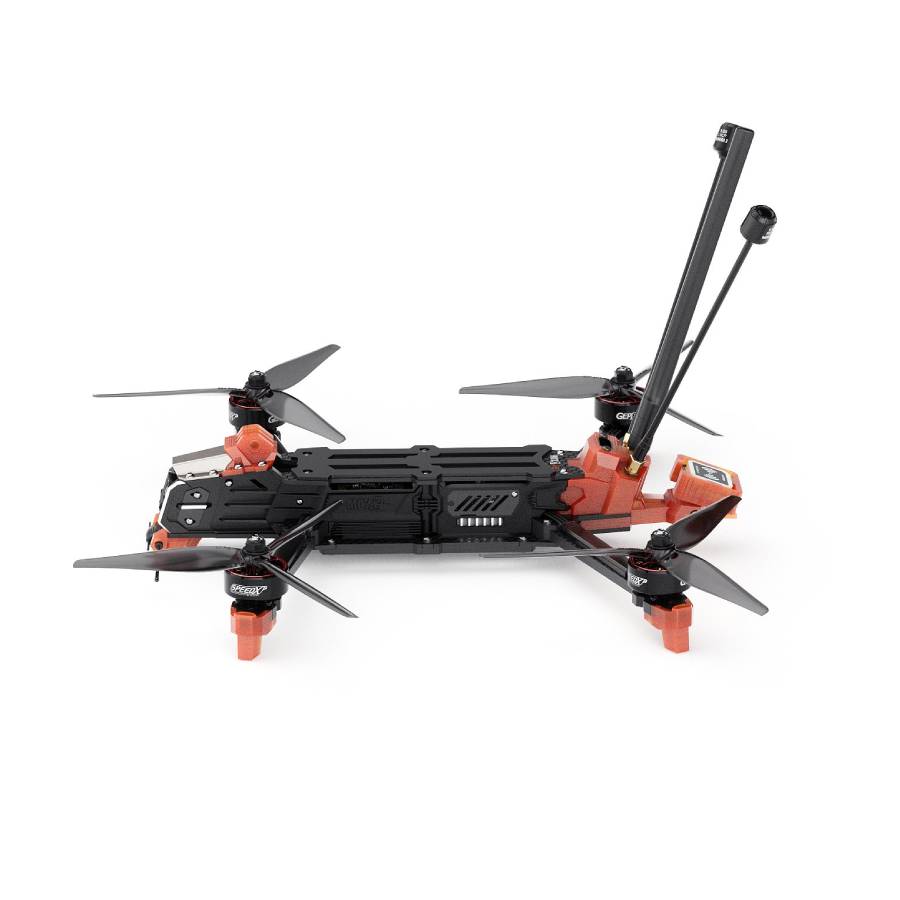

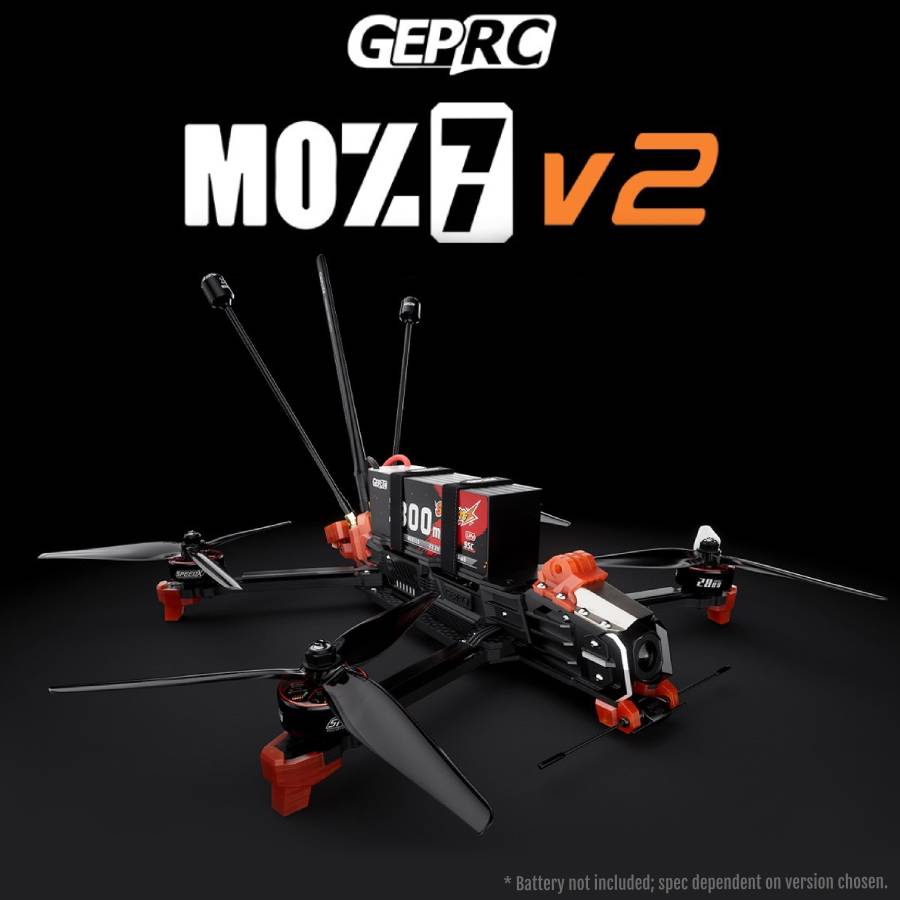

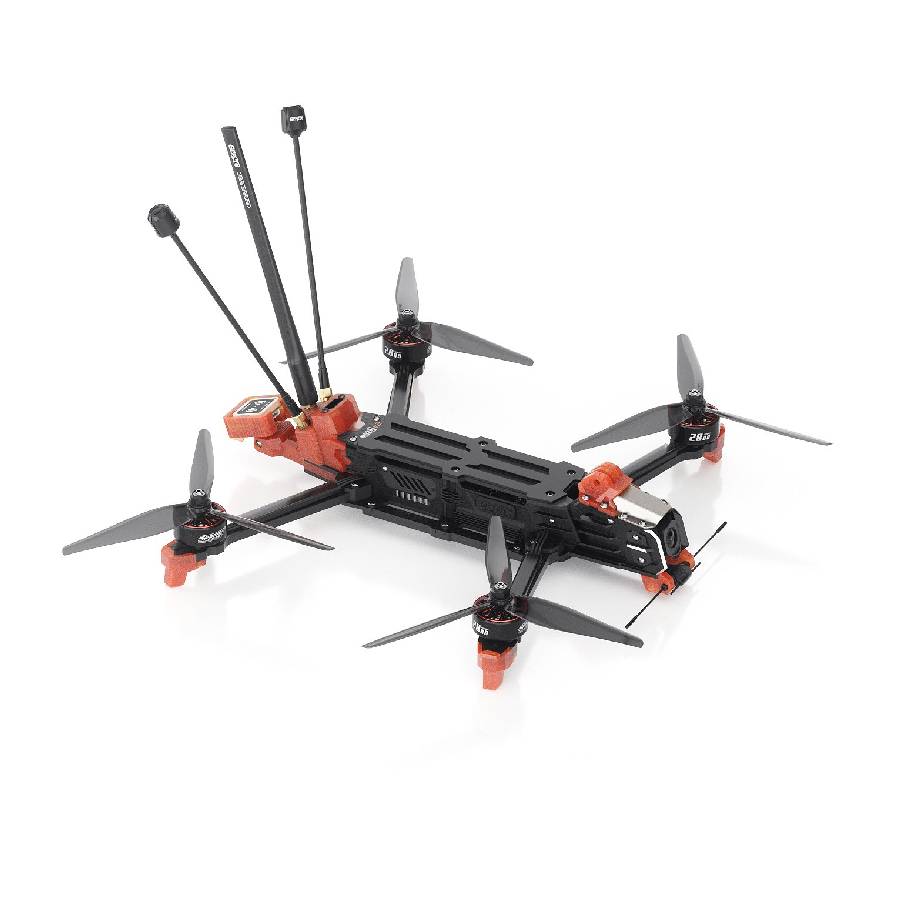

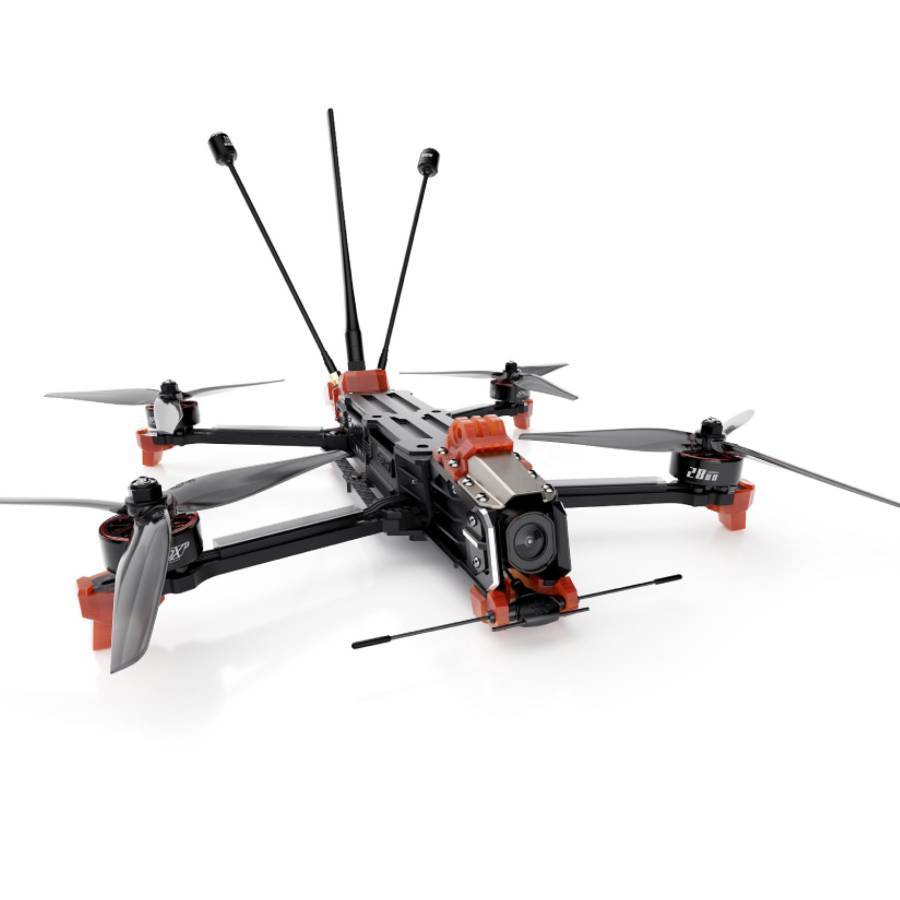

GEPRC MOZ7 V2 O4 Pro/Analogue

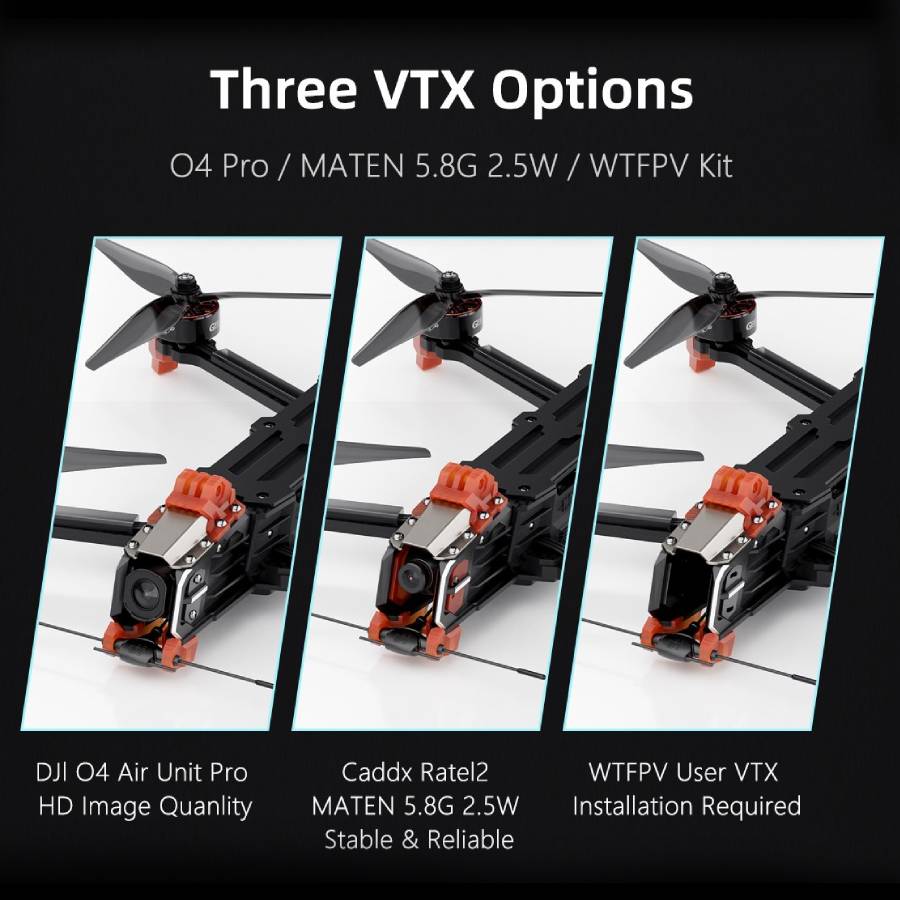

GEPRC MOZ7 V2 is available in three versions: with a DJI O4 Pro, Caddx Ratel 2 or pick the WTFPV version if you want to fit your own VTX.
Overview:

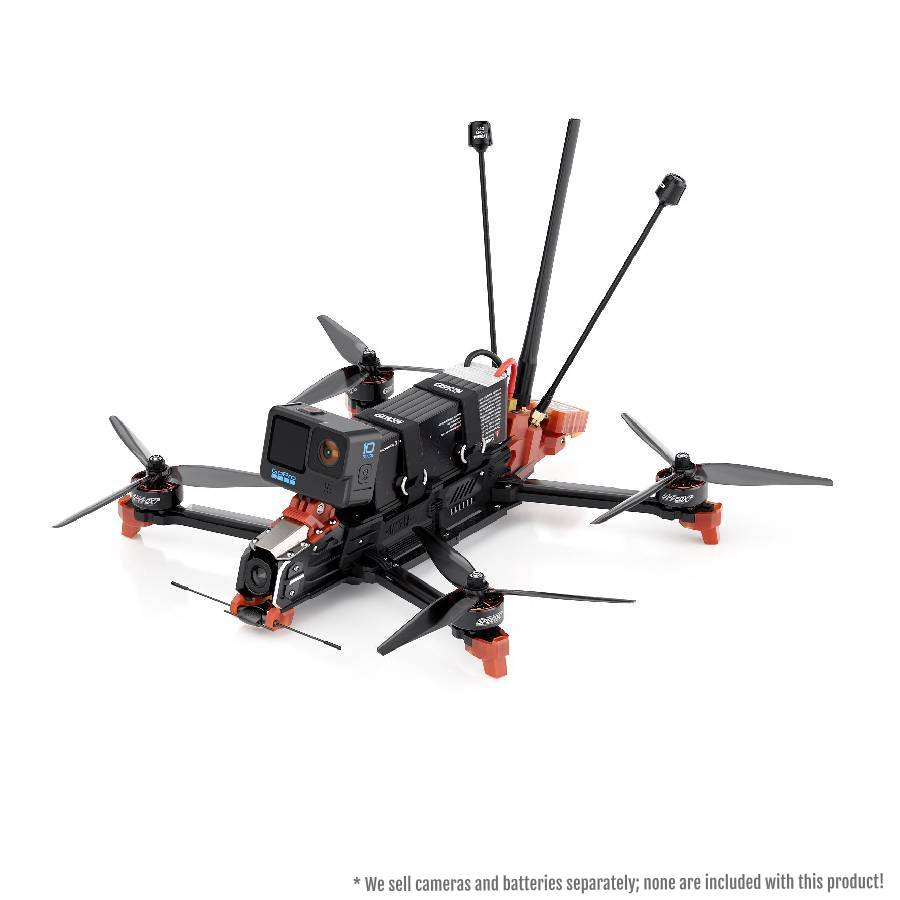

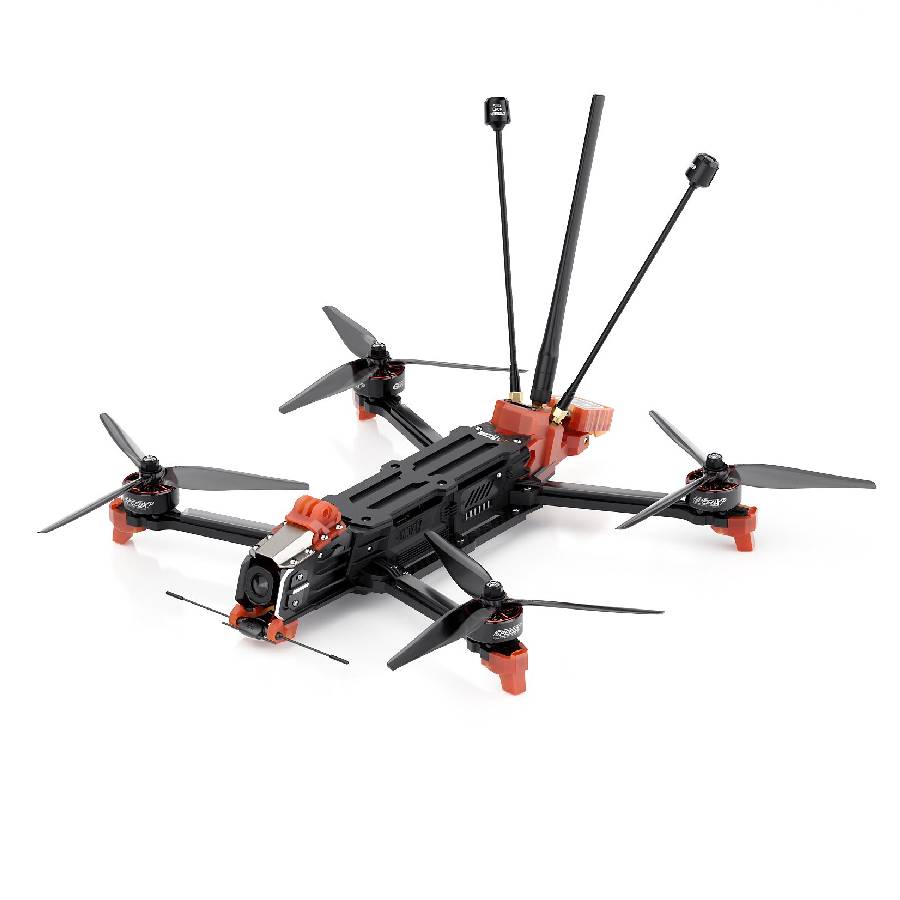

The GEPRC MOZ7 V2 is a 7.5" purpose-built long-range FPV drone from GEPRC designed to deliver cinematic-quality video and extended flight endurance without sacrificing raw performance. With a robust 336 mm wheelbase, reinforced frame and tailored motor/ESC combination, it’s engineered for pilots who demand stable, reliable long-distance flight - whether for cinematic aerials, freestyle, or exploration.

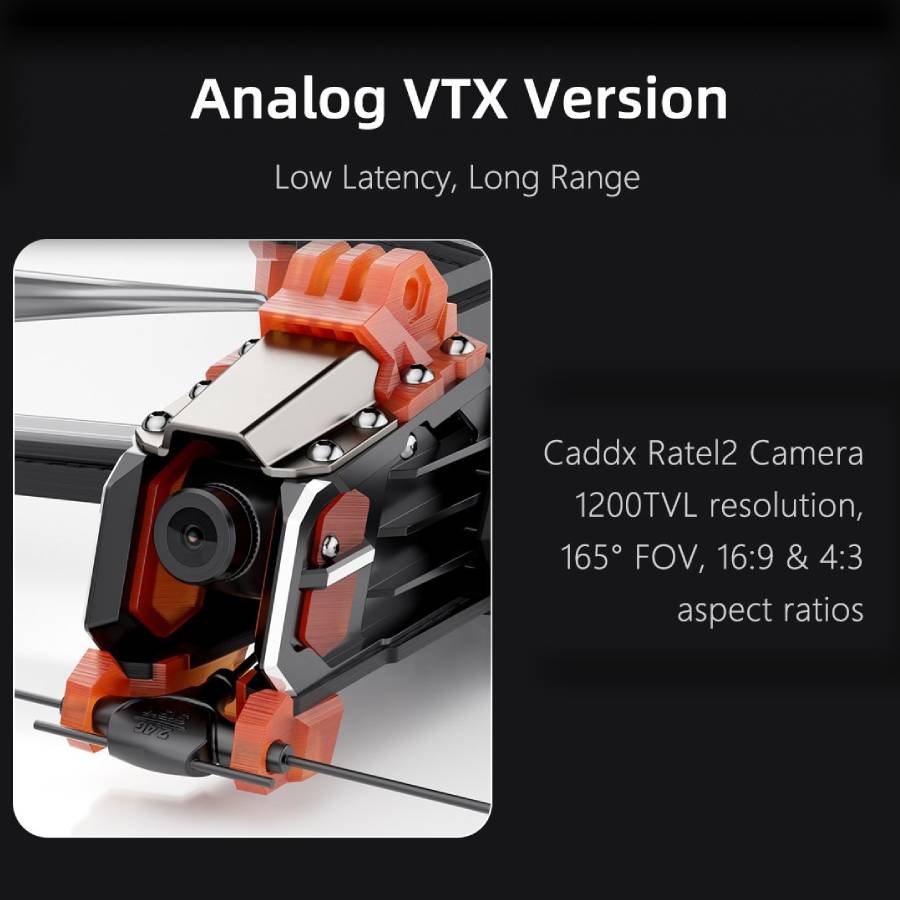

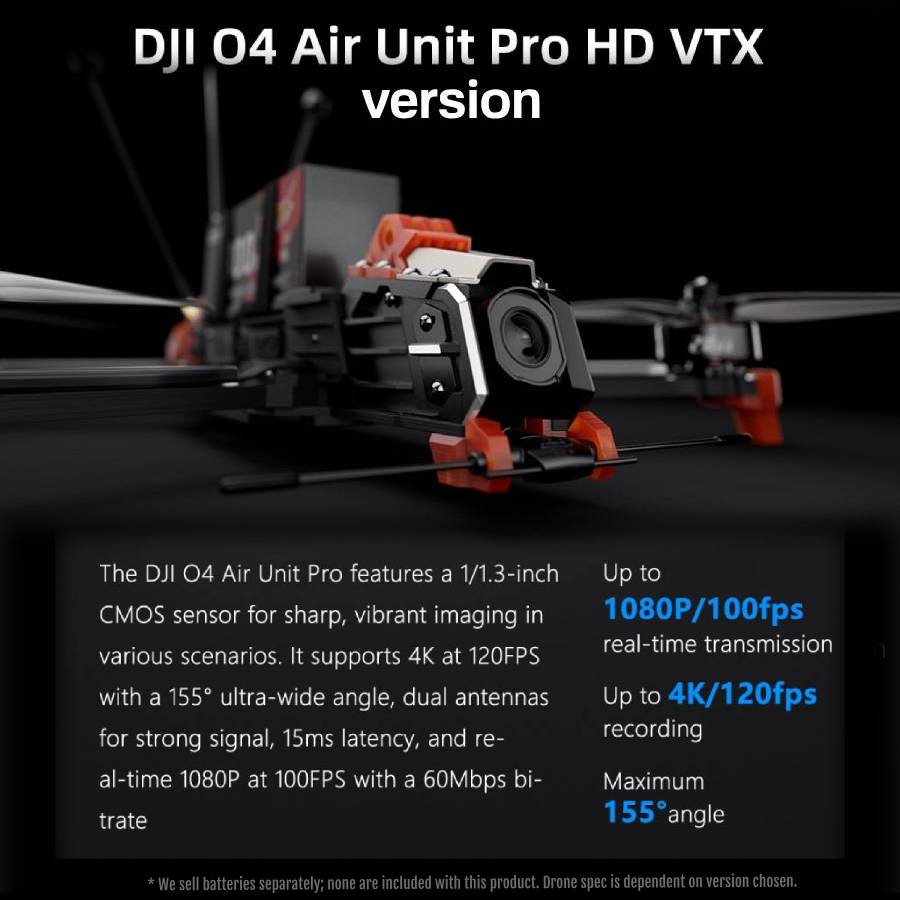

The inclusion of the DJI O4 Air Unit Pro (on the “O4 Pro” version) delivers high-resolution, low-latency HD video and recording, while pilots who prefer to fly analogue can take the alternate option of the Caddx Ratel2 fitted version.
If you prefer to customise your drone, you can choose the WTFPV build option that lets you kit out the quad to suit your style and FPV gear.
Features:
- Reinforced GEP-MOZ7 V2 frame with thick arms and strong construction for increased stability and durability on long flights.
- DJI O4 Pro version supports 4K/120fps and 1080p/100fps H.265 image transmission.

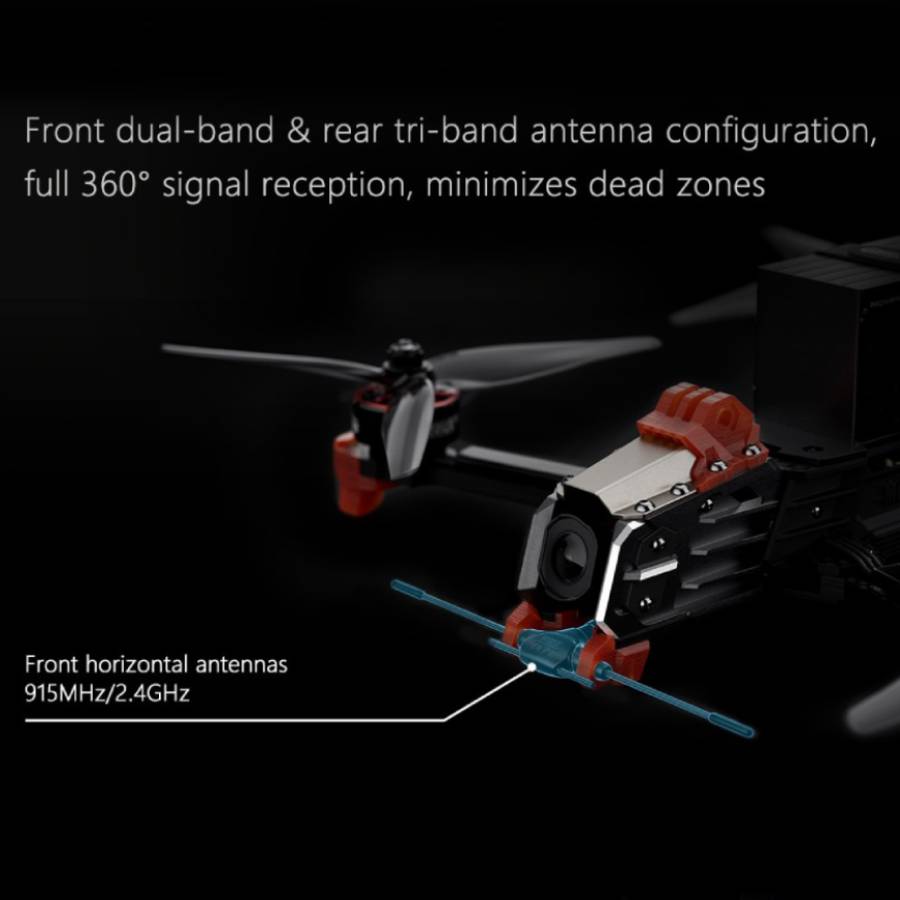

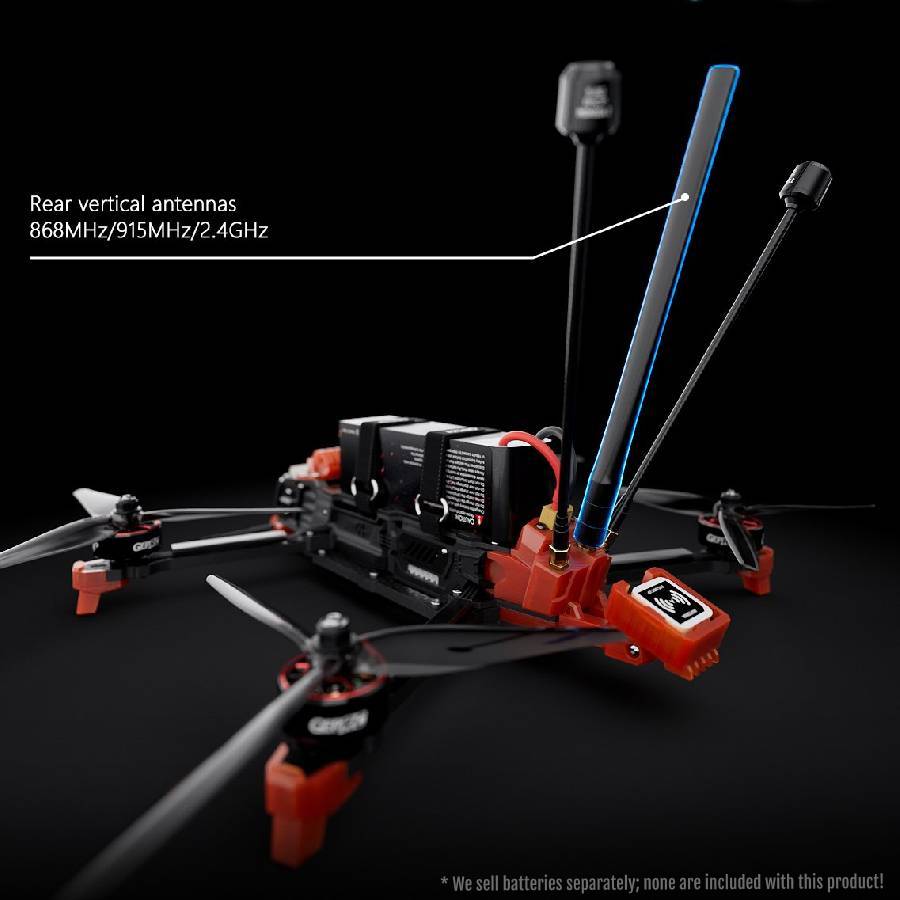

- Antennae minimise signal dead zones with their front-horizontal and rear-vertical setup.

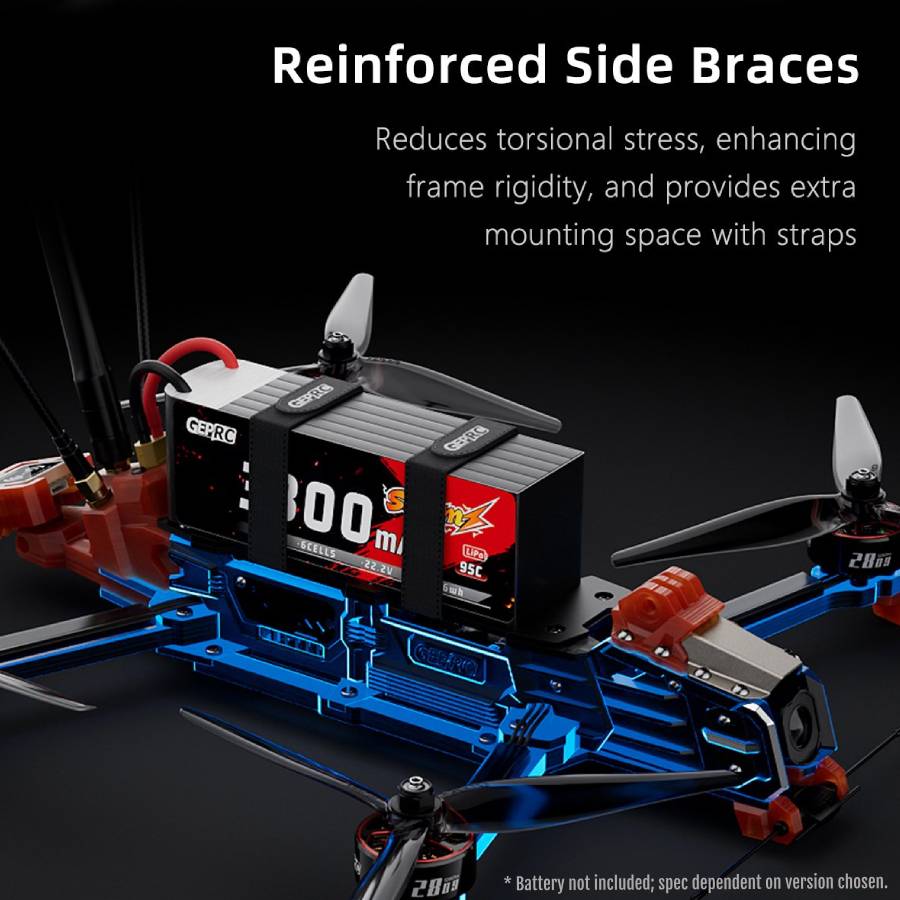

- Reinforced side bars for enhanced protection of internals

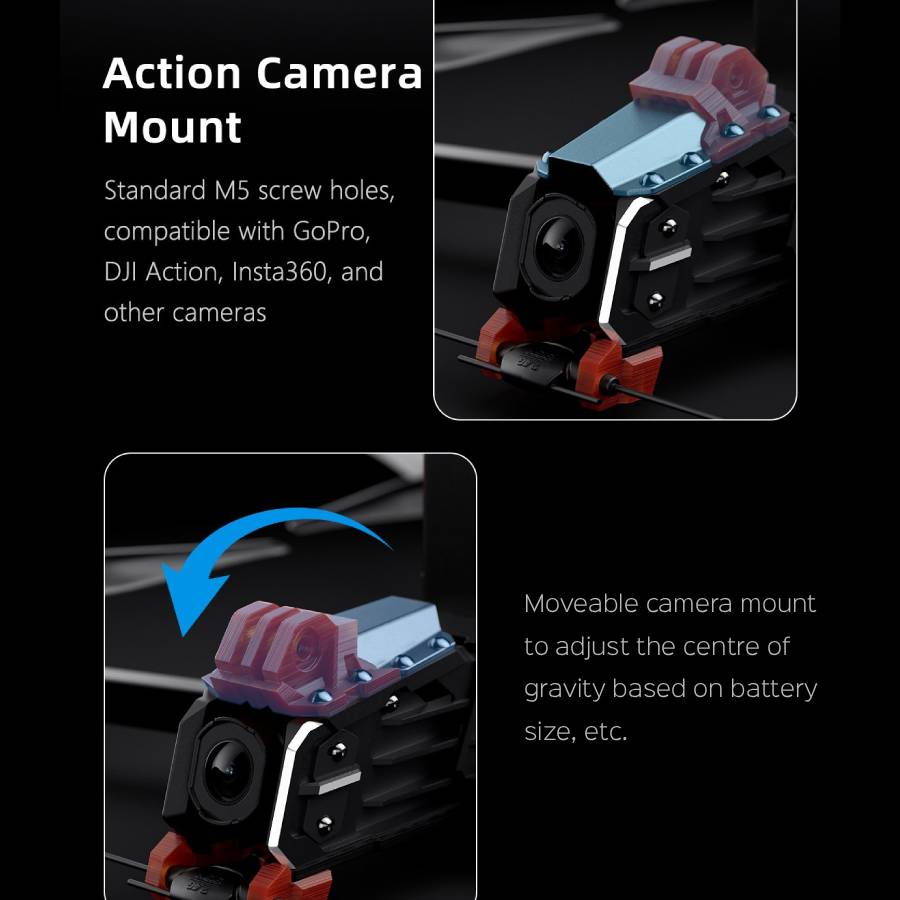

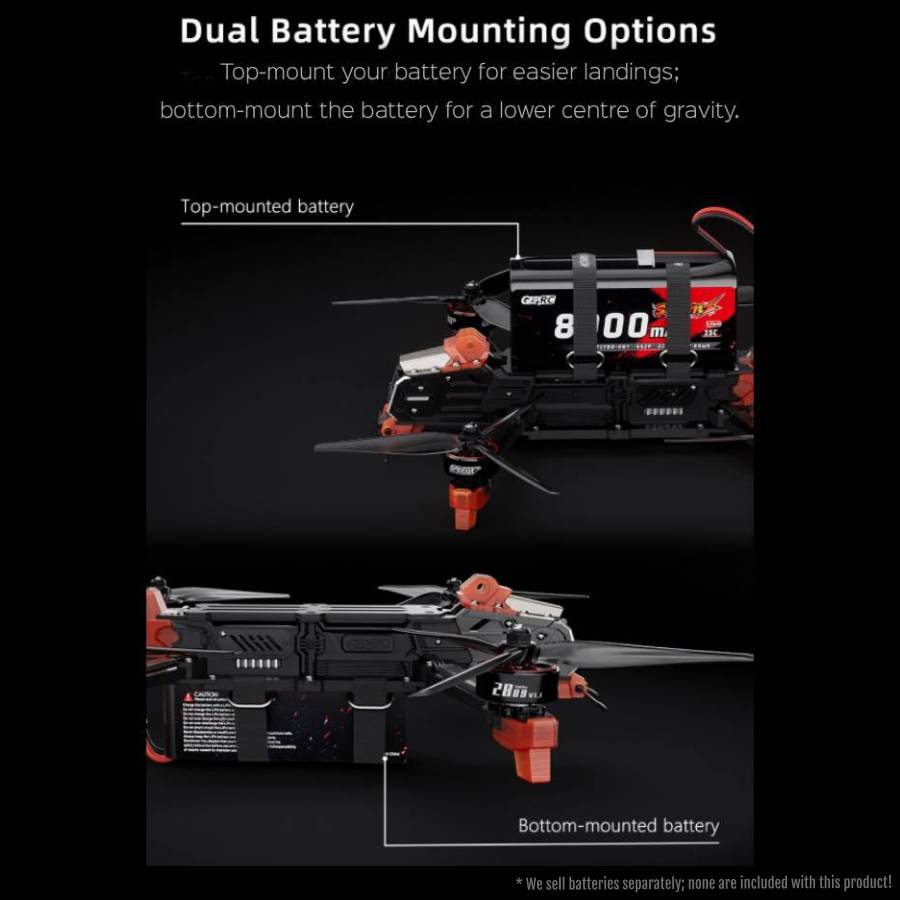

- Flexible mounting options with swap-out action-camera mount and dual battery mounting configurations make setup versatile for video rigs or long-range flight packs.

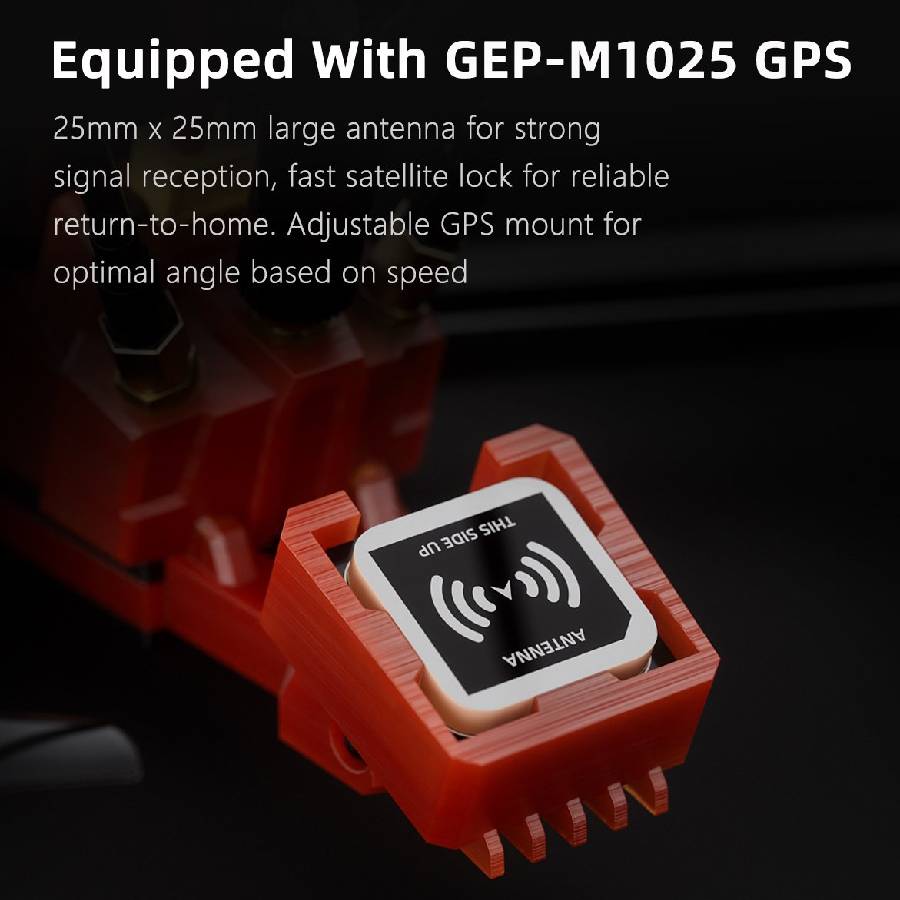

- Integrated GPS module (GEP-M1025) for satellite support — handy for long-range navigation, return-to-home functionality.
Specification:
- Model: GEPRC MOZ7 V2

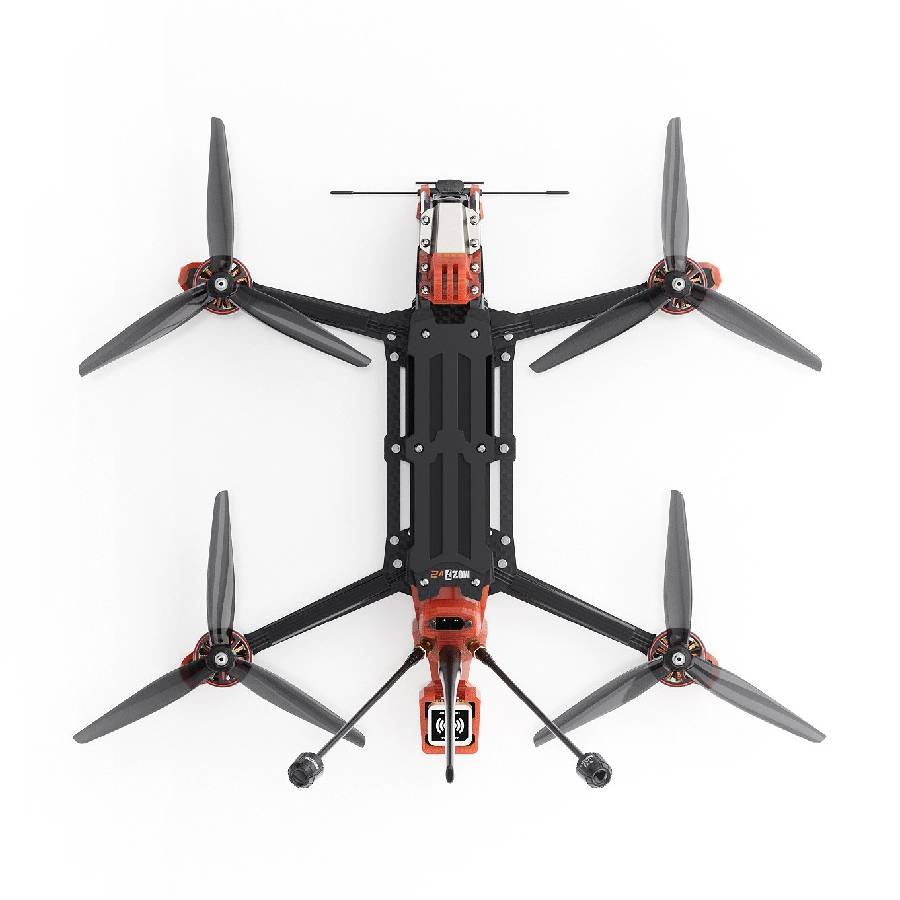

- Wheelbase: 336mm
- Top/Base Plate Thickness: 2.5mm
- Middle Plate Thickness: 3mm
- Arm Thickness: 6mm
- FC: TAKER H743 BT
- MCU: STM32H743
- Gyroscope: MPU6000&42688-P dual
- Barometer: Yes
- GPS: GEP-M1025
- OSD: BetaFlight OSD w/ AT7456E chip
- ESC: TAKER H65_8S_32Bit 65A 4IN1 ESC
- Antenna: Momoda2-5.8G-SMA-LHCP-170mm
- Power Connector: XT60

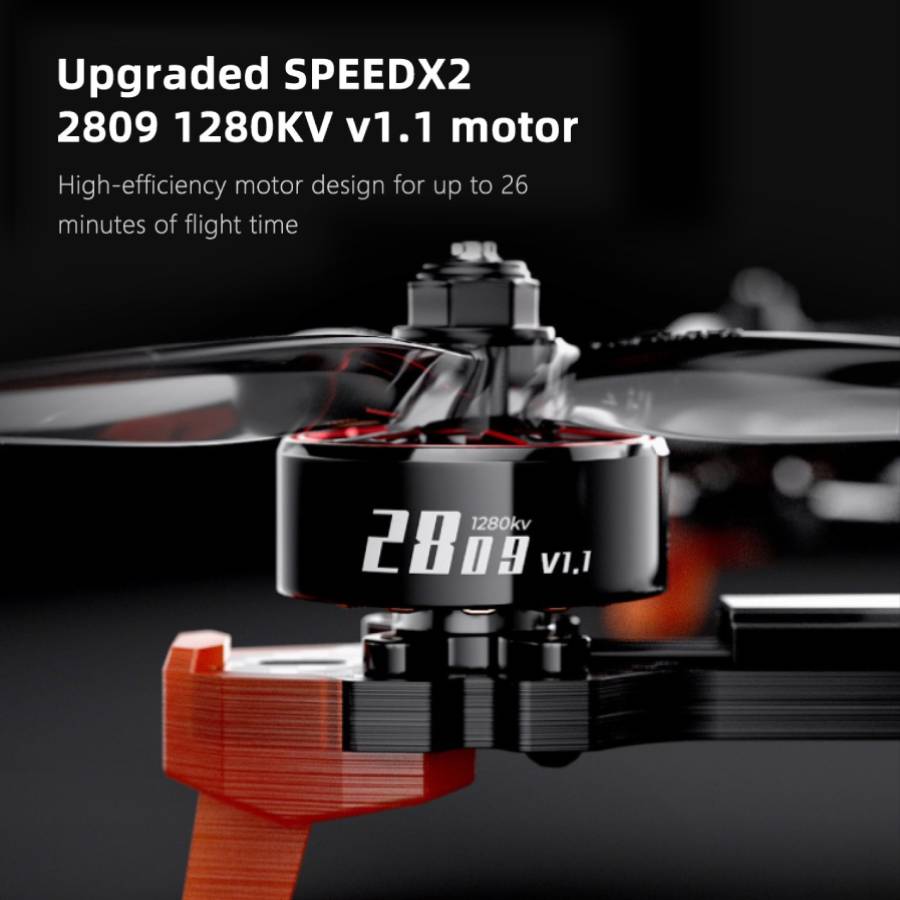

- Motor: SPEEDX2 2809 1280KV V1.1
- Prop: HQ 7.5x3.7x3 in transparent grey
- Version Weight: 750g (O4 Version)
- Receiver: PNP
- Recommended Battery: LiPo 6S 3300mAh/Lilon 8000mAh
Available versions (see below for purchase options):
- GEPRC MOZ7 V2 (WTFPV) (PNP) GP107733
- GEPRC MOZ7 V2 Analog (PNP) GP107757
- GEPRC MOZ7 V2 O4 Pro (PNP) GP107620
Included:
- 1x 1 x GEPRC MOZ7 V2 FPV
- Accessories
