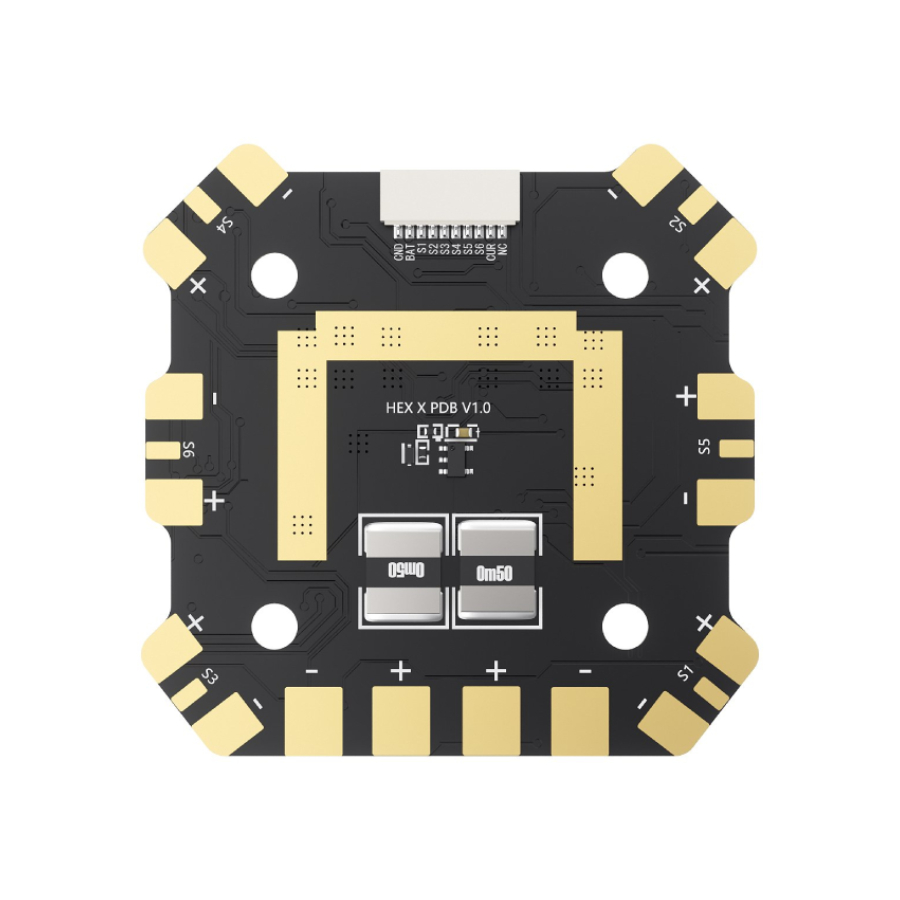

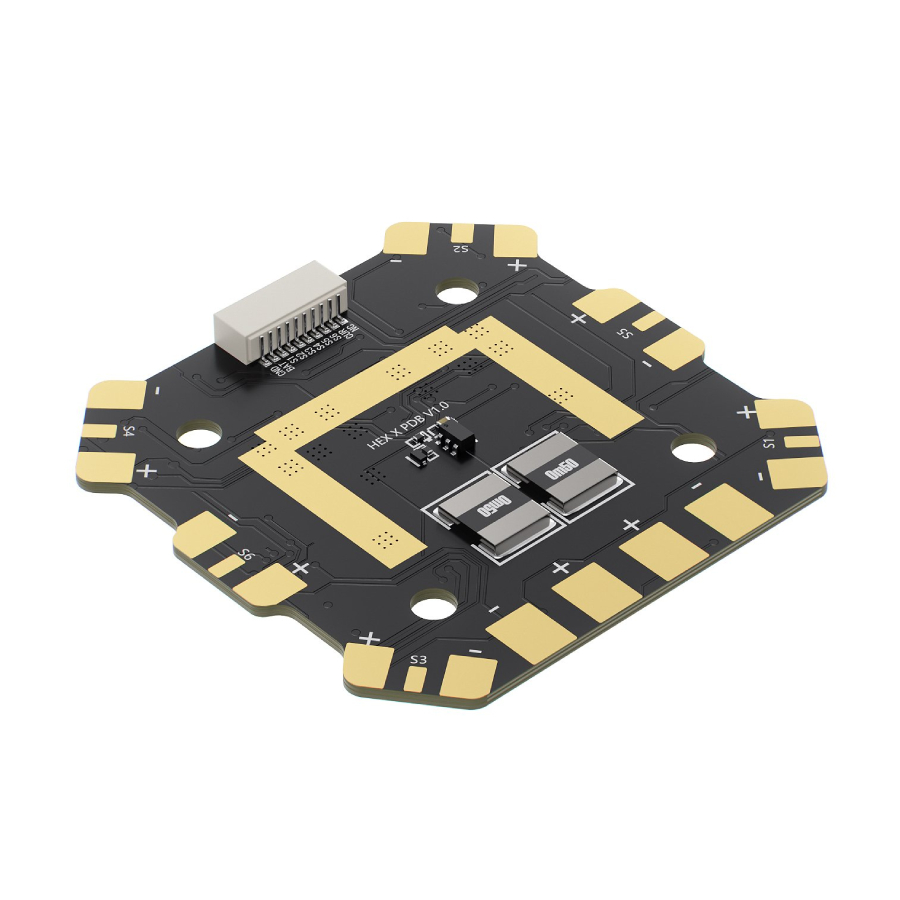

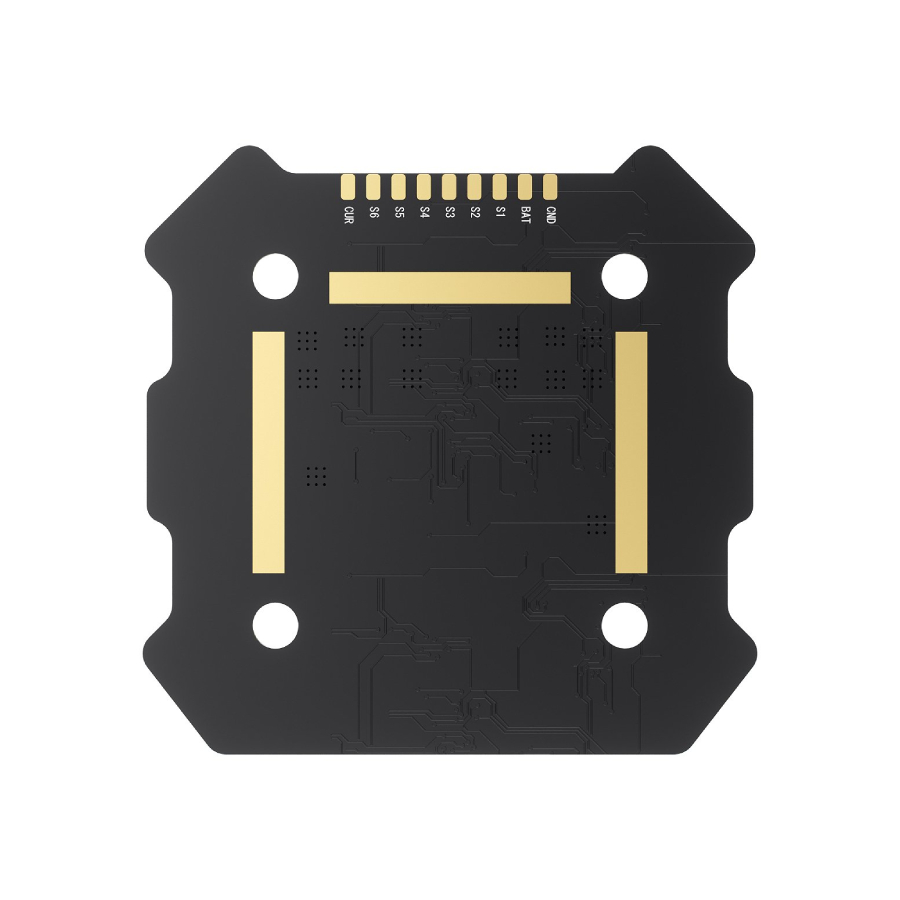

GEPRC PDB Hexacopter Power Distribution Board

Overview:
The GEPRC PDB Hexacopter Power Distribution Board is designed to simplify power management in high-performance six-motor multirotor builds. Engineered specifically for hexacopters, it provides a centralised power distribution solution capable of handling substantial current loads while maintaining a clean and organised installation.

Supporting 3-8S LiPo batteries and six ESC connections, the board is rated for up to 60A continuous current per channel, making it suitable for demanding aerial platforms where reliability is essential. An integrated current sensor allows accurate power monitoring through a compatible flight controller, while the included XT90 connectors, low-ESR capacitors and connection harness help streamline the build process.

Features:
- Designed specifically for hexacopter and other six-motor UAV platforms
- Centralised power distribution for up to six ESCs
- Integrated current sensing for power monitoring and telemetry
- Supports high-current power systems for demanding multirotor applications
- Compact layout for clean and organised wiring
- Includes XT90 connectors with protective housings and 10AWG silicone wire
- Supplied with dual 50V 2200μF low-ESR capacitors for power filtering
- Includes FC-to-PDB connection cable for simplified integration
- Supplied with vibration-damping mounting balls

Specification:
- Input Voltage: 3–8S LiPo
- On-board Current Meter: Supported
- Continuous Current: 60A per channel / 360A total (for 6 channels)
- Burst Current: 80A per channel / 480A total (for 6 channels)
- Dimension: 53x53mm
- Mounting Hole: 30x30mm
- Weight: 11.8g

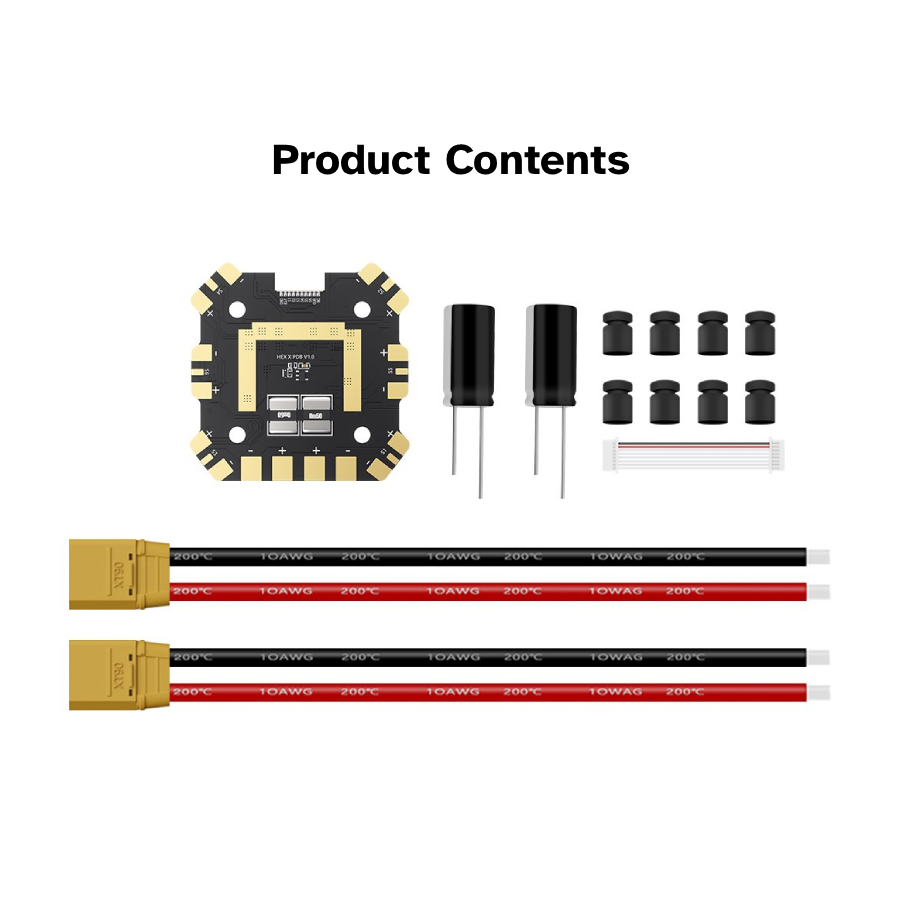

Included:
- 1x GEPRC PDB Hexacopter Power Distribution Board
- Accessories
