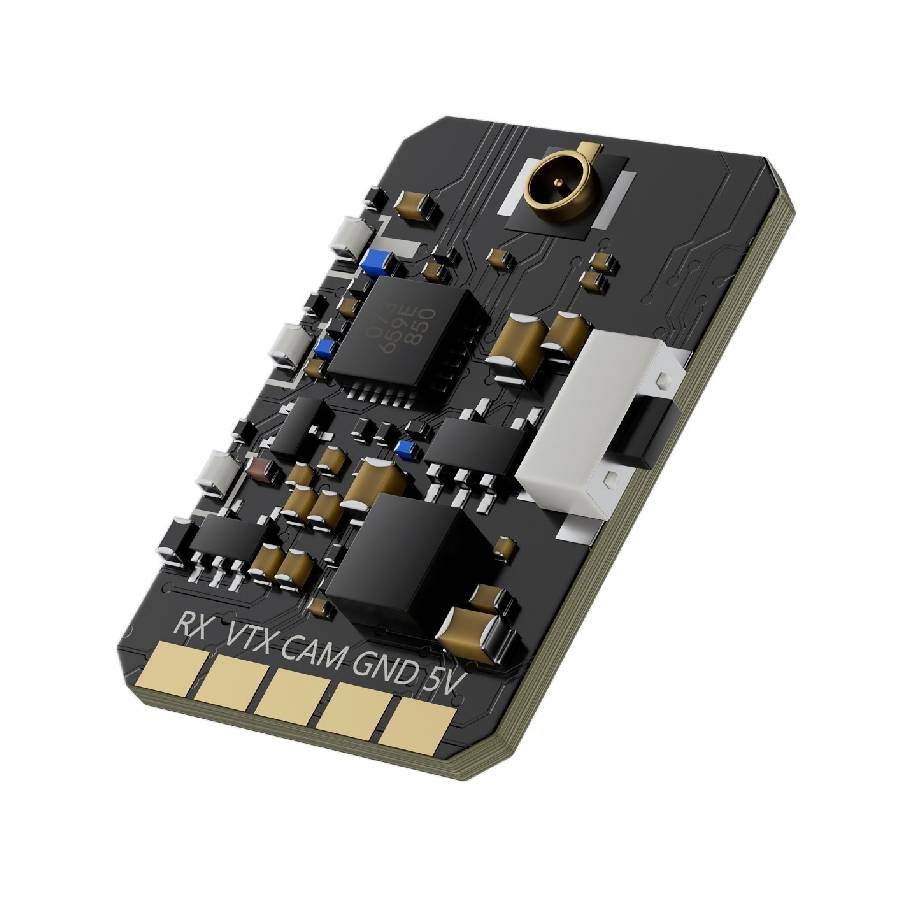

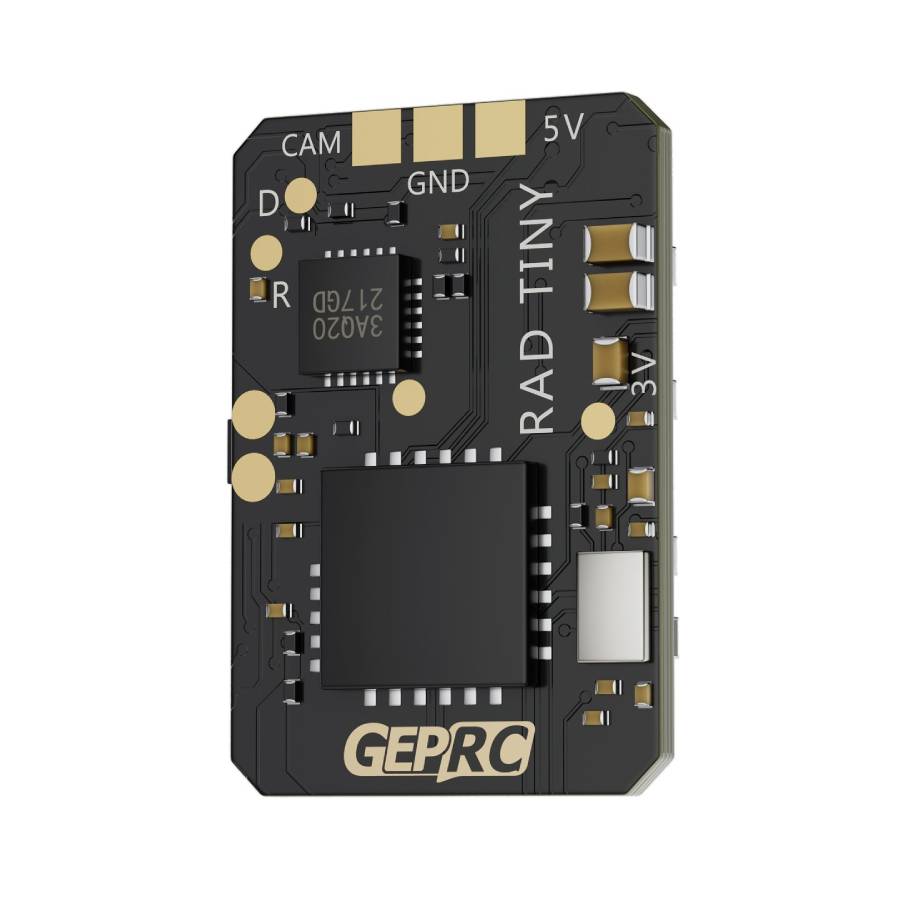

GEPRC Rad Tiny 5.8GHz VTX

Overview:
The GEPRC RAD Tiny is a compact high-performance video transmitter (VTX) for FPV drones, offering selectable output power levels up to 400mW. Despite its small size and weight (only 1.1g without antenna), it provides a full 48-channel range and a stable signal interface using IRC Tramp protocol. With support for 5V camera power, UFL antenna connection, and a classic PIT/PWM mode switching system, it’s designed to fit into tight builds without compromising on functionality.

Features:
- Selectable output power modes including PIT mode, 25mW, 200mW, and 400mW
- Compact and lightweight form factor that suits compact builds
- Onboard 5V output to power the FPV camera
- Channel and band control via IRC Tramp protocol
- UFL antenna connector

Specification:
- Model: GEPRC RAD Tiny 5.8G 400mW VTX (GP106078)
- Input Voltage: DC 5V
- Output Voltage: 5V(Power supply 5V to camera)
- Input Impedance: 75Ω
- Control protocol: IRC Tramp
- Antenna: UFL
- Output power: 25mW/200mW/400mW/PIT MODE
- Channels: 48CH
- Video Format: PAL/NTSC
- Dimension: 14x18.5mm
- Weight: 1.1g

Included:
- 1x GEPRC RAD Tiny 5.8G 400mW VTX
