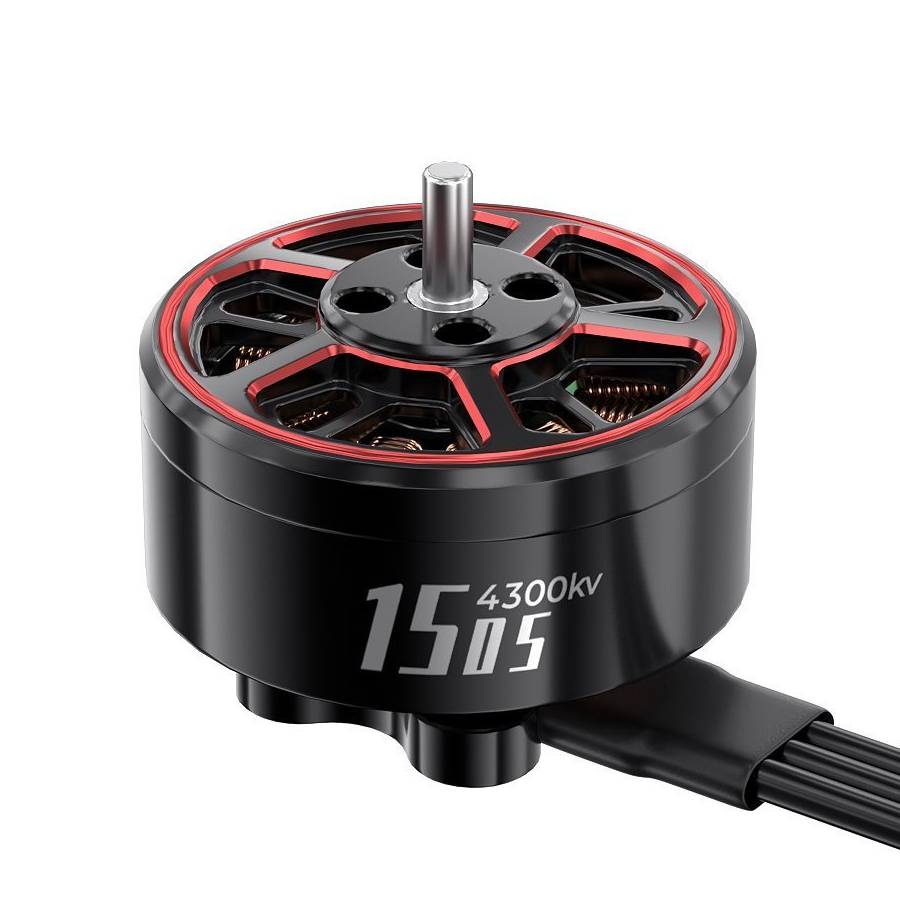

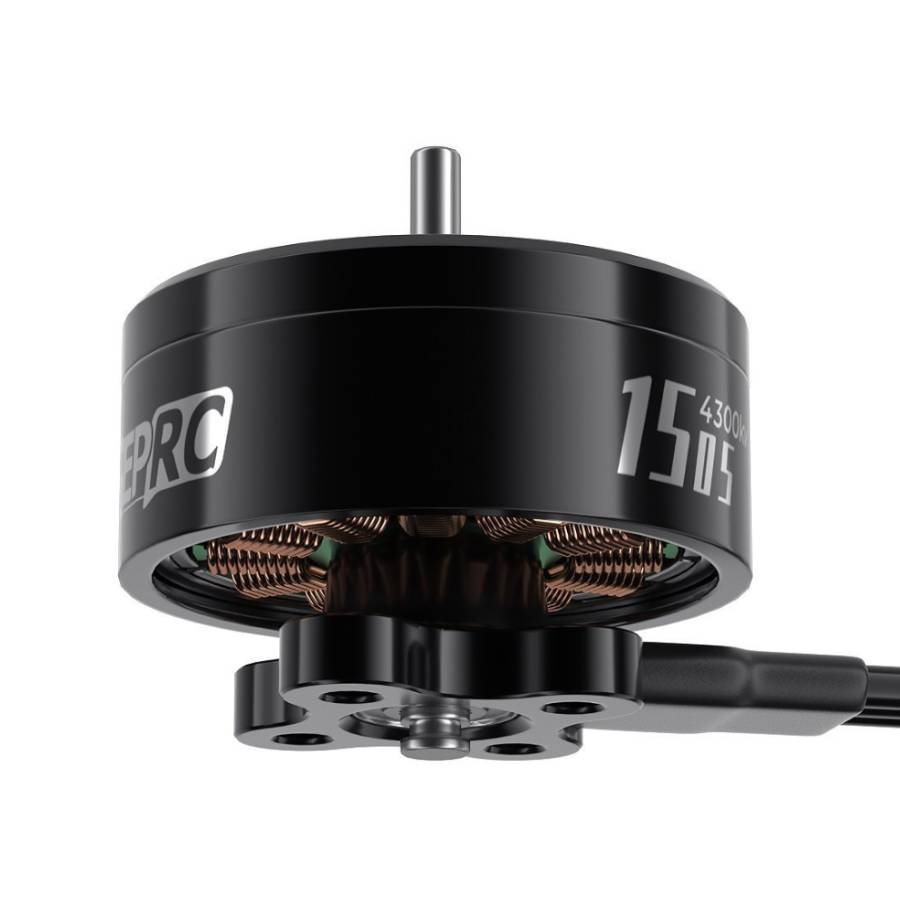

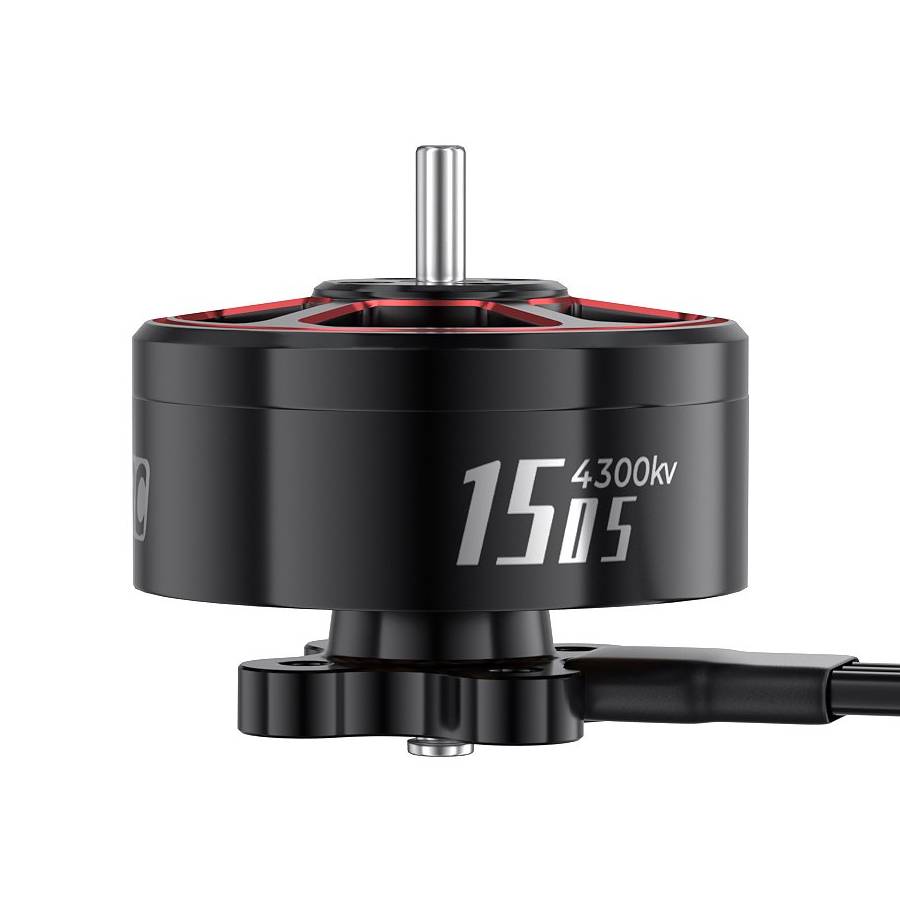

GEPRC SpeedX2 1505 4300KV Motor

Overview:
The GEPRC SPEEDX2 1505 4300KV motor is compatible with 2.5-3.5 inch blades. The motor uses high-precision, wear-resistant bearings to give it enhanced longevity and performance.

Specification:
- Model: GEPRC SPEEDX2 1505 4300KV Motor (GP106452
- Max Wattage: 340.9W
- Peak current: 21.56A
- Interphase resistance: 97mΩ
- Magnet: N52H
- Bearing type: NSK/NMB
- Configuration: 12N/14P
- Dimension: φ19.5x13.9mm
- Shaft Diameter: φ1.5mm
- Shaft Protruding Length: 4mm
- Mounting holes: 9X9mm（M2）
- Lead: 160mm/26AWG
- ESC: 20-30A
- Input Voltage: 16.8V（4S LiPo)
- Winding: Single strand copper winding
- Weight: 12.7g(included wire)
- Suitable for: 2.5-3.5" lightweight models

Included:
- 1x GEPRC SPEEDX2 1505 4300KV Motor
