GEPRC TAKER F722 BL32 E55A SE STACK

Overview:

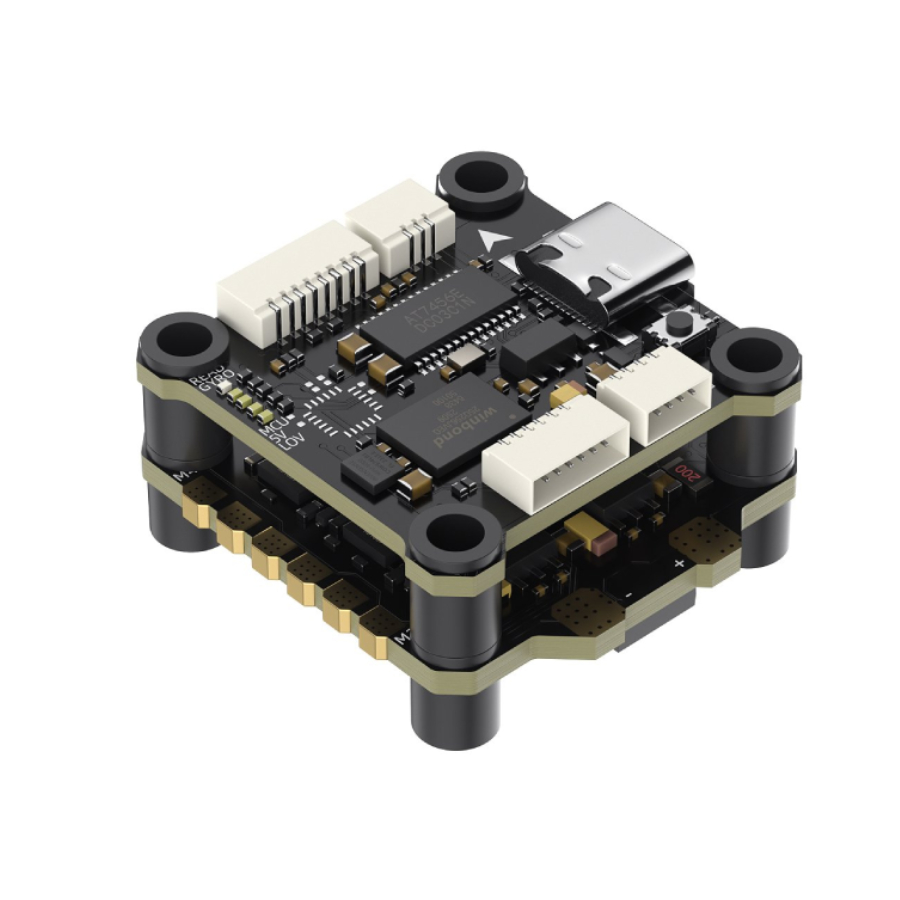

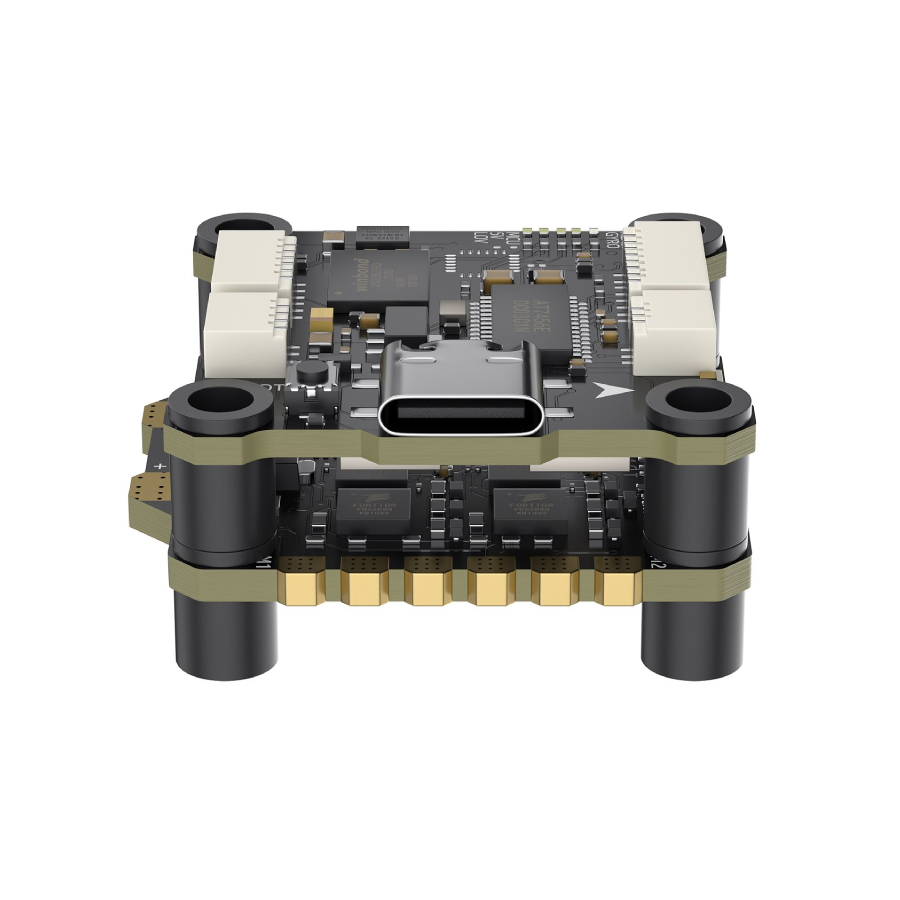

The GEPRC TAKER F722 BL32 E55A SE Stack is a compact high-performance flight control system designed for FPV racing and lightweight freestyle builds requiring responsive flight characteristics, stable gyro performance, and efficient power handling. Combining the TAKER F722 SE flight controller with the TAKER E55_96K BL32 4IN1 ESC, this stack delivers a superior, streamlined installation.

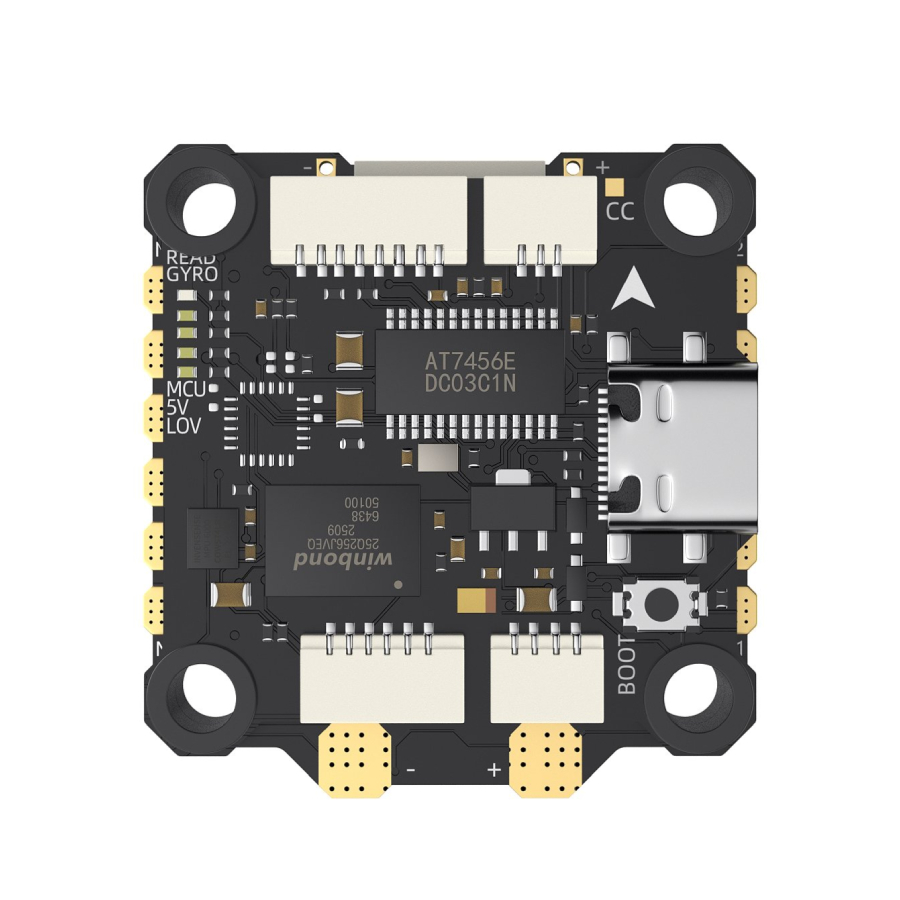

At the core of the system is the STM32F722 flight controller paired with the proven MPU6000 gyro, offering stable flight behaviour and dependable noise performance for demanding FPV applications. The board features integrated 32Mb black box storage for flight logging and tuning analysis, while the Type-C USB interface and SH1.0 plug-and-play support simplify setup and maintenance.

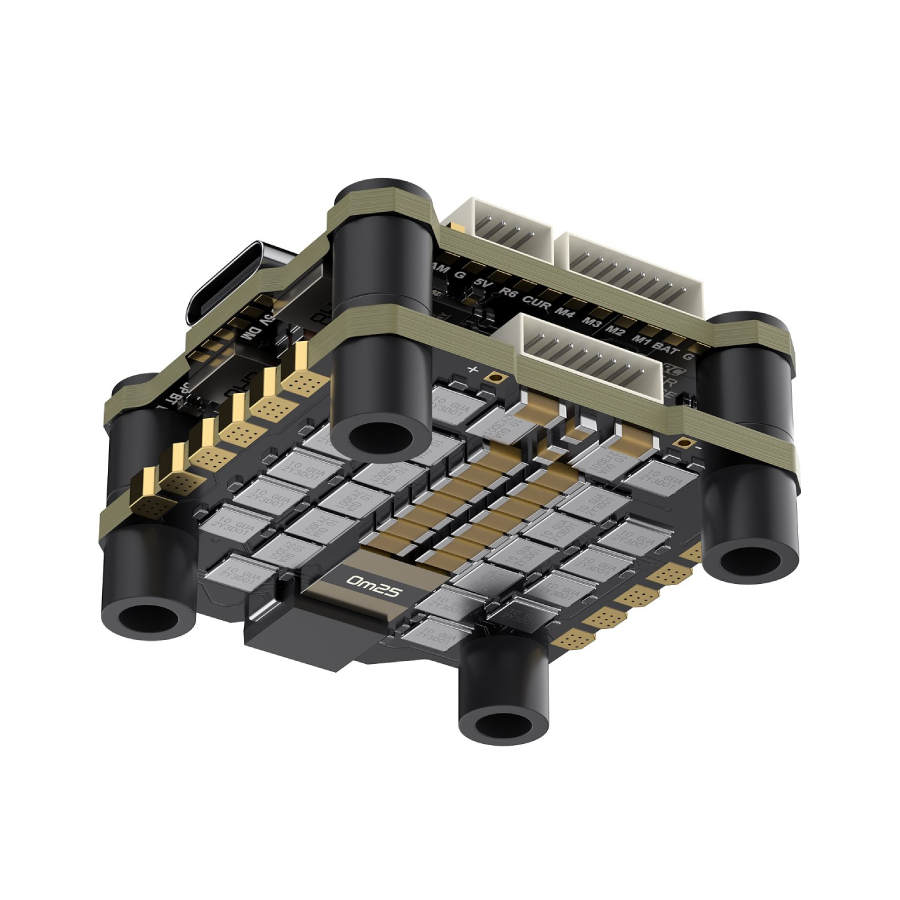

The included 55A BLHeli_32 ESC is built using metal-encapsulated MOSFETs for improved thermal performance and durability under sustained high-current loads. Supporting PWM frequencies up to 96K and multiple digital ESC protocols, the system delivers smooth throttle response and refined motor control suitable for racing and aggressive freestyle flying.

GEPRC has designed the stack around a compact 25.5x25.5mm mounting pattern, making it compatible with a wide range of AIO-style frames while helping reduce overall build size and weight. Direct support for DJI Air Unit installation, dual independent BEC outputs, and integrated LC filtering further enhance the stack’s versatility for both analogue and digital FPV systems.

Features:
- High-performance STM32F722 flight controller
- MPU6000 gyroscope for stable and reliable flight performance
- Integrated 32Mb onboard black box storage
- Compact 25.5x25.5mm mounting layout
- Plug-and-play SH1.0 connector support for simplified installation
- Direct connection support for DJI Air Unit systems
- Dual independent BEC outputs for stable peripheral power delivery
- Integrated LC power filtering for cleaner electrical performance
- Metal-encapsulated MOSFET ESC design for improved heat dissipation
- 32Bit ESC platform with PWM frequencies up to 96K

Specification:
- Model: GEPRC TAKER F722 BL32 E55A SE Stack
- Flight controller: TAKER F722 SE FC
- ESC model: TAKER E55_96K BL32 4IN1 ESC
- MCU: STM32F722RET6
- IMU: MPU6000
- Input voltage: 2-6S LiPo
- Black box storage: 32Mb Flash
- USB interface: Type-C
- OSD chip: AT7456E
- BEC output: 5V@2.5A and 10V@2A
- UART ports: 6
- ESC continuous current: 55A
- ESC burst current: 60A (5 seconds)
- PWM refresh frequency: 24K-96K
- ESC protocol support: Oneshot125, Oneshot42, Multishot, DShot150/300/600
- Current sensor support: Yes
- Telemetry support: Yes
- Flight controller dimensions: 31.7x31.5mm
- Mounting pattern: 25.5x25.5mm
- Mounting hole diameter: 4mm (compatible with 3mm and 2mm using silicone inserts)
- Flight controller weight: 6g
- ESC weight: 9.6g

Included:
- 1x GEPRC TAKER F722 BL32 E55A SE Stack
- Accessories
