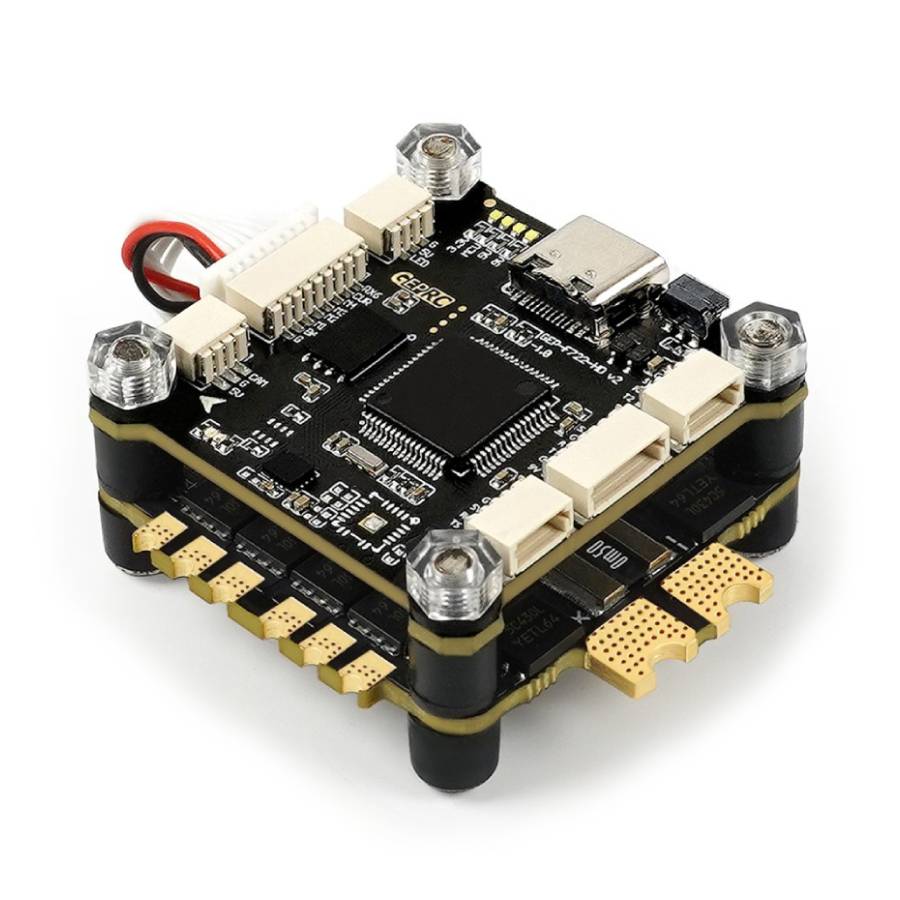

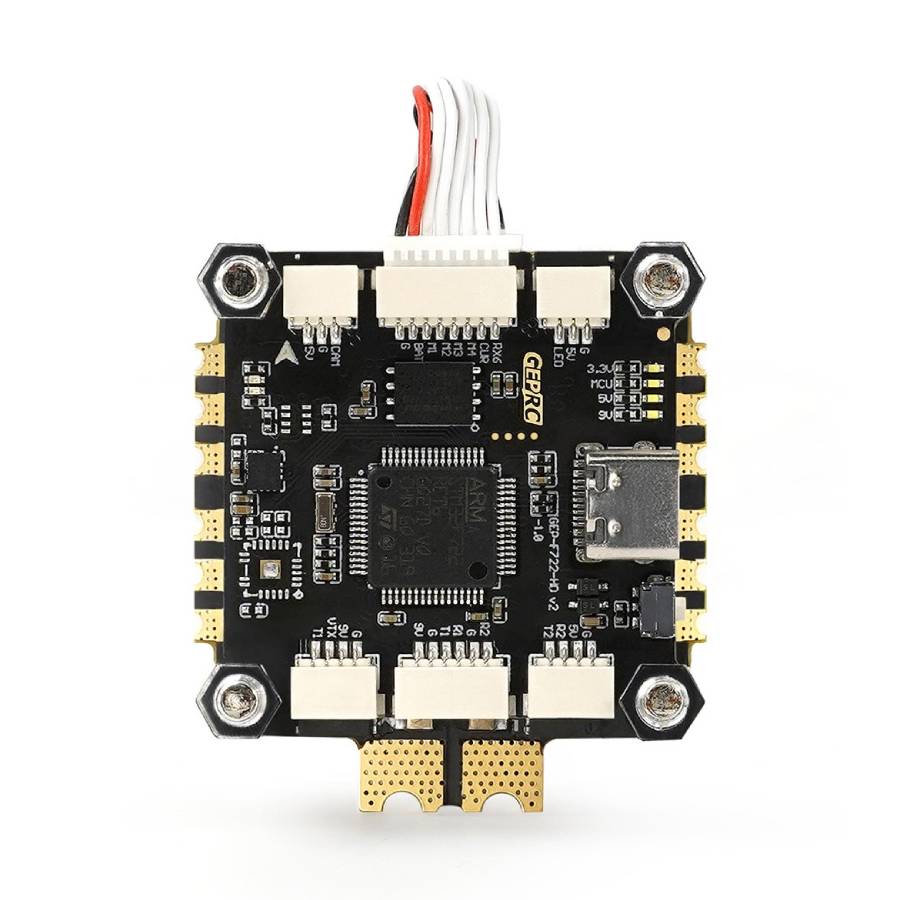

GEPRC Taker F722 BLS 60A Stack

Overview:
The GEPRC TAKER F722 BLS 60A Stack is a high-performance flight controller and ESC combo built for advanced freestyle and racing drones. It combines the STM32F722 flight controller with the BLS 60A 4-in-1 ESC for an integrated, space-saving design. The stack supports a 3–6S LiPo power input and includes dual independent BEC outputs to power peripheral electronics. With a Type-C USB port and plug-and-play compatibility for the DJI Air Unit, it’s ready to be dropped into modern digital FPV builds with minimal fuss.

Features:
- Direct plug-in support for the DJI Air Unit for easier wiring and integration
- Dual independent BEC outputs: 5V@3A and 9V@2.5A
 for stable powering of cameras, VTXs, and peripherals
- Integrated LC filter to reduce electrical noise and improve signal clarity
- Compact, stackable form factor minimises build size and simplifies wiring
- Shock-mount pads included for stabilising gyro readings during aggressive manoeuvres

Specification:
- Model: GEPRC TAKER F722 BLS 60A Stack (GP106164)
- Gyroscope/IMU: ICM42688-P
- Black box memory: 16Mb onboard
- ESC continuous current rating: 60A
- ESC burst current rating: 65A (5 seconds)
- Supported input voltage: 3–6S LiPo
- ESC firmware: BLHeli_S, DShot 150/300/600
- Dimensions (ESC board): 42.9×39.7mm, mounting holes: 30.5×30.5mm
- Weight (ESC board): 13.7g
- Flight controller board size: 36.85×36.85mm, mounting holes: 30.5×30.5mm
- Weight: 8.1g

Included:
- 1x GEPRC TAKER F722 BLS 60A Stack
