Overview:

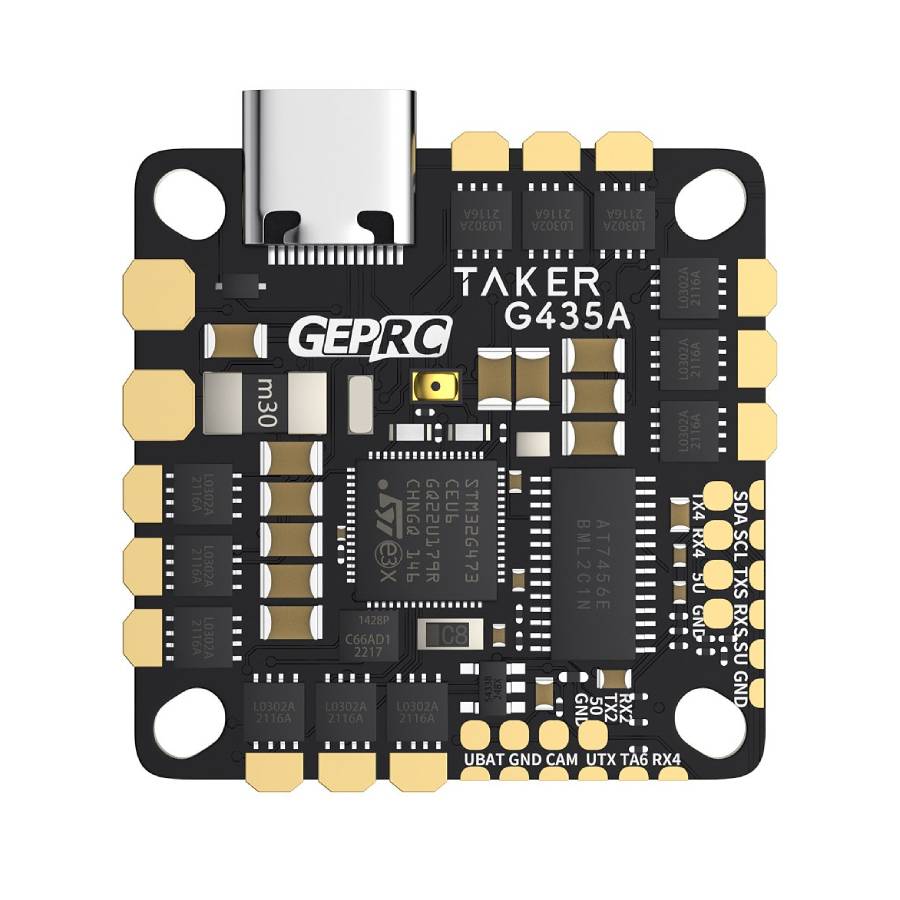

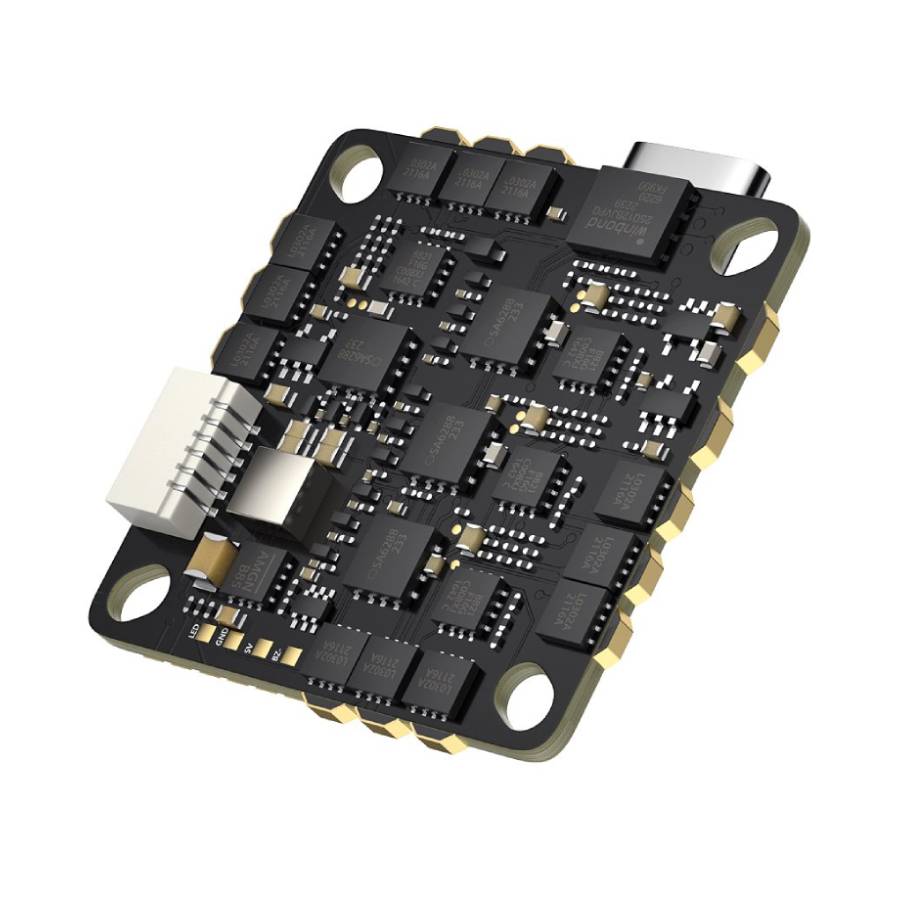

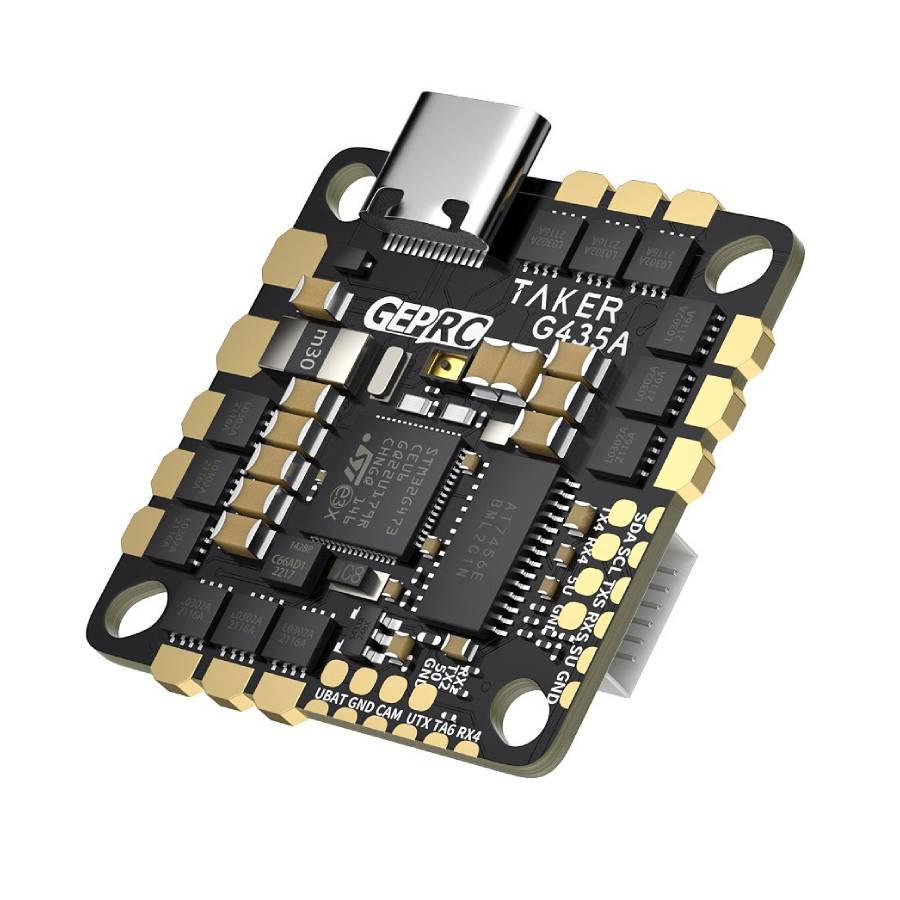

The TAKER G4 35A is an all-in-one (AIO) flight controller built around the powerful G473 main processor, it offers significantly greater computing capacity to handle demanding flight tasks with ease.
To meet market demand, the board now features an upgraded USB Type-C interface and optimised power and motor wire pads, making soldering and installation simpler than ever. With support for both 25.5mm and 26.5mm mounting holes, it's compatible with a wide range of frames.
Features:
- Compact size with dual mounting patterns (25.5mm/26.5mm) for easy installation.
- Lightweight at only 7.7g.
- G473 main processor running at 170MHz for ample computing power.
- Upgraded USB Type-C connection for improved versatility and convenience.
Specification:
- Model: GEPRC GEP-TAKER G4 35A AIO (GP106088)
- MCU: STM32G473CEU6
- IMU: ICM 42688-P
- Firmware target: TAKERG4AIO
- OSD: Betaflight OSD w/ AT7456Ev
- Uart: R1 T1 / R2 T2 / R4 T4 / R5 T5
- Buzzer: YES
- LED: YES
- USB: Type-c USB
- BEC output: 5V@3A
- ESC MCU: BB21F16G
- Continuous Current: 35A
- Burst Current: 45A(5″)
- lnput Voltage: 2~4S (LiPo Battery)
- Supports: Dshot600, Oneshot, Multishot
- Current meter: YES
- target: J -H -15
- Size: 33.4×34.4mm Board
- Install hole: 25.5-26.5 Φ3.05mm
- Weight: 7.7g
Included:
- 1x GEPRC GEP-TAKER G4 35A AIO
- Accessories
