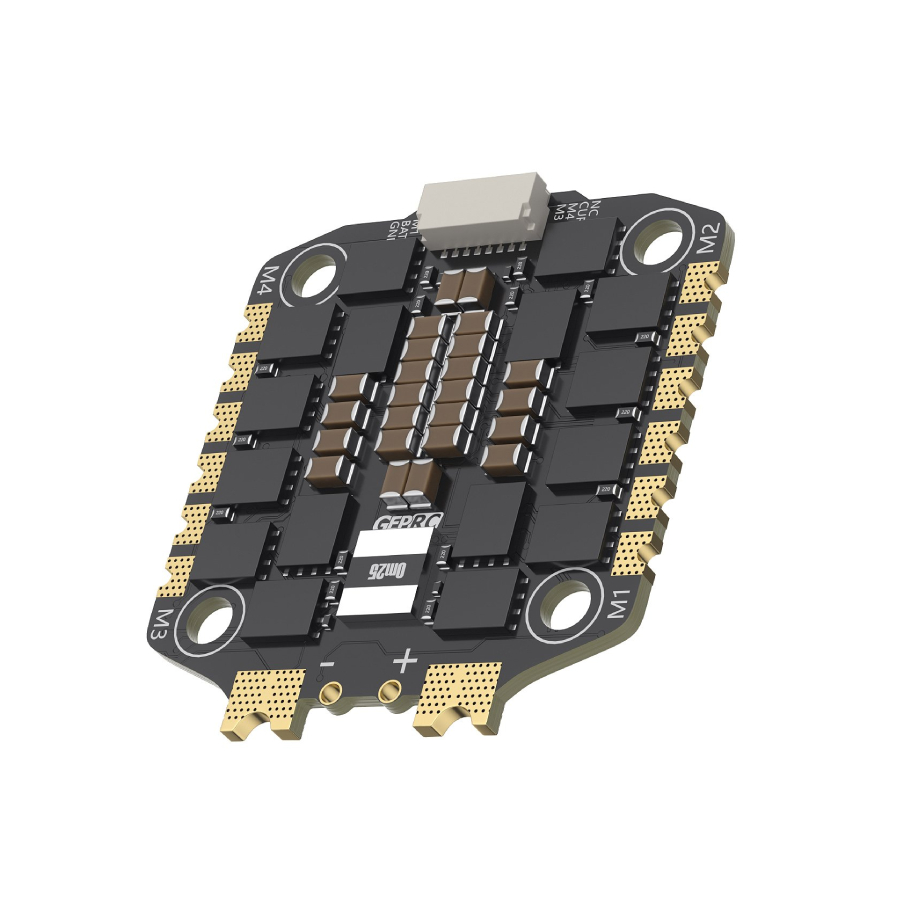

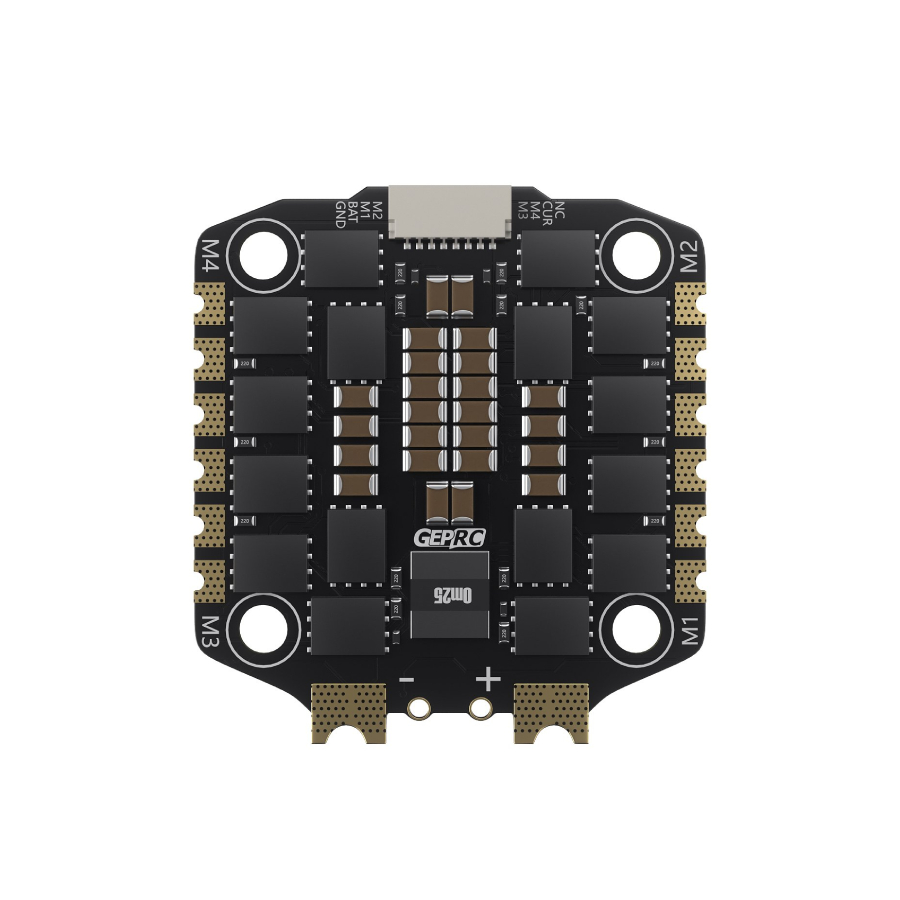

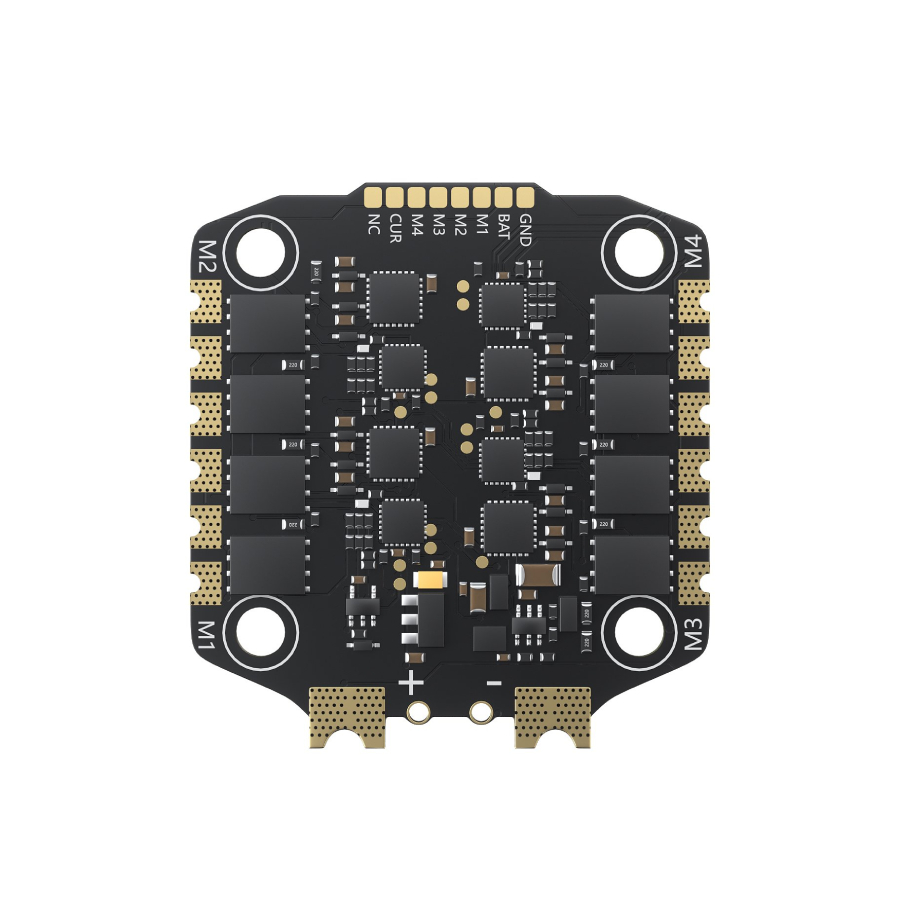

GEPRC Taker H60 BLS 60A 4in1 ESC

Overview:
The GEPRC Taker H60 BLS 60A 4IN1 ESC is a high-current 4-in-1 electronic speed controller designed for 5-inch and larger FPV drone builds using 3S–6S LiPo power systems. Built around a compact 30.5x30.5mm mounting format, it is intended for high-performance configurations requiring stable power delivery and reliable thermal performance under sustained load.

The ESC uses high-quality MOSFETs combined with a dedicated heat dissipation structure to support continuous high-current operation. It supports BLHeli_S firmware and DShot signalling protocols for responsive motor control and broad flight controller compatibility.

Features:
- 4-in-1 ESC composition for simplified FPV drone builds
- Designed for 3-6S LiPo power systems
- BLHeli_S firmware support
- Compatible with DShot signalling protocols
- High-current architecture for sustained power delivery under load
- Integrated heat dissipation for improved thermal performance

Specification:
- Model: Taker H60_BLS 60A 4IN1 ESC
- Input Voltage: 3-6S Lipo
- Continue Current: 60A
- Burst Current: 65A(5 seconds)
- Support Protocol: Dshot 150/300/600
- Size: 42×45.7mm
- Mounting Holes: 30.5×30.5mm, 4mm hole becomes 3mm after using the silicone shock-absorbing grommets.
- Weight: 14.9g

Included:
- 1x GEPRC Taker H60 BLS 60A 4IN1 ESC
- Accessories
