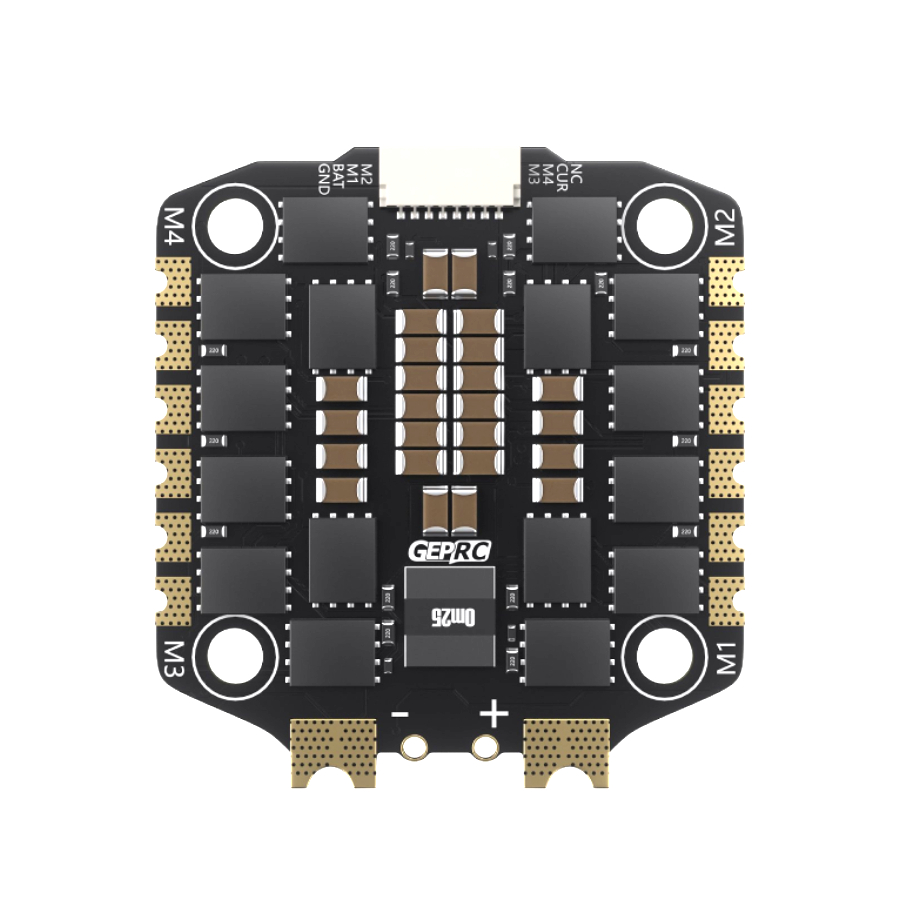

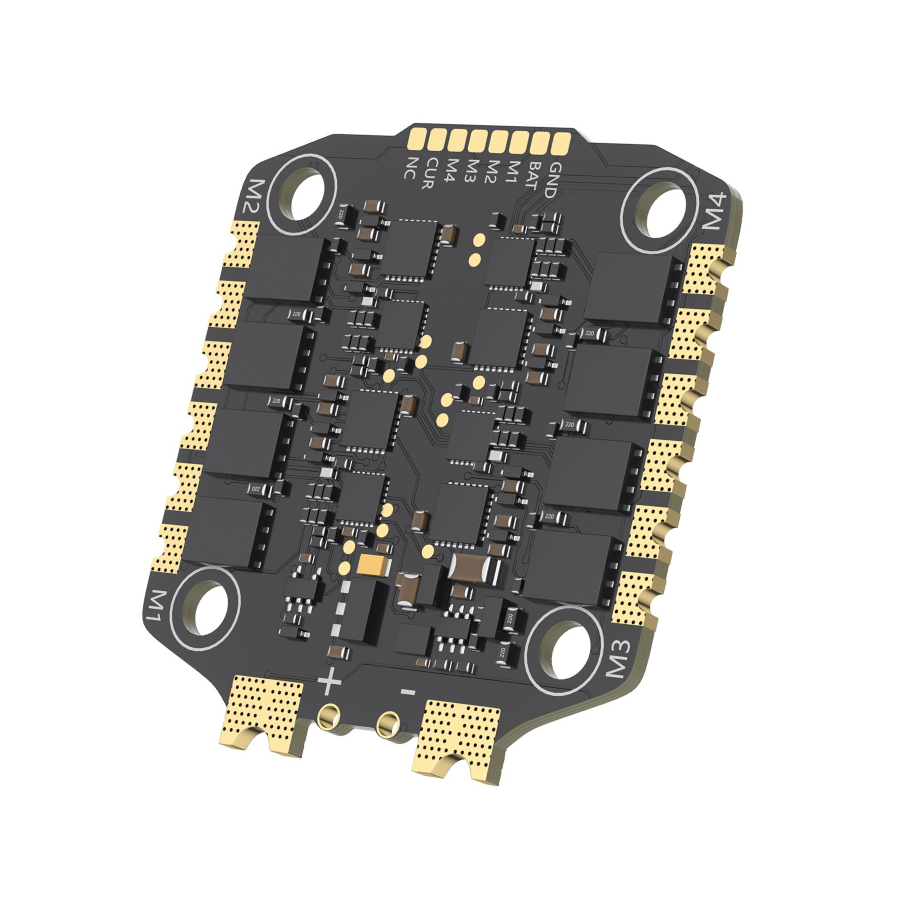

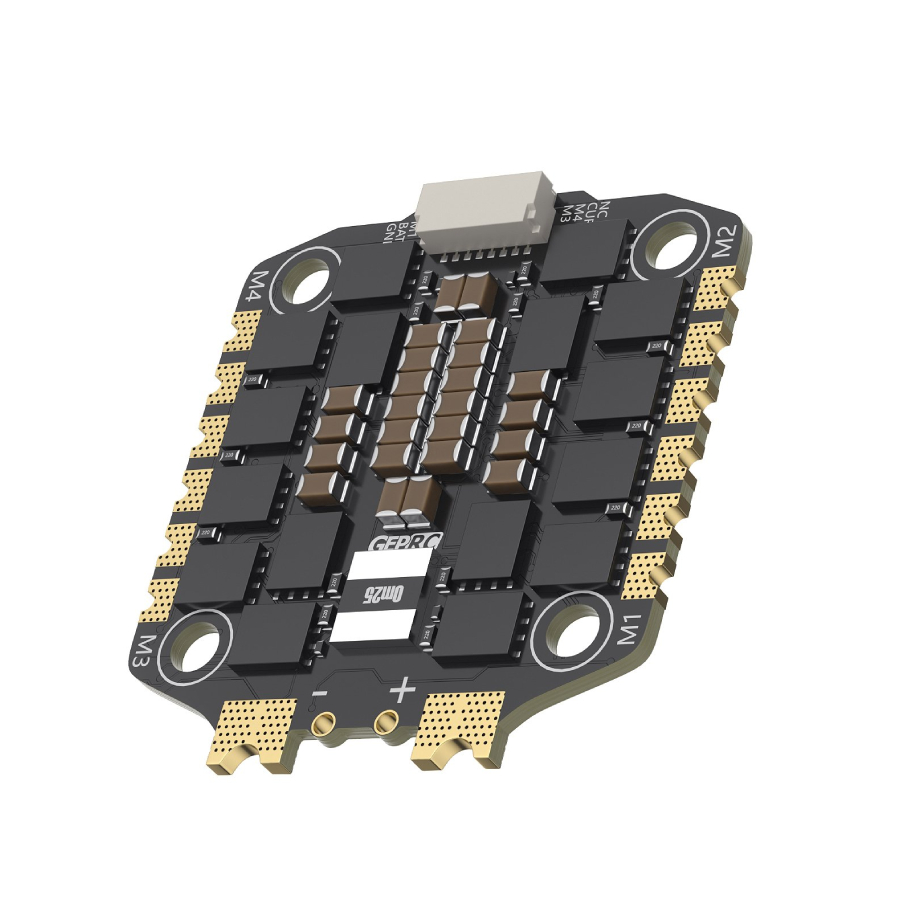

GEPRC Taker H65 8S BLS 65A 4in1 ESC

Overview:
Built for demanding FPV applications, the GEPRC TAKER H65 8S BLS 65A 4IN1 ESC delivers the high current capability and clean integration needed for powerful quad builds. Designed to support 3-8S LiPo input, this compact 4-in-1 ESC combines strong power handling with a streamlined layout that helps reduce wiring complexity and overall build weight.

The TAKER H65_8S_BLS uses a 30.5x30.5mm mounting pattern, making it compatible with a wide range of modern freestyle and long-range frames. With support for DShot150/300/600 protocols and integrated current sensing, it provides fast signal response and reliable telemetry feedback for precise tuning and monitoring through Betaflight-compatible flight controllers.

Its 65A continuous current rating and 70A burst capability make it particularly well suited to high-performance 6S and 8S setups using larger motors and aggressive propeller combinations. GEPRC also includes useful installation accessories in the box to simplify the build process.

Features:
- 4-in-1 brushless ESC design for reduced wiring and cleaner installation
- Supports 3-8S LiPo battery input
- 65A continuous current capability per channel
- 70A burst current rating for up to 5 seconds
- Compatible with DShot150, DShot300 and DShot600 protocols
- Integrated current sensor support
- Compact layout suited to modern freestyle and long-range FPV builds
- Silicone anti-vibration mounting inserts included
- Supplied with XT60 power cable, capacitor and flight controller adapter cable
- Suitable for high-power FPV quadcopters using 30.5x30.5mm stacks

Specification:
- Model: GEPRC TAKER H65_8S_BLS 65A 4IN1 ESC
- Input voltage: 3-8S LiPo
- Continuous current: 65A
- Burst current: 70A (5 seconds)
- ESC protocol support: DShot150/300/600
- Mounting pattern: 30.5x30.5mm
- Board dimensions: 42x45.7mm
- Mounting hole diameter: 4mm (reduces to 3mm with silicone dampers installed)
- Weight: 14.9g
- Firmware target: B_X_30
- ESC type: 4-in-1 brushless ESC

Included:
- 1x GEPRC TAKER H65_8S_BLS 65A 4IN1 ESC
- Accessories
