Overview:

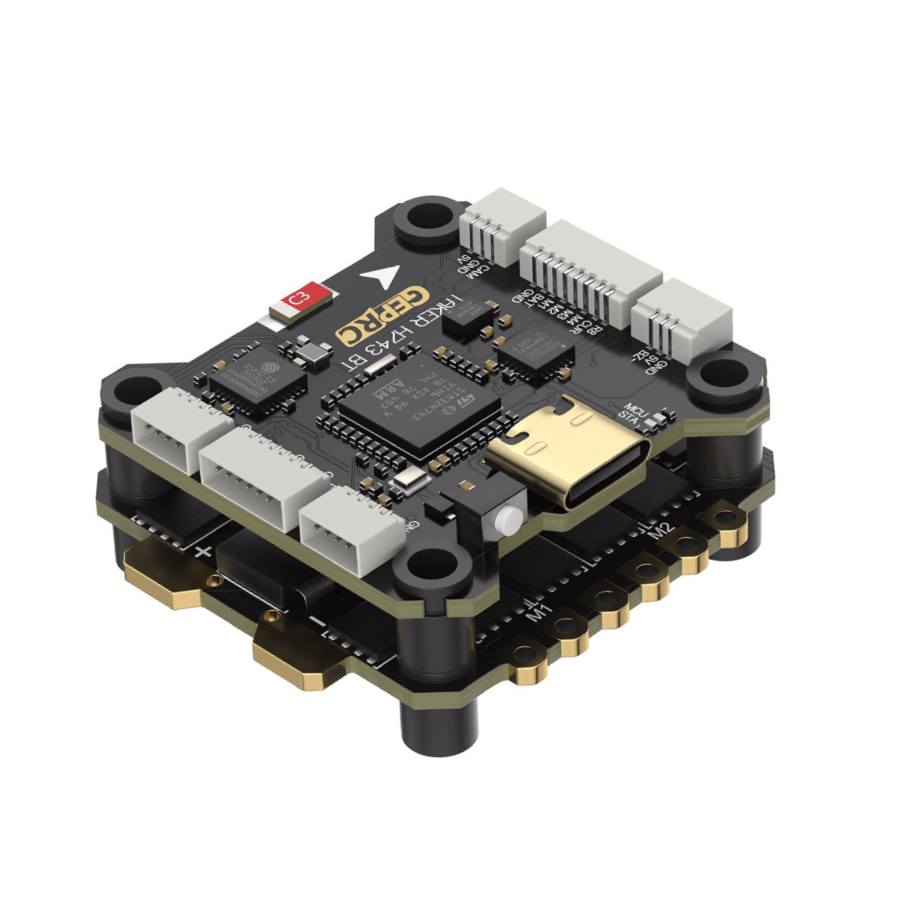

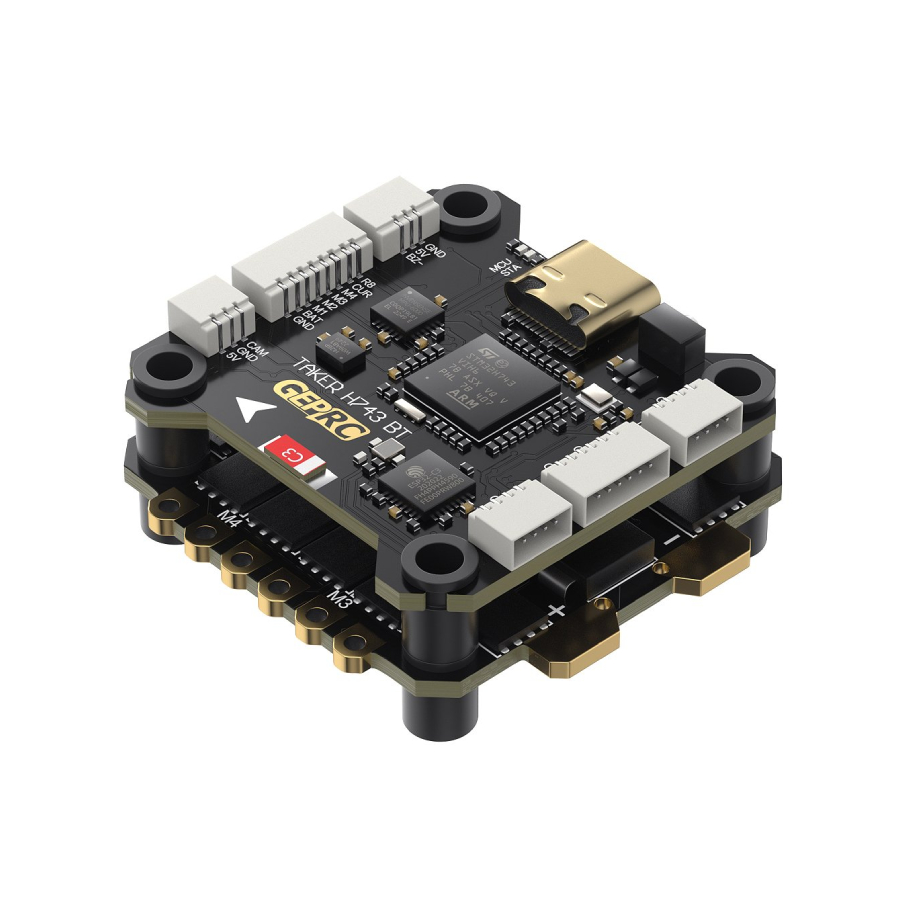

The GEPRC Taker H743 BT 50A Stack is a high-performance stack designed for demanding FPV freestyle, racing, and cinematic builds requiring fast processing, clean wiring integration, and dependable power delivery. Combining the TAKER H743 BT Flight Controller with the GEP-BL32 50A 96K 4IN1 ESC, this stack delivers a modern feature set aimed at pilots building either five or six inch drones.

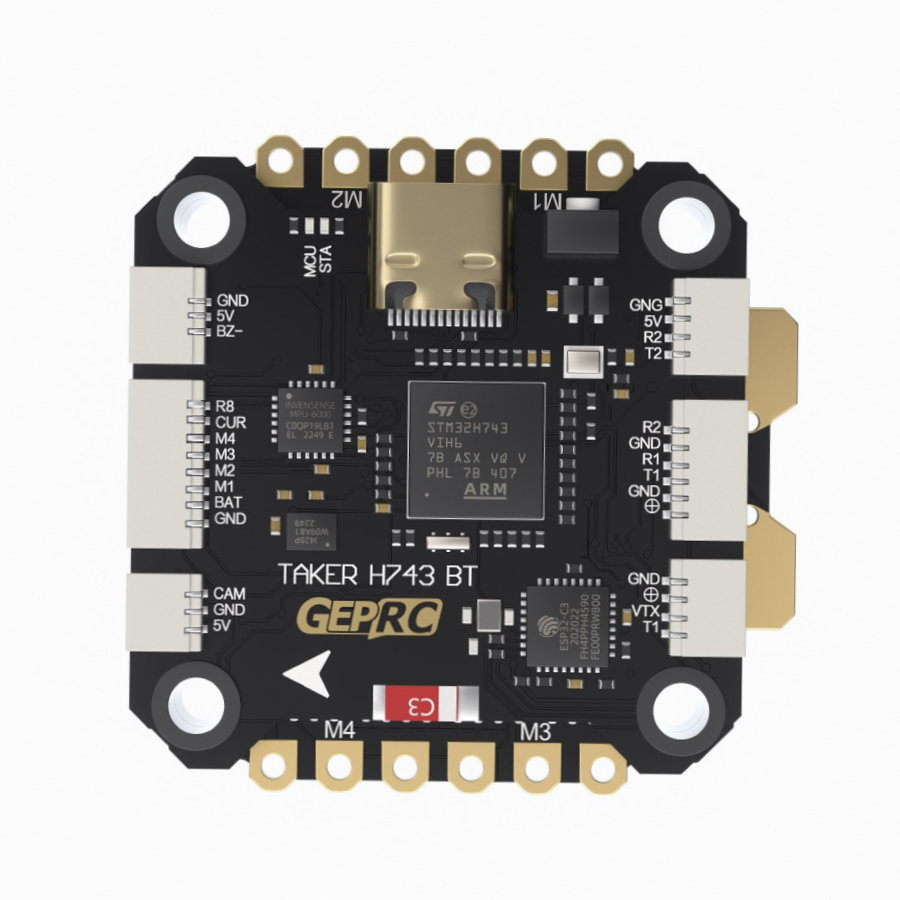

At the centre of the system is the powerful STM32H743 processor, paired with dual gyros consisting of the MPU6000 and ICM42688-P for accurate flight data and responsive handling. The stack supports Betaflight, INAV, and ArduPilot firmware, giving builders flexibility across freestyle, long-range, and autonomous applications. A built-in 512MB black box recorder allows detailed flight logging, while the integrated barometer and seven UART ports provide excellent expandability for GPS, receivers, telemetry devices, and other peripherals.

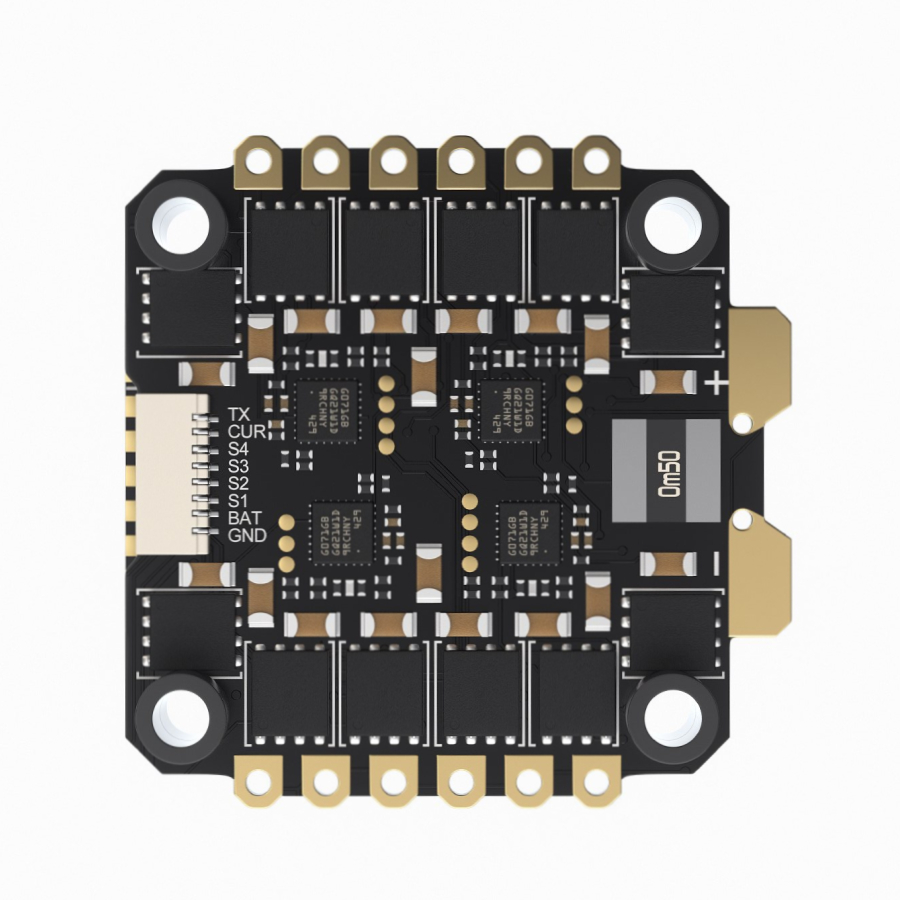

The included 50A 32Bit ESC is designed for smooth throttle response and reliable high-current performance on 3-6S setups. Running a 96K ESC platform with DShot protocol support, it offers refined motor control suited to modern high-KV freestyle and motors. GEPRC also incorporates direct plug support for DJI Air Units and a convenient plug-and-play wiring layout to simplify installation and reduce soldering complexity.
With dual independent BEC outputs, integrated LC filtering, Bluetooth parameter tuning support, and a 30.5x30.5mm mounting layout, the Taker H743 BT 50A Stack provides a capable and highly versatile foundation for advanced FPV builds.
Features:
- High-performance STM32H743 flight controller
- Dual gyro design using MPU6000 and ICM42688-P sensors
- Integrated 512MB onboard black box storage
- Bluetooth wireless parameter tuning support
- Plug-and-play wiring system for simplified installation
- Direct plug compatibility for DJI Air Unit systems
- Integrated barometer for altitude sensing applications
- Seven UART ports for extensive peripheral connectivity
- Dual independent BEC outputs for stable power delivery
- Integrated LC power filtering for cleaner electrical performance
- Compatible with Betaflight, INAV and ArduPilot firmware
Specification:
- Model: GEPRC Taker H743 BT 50A Stack
- Flight controller: TAKER H743 BT
- ESC model: GEP-BL32 50A 96K 4IN1 ESC
- MCU: STM32H743
- Processor core: Cortex-M7
- IMU: MPU6000 + ICM42688-P dual gyro
- Input voltage: 3-6S LiPo
- ESC continuous current: 50A
- ESC peak current: 55A (5 seconds)
- ESC protocol support: DShot150/300/600
- Flight controller BEC output: 5V@3A and 12V@2.5A
- OSD chip: AT7456E
- USB interface: Type-C
- Black box capacity: 512MB
- UART ports: 7
- Mounting pattern: 30.5x30.5mm
- Flight controller dimensions: 38.5x38.5mm
- ESC dimensions: 42.5x42.1mm
- Flight controller weight: 8.4g
- ESC weight: 14g
- Flight controller target: GEPRC_TAKER_H743
- ESC target: ST_G0_05 – 31.92
Included:
- 1x GEPRC Taker H743 BT 50A Stack
- Accessories
