Overview:
The GEPRC Taker H743 BT 32Bit 65A Stack combines a high-performance STM32H743 flight controller with a 65A 4-in-1 ESC, designed for demanding 5–7inch multirotors running up to 6S LiPo. It delivers a strong balance of processing power, clean power management and modern connectivity, including dual gyros and integrated black box storage for detailed flight analysis.
Built around the STM32H743VIH6 MCU running up to 480MHz, the flight controller provides fast loop times and stable handling under high load. The dual IMU setup (MPU6000 and ICM42688-P) improves vibration tolerance and flight precision. A 512MB onboard black box supports detailed logging, while integrated LC filtering and dual independent BEC outputs help maintain clean power for onboard electronics. The matching 65A ESC supports modern digital protocols and is intended for high-output motor systems on multi-cell setups.
Bluetooth functionality is included for wireless configuration (note: some production batches may have temporary limitations on Bluetooth tuning as per the manufacturer's notice). The stack also offers 7 UART ports, an integrated barometer, Type-C connectivity and direct plug support for DJI Air Units, making it a well-integrated solution for modern FPV builds.
Features:
- High-performance STM32H743 flight controller with Cortex-M7 core up to 480MHz
- Dual gyro system (MPU6000 + ICM42688-P) for improved vibration handling and flight stability
- 512MB onboard black box for high-resolution flight data logging
- Integrated LC power filtering for reduced electrical noise
- 7 UART ports supporting extensive peripherals including GPS, VTX and telemetry
- Built-in barometer for altitude sensing
- Bluetooth connectivity for wireless parameter configuration
- Type-C USB interface for modern PC connectivity and setup
- Direct plug compatibility with DJI Air Units for simplified installation
- 65A 4-in-1 ESC supporting high-current multi-rotor builds with digital throttle protocols
Specification:

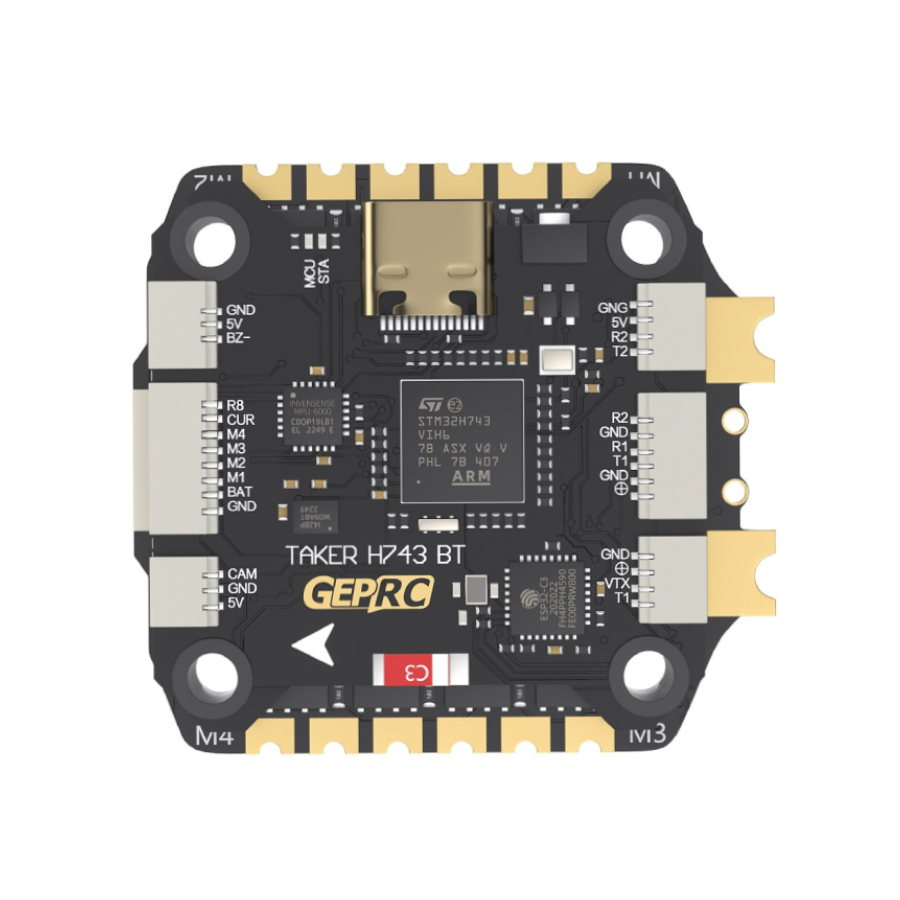

Flight Controller:
- MCU: STM32H743VIH6
- IMU: MPU6000 + ICM42688-P
- Black box: 512MB onboard
- Input voltage: 3–6S LiPo
- BEC output: 5V@3A + 12V@2.5A (dual independent outputs)
- UART ports: 7 (UART3 reserved for Bluetooth)
- USB interface: Type-C
- OSD: Betaflight OSD (AT7456E)
- Power filtering: Integrated LC filter
- Mounting pattern: 30.5x30.5mm
- Board size: 38.5x38.5mm
- Weight: 8.4g

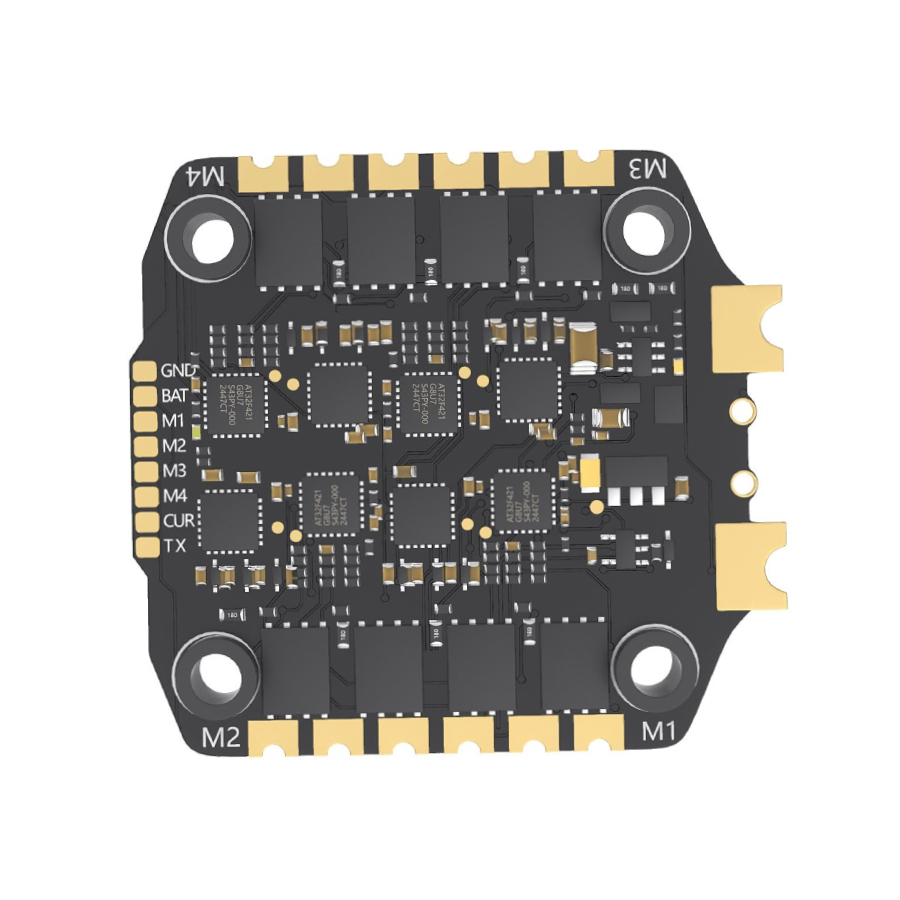

ESC:
- Continuous current: 65A
- Burst current: 70A (5 seconds)
- Input voltage: 3–8S LiPo (stack configuration limited to 3–6S)
- Supported protocols: DShot150/300/600
- Mounting pattern: 30.5x30.5mm
- Board size: 42x45.7mm
- Weight: 15.8g
- Current sensing: Supported
Included:

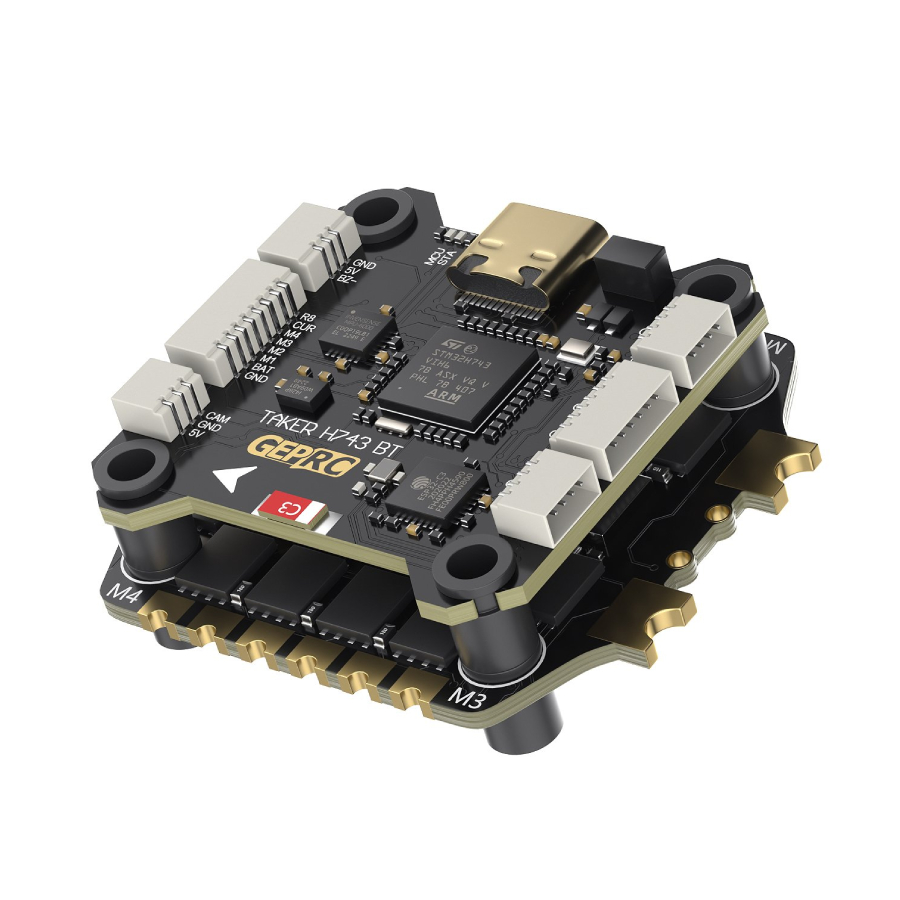

- 1x GEPRC Taker H743 BT 65A Stack
- Accessories
