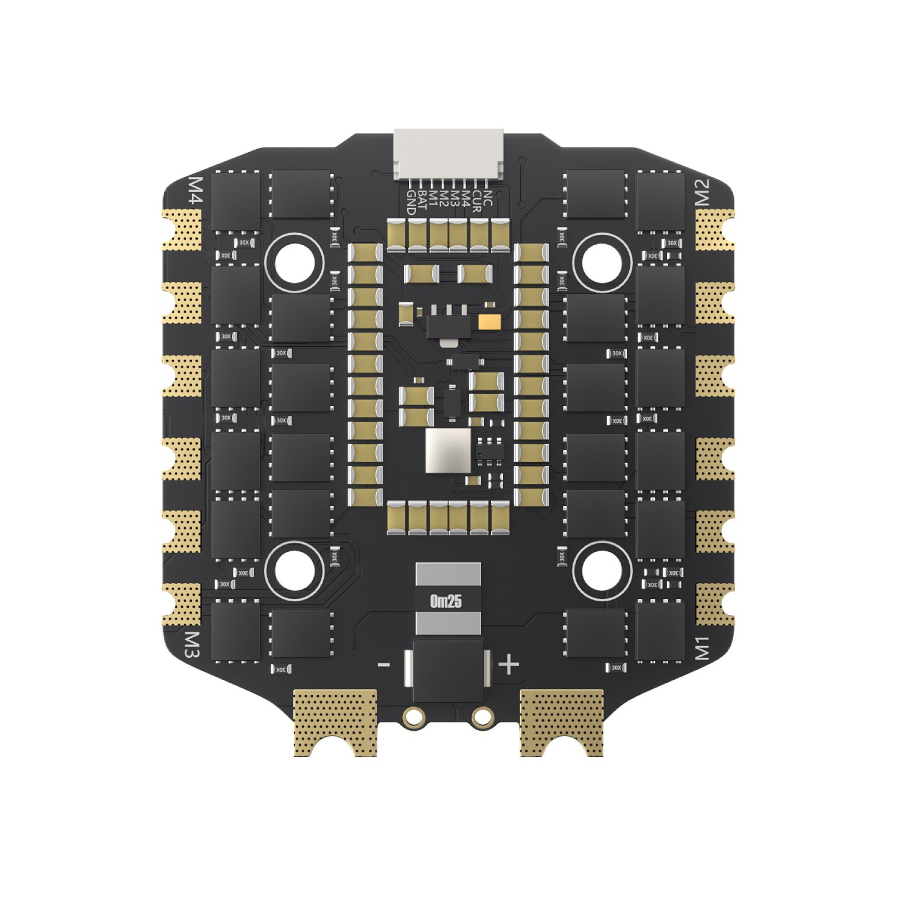

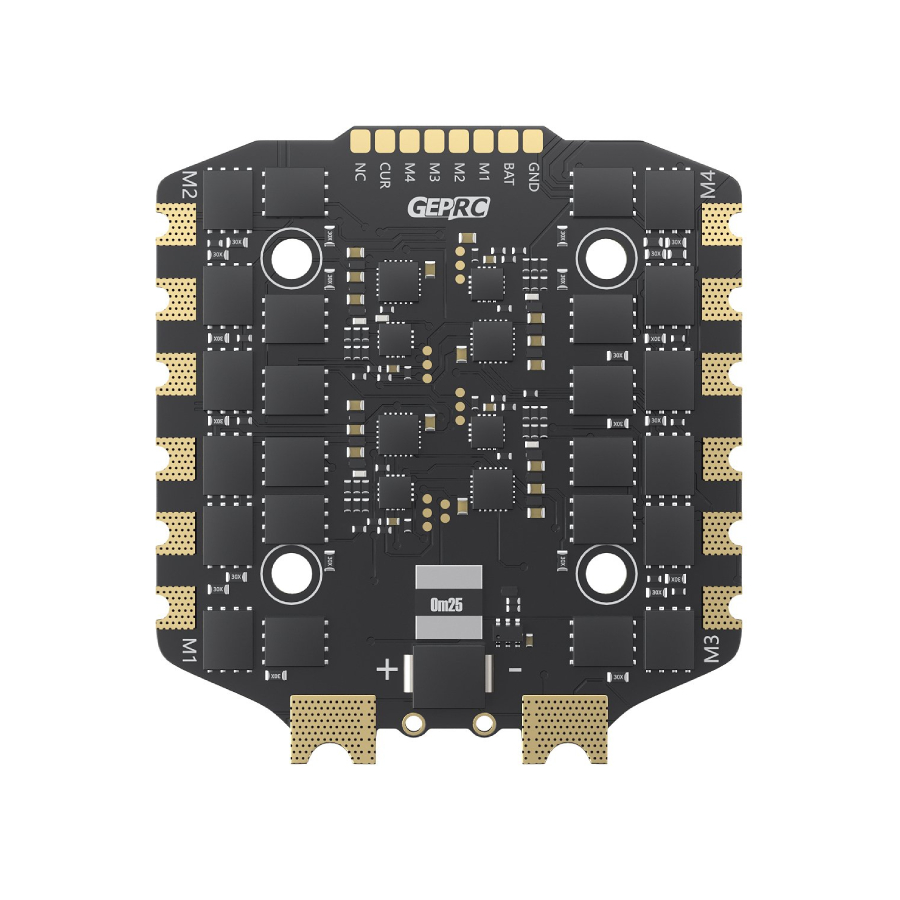

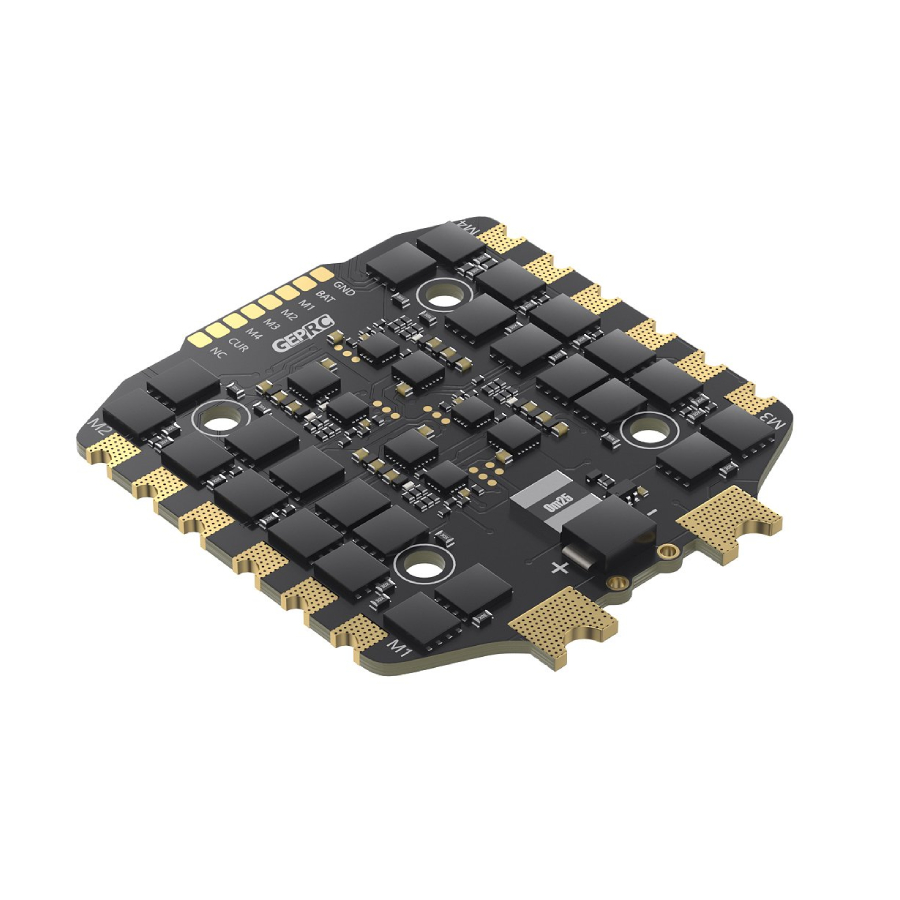

GEPRC Taker H80 8S BLS 80A 4in1 ESC

Overview:
Designed for high-power FPV builds, the GEPRC Taker H80 BLS 80A 4in1 ESC delivers substantial current handling in a robust 4-in-1 format. Suitable for demanding freestyle, racing and long-range multirotors running 3-6S LiPo batteries, it combines high continuous current capability with support for modern digital ESC protocols, providing smooth throttle response and reliable power delivery.

The Taker H80_BLS is built around a standard 30.5x30.5mm mounting pattern for compatibility with a wide range of frames and flight controllers. Integrated current sensing allows accurate power monitoring through the flight controller, while the high-current design and XT90 power lead support make it well suited to larger, high-performance FPV platforms where efficiency and reliability are essential.

Features:
- High-current 4-in-1 ESC design for demanding FPV applications
- Integrated current sensor for real-time current monitoring
- Standard 30.5x30.5mm mounting pattern for broad frame compatibility

Specification:
- Model: GEPRC Taker H80 BLS 80A 4in1 ESC
- Continuous current: 80A
- Burst current: 85A (5 seconds)
- Firmware target: B_X_30
- Mounting hole diameter: 4mm (reduces to 3mm when using supplied silicone shock-absorbing grommets)
- ESC dimensions: 56.3x61.1mm
- Weight: 28.1g
- Input voltage: 3-6S LiPo
- Current sensing: Supported
- Supported protocols: DShot150/DShot300/DShot600

Included:
- 1x GEPRC Taker H80 BLS 80A 4IN1 ESC
- Accessories
