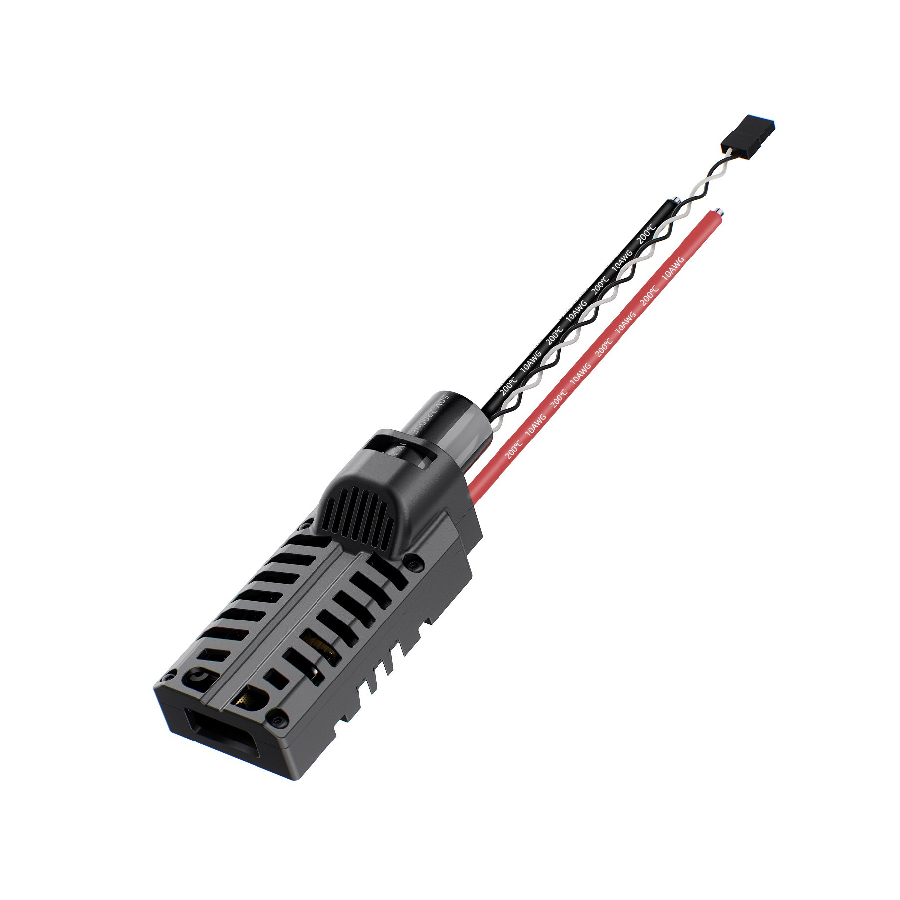

GEPRC Taker S80 8S BLS 80A ESC (2 Versions)

Overview:
The GEPRC TAKER S80 8S BLS 80A ESC is a high-current single-channel electronic speed controller designed for large FPV drones and heavy-duty multirotor platforms. Supporting up to 8S LiPo operation, it is engineered to provide reliable power delivery for larger motors used in long-range, heavy-lift and high-performance applications where sustained current capability is essential.

The ESC features a robust hardware design with high-quality MOSFETs and an integrated heatsink to improve cooling efficiency under demanding operating conditions. Running BLHeli_S firmware and supporting DShot protocols, the TAKER S80 delivers responsive motor control while maintaining compatibility with a wide range of flight controllers.

Features:
- Integrated MOSFET heat sink for efficient cooling during high-current operation, helping to maintain stable performance.
- High-quality MOSFETs provide reliable operation across a wide input voltage range and under demanding power loads.
- Supports operation on up to 8S LiPo battery systems
- BLHeli_S firmware for reliable motor control
- Compatible with  Dshot 150/300/600
- High-current design for larger motor and propeller combinations

Specification:
- Model: GEPRC TAKER S80 8S BLS 80A ESC
- Input Voltage: 3-8S Lipo
- Ammeter: Not Supported
- Continuous Current: 80A
- Burst Current: 85A(5 seconds）
- Protocols Supported: Dshot 150/300/600
- ESC Dimension: 32.5x55mm
- Mounting Holes: 29.6x48.5mm
- Case Material: PC
- Case Dimension: 36x76mm
- Weight: 68.8g

Available versions (see below for purchase options):
- GEPRC Taker S80 8S BLS 80A ESC (with case)
- GEPRC Taker S80 8S BLS 80A ESC

Included:
- 1x GEPRC TAKER S80 8S BLS 80A ESC
- Accessories
