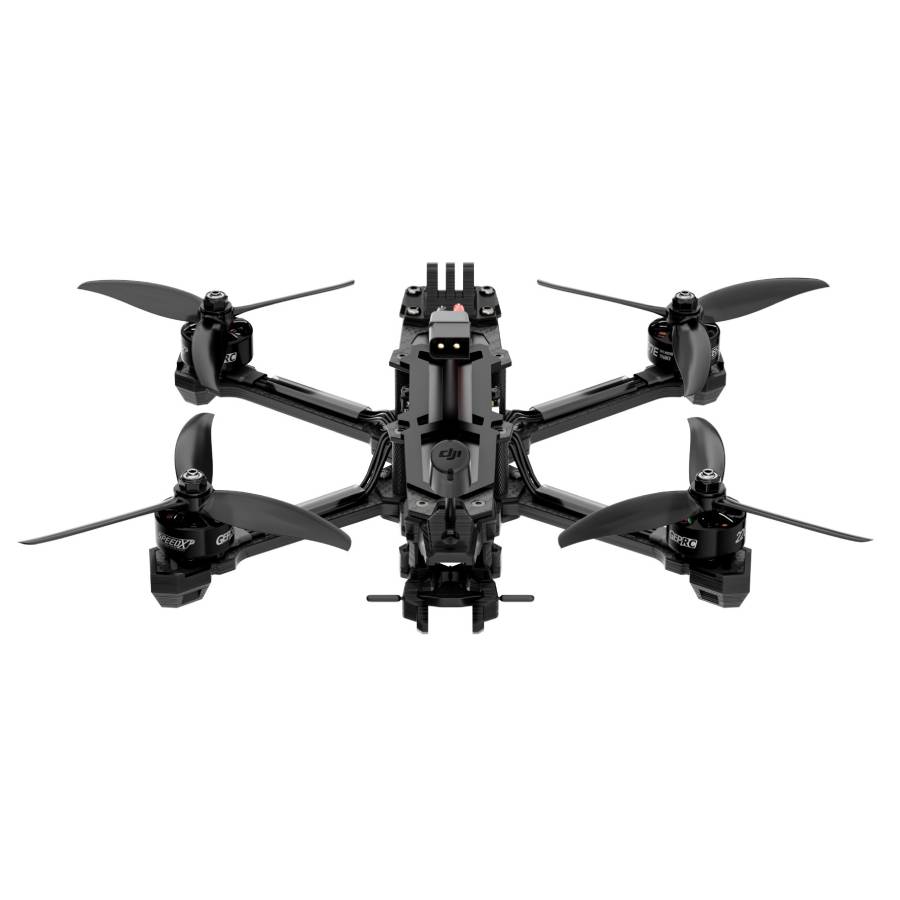

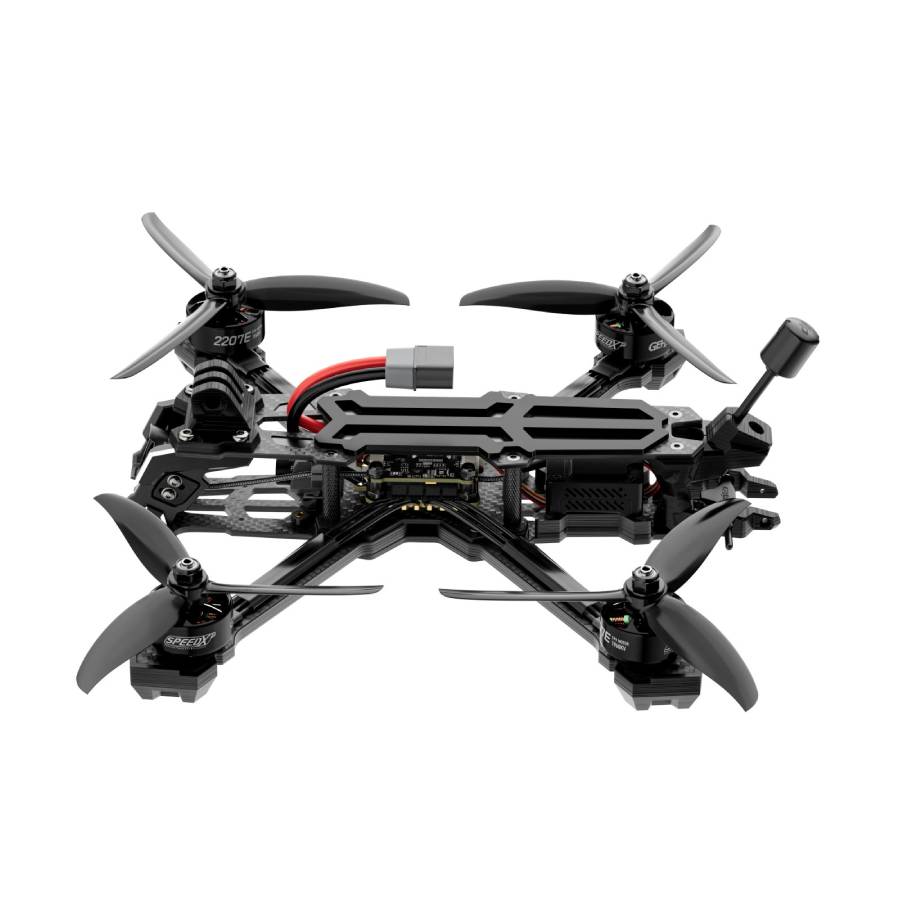

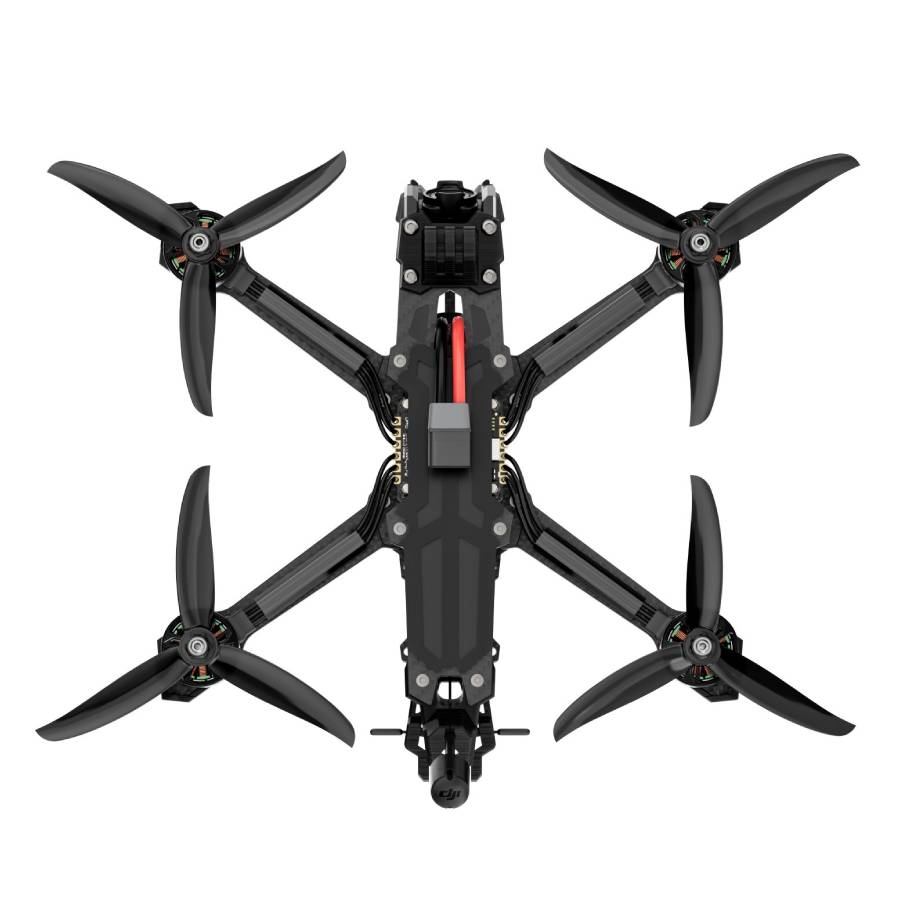

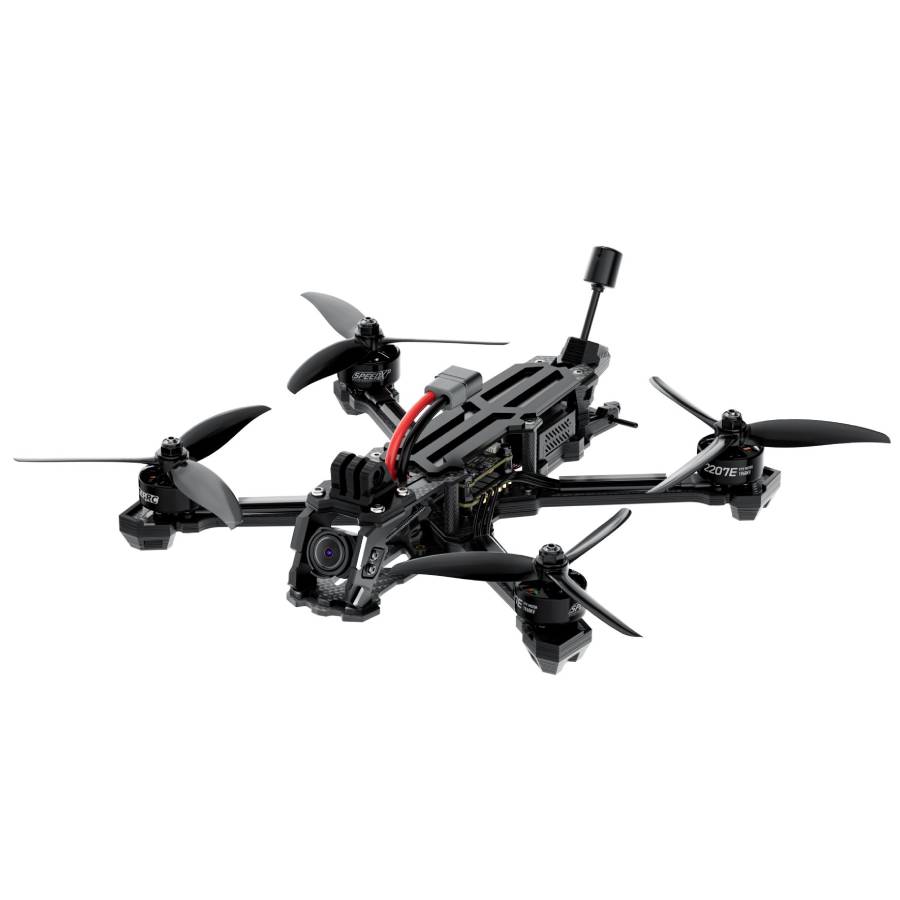

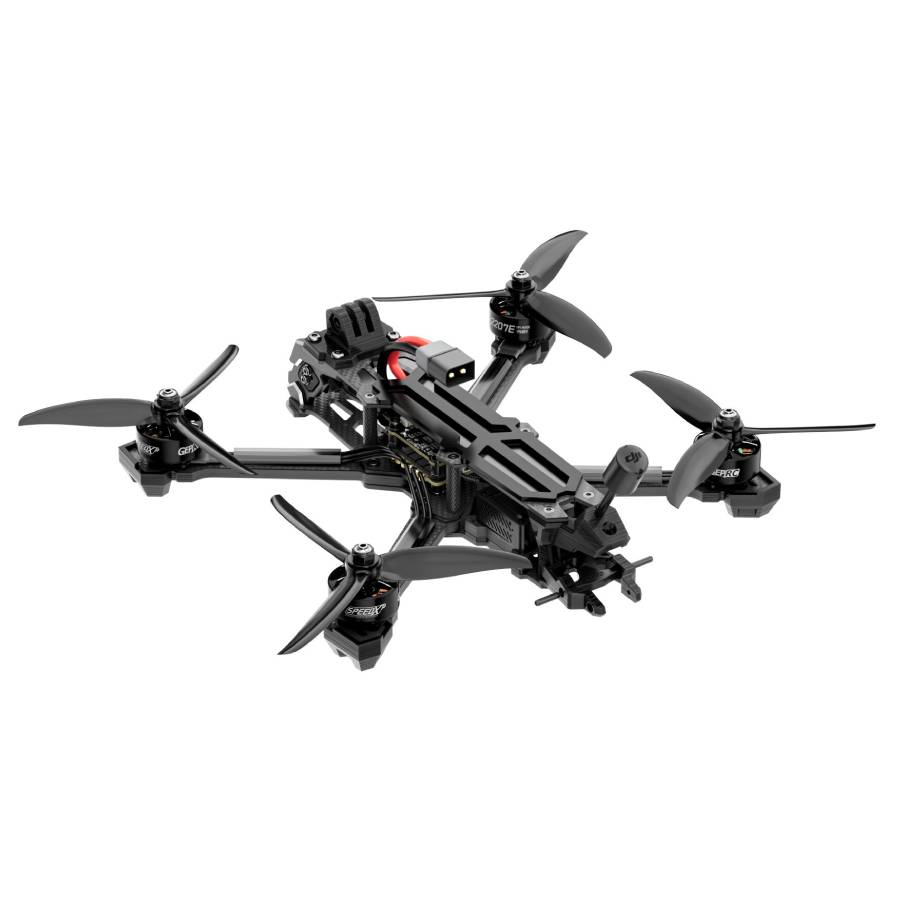

GEPRC Vapor‑X5 Freestyle 5" (ELRS)

Overview:
The GEPRC Vapor‑X5 is a performance‑focused 5‑inch freestyle FPV drone designed for pilots who demand smooth video quality, robust build, and agile handling. With a 230 mm wheelbase and rugged 5 mm carbon‑fibre arms, this drone delivers a stable yet responsive flight experience. It features an integrated GEP‑F722‑HD V2 flight controller paired with a 60 A Taker BLHeli_S 4‑in‑1 ESC, GEPRC SpeedX2 2207E 1960 KV motors.

CNC‑machined aluminium camera housing with vibration‑dampening ensures crisp footage, while thick carbon arms and protective side panels stand up to rough landings and aggressive flight styles. The Vapor‑X5 is a versatile platform for freestyle and cinematic pilots alike.

Features:
- GoPro mount
- Durable carbon‑fibre frame with 5 mm arms designed for freestyle rigour
- High-current 60 A BLHeli_S 4‑in‑1 ESC provides stable power delivery
- Robust SpeedX2 2207E 1960 KV motors ensure responsive thrust
- CNC‑machined aluminium camera protector reduces vibration and shields lens
- Support for optional GPS module for enhanced flight modes and navigation
- Pre‑tuned PID settings from GEPRC simplify setup and improve flight performance

Specification:
- Model: GEPRC Vapor‑X5 Quadcopter
- MCU: STM32F405RGT6 (168 MHz, 1 MB Flash)
- Gyro: BMI270(SPI)
- ESC rating: 12 A continuous, peak 15 A (3 s), DSHOT300 protocol
- Power input: 2.9 V-8.7 V (supports 1‑2 S LiPo/LiHV)
- Receiver: Serial ExpressLRS 2.4 GHz V3.0, telemetry output <12 dBm
- UART ports: Three full UART channels
- Black-box memory: 8Mb
- Barometer: BMP280 sensor onboard
- Voltage scale: 110, current scale: 470
- Antenna: 31 mm enamelled wire
- Mounting holes: 25.5x25.5mm
- Weight: 4.8g (excluding power lead)

Available Versions (See below for purchase options):
- GEPRC Vapor‑X5 O3 ELRS
- GEPRC Vapor‑X5 Analog ELRS

Included:
- 1x GEPRC Vapor‑X5
- Accessories
