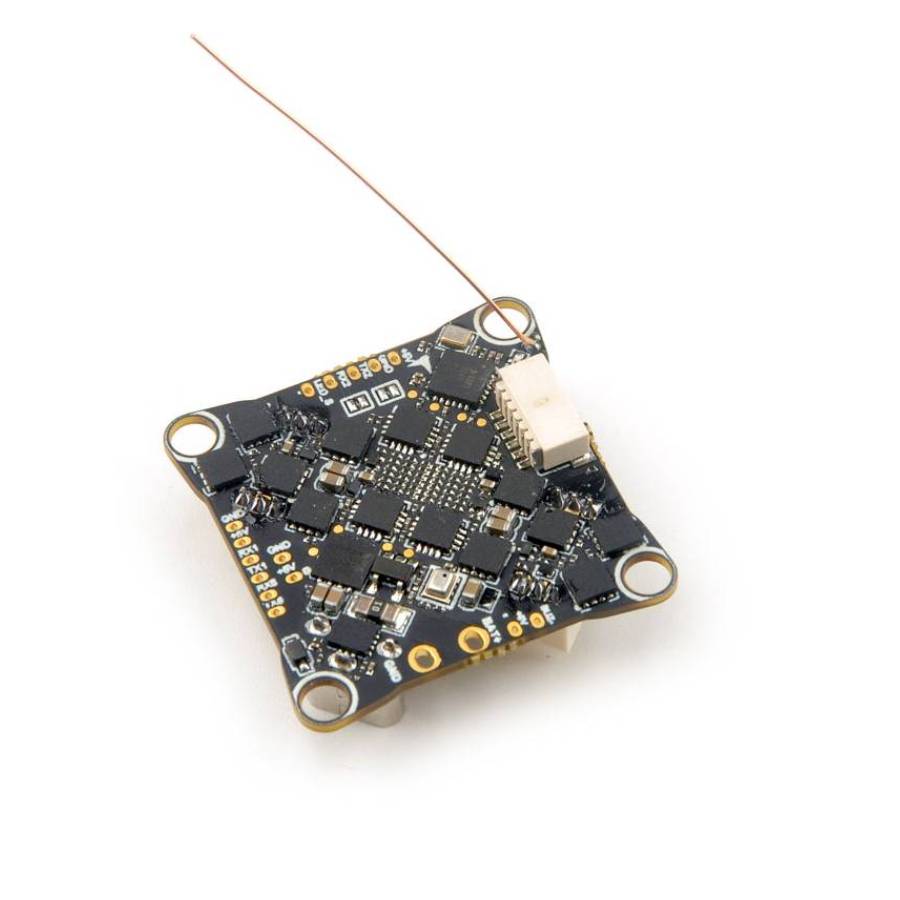

Happymodel CrazyF405HD AIO (ELRS)

Overview:
The CrazyF405HD ELRS combines an STM32F405 flight controller, 12 A 4‑in‑1 BLHeli_S ESC, ExpressLRS V3 serial receiver, barometer, and black-box storage into a compact 25.5mm board. Designed for 1-2 S builds like whoops, cinewhoops and toothpicks, it supports Betaflight and INAV firmware and removes older components to streamline layout and reduce weight. This ready-to-fly AIO solution offers HD-ready control with full telemetry, high-speed ESC performance and integrated voltage/current sensing - all in under 5g. This compact, feature-packed flight controller suits drone builders seeking high-end performance in micro HD builds. Its integrated ELRS link, efficient ESC hardware, and telemetry features make it a standout for HD whoop or toothpick projects.

Features:
- All-in-one flight controller with integrated ExpressLRS V3.0 receiver
- Four motor outputs via 12 A BLHeli_S ESC (peak 15 A for 3 s)
- Supports 1‑2 S (2.9 V-8.7 V) LiPo and LiHV batteries
- ExpressLRS telemetry and packet-rate flexibility (up to 500Hz)
- Holds barometric altitude data via onboard BMP280 sensor
- Records flight data to 8 MB black‑box memory
- Includes integrated voltage and current monitoring
- Compatible with both Betaflight and INAV
- Compact and lightweight design optimised for micro FPV drones

Specification:
- Model: Happymodel CrazyF405HD ELRS HD (1H60023)
- MCU: STM32F405RGT6 (168MHz, 1Mb Flash)
- Gyro: BMI270 (SPI)
- ESC rating: 12A continuous, peak 15 A (3 s), DSHOT300 protocol
- Power input: 2.9V-8.7V (supports 1-2 S LiPo/LiHV)
- Receiver: Serial ExpressLRS 2.4 GHz V3.0, telemetry output <12dBm

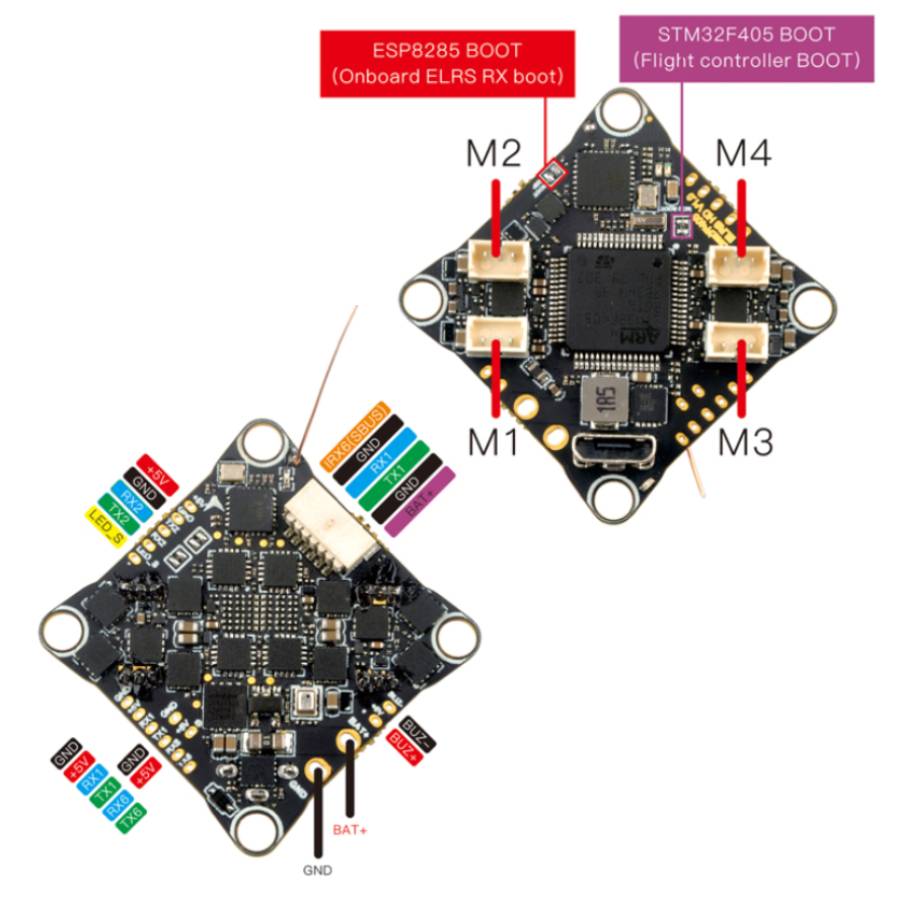

- UART ports: Three full UART channels
- Black-box memory: 8Mb
- Barometer: BMP280 sensor onboard
- Antenna: 31mm enamelled wire
- Mounting holes: 25.5x25.5mm
- Weight: 4.8g (excluding power lead)

Included:
- 1x Happymodel CrazyF405HD ELRS V3.0
- Accessories
