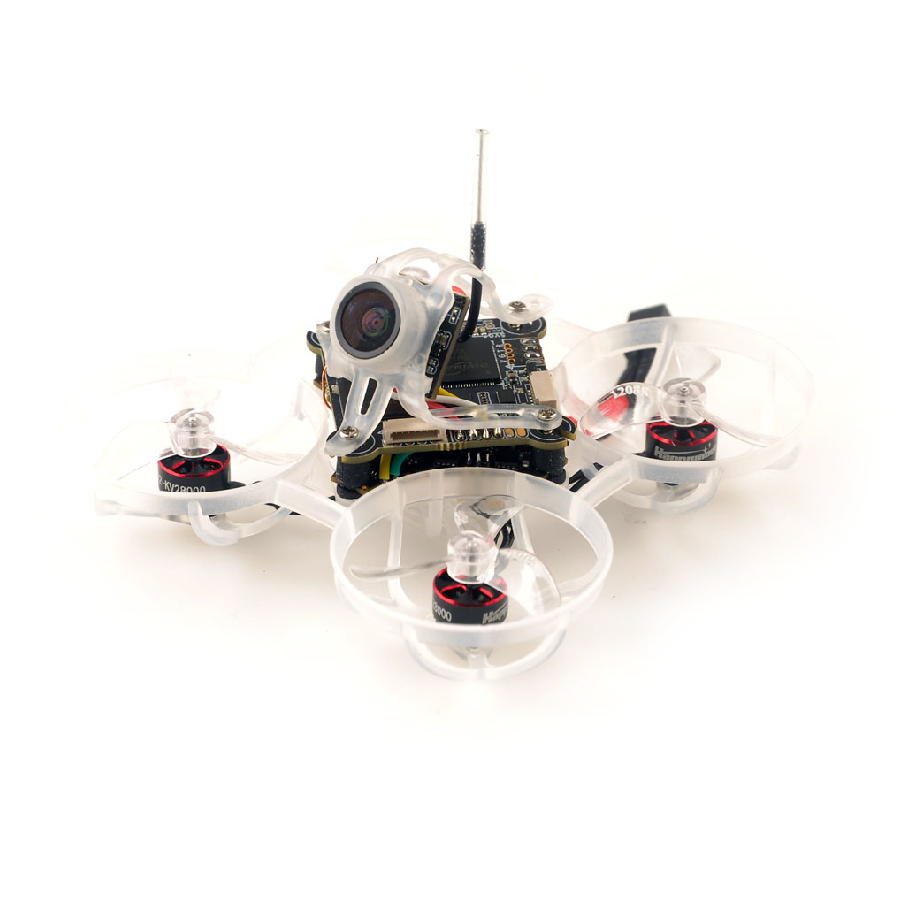

Happymodel Mobula6 ECO 2024 1S 65mm HDZERO Whoop (ELRS)

Happymodel Mobula6 ECO 2024 1S 65mm Whoop with ELRS receiver and HDZero ECO video system
Manufacturer: Happymodel
Availability: In stock
£133.10 inc VAT
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview:

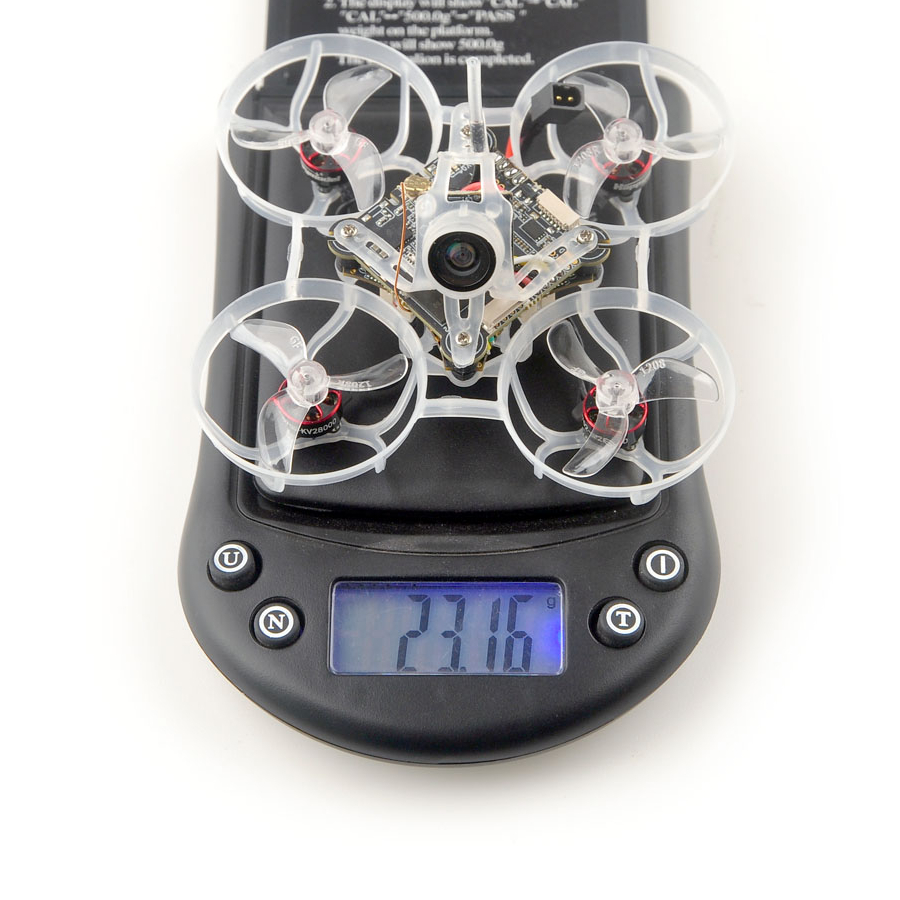

The Happymodel Mobula6 ECO 2024 1S 65mm Whoop is a cutting-edge micro HD FPV drone, renowned for its ultra-lightweight design at just 23.16 grams without battery. It boasts a compact frame with a 65mm wheelbase, ensuring agility and manoeuvrability in flight. The drone is compatible with 1S Lipo or LIHV batteries, featuring a GNB A30 battery plug for secure and efficient power connectivity.

Equipped with Happymodel's lightest brushless motors, the SE0702, weighing only 1.49 grams each, the Mobula6 ECO 2024 delivers smooth and powerful performance. The drone comes ready with an HDZERO ECO VTX and Camera, providing high-definition aerial footage with minimal interference.

The Mobula6 ECO 2024's SuperX HD ELRS AIO supports onboard blackbox logging and has a built in Serial ELRS Receiver.

Features:
- AIO Flight controller with Serial ELRS Receiver
- Compatible with HDZERO system
- Equipment with the lightest brushless motors-SE0702 only 1.49gram
- HDZERO NEW ECO VTX and Camera ready
- Smooth and powerful
- Compatible for 1S Lipo/LIHV
- Onboard blackbox read

Specifications:

- Brand Name: HAPPYMODEL & HDZERO CO-Brand
- Model: Mobula6 ECO 2024
- Frame wheelbase: 65mm
- Weight: 23.16 gram without battery
- Size: 81mm*81mm*45mm
- Compatible with 1S Lipo battery or Lihv battery
- Battery Plug: GNB A30

Motor
- Mode: SE0702 KV28000
- Configuration:9N12P
- Stator Diamter:7mm
- Stator Length:2mm
- Shaft Diameter:Φ1mm
- Motor Dimension(Dia.*Len):Φ9.5mm*14mm
- Weight(g):1.49g
- No.of Cells(Lipo):1S only

Propellers
- Materials: PC
- Inch: 31mm
- Pitch: 0.8 in
- Weight: 0.21g
- Mount hole diameter:  1mm

Flight controller
- SuperX HD ELRS
- Betaflight 4.4.2 firmware ready
- Firmware target: CRAZYBEEF4DX
- MCU:STM32F411CEU6 (100MHz, 512K FLASH)
- Sensor: BMI270 or ICM42688P (SPI connection)
- Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone
- Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read
- Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update
- Bluejay ESC Firmware ready
- Built-in 5V 1A BEC
- Built-in voltage detection
- No betaflight analog osd chip

Onboard 4in1 ESC
- Power supply: 1-2S LiPo/LiPo HV

- Current: 12A continuous peak 15A (3 seconds)
- Support ESC-Configurator and BLHELI_S Suite configurator
- Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz
- Default protocol: DSHOT300

Onboard Serial ExpressLRS 2.4GHz Receiver
- RF Frequency: 2.4GHz

- Antenna: enameled copper wire 31mm length
- Telemetry output Power: <12dBm
- Receiver protocol: CRSF
- Default firmware version: ExpressLRS V3.0.1
- The same hardware with Happymodel EP1 receiver
- Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through

HDZERO ECO VTX
- Composite HD Video interface
- 1S-3S Input
- 25mW/200mW RF output
- 25.5×25.2 M2 soft mounting
- Antenna Retention
- 32.4×32.5mm (29x29mm inner)
- 4.5grames/4mm Thickness (w/o shielding)
- HDZERO ECO Camera    Image Sensor  1/3”
- Resolution:      720@60fps   4:3
- LENS:      FOV D:150° H:120° V:98°
- Shutter:    Rolling Shutter
- Net Weight:      1.6g (With Cable)
- Dimensions:    L14mm*W14mm*H13mm

Includes:
- Happymodel Mobula6  ECO 2024 1S 65mm Whoop (ELRS)
- Accessories
