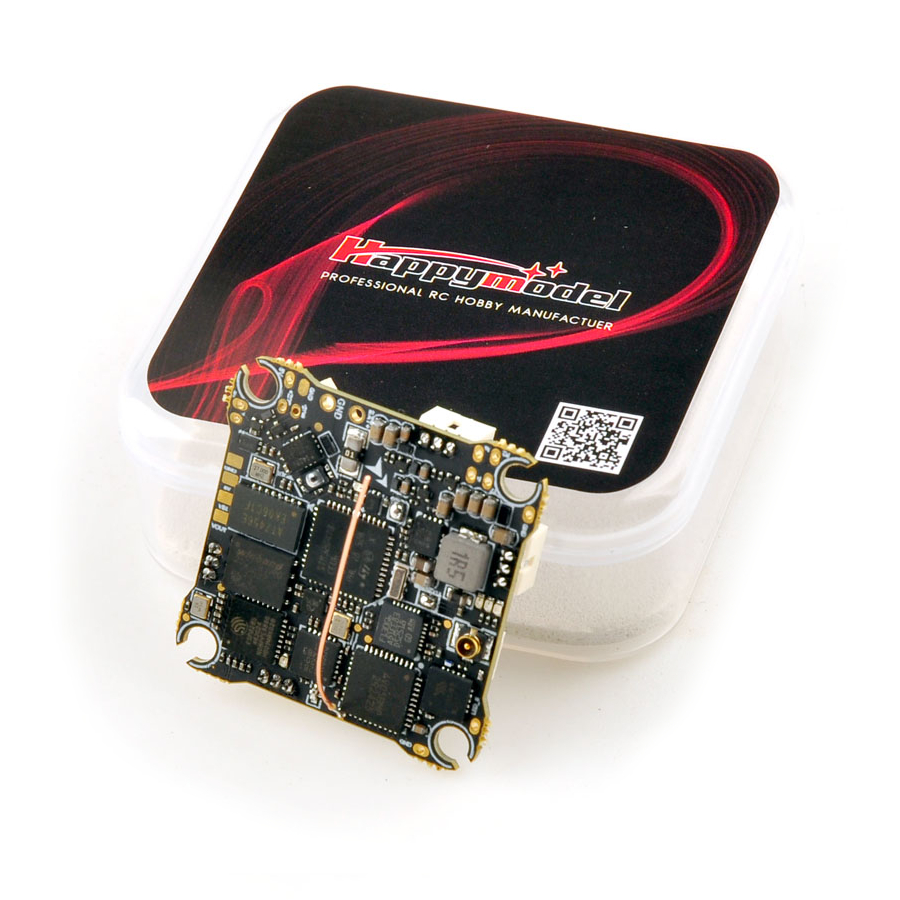

Overview:
The HappyModel X14 5-IN-1 AIO Flight Controller is an all-in-one solution designed for lightweight 1-2S FPV whoops and micro builds. Combining a flight controller, 12A 4-in-1 ESC, ExpressLRS receiver and 400mW OpenVTX on a single compact board, it reduces wiring complexity while providing the features needed for high-performance micro quads.
Powered by an STM32G473 processor, the X14 is an upgraded successor to the X12 ELRS PRO, offering additional UARTs for greater flexibility when adding peripherals such as GPS or external devices. The onboard Bluejay 48kHz ESC delivers smooth throttle response, while the integrated OpenVTX supports output powers up to 400mW with SmartAudio 2.1 for convenient channel and power adjustment through Betaflight.
Designed for 75mm and 85mm whoop builds, the X14 includes a serial ELRS 2.4GHz receiver, 16MB Blackbox memory, voltage and current sensing, and a 5V BEC, making it a compact and capable choice for pilots building or upgrading a lightweight FPV quad.
Features:
- 5-in-1 design combining flight controller, ESC, ExpressLRS receiver and OpenVTX
Based on the STM32G473 processor
- Upgraded design with additional UARTs compared to the X12 ELRS PRO
- Integrated 2.4GHz serial ExpressLRS receiver with Wi-Fi firmware updates
- Built-in OpenVTX with adjustable output power up to 400mW
- Bluejay 48kHz ESC firmware for smooth motor performance
- Supports DSHOT300 and DSHOT600 ESC protocols
- SmartAudio 2.1 support for VTX control through Betaflight
- Integrated voltage and current sensors
- Suitable for lightweight 75mm and 85mm 1-2S whoop builds
Specification:
Flight Controller:
- MCU: STM32G473CEU6
- Gyroscope: ICM42688P
- Blackbox memory: 16MB
- BEC output: 5V@2A
- OSD: AT7456ELAH
- UARTs: UART1, UART2, UART3 (receiver), UART4 (VTX)

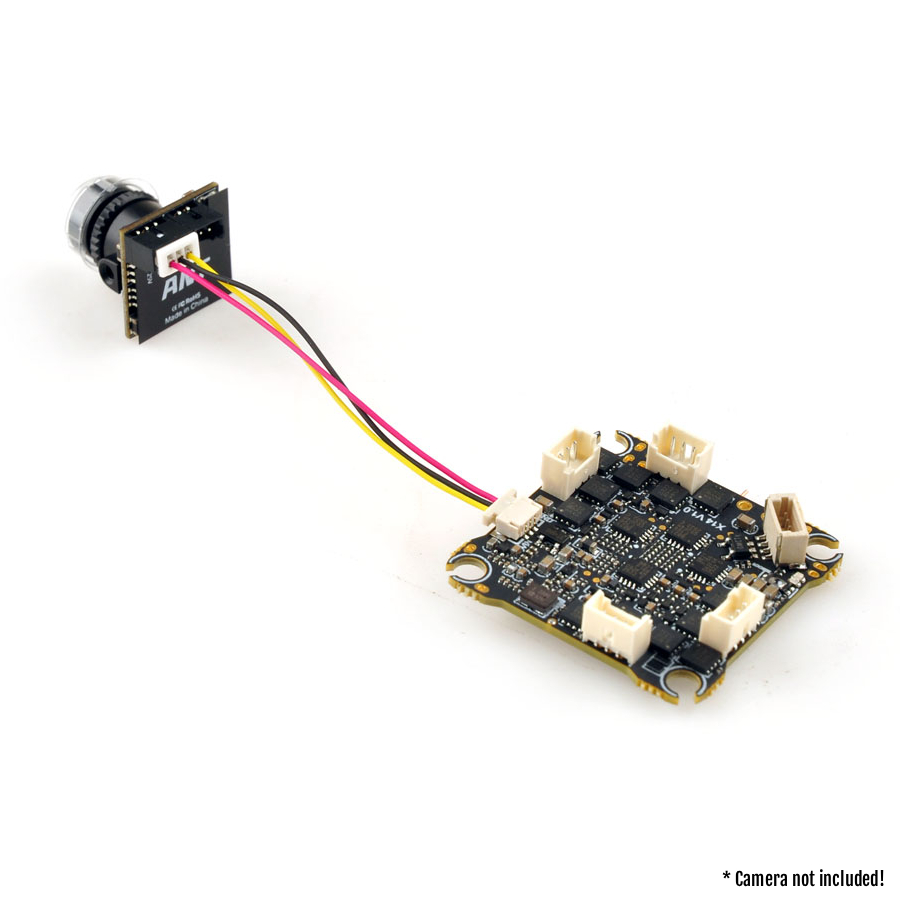

- Camera connector: 0.8mm 3-pin
- Firmware target: CRAZYBEEG473
- USB connection (via adaptor): SH1.0 4-pin
- Mounting pattern: 25.5x25.5mm
- Weight: 8.3g (without battery lead and VTX antenna)
ESC:
- Input voltage: 1-2S LiPo
- Continuous current: 12A
- Peak current: 15A
- ESC firmware: Bluejay v0.19 (48kHz)
Video Transmitter:
- Firmware: OpenVTX
- Frequency: 5.8GHz
- Channels: 48
- Output power: PIT/10/25/100/400mW
- Frequency range: 5658-5917MHz (including Raceband)
- Antenna connector: IPEX1/U.FL
- Modulation: FM
- Operating temperature: -10°C to +80°C
Receiver:
- Receiver type: Serial ExpressLRS 2.4GHz
- Compatible transmitter firmware: ExpressLRS V3.x
- Antenna: 31mm enamelled copper wire
- Telemetry output power: <12dBm

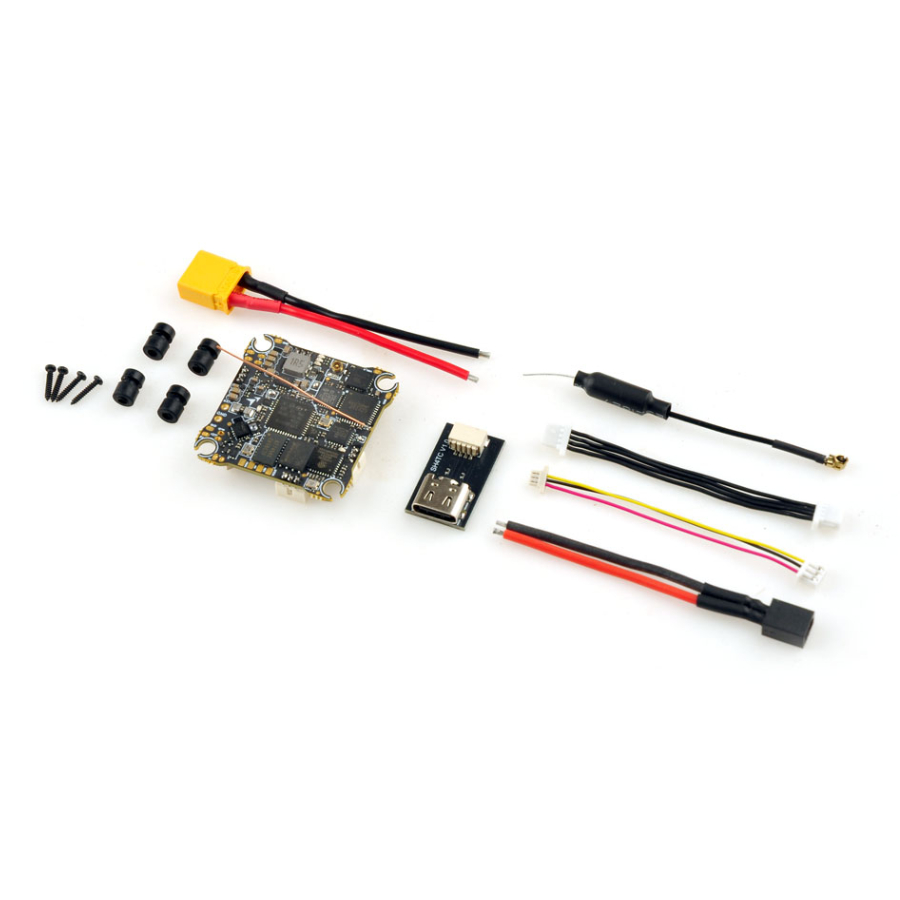

Included:
- 1x HappyModel X14 5-IN-1 AIO Flight Controller
- 1x XT30 Battery lead (Requires soldering)
- 1x A30 Battery lead (Requires soldering)
- 1x 5.8GHz VTX Antenna
- 1x SH1.0 USB Adapter Board
- Connection Cables
- Mounting Grommets
