Overview:

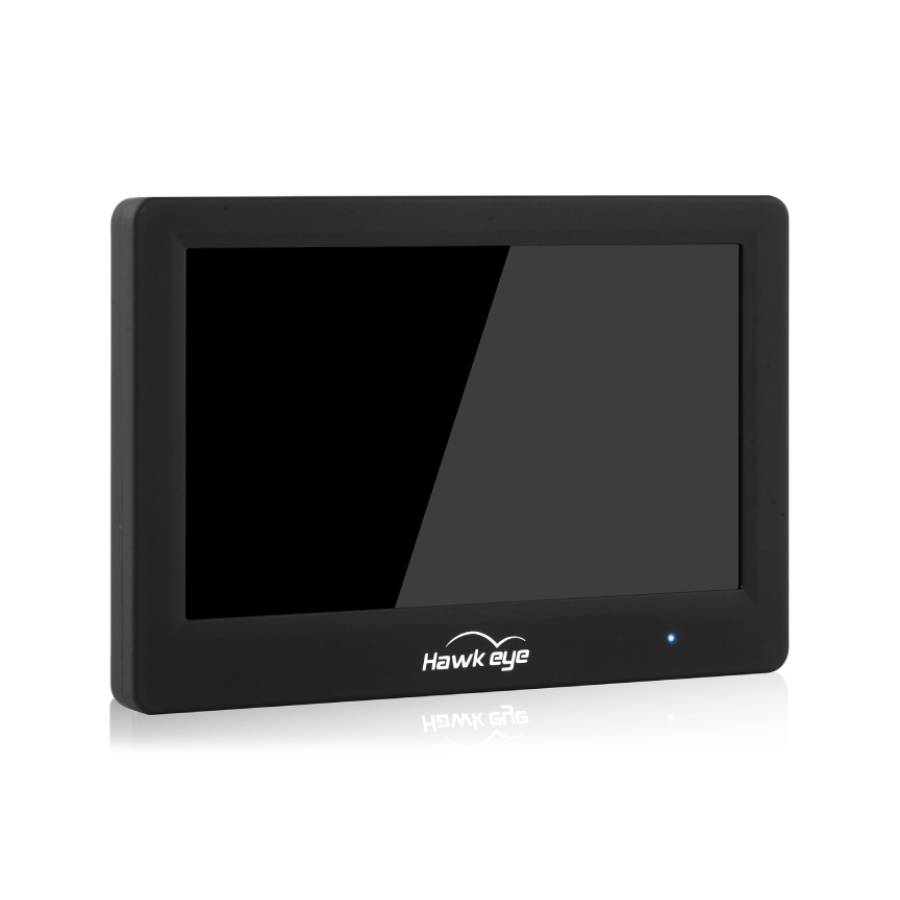

Hawkeye Sharp Vision II 7" FPV Monitor is a 7-inch FPV ground-station monitor designed to give pilots and spectators a versatile viewing solution for analogue FPV systems and HDMI-enabled HD systems such as Walksnail VRX. It combines a bright, high-resolution panel with built-in diversity 5.8GHz reception and modern connectivity to cover both standard FPV feeds and external video sources. With support for a broad range of 5.8GHz channels, automatic/manual scanning and an optional integrated DVR on some versions, it is capable enough for casual flying and event use alike.
This monitor is well suited to pilots who want a larger, shareable display instead of goggles or who need an accessible ground-station screen that can handle analogue FPV signals and external HDMI input from compatible digital receivers. The combination of a rugged housing, simple control layout and high brightness makes it practical for outdoor use, and the diversity reception can improve signal lock in varied environments.
Features:
- Built-in dual-antenna 5.8GHz diversity receiver simplifies analogue FPV reception and improves signal stability.
- Automatic and manual channel scanning for quick signal acquisition.
- HDMI input allows connection of external video sources such as HD FPV receivers or action cams.
- High-brightness IPS display ensures clear, visible images outdoors.
- Built-in DVR option on selected models supports recording and playback at multiple resolutions.
- Simple front-panel controls make adjusting settings straightforward without complex menus.
- SMA antenna connectors allow replacement or upgrade of antennas.
- AV input/output lets you connect or loop analogue video signals with other devices.
Specification:
- Model: Hawkeye 7 inch Sharp Vision II Monitor
- Display size: 7"
- Resolution: 1024×600px
- Brightness: 1000 Lux (typical)
- Aspect ratio: 16:9
- Response time: <10ms
- Colour system: PAL/NTSC/Auto.

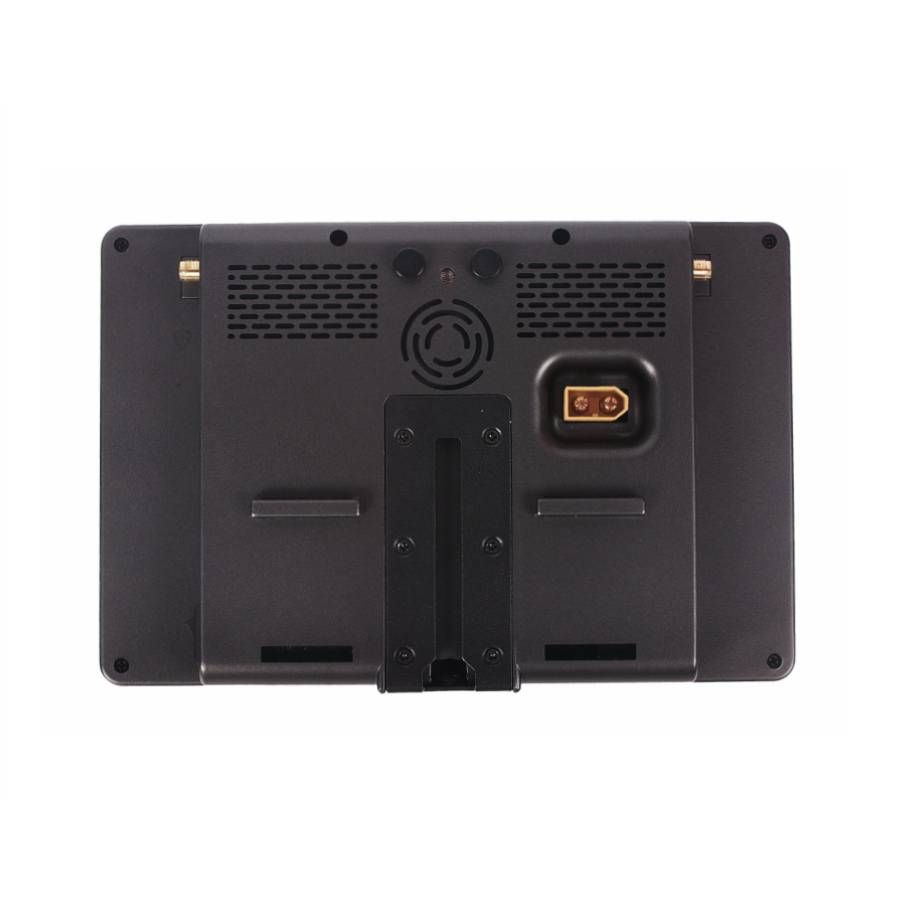

- Power input: DC 3S–6S (XT60 port)
- Power consumption: ~820 mA at 3S/~410 mA at 6S
- Monitor dimensions: ~183×122×30mm
- Gross weight: ~0.58kg
- 5.8 GHz sensitivity: approx. -93 dB
- Receiver channels: 48 (analogue 5.8GHz)
- HDMI input: supported for external devices
- Video I/O: 3.5mm analogue input and output
- DVR (if included): supports up to D1/VGA/QVGA and MicroSD up to 64GB

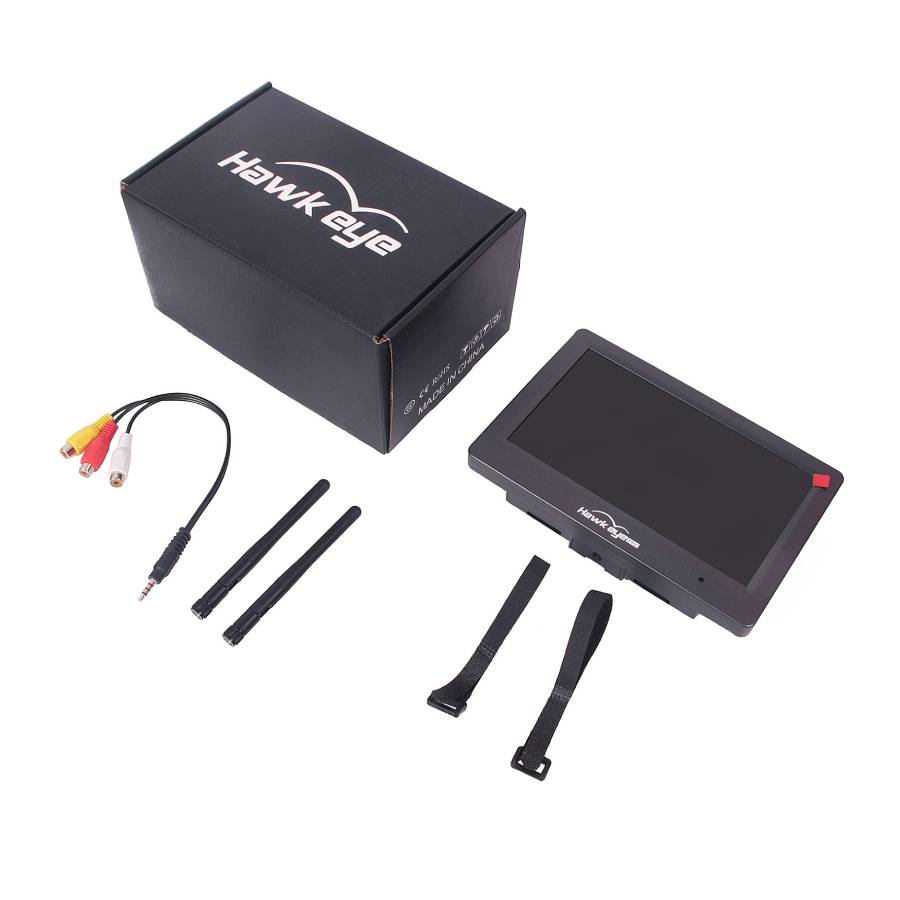

Included:
- 1x Hawkeye 7 inch Sharp Vision II Monitor
- 2x 5.8G Antenna
- 1x Power cable
- 1x Manual
