Overview:

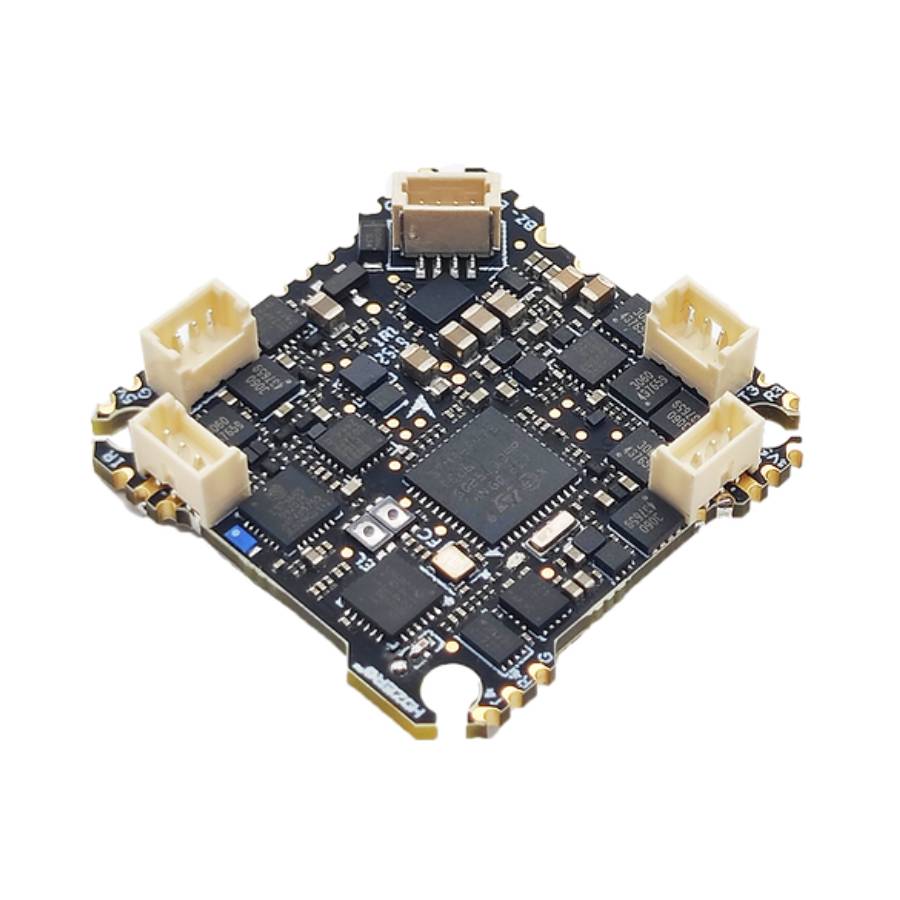

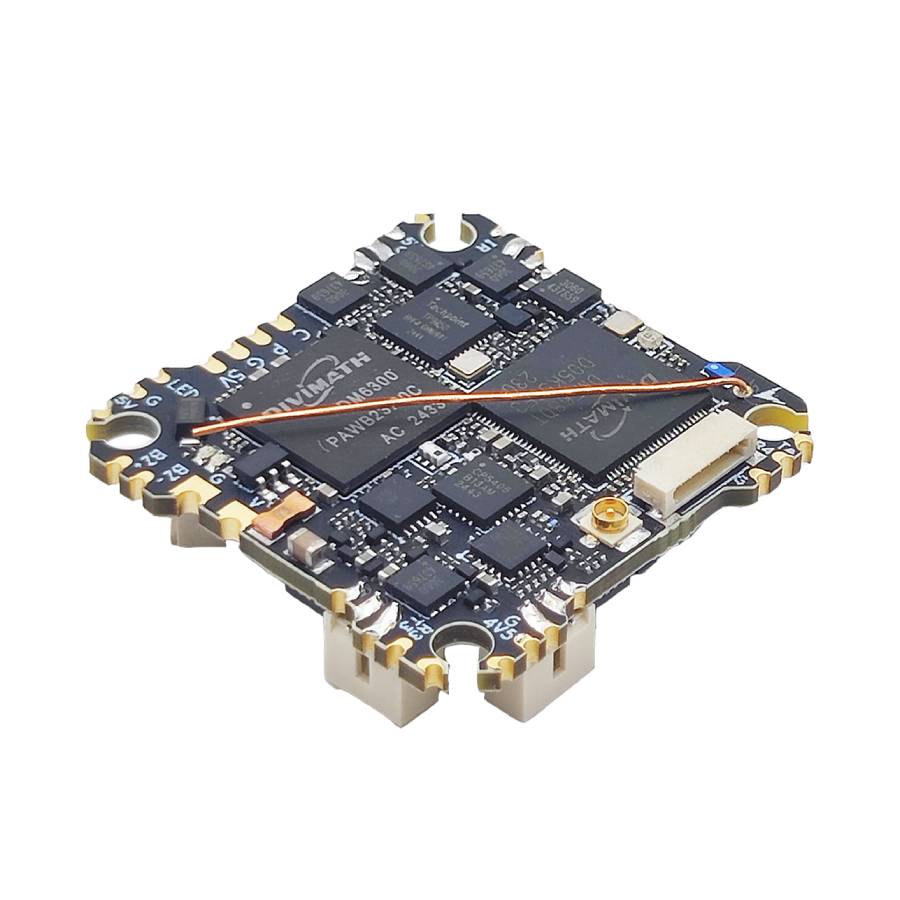

The HDZero AIO15 is the world’s first all-in-one (AIO) digital FPV flight system designed specifically for 2S–3S tiny whoops and micro freestyle builds. It combines everything you need- flight controller, digital video transmitter, ESC, receiver, and BEC into a compact, ultra-lightweight 31.3x31.3mm board.
Perfect for:
- 80mm freestyle whoops
- Lightweight micro drones
- Pilots seeking minimal weight with maximum performance
- Builders upgrading from the AIO5
With an integrated 15A 4-in-1 ESC, the AIO15 supports higher-current motors and 2-3S batteries, enabling powerful sub 33.4g builds without compromising video quality or responsiveness. Whether you're building your own freestyle whoop or flying a ready-to-go platform like the M8 Freestyle HD, AIO15 delivers the performance micro pilots have been waiting for.
**HobbyRC are the exclusive UK stockists for the HDZero product line https://www.hd-zero.com/dealers. HDZero won't provide support for grey imported products sold by other UK retailers. We are supporting HDZero in a range of ways to help the product succeed.**
Features:
Integrated HDZero 5.8GHz Digital VTX
- Output Power: 25mW / 200mW
- Channels: R1- R8, F2/F4, L1 - L8
- U.FL connector with included ultra-light linear antenna
Built-in Serial ExpressLRS 2.4GHz Receiver
- Packet rates: 50 - 1000Hz (50/100/150/250/333/500/D250/D500/F500/F1000Hz)
- Pre-soldered enamel wire antenna
Flight Controller
- MCU: STM32G473 @170MHz, 512K Flash
- Gyro: ICM42688
- Onboard voltage and current sensing
- Firmware target: HDZERO_AIO15
4-in-1 15A ESC
- MCU: EFM8BB21
- Current: 15Ax4 continuous, 18Ax4 peak (3s)
- BlueJay firmware (Z_H_30_48_v0.19.2)
- DShot600 ready
5V BEC
- 5V @ 1A output for accessories and camera
Specification:
- Model: HDZero AIO15
- Battery Input: 2S–3S (3.5V–13V)
- Mounting: 25.5x25.5mm M2
- Board Dimensions: 31.3x31.3mm
- Weight: 7.2g (with motor plugs)

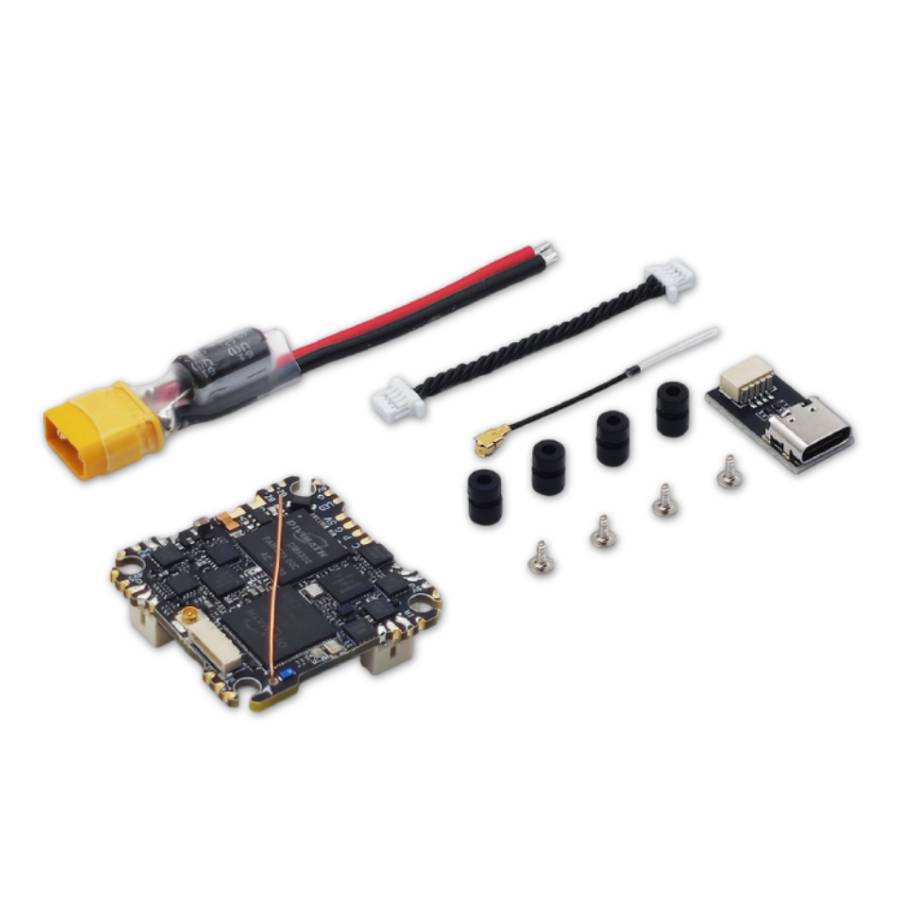

Included:
- 1x HDZero AIO15
- Accessories
** HDZero Warranty Terms: DOA applications will only be considered within the first 7 days after purchase. To qualify there must be no signs of physical damage to the product and the fault MUST go through fault finding with HDZero support, you will be required to ship the DOA board back to us. IF they conclude its DOA you will be offered a replacement. IF they conclude it's not DOA, then in most circumstances you will be offered a 50% discount on a new unit. NO further warranty is offered on these products, please purchase only if you agree to the above terms as set by the manufacturer. **
