Overview:

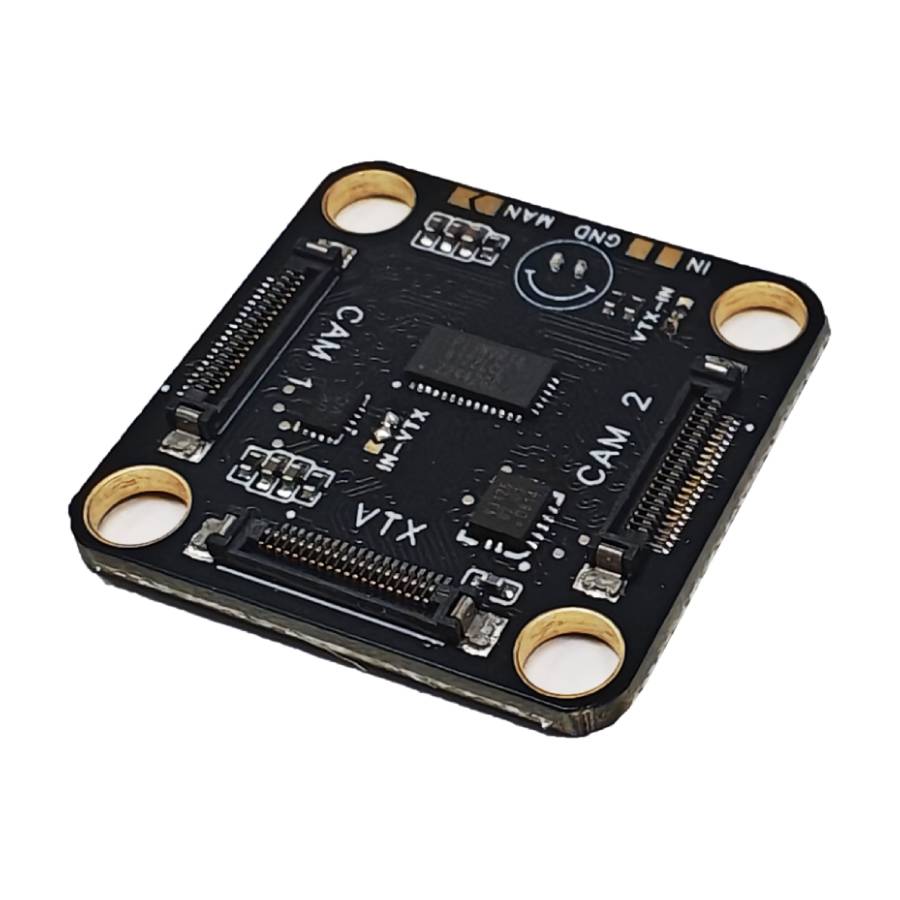

The HDZero Camera Switcher 2 is a lightweight accessory that allows pilots to use two HDZero MIPI cameras on a single video transmitter (VTX) and switch between them in flight. It is designed to integrate seamlessly with flight controllers running Betaflight, iNav or ArduPilot by using the standard Camera Control 1 channel. With a simple plug-and-play setup, no soldering is required in standard mode, meaning you can add forward/rear or day/night vision capability to your FPV drone or RC model without complex wiring. For advanced builds, it also supports manual GPIO control and daisy-chaining for expanded multi-camera configurations.
Features:
- Instant switching between two HDZero MIPI-camera sources
- Standard plug-and-play setup with no soldering required in default mode
- Compatible with Betaflight, iNav and ArduPilot via assigned Camera Control 1 input
- Powered directly from the VTX, avoiding extra power routing
- Independent camera settings when controlled through the flight controller
- Advanced jumper options for manual switching or multi-board setups
- Compact 20×20mm footprint for straightforward stack integration
Specification:
- Model: HDZero Camera Switcher 2 (HDZ3322)
- Dimensions: 26×26×2.6 mm
- Mounting pattern: 20×20 mm
- Weight: 2.7g
- Connectors: 3× HDZero MIPI ports (Cam 1, Cam 2, VTX)
- Control input: 0–3.3 V GPIO when in manual mode
Included:
- 1x HDZero Camera Switcher 2
- Accessories
