Overview:
The HDZero Halo 4in1 70A ESC is designed for pilots who demand both power and reliability. Whether you're pushing limits in drone racing or freestyle, this ESC delivers unmatched durability and throttle response.

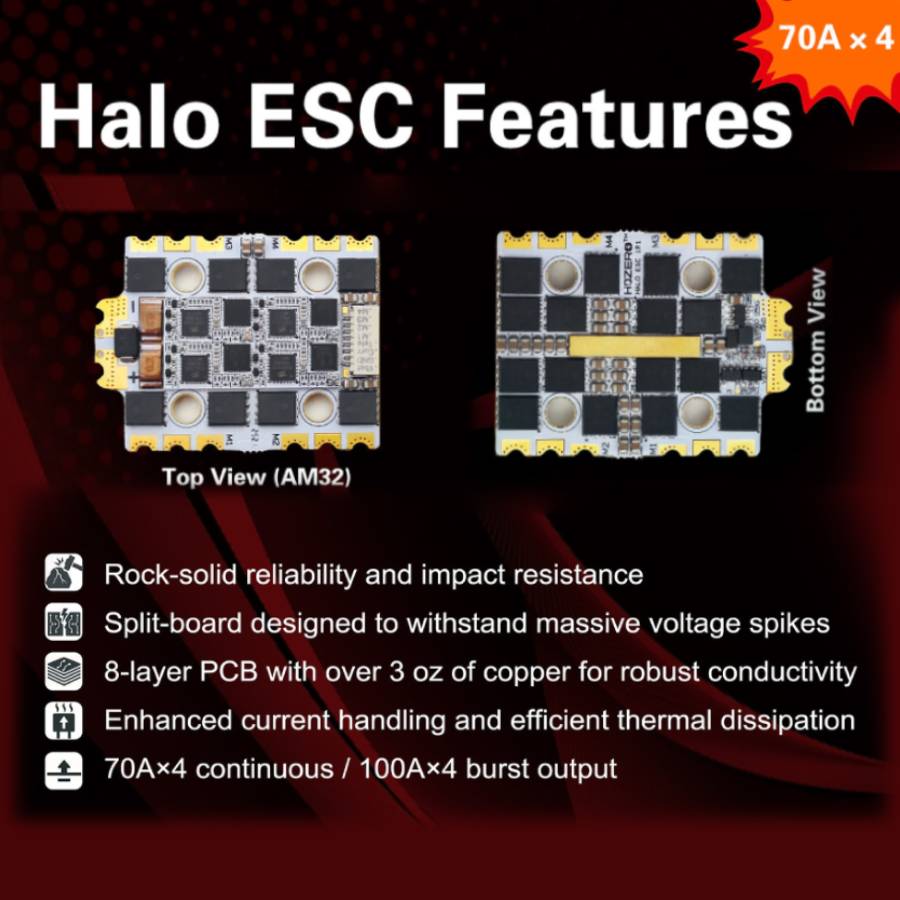

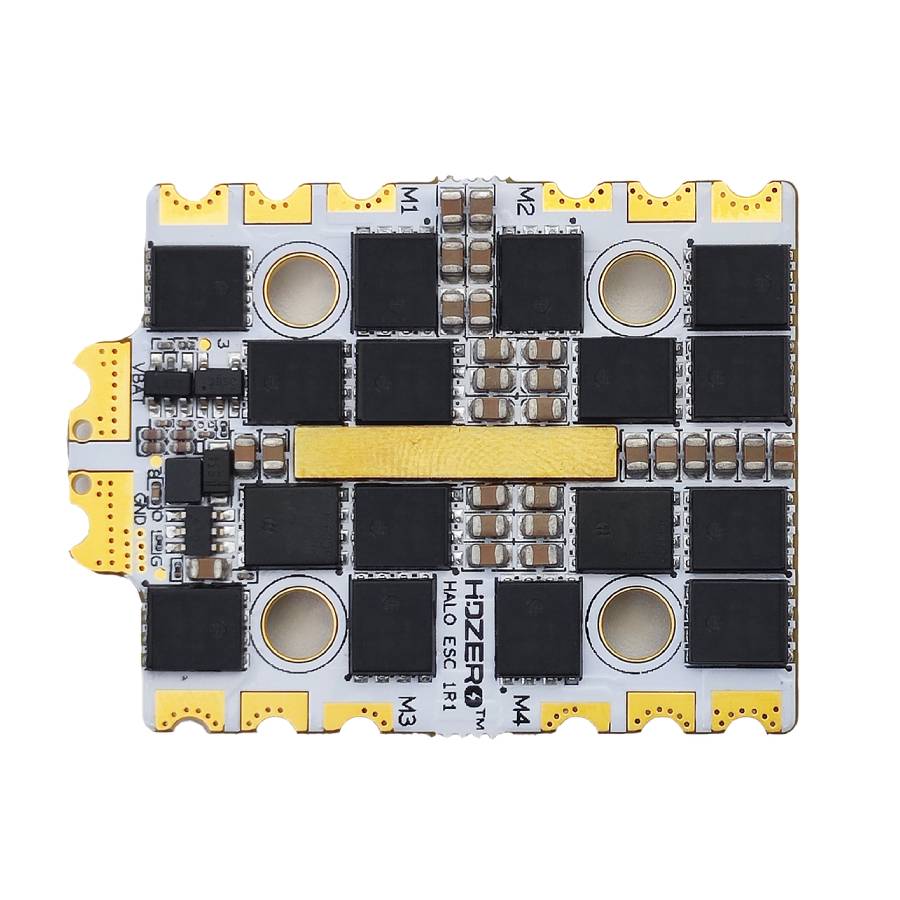

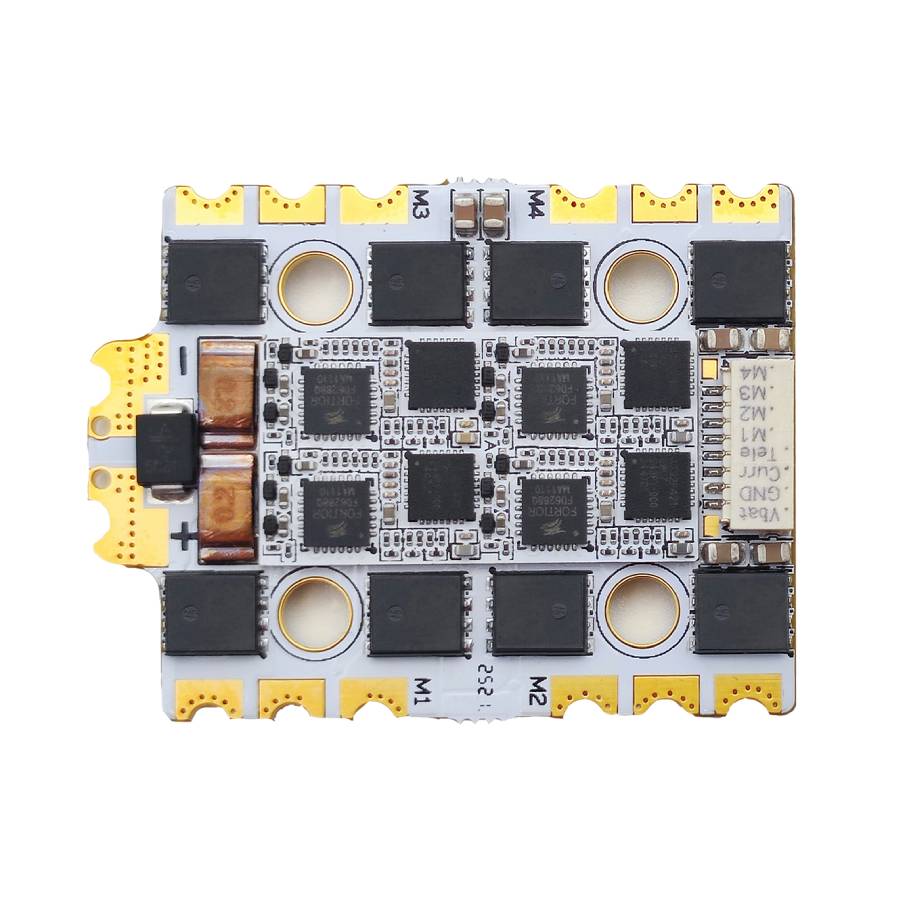

At the heart of the Halo ESC is a split-board architecture, separating the control and power stages for improved thermal performance and crash resilience. An integrated copper bar and 3oz copper across 8 PCB layers ensure rapid current flow and superior heat dissipation. Especially optimised to sharpen burst throttle response and minimise voltage drop during aggressive manoeuvres.
With continuous 70A output per motor channel (for up to 30 seconds) and 100A burst capability, the Halo ESC powers through demanding flights while protecting critical electronics with clean power delivery. Voltage spikes are isolated from the MCU and drivers. This vital protection helps prevent MCU brownouts or lockups—common culprits behind burnt motors, failed MOSFETs, and critical flight failures.
Tested to the limits, this ESC was built to outlast others. Every detail, from the conformal coating that protects against moisture and dust to the dual-sided solder pads for flexible builds, reflects HDZero's commitment to durability and field reliability.
Available in BLHeli32 or AM32 firmware versions, the Halo ESC allows you to choose the experience that best suits your style.
**HobbyRC are the exclusive UK stockists for the HDZero product line https://www.hd-zero.com/dealers. HDZero won't provide support for grey imported products sold by other UK retailers. We are supporting HDZero in a range of ways to help the product succeed**
Features:
- 8-layer PCB with 3oz copper per layer for superior thermal and current handling
- 24 MOSFETS (6 per motor)
- Continuous 70A per motor/100A burst (3 seconds)
- Clean power delivery minimises voltage spikes and reduces failure risks
- Supports 3S-8S batteries (9V-40V input)
- Telemetry support
- Conformal coating
- Dual-sided solder pads for flexible installation
Specifications:
- Model: HDZero Halo 4in1 70A ESC
- CPU: AT32F421 (120MHz)
- Firmware options: BLHeli 32.10/AM32 2.18
- Target: HDZ_ESC_1R0_F421
- Input signal: Dshot 150/300/600/1200, MultiShot, OneShot
- Output Voltage: VBAT (to power the FC)
- Max Current: Over 70Ax4 (Continuous) / 100Ax4 (Burst)
- Current Sensor: Scale = 400, offset = 0
- Dimensions: 33x43mm
- Mounting Pattern: 20x20mm, Φ4mm for 3mm Rubber Grommets
- Weight: 13.4g
Available Versions (See below for purchase options):
- HDZero Halo 4in1 70A ESC AM32 Version
- HDZero Halo 4in1 70A ESC BLHeli32 Version
Included:
- 1x HDZero Halo 4in1 70A ESC
- Accessories
** HDZero Warranty Terms: DOA applications will only be considered within the first 7 days after purchase. To qualify there must be no signs of physical damage to the product and the fault MUST go through fault finding with HDZero support, you will be required to ship the DOA board back to us. IF they conclude its DOA you will be offered a replacement. IF they conclude it's not DOA, then in most circumstances you will be offered a 50% discount on a new unit. NO further warranty is offered on these products, please purchase only if you agree to the above terms as set by the manufacturer. **
