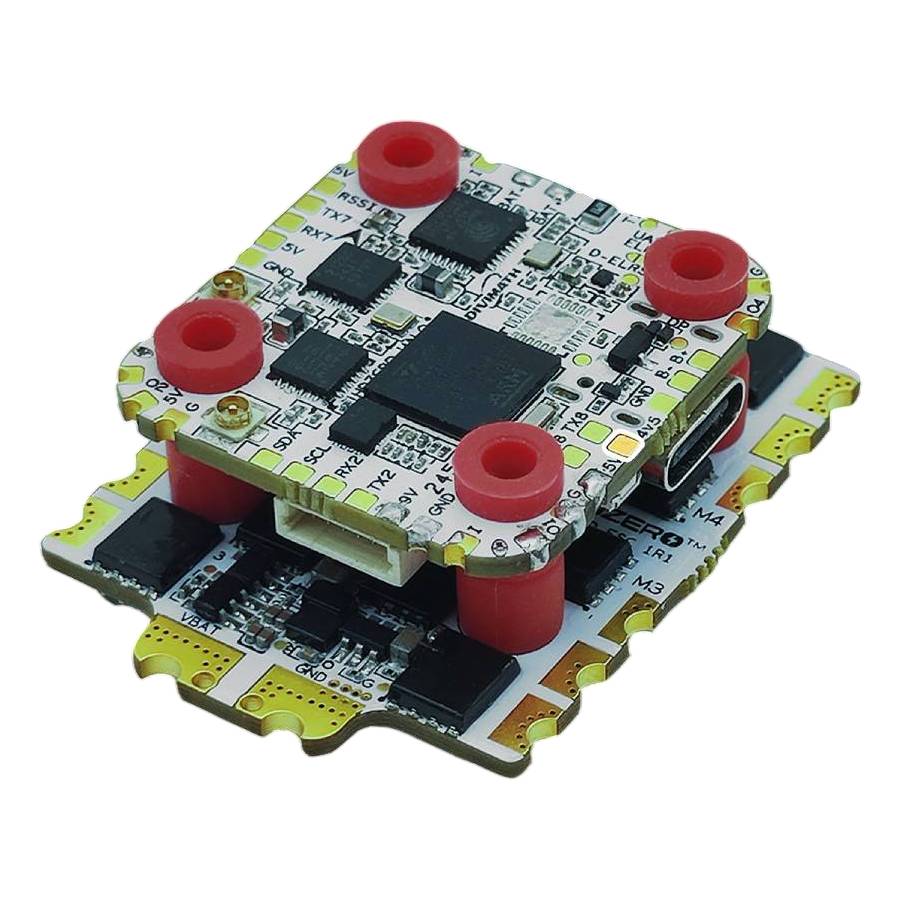

Overview:
The HDZero Halo Stack combines the Halo Flight Controller and Halo 4-in-1 70A ESC into a race-ready powertrain. Designed for power, reliability, and ease of assembly, this stack is the ultimate solution for competitive racing and freestyle pilots.
With its clean layout, minimal wiring, and integrated components, the HDZero Halo Stack is the easiest way to build a professional-grade racing drone without sacrificing performance, reliability, or serviceability.
At its core is the Halo 4-in-1 70A ESC, built for extreme durability and responsive throttle. A split-board design separates control and power stages, improving thermal performance and crash resilience. With 24 MOSFETs across an 8-layer PCB using 3oz of copper per layer and a rear-mounted copper bar, the Halo ESC delivers exceptional burst throttle response with minimal voltage drop. Rated for 70A continuous per motor and 100A bursts, the ESC supplies clean, stable power while protecting sensitive electronics from voltage spikes. A conformal coating adds moisture, dust, and corrosion resistance.
The Halo Flight Controller simplifies your build while delivering professional-grade control. Powered by an H7 processor, it integrates a Gemini true diversity ELRS receiver, using dual independent receivers for rock-solid control link stability. A TXCO (temperature-compensated crystal oscillator) maintains consistent ELRS performance even in extreme temperatures, essential for race conditions.
The integrated ELRS RX not only simplifies quad assembly but also provides a cost-effective solution. This combination represents significant savings compared to purchasing separate ELRS receivers and flight controllers.
It is specifically designed to allow the HDZero Race v3 VTX to stack on top of it in a low-profile manner, resulting in a durable and compact stack height. This optimisation ensures a secure, space-efficient build while maintaining excellent performance.

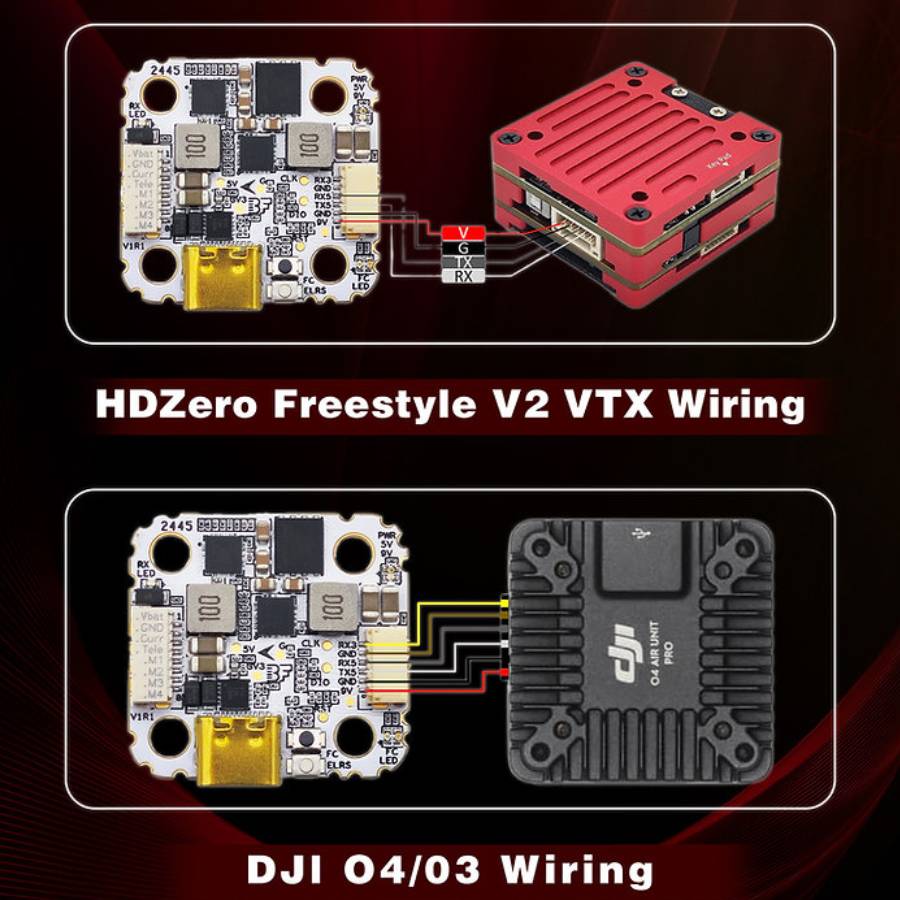

The Halo FC requires no soldering for VTX, receiver, or ESC connections. Everything plugs directly into dedicated sockets using included cables, making assembly and field repairs fast and frustration-free.
The switchable 9V BEC powers your HDZero VTX, with remote control over power via Betaflight to simplify pit stops and extend VTX lifespan. A separate 5V/4A BEC is capable of powering an entire competition-grade LED setup without the need for external regulators.
Halo Flight Controller
- Plug-and-play HDZero race build – no soldering required for RX, VTX, or ESC connections
- Integrated Gemini true diversity ELRS receiver for superior control link stability
- TXCO-enhanced ELRS performance in high-heat race environments
- H7 processor for fast, responsive control
- Dedicated switchable 9V/3A BEC to power HDZero VTX, controlled via Betaflight
- Powerful 5V/4A BEC supports full competition LED kits
- Optimised for low-profile stacking with HDZero VTX

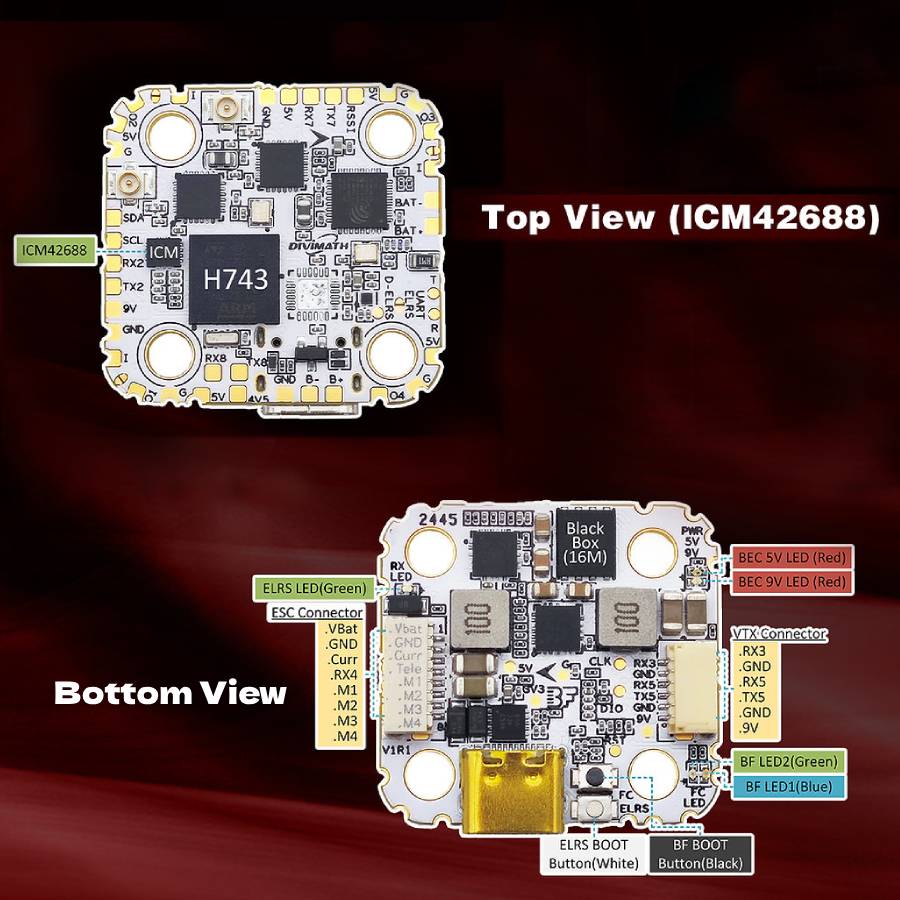

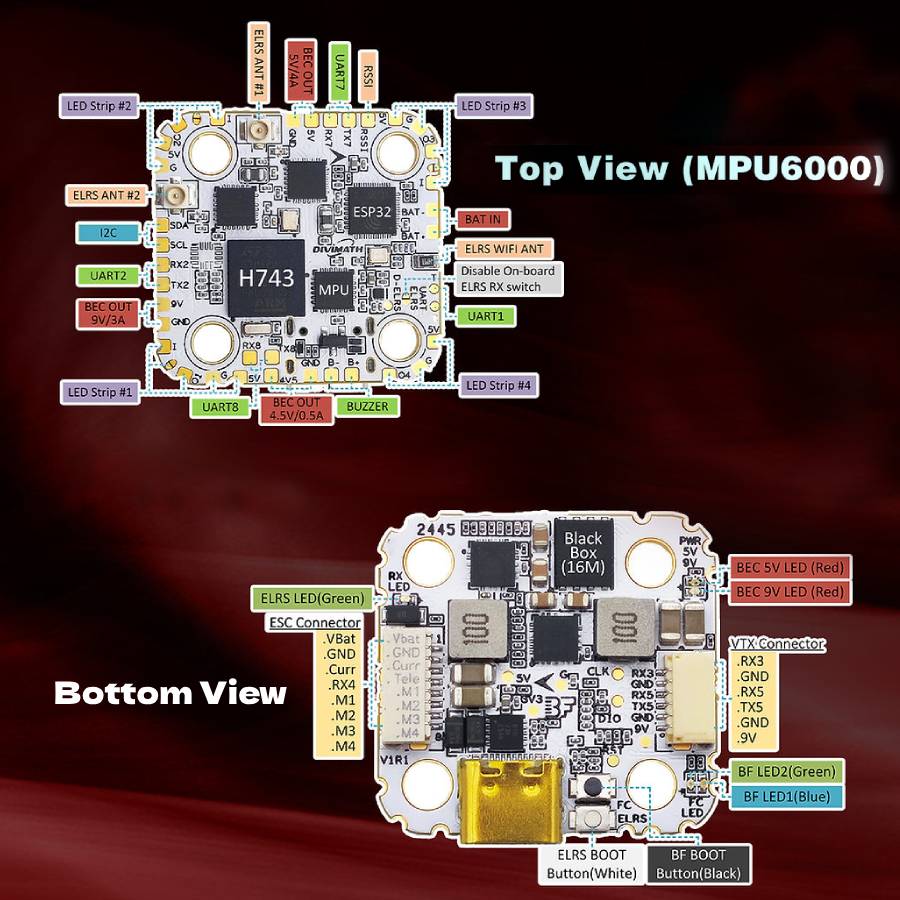

- Optional MPU6000 or ICM42688 gyros
- Betaflight firmware (HDZERO_HALO target)
Halo 4in1 70A ESC
- Split-board architecture with copper bus bar for optimised burst throttle response
- 8-layer PCB with 3oz copper per layer and 24 MOSFETs
- Continuous 70A per motor / 100A burst (3 seconds)
- Exceptionally clean power delivery protects the flight controller from voltage spikes.
- Conformal coating for moisture, dust, and corrosion protection
- Dual-sided motor solder pads for flexible builds
- Telemetry support
- Supports 3S to 8S batteries (9V–40V input)
Available Versions (See below for purchase options):
- HDZero Halo Stack ICM+AM32
- HDZero Halo Stack MPU+AM32
Included:
- 1x HDZero Halo Stack
- Accessories
