Overview:
The HDZero Whoop V2 Bundle gives your micro or whoop-style drone a serious digital-HD upgrade with a compact, high-performance video transmitter and a sensitive MIPI CMOS camera. It combines a robust VTX board with a Nano V3 camera and all necessary mounting hardware, making it ideal for lightweight builds (typically 80mm frames) that prioritise low latency, clarity and crash durability. With selectable RF output power up to 200mW, the bundle supports both short-range indoor flying and longer-range HD-zero link performance.
Features:
- 25mW/200mW selectable output for flexibility between low-power and extended-range flying.
- Compact 31×31mm VTX footprint with 25.5×25.5mm (M2) mounting pattern, suitable for tight micro-quads.
- Thicker PCB construction compared to earlier Whoop-lite versions, offering improved durability in crashes.
- Pre-soldered wire harness for simplified installation in small frames.
- Secure brass antenna retention bar ensures the U.FL connector stays in place under vibration or impact.
- Includes rubber grommets (M3 to M2) to support soft mounting and reduce VTX mechanical stress.
- MSP OSD / SmartAudio support enables in-flight channel/power adjustment and on-screen telemetry through compatible flight controllers.
- MIPI-compatible camera included, allowing for clean digital video transmission with low latency.
Specification:
- Model: HDZero Whoop V2 Bundle (HDZ3104)
- VTX size: 31×31mm, inner 29×29mm
- Mounting pattern: 25.5×25.5mm (M2)
- VTX weight: ~5.4g (5.1g without wiring)
- Power input: 3.0–12.6V (1S–3S)
- Power consumption: ~5–6W
- Supported camera resolutions: 720p@60fps, 540p@90fps, 1080p@30fps
- RF frequency range: 5.725–5.850GHz
- Recommended use: 80mm whoops/4″ micro drones
Nano V3 Camera
- Size:14x16x14mm
- Weight: 2.2g
- Sensor: 0.5 inch, up to 10650 mV/Lux-sec, Ultra-high sensitive CMOS sensor
- FOV: FOV D:155° H:126° V:94°

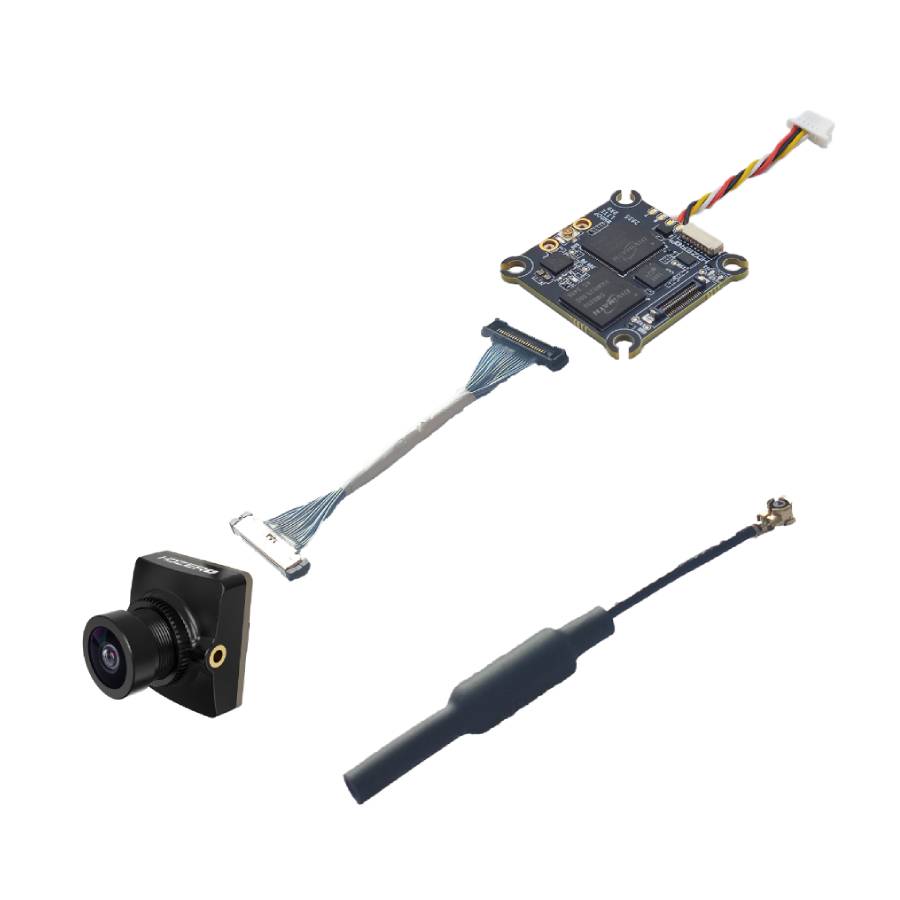

Included:
- 1x Whoop V2 VTX
- 1x Nano V3 camera
- 1x 40 mm MIPI cable
- 1x Dipole antenna
- 4x M3-to-M2 rubber grommets
- 3x U.FL antenna screw sets
- 1x Brass antenna bar
