Hee Wing T1-S Ranger FPV Plane (PNP)

Overview:
The Hee Wing T1-S is a compact twin-motor FPV fixed-wing plane designed for efficient cruising and FPV flight. This is the conventional fixed-wing version of the T1-S and does not feature the VTOL system (see Related Products).

The 790mm wingspan and revised fuselage provide more space for the battery and FPV electronics than the previous version. Twin 1406 3150KV brushless motors provide the propulsion, with 3830 propellers and 20A ESCs supplied pre-installed.

The T1-S uses a quick-release design for the wings and tail section, with a carbon fibre rod providing the main wing support and a quick connector handling the wing wiring. The aileron linkages are now positioned along the upper surface of the wings, while the EPP airframe provides a practical balance of low weight and durability.

Supplied as a PNP model, the T1-S includes the motors, ESCs, servos and power distribution hardware. To complete the aircraft, you'll need your chosen receiver, flight controller, FPV equipment and battery.

Features:
- Twin-motor fixed-wing configuration optimised for conventional flight.

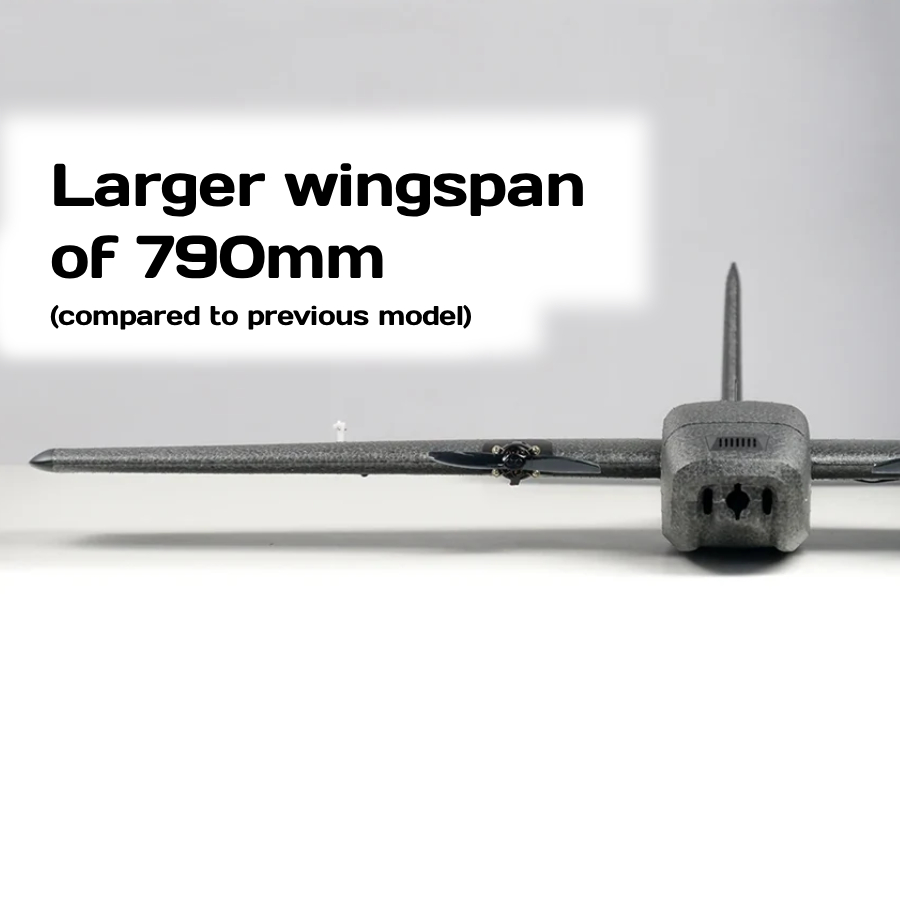

- Increased 790mm wingspan compared with the original T1 Ranger for optimised gliding ability.

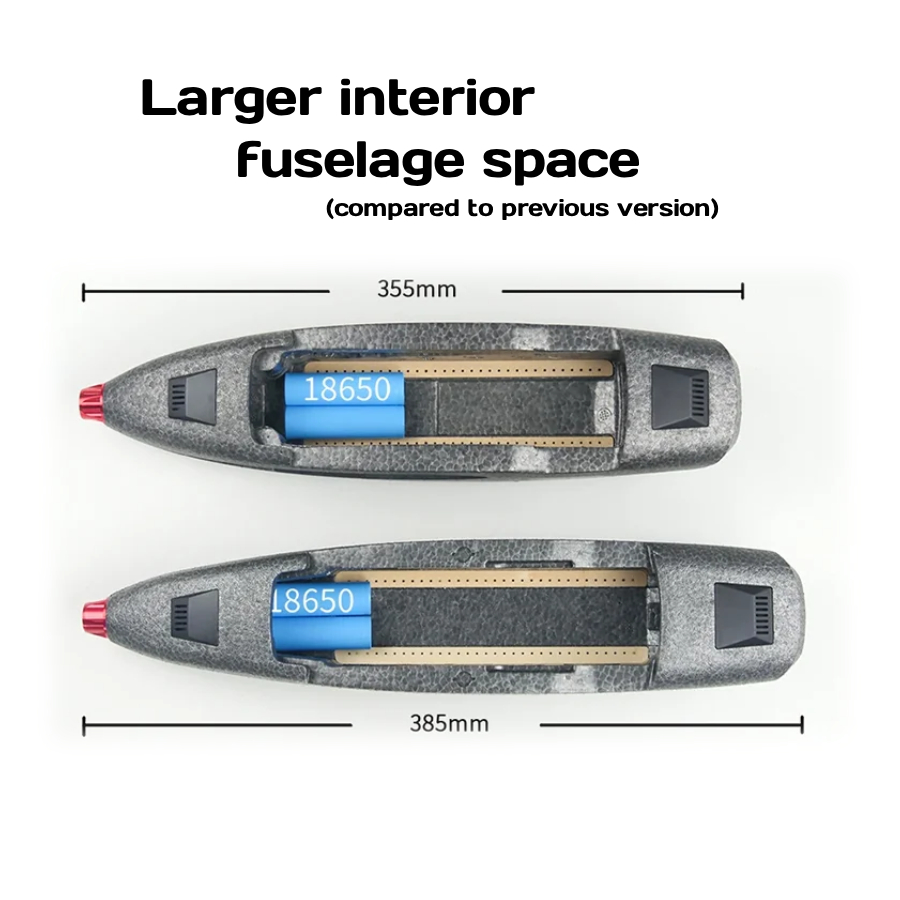

- Enlarged fuselage provides additional space for the battery and onboard electronics.

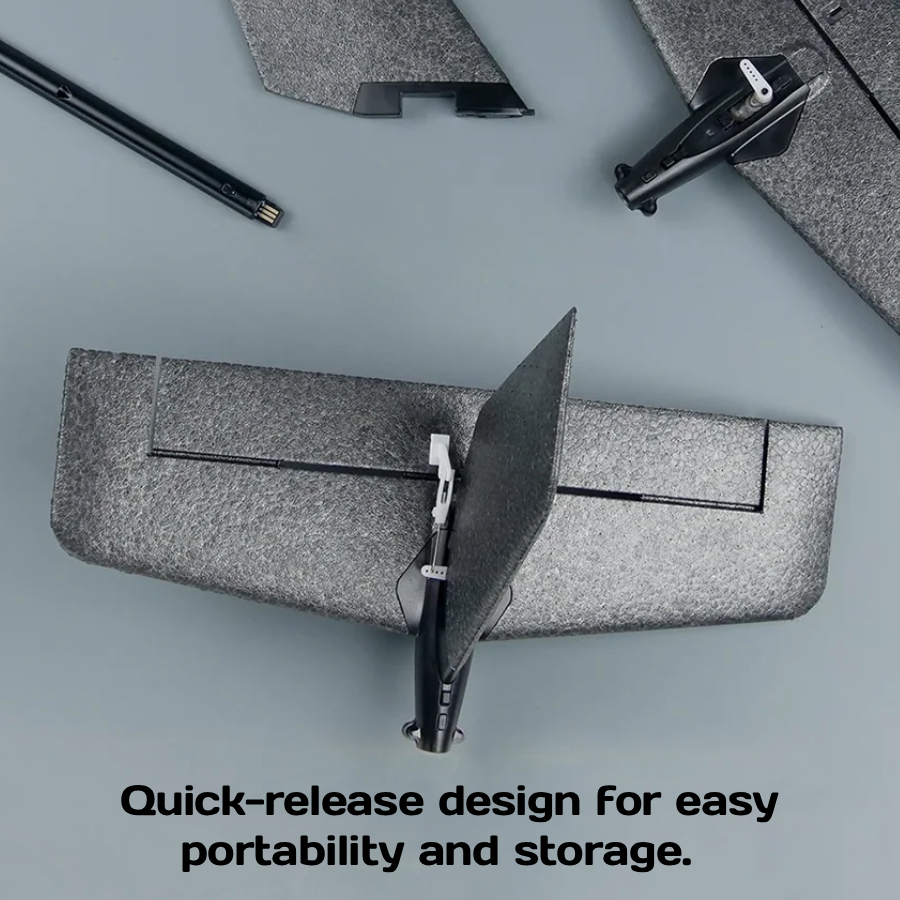

- Quick-release main wings and tail section simplify assembly and transport.
- Simplified wing wiring harness connects through the quick-release connector for speedy assembly.
- Carbon fibre wing support rod provides a rigid main-wing mounting structure.

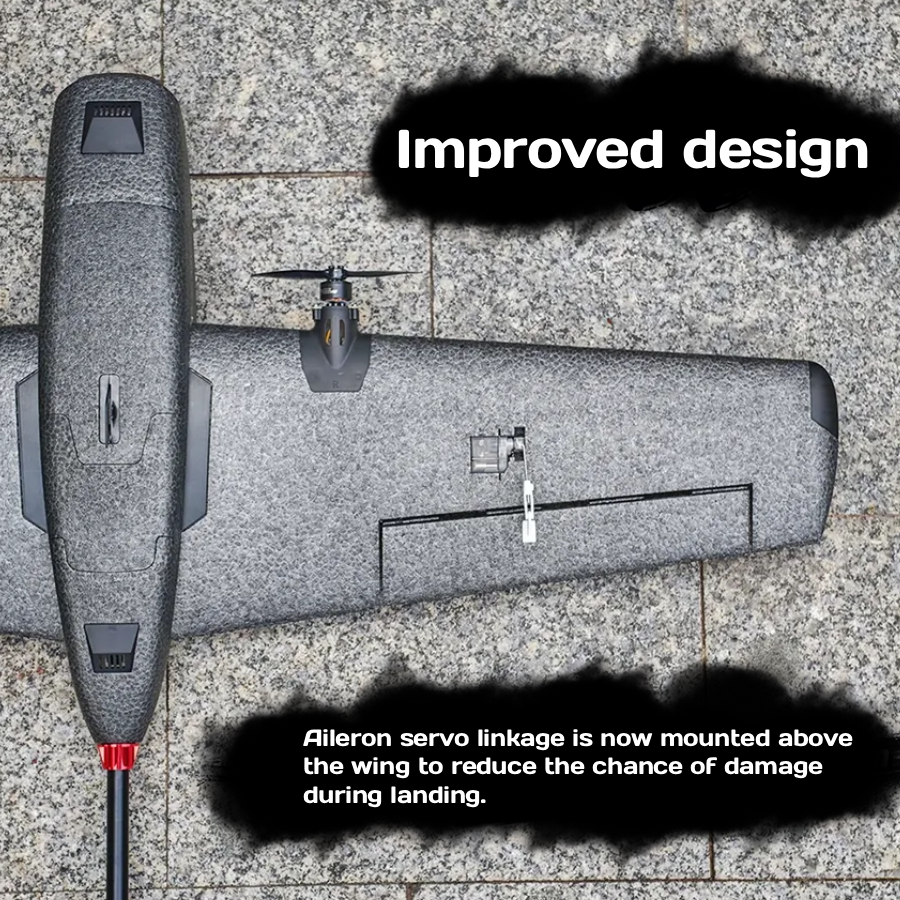

- Upper-mounted aileron linkages keep the servo arms away from the underside of the aircraft to avoid landing damage.
- PNP format allows you to choose your own receiver and FPV system.

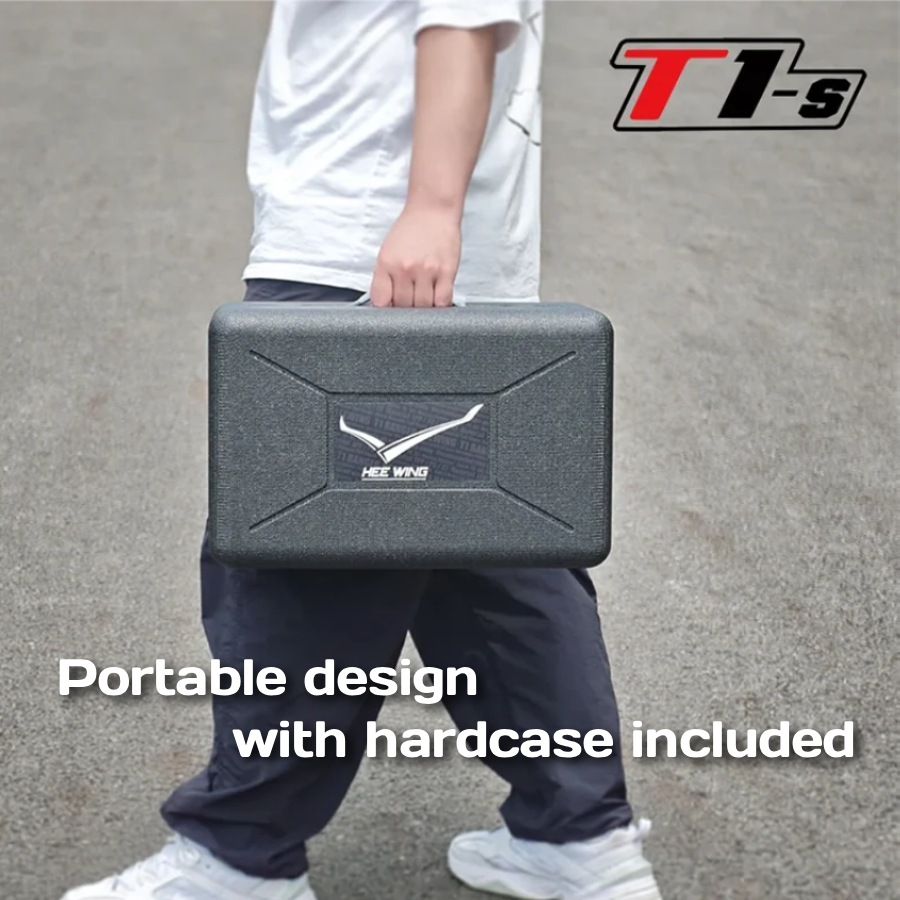

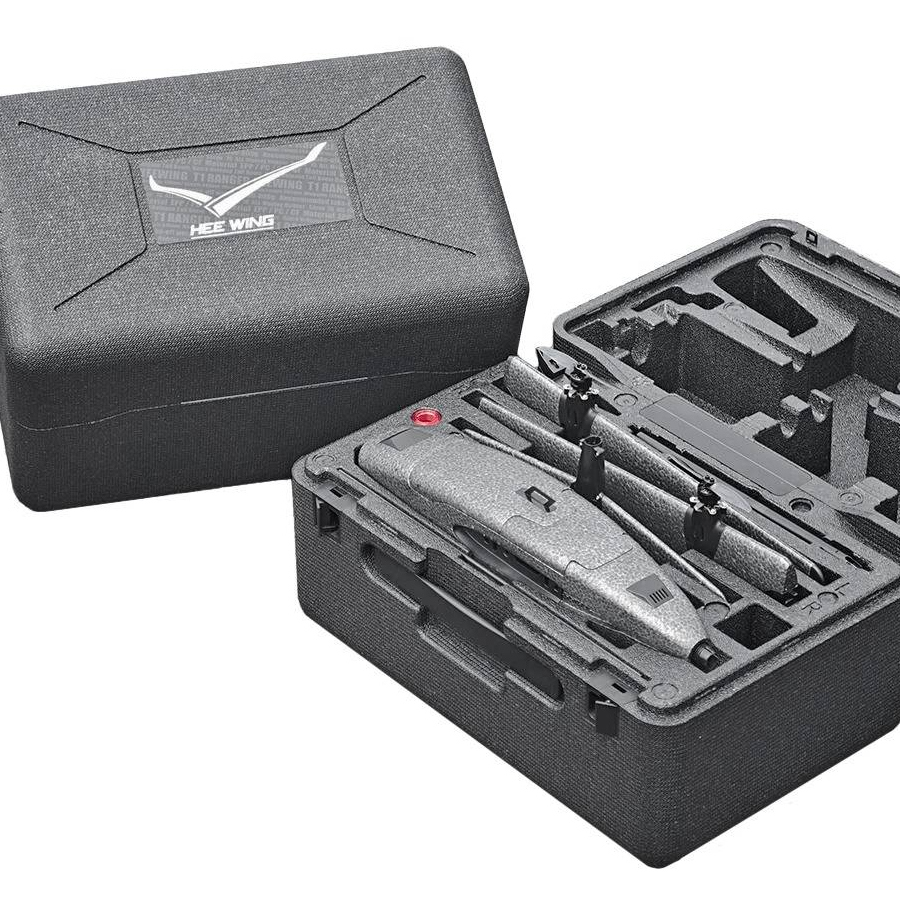

- Supplied with a sturdy foam transport case

Specification:
- Model: Hee Wing T1-S Ranger Fixed Wing FPV Plane
- Fuselage material: EPP foam

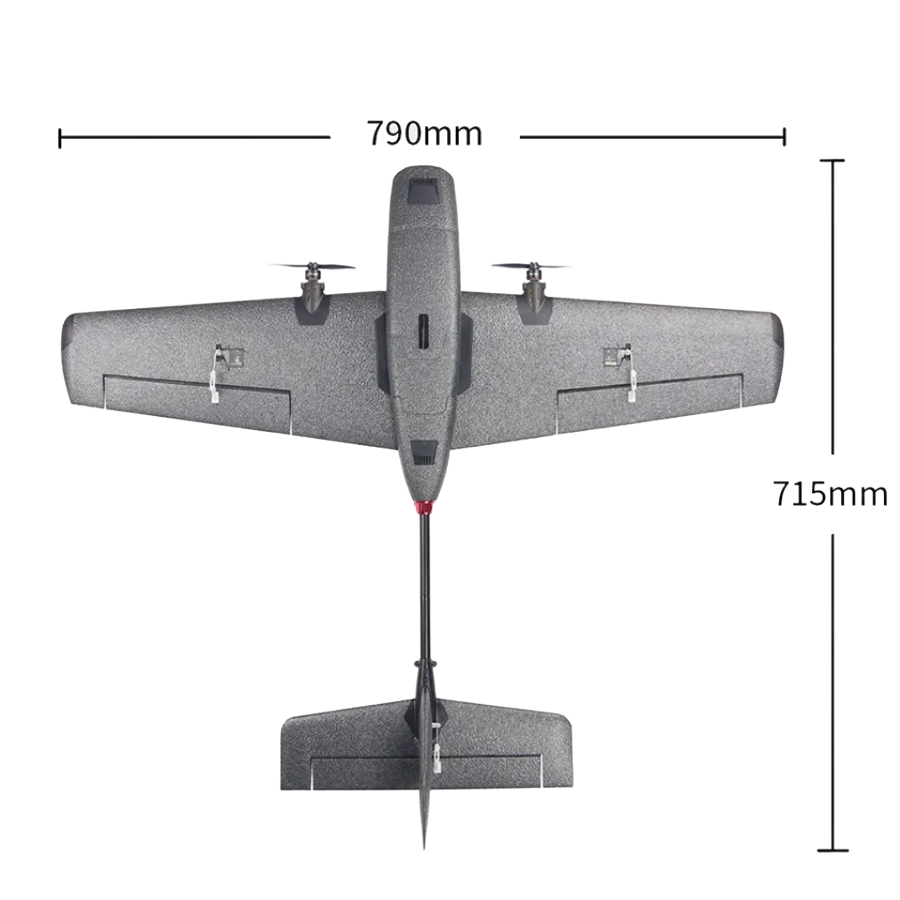

- Wingspan: 790mm
- Overall length: 715mm
- Fuselage length: 385mm
- Take-off weight: 600-950g
- Motors: 2× 1406 3150KV brushless
- ESCs: 2× HEEWING 20A BLS, 2-4S
- Servos: 4.3g micro
- Propellers: 3830
- Power distribution: 5V/3A output
- Recommended battery: 4S LiPo
- Receiver: Not included
- Flight controller/stabiliser: Not included
- FPV camera: Not included
- Video transmitter: Not included
- Transmitter: Not included
- Battery: Not included
- Version: PNP

Included:
- 1x Hee Wing T1-S Ranger Fixed Wing FPV Plane (PNP Version)
