Hee Wing T1-S Ranger VTOL FPV Plane
The Hee Wing T1-S is a compact VTOL plane designed to be used for FPV exploration, which is available in two versions.
Overview:

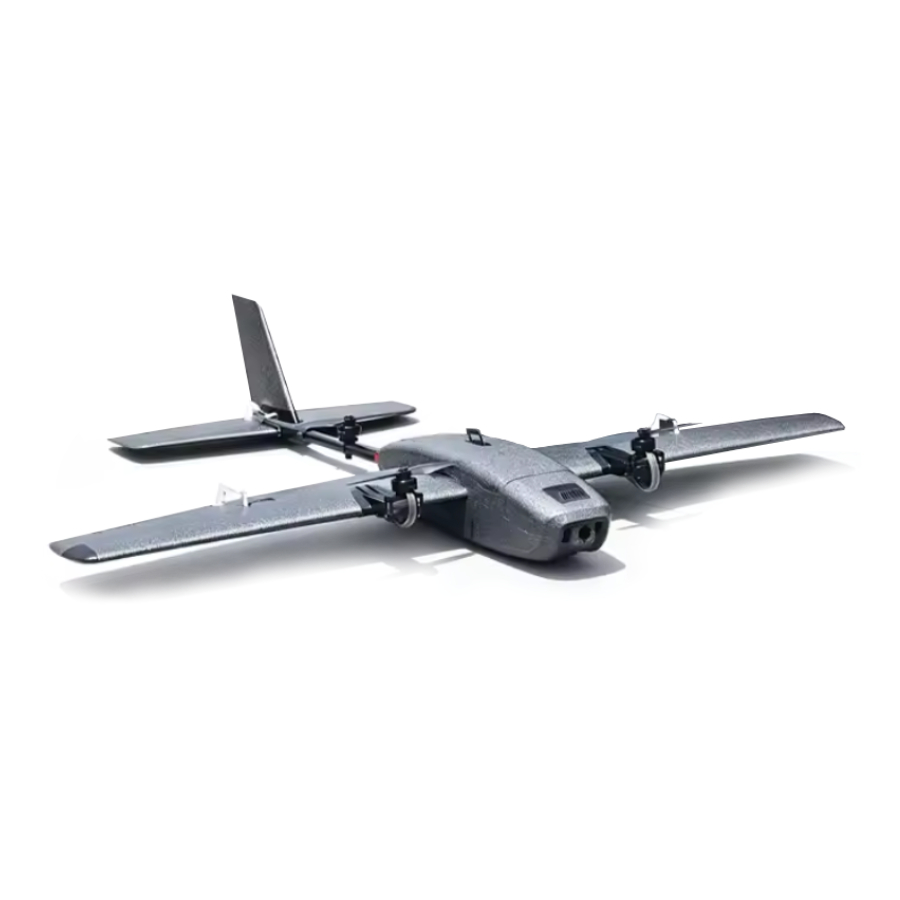

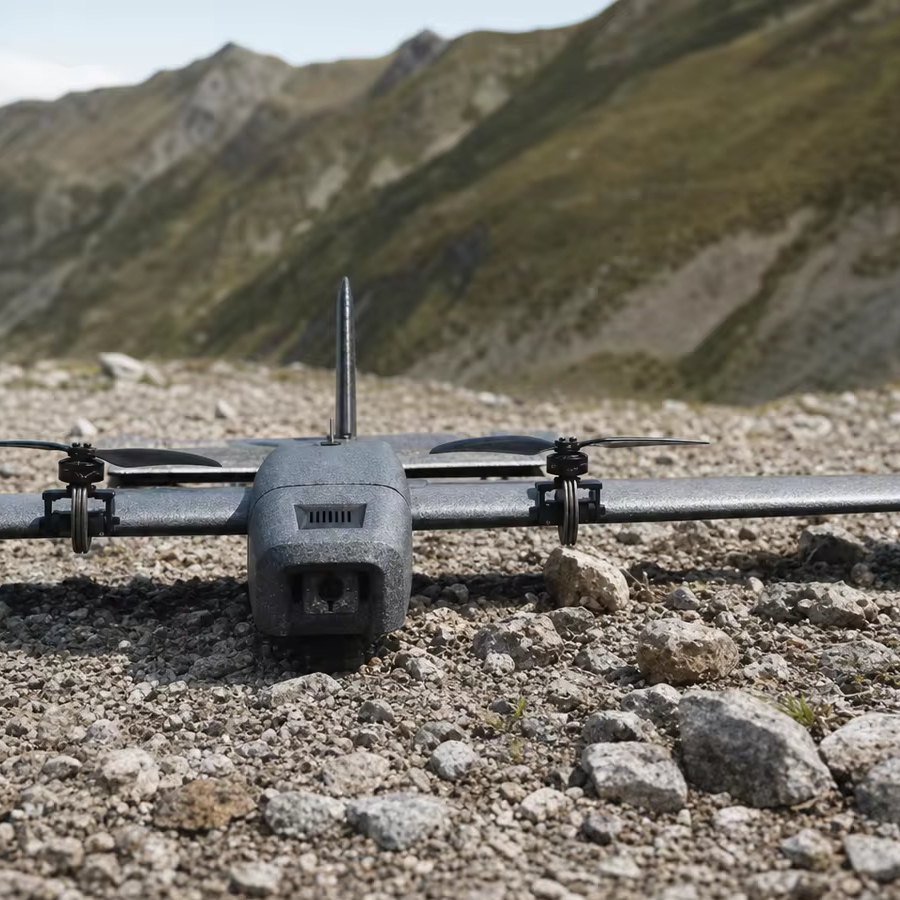

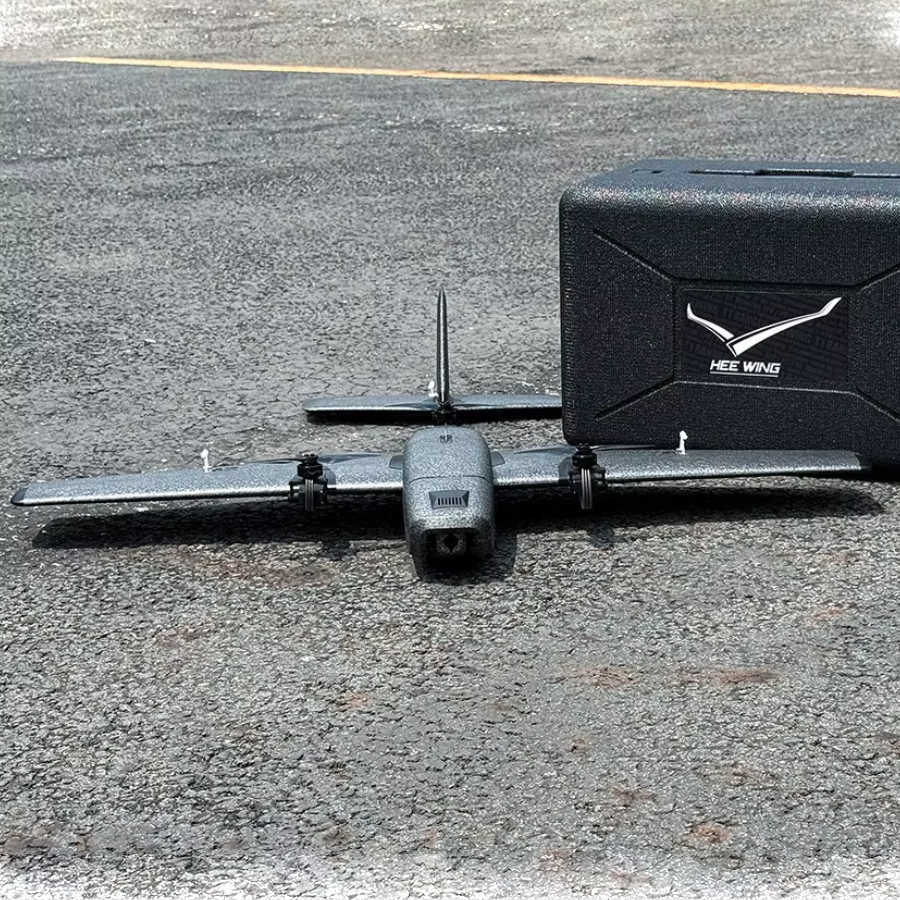

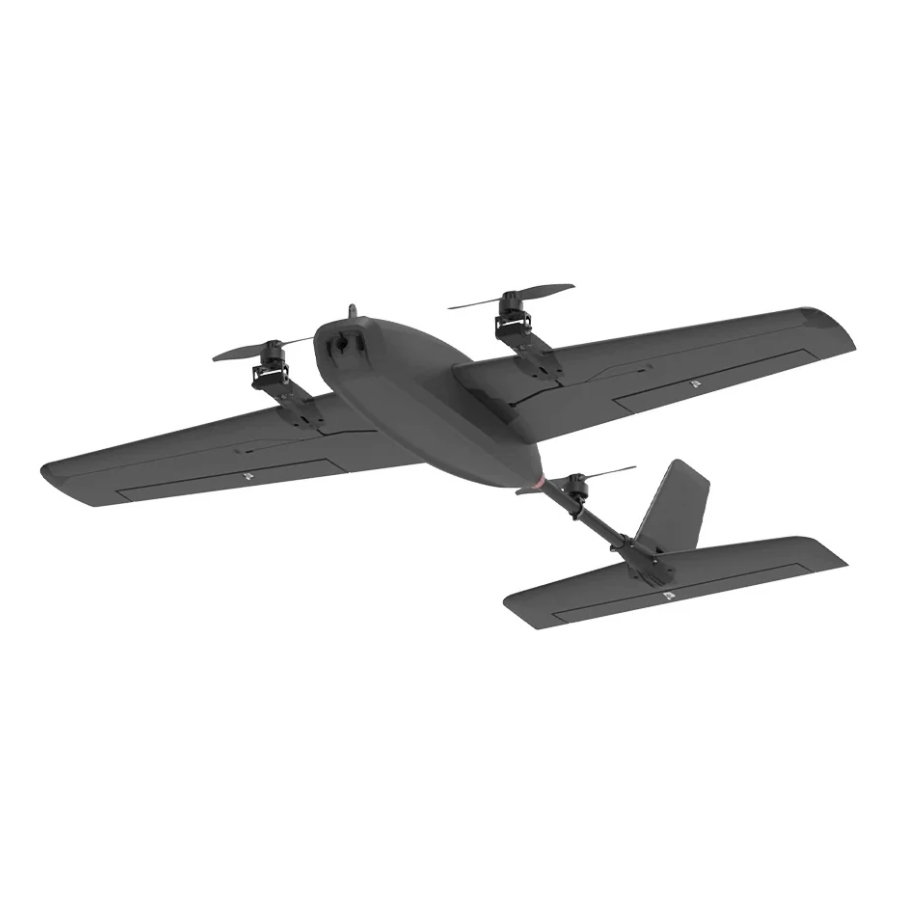

The Hee Wing T1-S Ranger VTOL is a compact FPV aircraft combining vertical take-off and landing with conventional fixed-wing flight. Its three-motor layout allows it to take off and land vertically, then transition to forward flight for efficient cruising. This makes it suitable for FPV pilots who need VTOL capability without a runway.
The 790mm wingspan airframe is constructed from EPP foam and features a quick-release design for easier assembly and transport. The enlarged fuselage provides room for the battery and FPV electronics, while the upper-mounted aileron linkages keep them away from the underside of the wings, avoiding damage from heavy landings.
Two versions are available. The PNP version includes the propulsion system and servos, allowing you to choose your own flight controller and GPS setup. The PNP+FC version adds the Hee Wing FX-405 flight controller and GPS module, supplied with ArduPilot firmware and factory VTOL parameters preloaded.
Features:
- Quick-release assembly: Detachable wings and tail simplify transport and prep for flight.
- Room for onboard electronics: Enlarged fuselage provides space for the battery, flight-control hardware and FPV system.
- Reinforced airframe, with sturdy EPP foam construction
- FPV-ready layout: Provides mounting space for a compatible FPV camera and video transmitter.

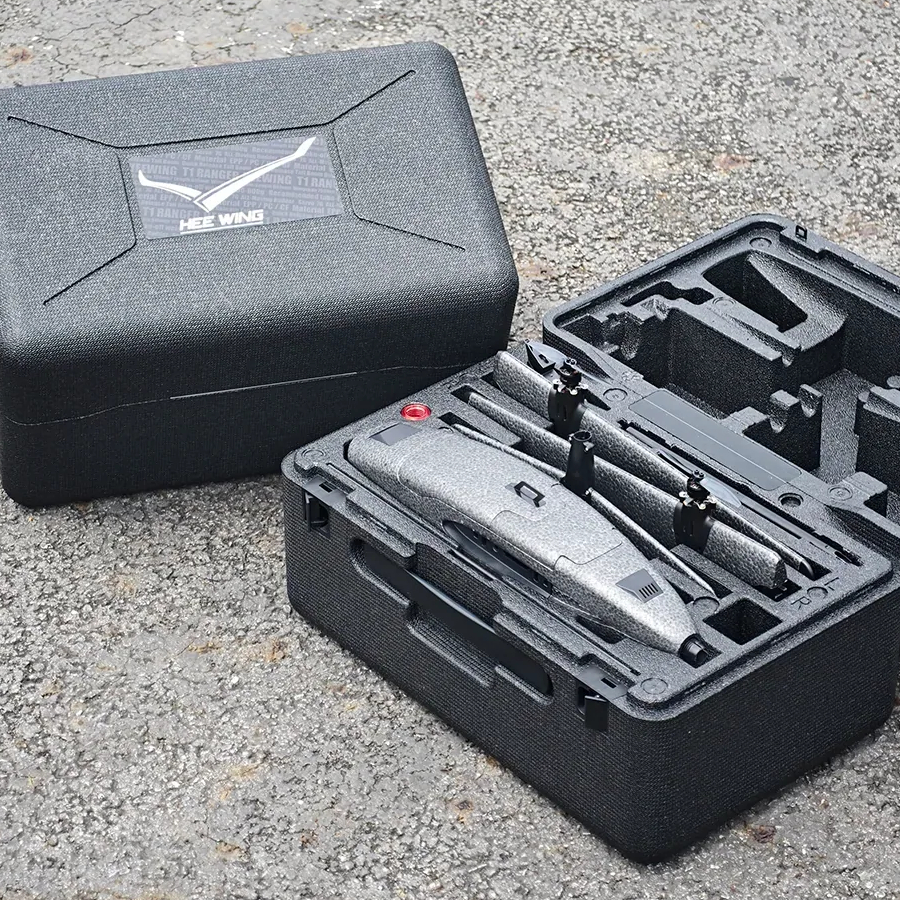

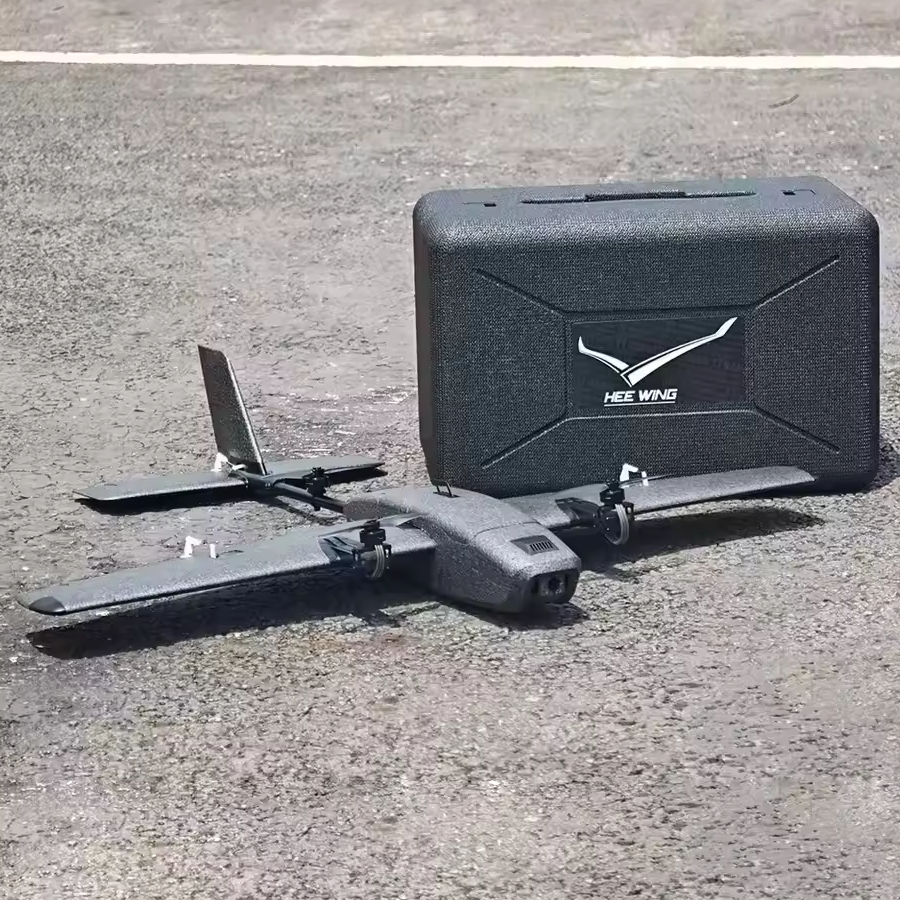

- Transport case: Supplied with a foam hard-case for storing and transporting the aircraft.
Specification:
- Model: Hee Wing T1-S Ranger VTOL
- Aircraft type: VTOL FPV fixed-wing
- Fuselage Material: EPP foam
- Wingspan: 790mm
- Length: 715mm
- Take-off weight: Approximately 600-950g, depending on the installed equipment
- Motors: 3× 1806 brushless motors
- ESCs: 3× Hee Wing 20A BLS
- Servos: 4.3g micro servos
- Tilt servos: V39
- Propellers: 5126
- Recommended battery (not included): 4S LiPo, 1300-5000mAh
- Receiver: Not included
- FPV camera and VTX: Not included
Versions available:
- PNP version: No flight controller or GPS included.
- PNP+FC version: Includes the FX-405 flight controller and BE-250Q GPS & compass, with ArduPilot firmware and VTOL parameters preloaded.
Included:
- 1x Heewing T1-S Ranger VTOL Plane
