Overview:
The Hobbywing Skywalker V2 High Power range is designed for demanding fixed-wing aircraft that require reliable, high-current motor control. Available in 120A 8S, 130A HV 14S OPTO and 160A HV 14S OPTO variants, these ESCs are ideal for large sport, scale, aerobatic and FPV aircraft where dependable power delivery is essential. Each model benefits from Hobbywing's proven V2 platform, delivering smooth throttle response, high efficiency and comprehensive protection functions.
The Skywalker 120A 8S V2 is the ideal choice for high-performance aircraft using up to 8S LiPo batteries. It features a powerful adjustable switch-mode BEC capable of supplying modern high-voltage servos, removing the need for a separate receiver battery in many installations.
For larger aircraft running 6-14S power systems, the Skywalker 130A HV 14S OPTO V2 and Skywalker 160A HV 14S OPTO V2 are designed to handle significantly higher voltages. As OPTO ESCs they do not include an internal BEC, making them suitable for models already equipped with an independent receiver power supply or power distribution system. Both HV models are built for demanding applications where maximum reliability and high-current capability are required.
Features:

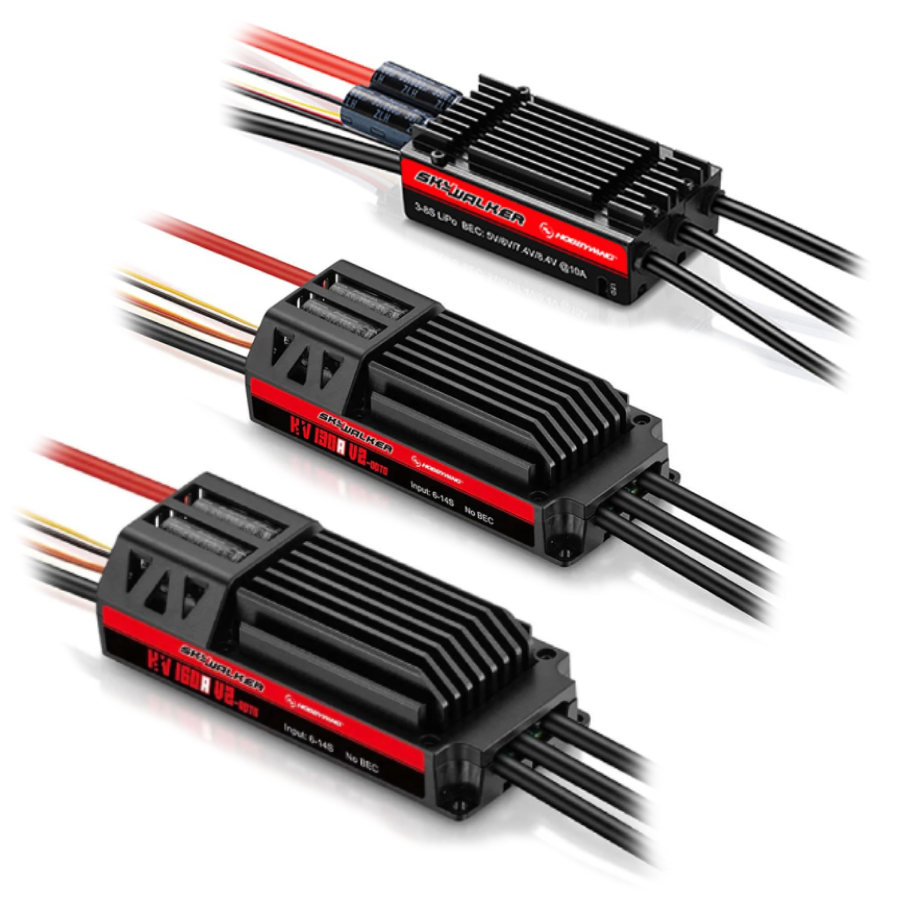

- Available in three high-power variants: 120A 8S, 130A HV 14S OPTO and 160A HV 14S OPTO.
- Designed specifically for brushless fixed-wing aircraft.
- Smooth, linear throttle response for precise motor control.
- High-efficiency design helps reduce operating temperatures.
- Adjustable brake function.
- Multiple programmable operating parameters.
- Programmable using a compatible Hobbywing LED Program Box or transmitter.
- Comprehensive protection functions including low-voltage cut-off, abnormal input voltage, ESC thermal protection and throttle signal loss protection.
- High-quality components for reliable operation under sustained loads.
- Factory configured for fixed-wing aircraft.
Specification:

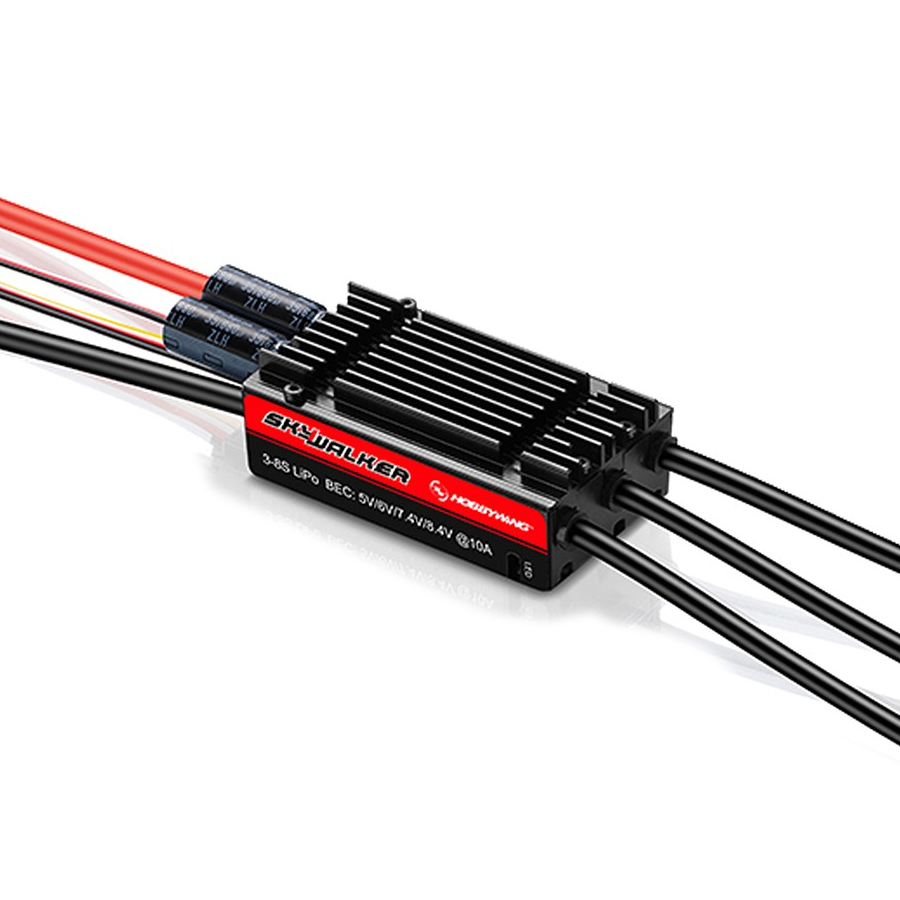

Skywalker 120A 8S V2:
- Continuous current: 120A
- Peak current: 150A
- Input voltage: 3-8S LiPo
- BEC type: Switch-mode
- Adjustable BEC output: 5V/6V/7.4V/8.4V
- Continuous BEC current: 10A
- Peak BEC current: 30A
- Input wire: 10AWG × 150mm
- Motor wires: 12AWG × 100mm
- Output connectors: 4.0mm female gold connectors
- Dimensions: 83×35×22mm
- Weight: 117g

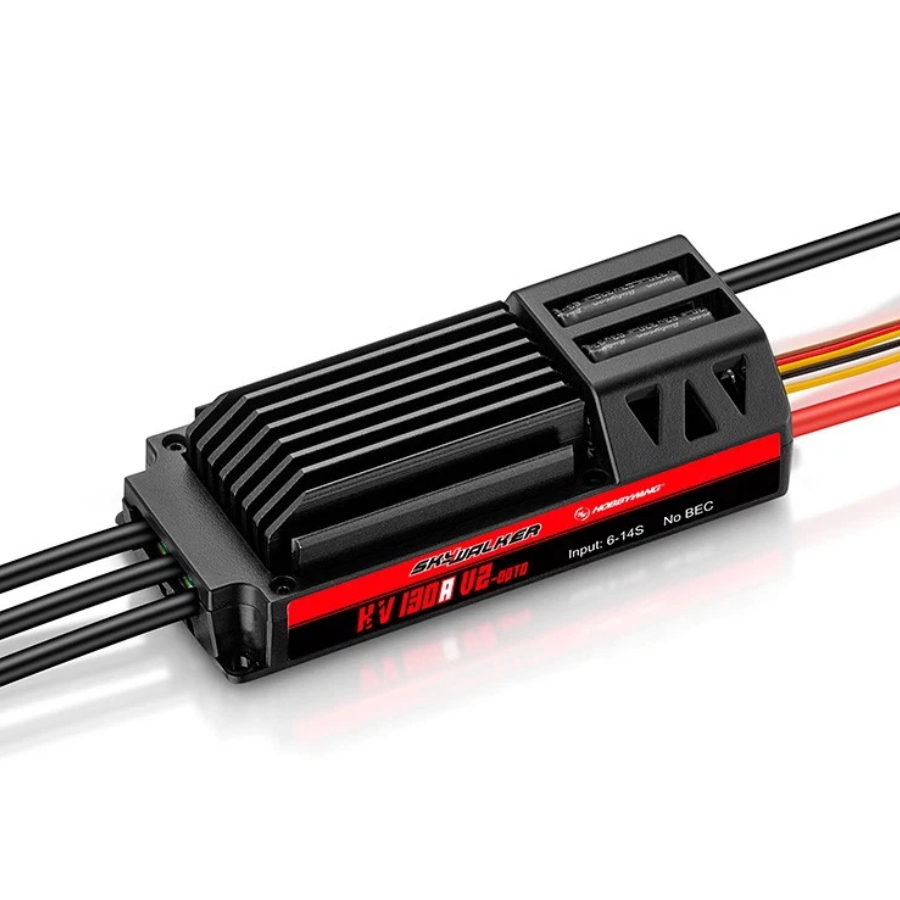

Skywalker 130A HV 14S OPTO V2:
- Continuous current: 130A
- Peak current: 160A
- Input voltage: 6-14S LiPo
- BEC: None (OPTO)
- Input wire: 10AWG × 300mm
- Motor wires: 10AWG × 150mm
- Output connectors: None
- Dimensions: 104×48×29mm
- Weight: 253.2g

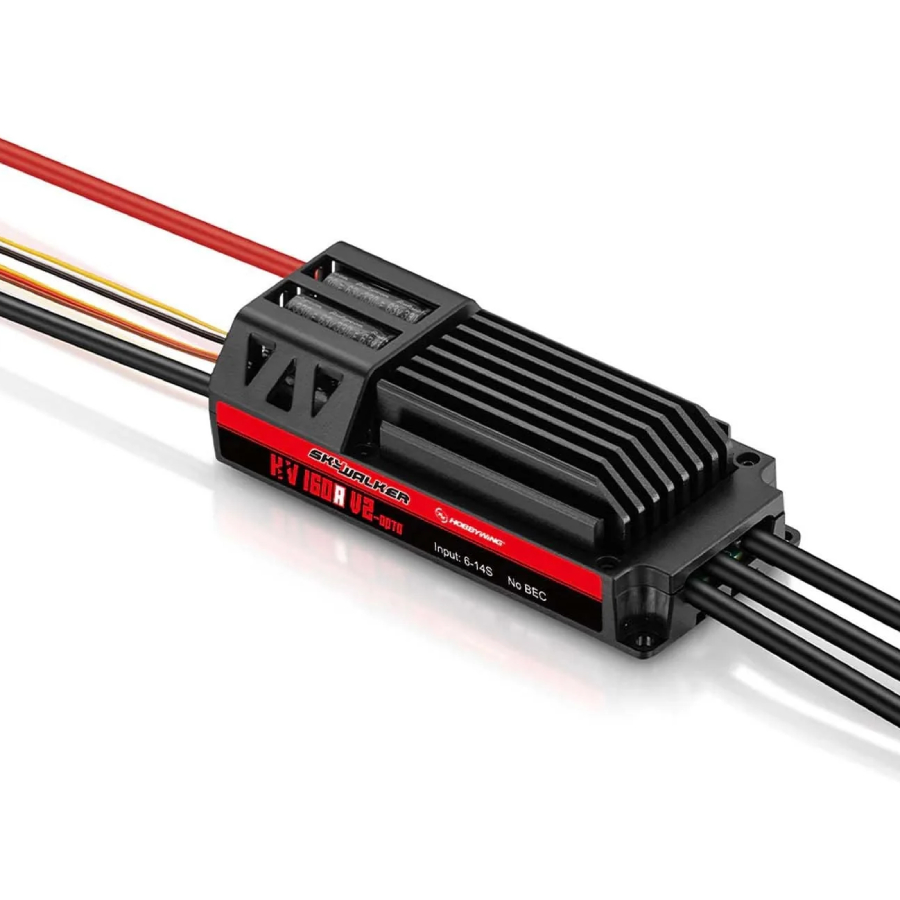

Skywalker 160A HV 14S OPTO V2:
- Continuous current: 160A
- Peak current: 200A
- Input voltage: 6-14S LiPo
- BEC: None (OPTO)
- Input wire: 8AWG × 300mm
- Motor wires: 10AWG × 150mm
- Output connectors: None
- Dimensions: 104×48×29mm
- Weight: 262.8g
Common Specifications:
- ESC type: Brushless fixed-wing
- Battery type: LiPo
- Programming methods: Transmitter or Hobbywing LED ESC Program Card
- Protection functions: Abnormal input voltage protection, Low-voltage cut-off, ESC thermal protection, Throttle signal loss protection
- Cooling: Aluminium heatsink with airflow-optimised design
Included:
- 1x Hobbywing Skywalker V2 ESC
- Accessories
