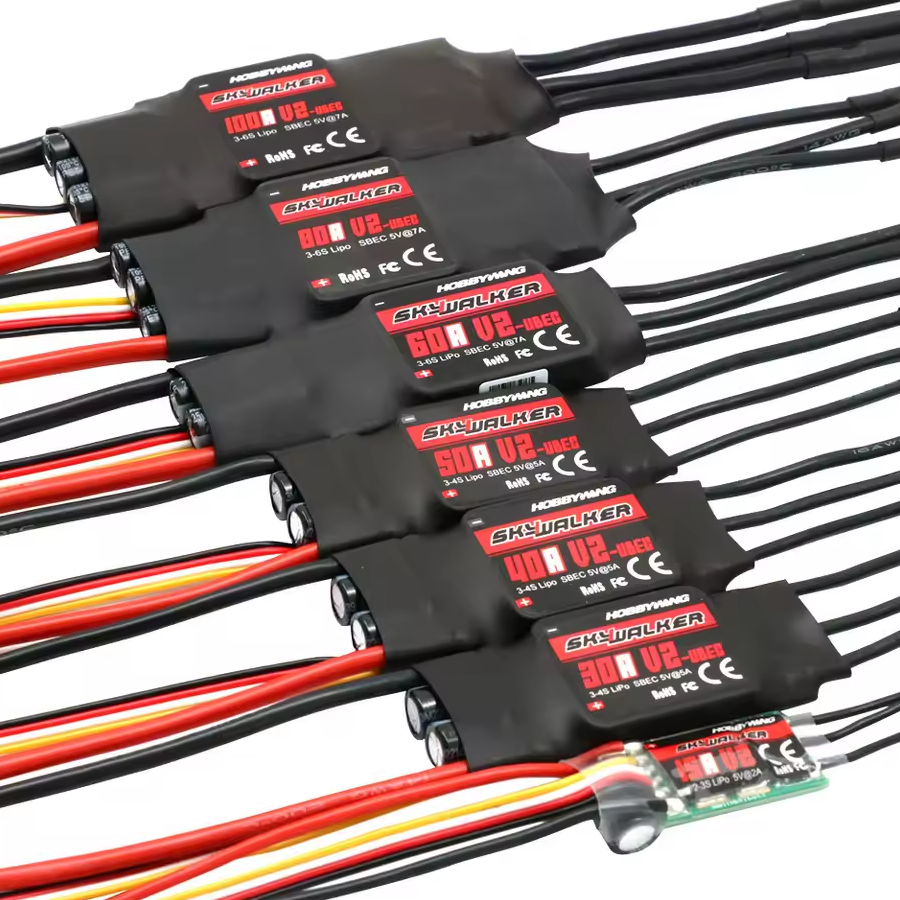

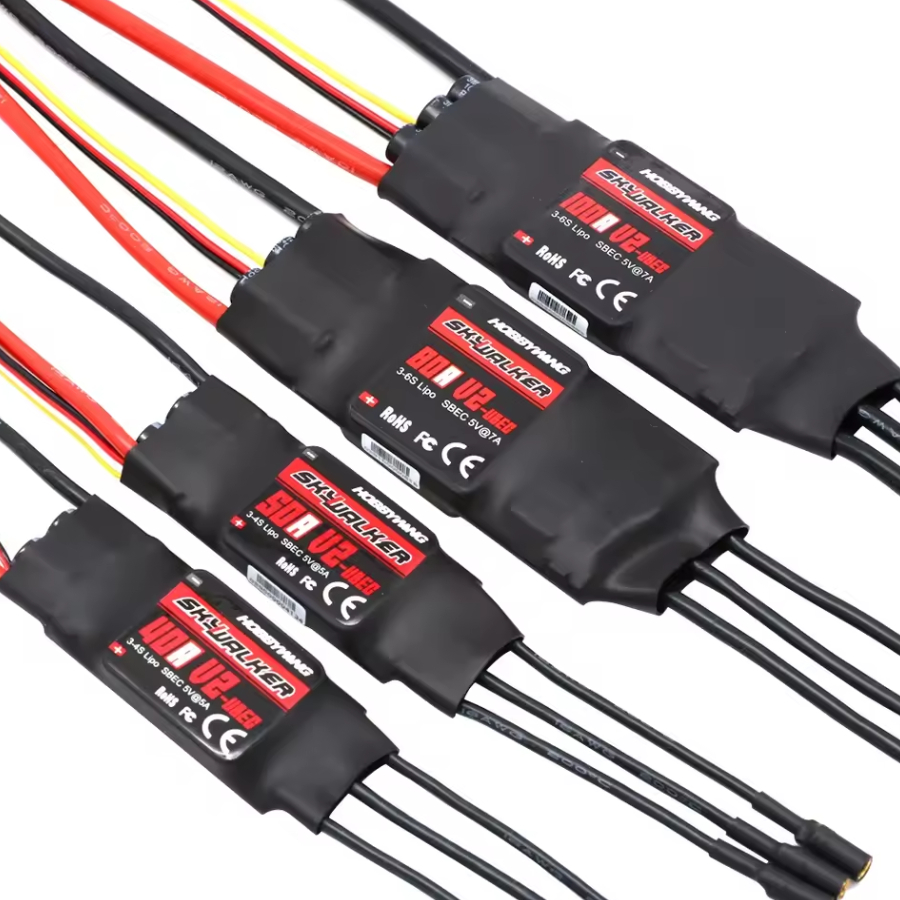

Hobbywing Skywalker V2 ESC 15A-100A

Overview:
The Hobbywing Skywalker V2 range is designed for fixed-wing pilots looking for a dependable, easy-to-use ESC for everything from lightweight park flyers to large sport, aerobatic and scale aircraft. Available in ratings from 15A to 100A, the range offers a suitable option for a wide variety of brushless power systems, with each ESC optimised to deliver smooth throttle response, efficient operation and reliable performance.

Compared to the previous Skywalker series, the V2 range introduces Hobbywing's Driving Efficiency Optimisation (DEO) technology, improving throttle linearity while reducing ESC operating temperatures and increasing overall efficiency. Selected models also feature reverse thrust braking, allowing compatible aircraft to significantly reduce landing roll for shorter, more controlled landings. An integrated search mode can drive the motor to emit an audible tone, making it easier to locate a model after an off-field landing.

Each Skywalker V2 ESC is supplied pre-programmed for fixed-wing aircraft and supports a wide range of safety features, including low-voltage cut-off, thermal protection, abnormal input voltage protection and throttle signal loss protection. The range also benefits from high-quality switching or linear BECs depending on the model, ensuring reliable power delivery to receivers and servos without the need for an external regulator on most installations. Whether you're building a lightweight trainer or a high-powered aerobatic aircraft, the Skywalker V2 range offers a proven solution with a model to suit your power requirements.

Features:
- Available in current ratings from 15A to 100A, designed for LiPo power input.
- Designed specifically for brushless fixed-wing aircraft.
- Driving Efficiency Optimisation (DEO) technology improves throttle response and efficiency.
- Lower operating temperatures help improve reliability.
- Faster, more linear throttle response for smoother power delivery.
- Reverse thrust braking available on supported models for reduced landing distance.
- Adjustable standard brake function.
- Integrated search mode helps locate a lost aircraft using motor noise beeps.
- Supports programming via transmitter or Hobbywing LED Program Box (model dependent).
- Comprehensive protection functions including abnormal input voltage, low-voltage cut-off, thermal protection and throttle signal loss protection.

Specification:

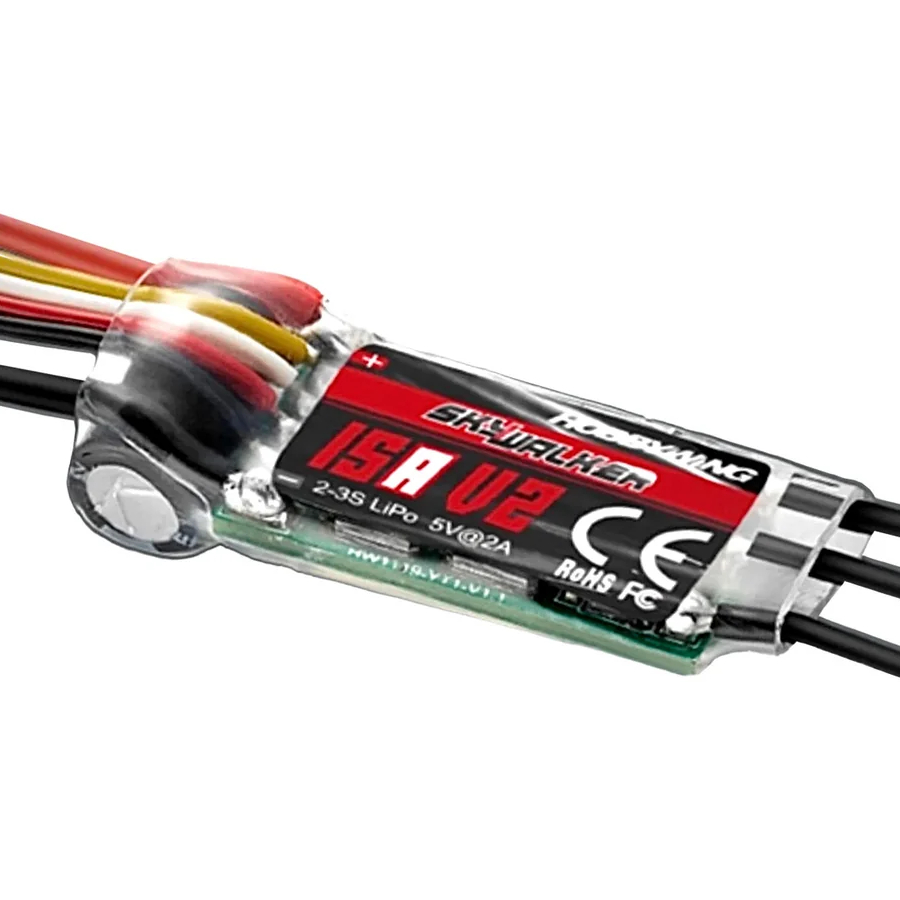

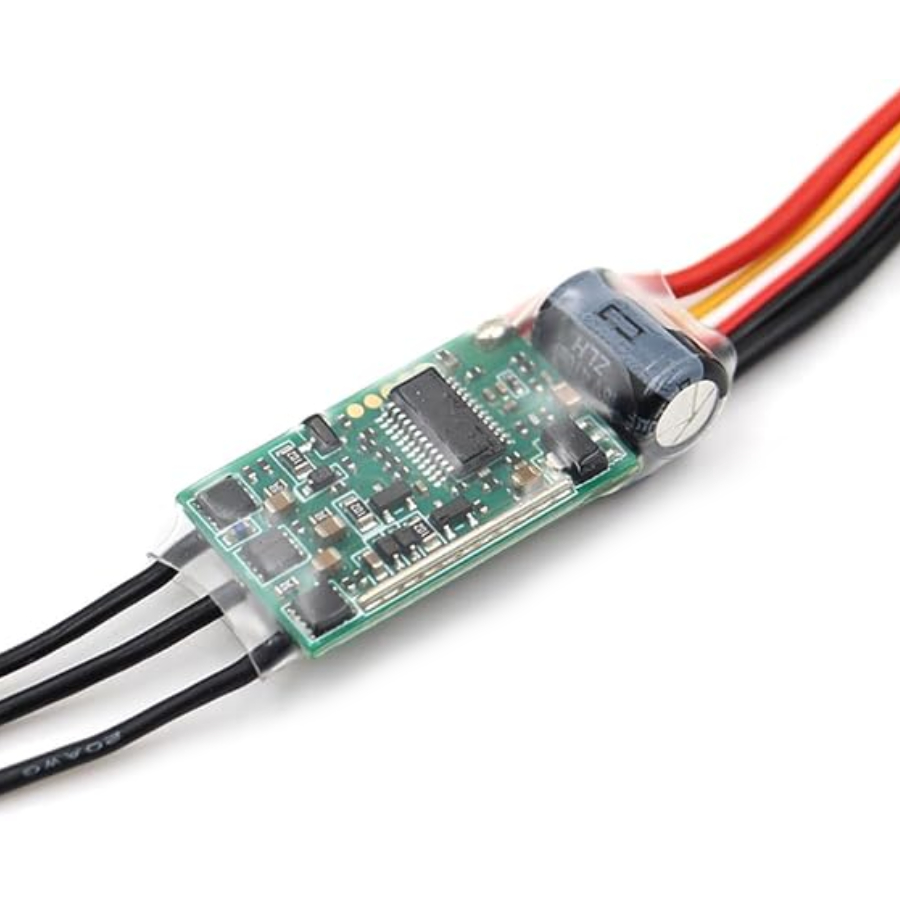

Skywalker 15A V2
- Continuous current: 15A
- Peak current: 30A
- Input voltage: 2-3S LiPo
- BEC: 5V/2A (Linear)

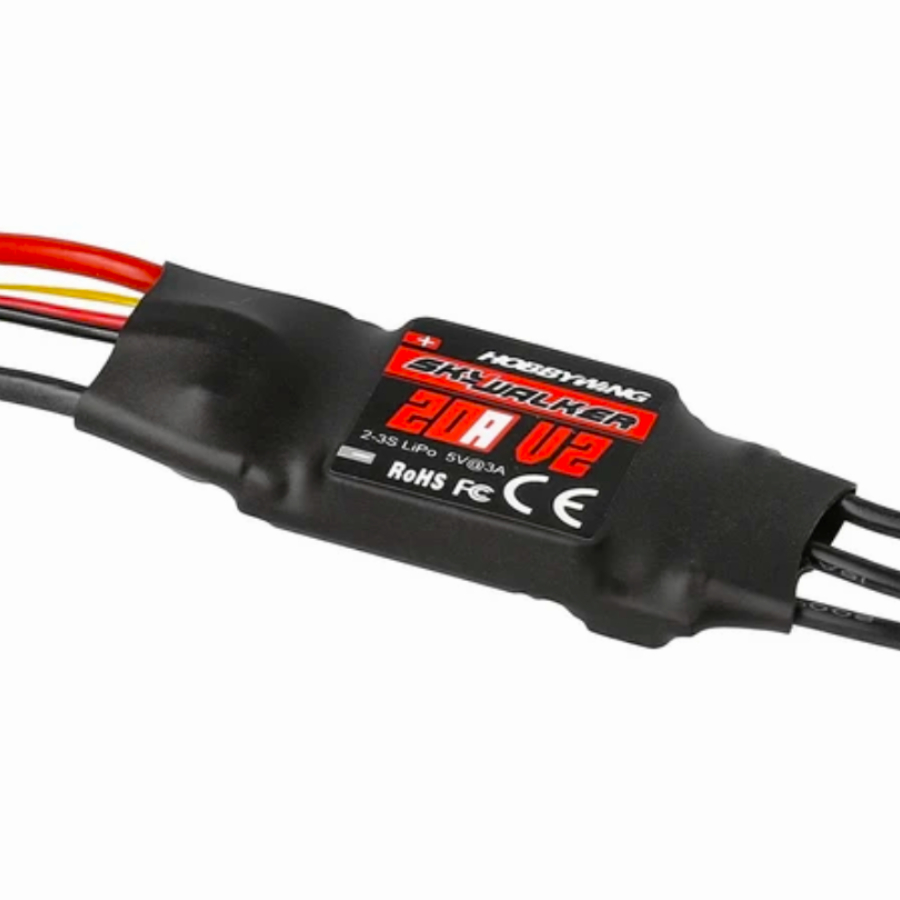

Skywalker 20A V2
- Continuous current: 20A
- Peak current: 40A
- Input voltage: 2-3S LiPo
- BEC: 5V/3A (Linear)

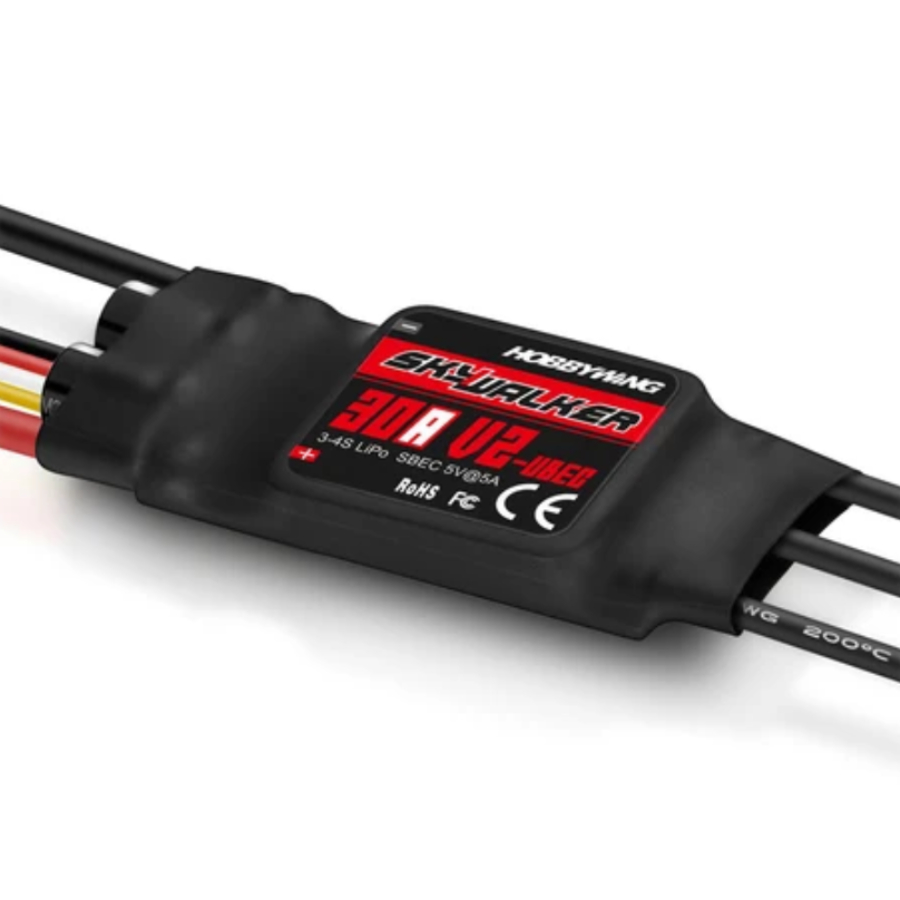

Skywalker 30A V2
- Continuous current: 30A
- Peak current: 50A
- Input voltage: 3-4S LiPo
- BEC: 5V/5A (Switch Mode)

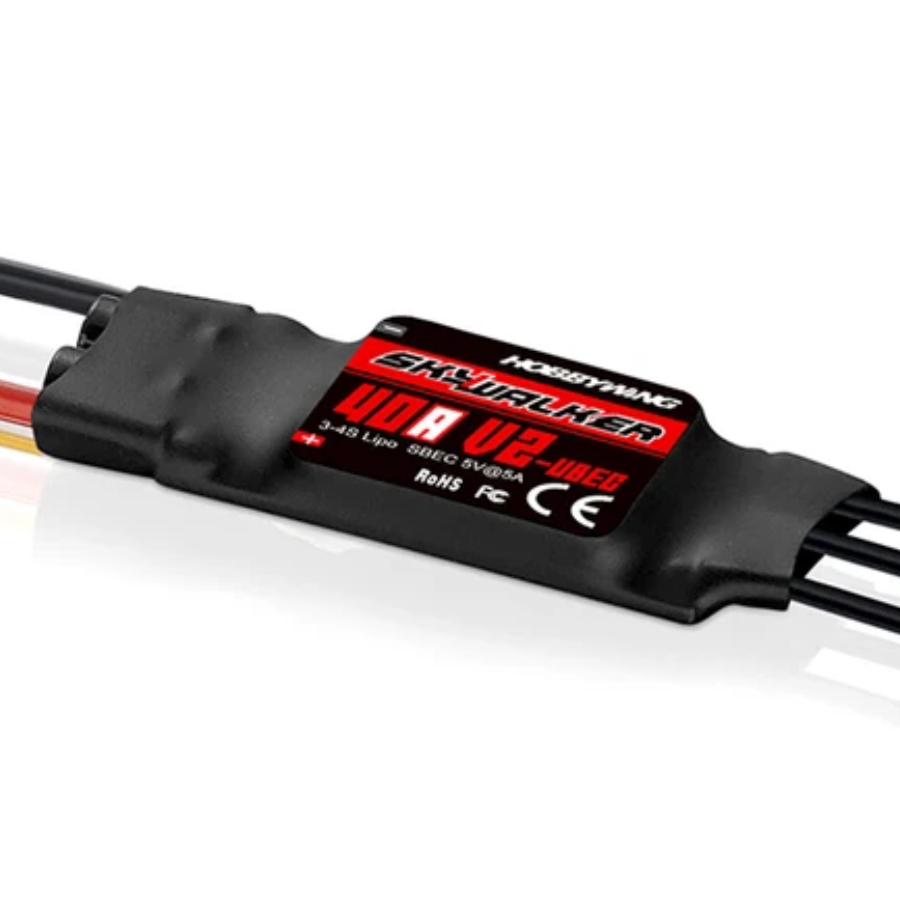

Skywalker 40A V2
- Continuous current: 40A
- Peak current: 60A
- Input voltage: 3-4S LiPo
- BEC: 5V/5A (Switch Mode)

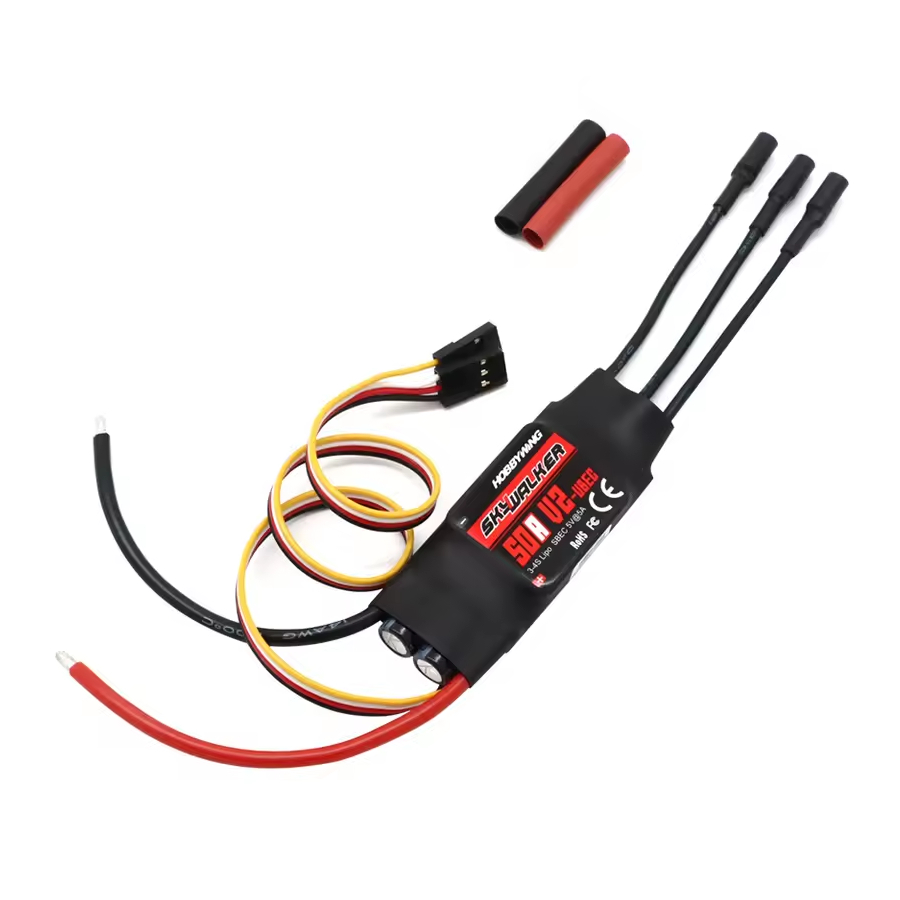

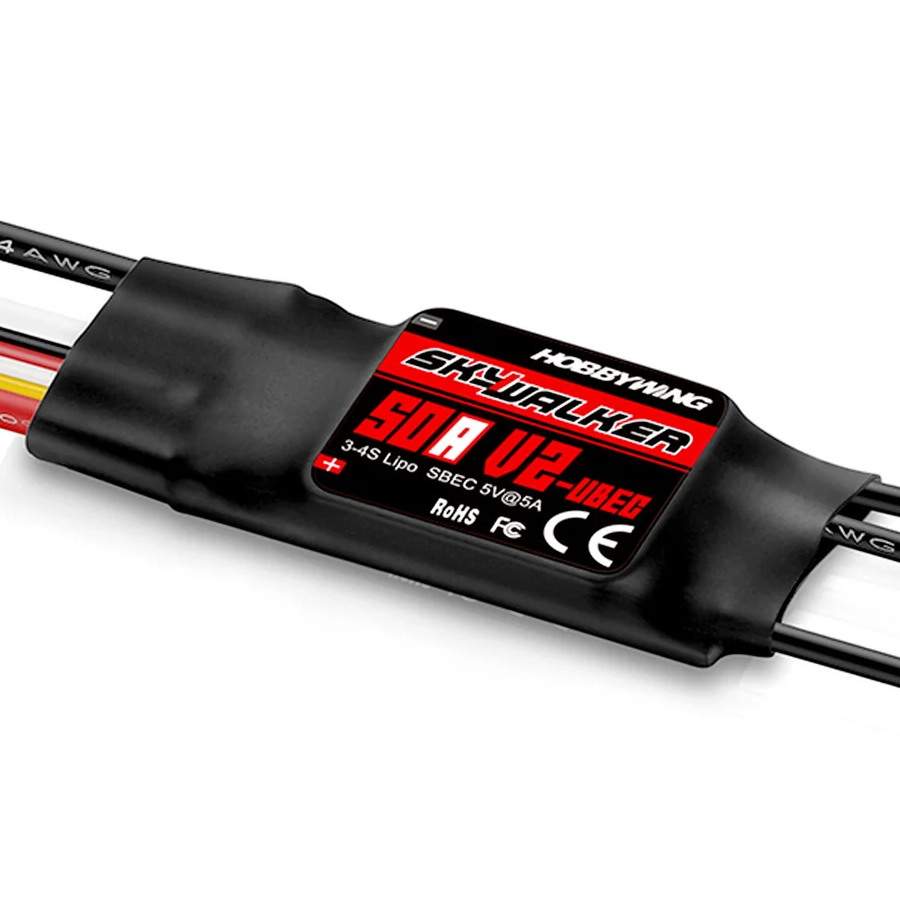

Skywalker 50A V2
- Continuous current: 50A
- Peak current: 70A
- Input voltage: 3-4S LiPo
- BEC: 5V/5A (Switch Mode)

Skywalker 50A-6S V2
- Continuous current: 50A
- Peak current: 70A
- Input voltage: 3-6S LiPo
- BEC: 5V/6A (Switch Mode)

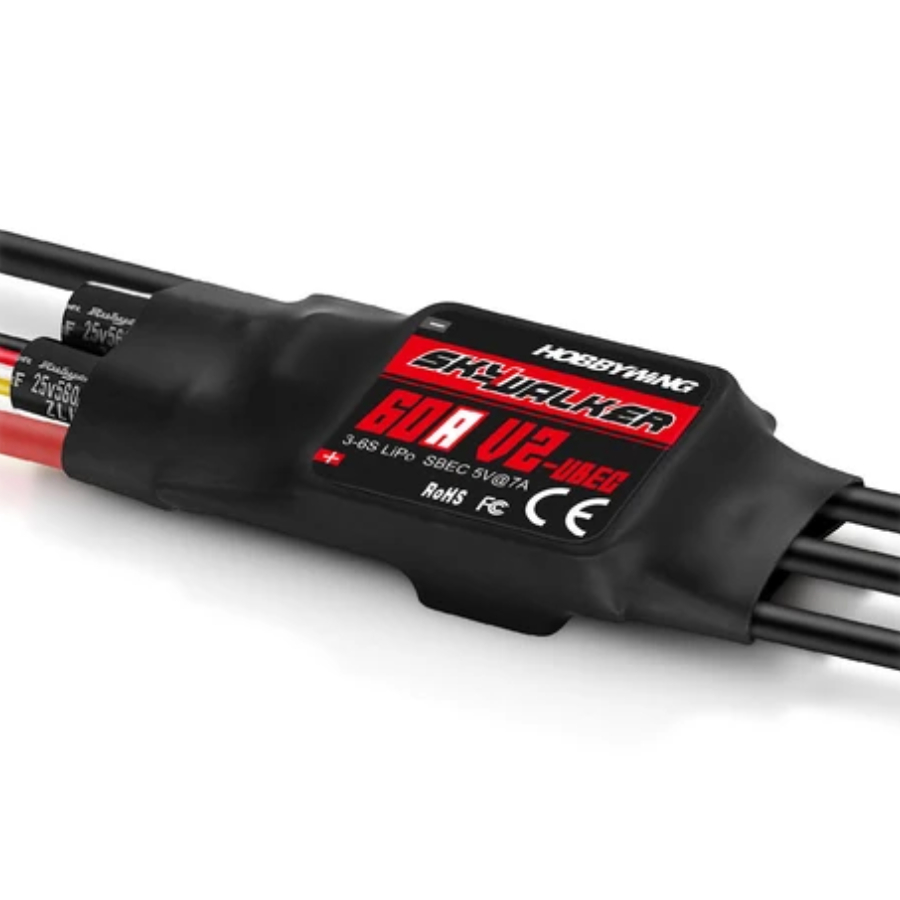

Skywalker 60A V2
- Continuous current: 60A
- Peak current: 80A
- Input voltage: 3-6S LiPo
- BEC: 5V/7A (Switch Mode)

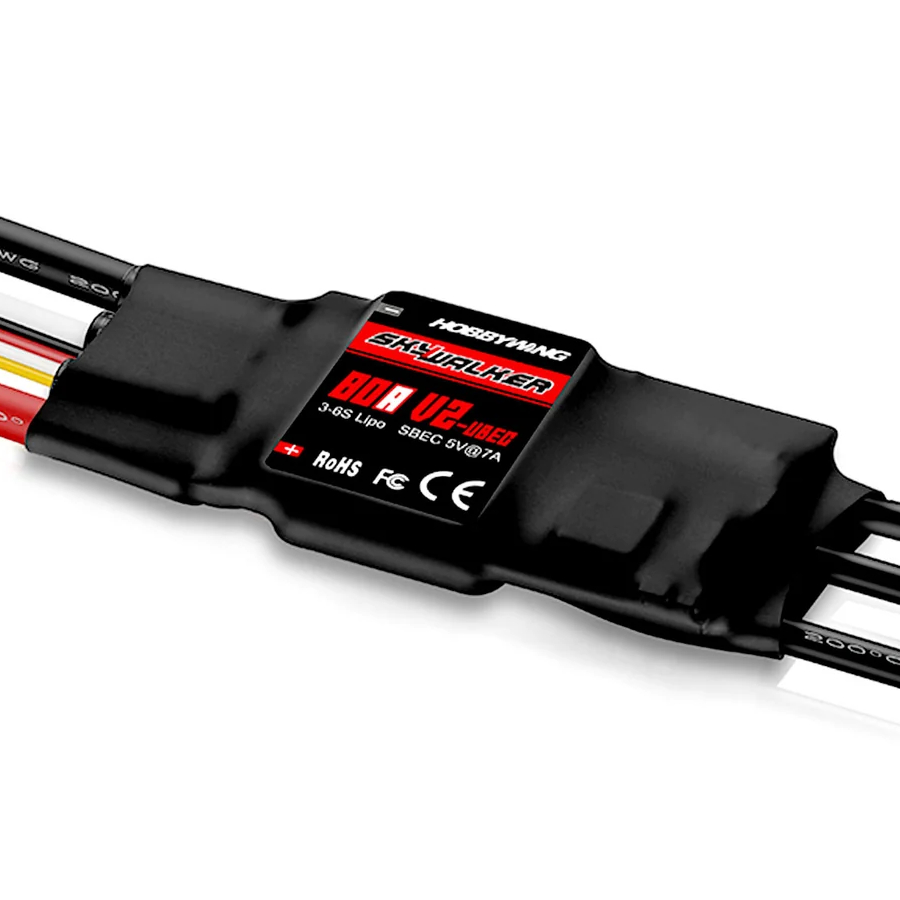

Skywalker 80A V2
- Continuous current: 80A
- Peak current: 100A
- Input voltage: 3-6S LiPo
- BEC: 5V/7A (Switch Mode)

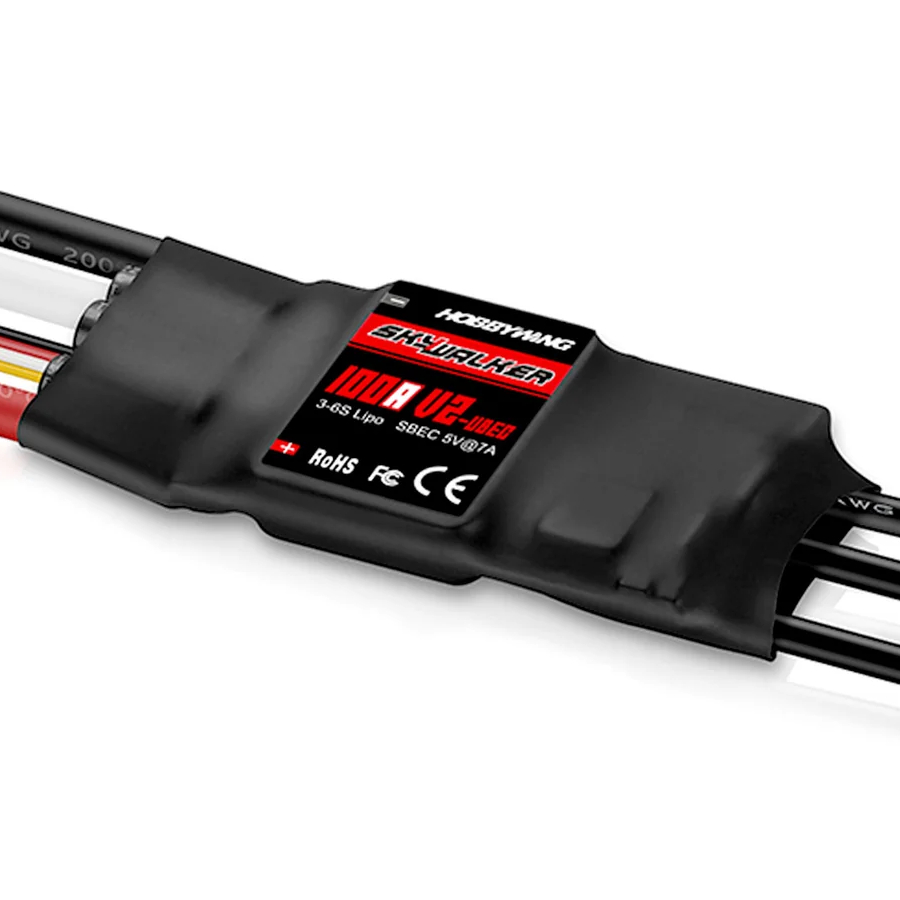

Skywalker 100A V2
- Continuous current: 100A
- Peak current: 120A
- Input voltage: 3-6S LiPo
- BEC: 5V/7A (Switch Mode)

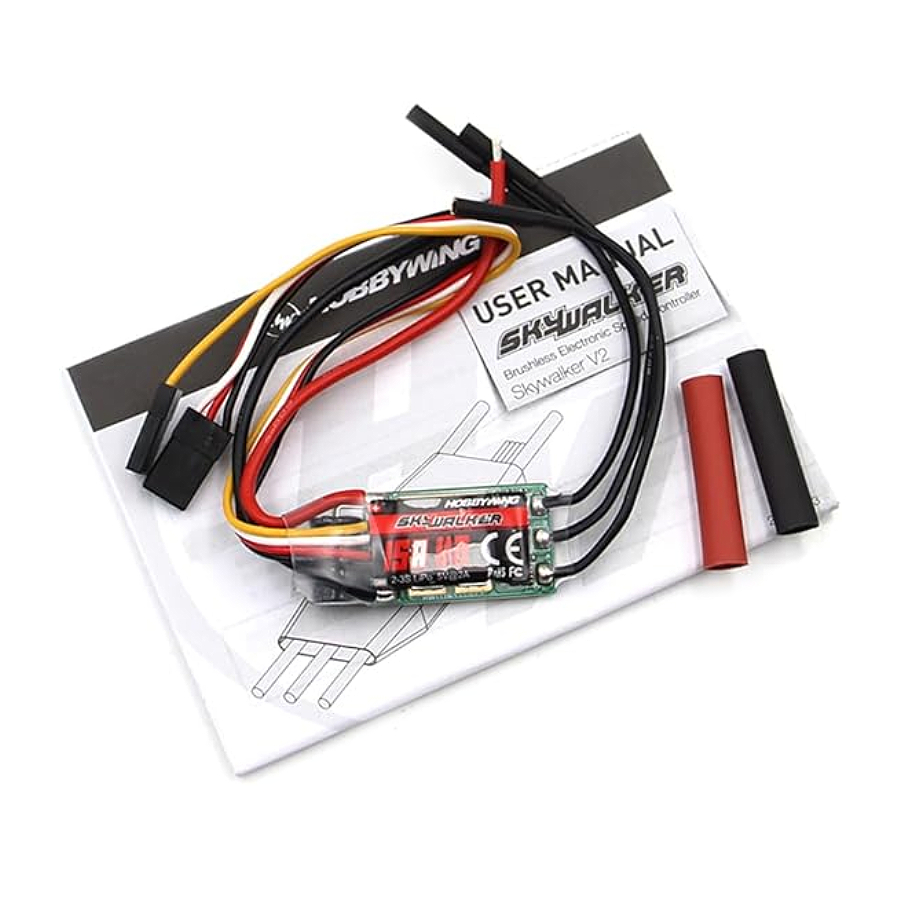

Included:
- 1x Hobbywing Skywalker V2 ESC
- Accessories
