Overview:

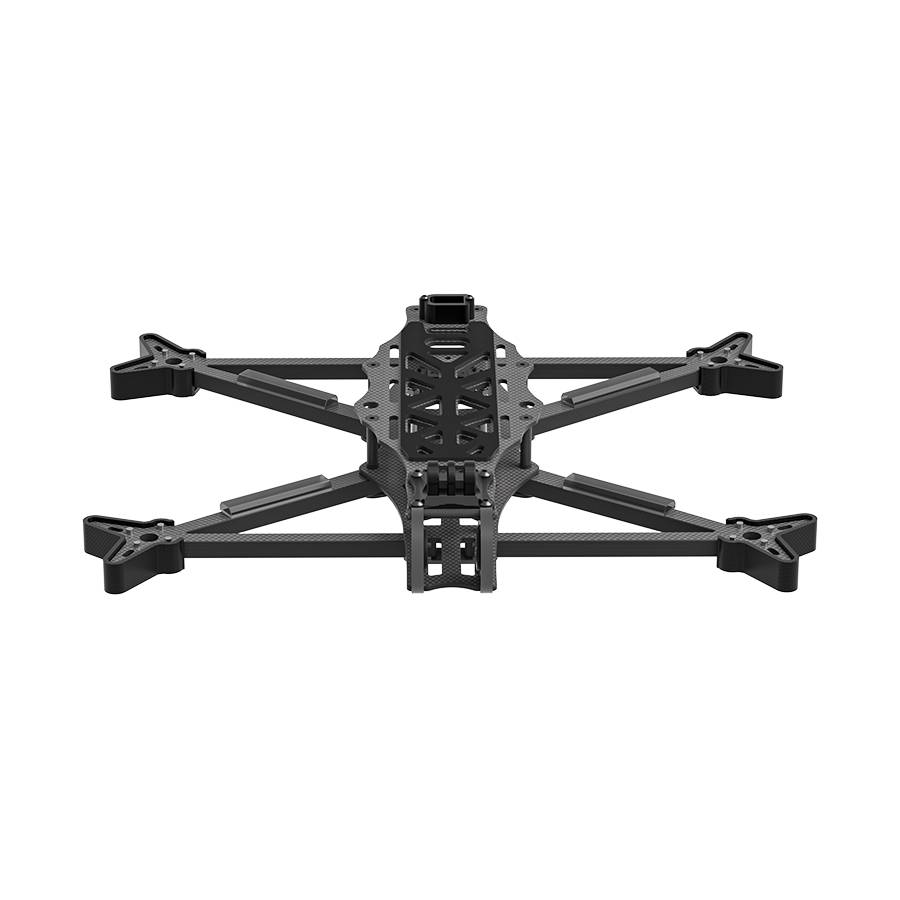

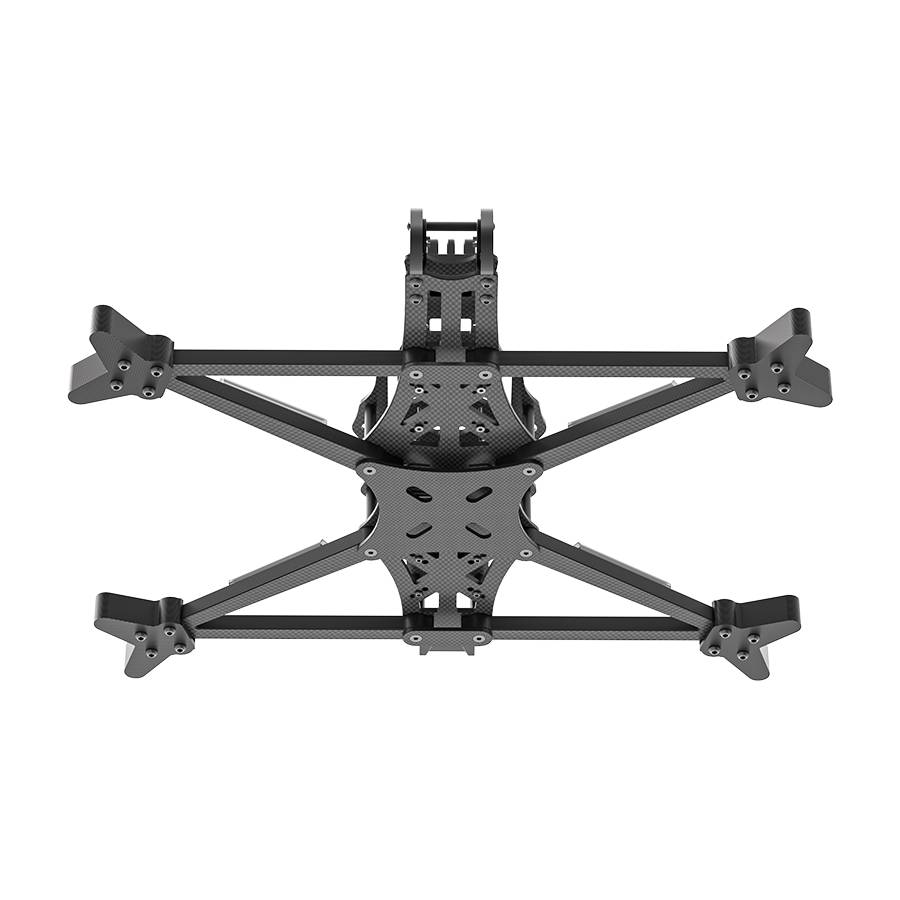

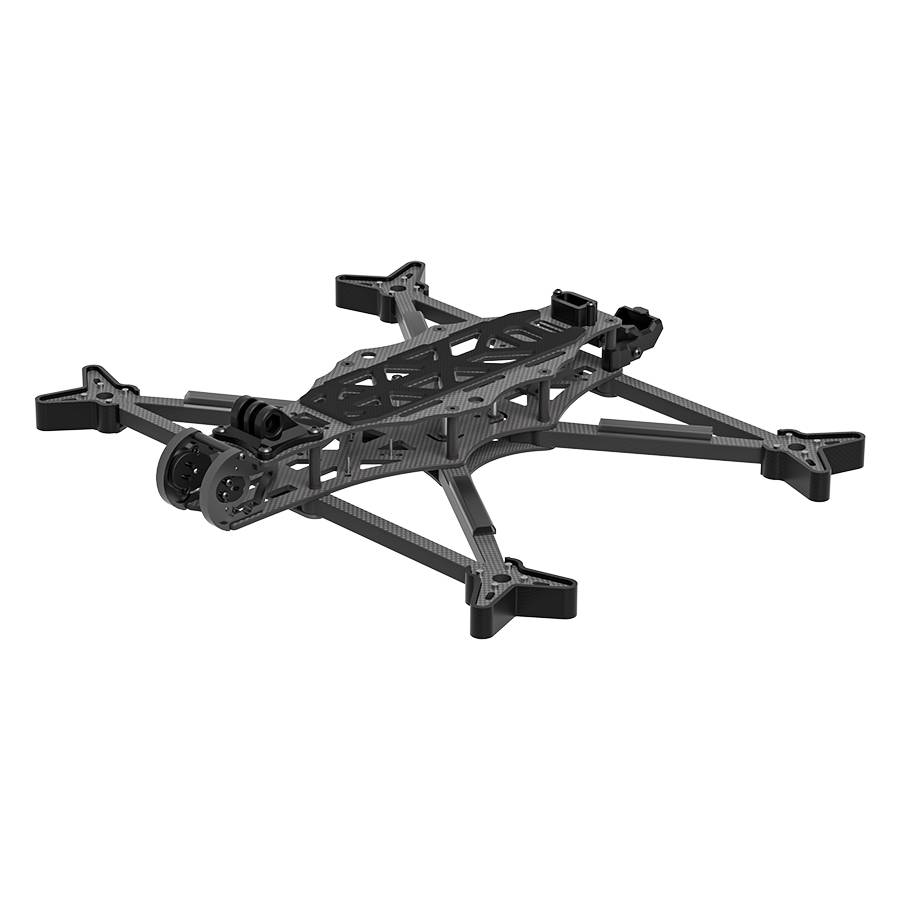

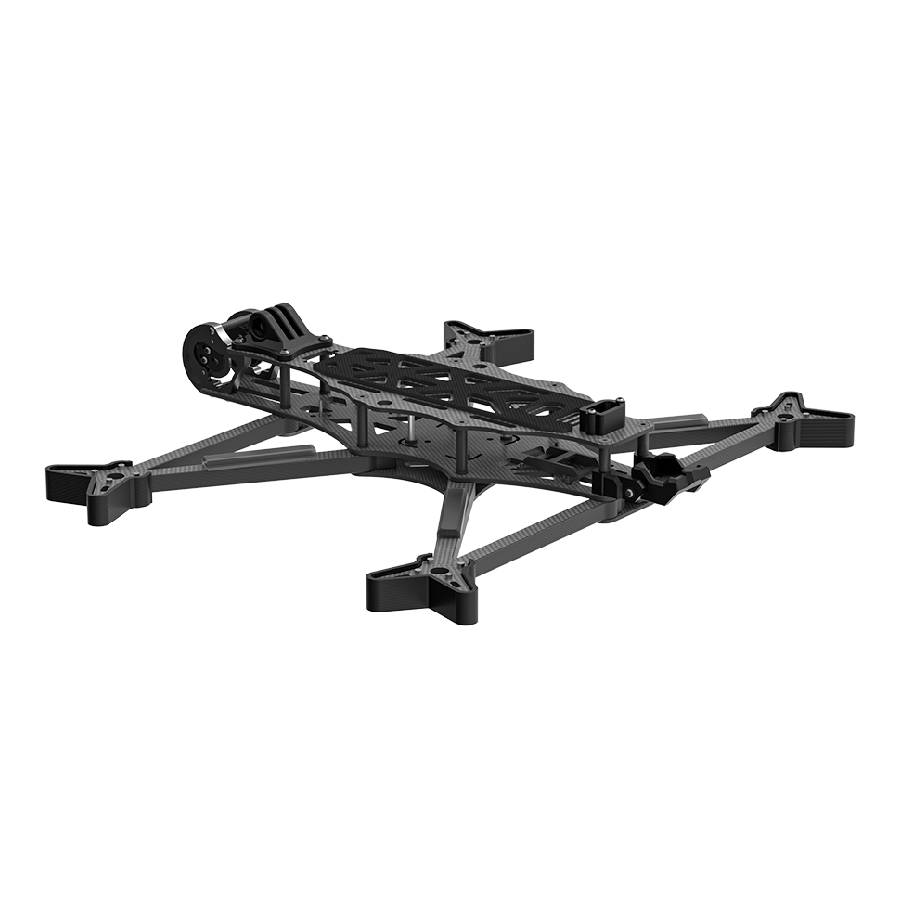

This is the latest generation of the iFlight AOS 7, preserving the ultra stiff and durable geometry while adding new features including AOS X-Cell and a 7075 metal camera cage.
Features:
- Metal Camera Cage: The AOS 7 V5 is equipped with an ultra-durable 7075 Aluminium Camera Cage that accommodates all 19-20mm cameras, ensuring compatibility with a wide range of camera systems. It includes an integrated soft mount specifically designed for the DJI O3 and O4 cameras, with full support for ND filters. If you use a different FPV system, the frame also allows for hard mounting of all popular camera systems, including Analogue, WS Avatar, HDZero and DJI. 14mm cameras are supported using a 3D printed mount (STL files are available from the manufacturer).
- Vibration Isolation: Say goodbye to unwanted vibrations that can hinder your drone's performance. The AOS 7 V5 boasts the new patent-pending AOS X-Cell anti-vibration mount for the flight control stack. This groundbreaking feature enables you to run lower filtering, dial in higher PID gains, and achieve unparalleled flight performance.
- Stack and VTX Compatibility: With three stack positions, each supporting 30.5x30.5mm, 25.5x25.5mm, and 20x20mm mounting, the AOS 7 V5 ensures complete compatibility with a huge range of flight controllers, ESCs, and other electronics (including DJI V1 Air Unit and HDZero Freestyle V1 VTX).
- Easy to build: The AOS 7 V5 is designed to be the easiest and most user-friendly 7” FPV frame to build. It's perfect for beginners with plenty of space, easy access to every stack screw and even fewer parts than the user friendly AOS 7 EVO!
Specifications:
- Model: AOS 7 V5 Frame Kit
- Frame wheelbase: 313mm
- Frame Dimension: L254xW184xH36mm
- Top Plate Thickness: 2mm
- Bottom Plate Thickness: 2.5mm
- Upper Plate Thickness: 2mm
- Flight Stack Mounting: 20x20 Φ3mm / 30x30 Φ3mm
- VTX Mounting: 20x20 Φ2mm / 25.5x25.5 Φ2mm / 30x30 Φ3mm
- Motor Mounting: 19x19mm -φ3
- Weight: 325g
- Compatibility: DJI O4 Air Unit Pro/DJI O3 Air Unit/HD - Vista/BLITZ Whoop 1.6W VTX
Included:
- 1x AOS 7 V5 Frame Kit
- Accessories
