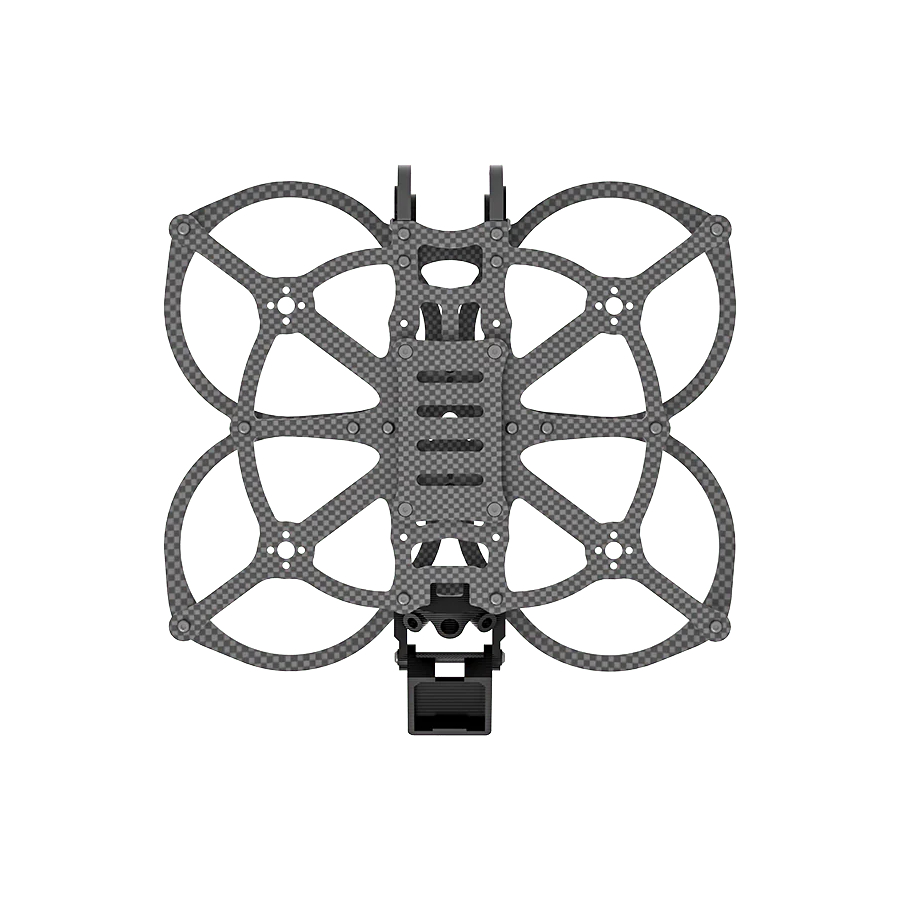

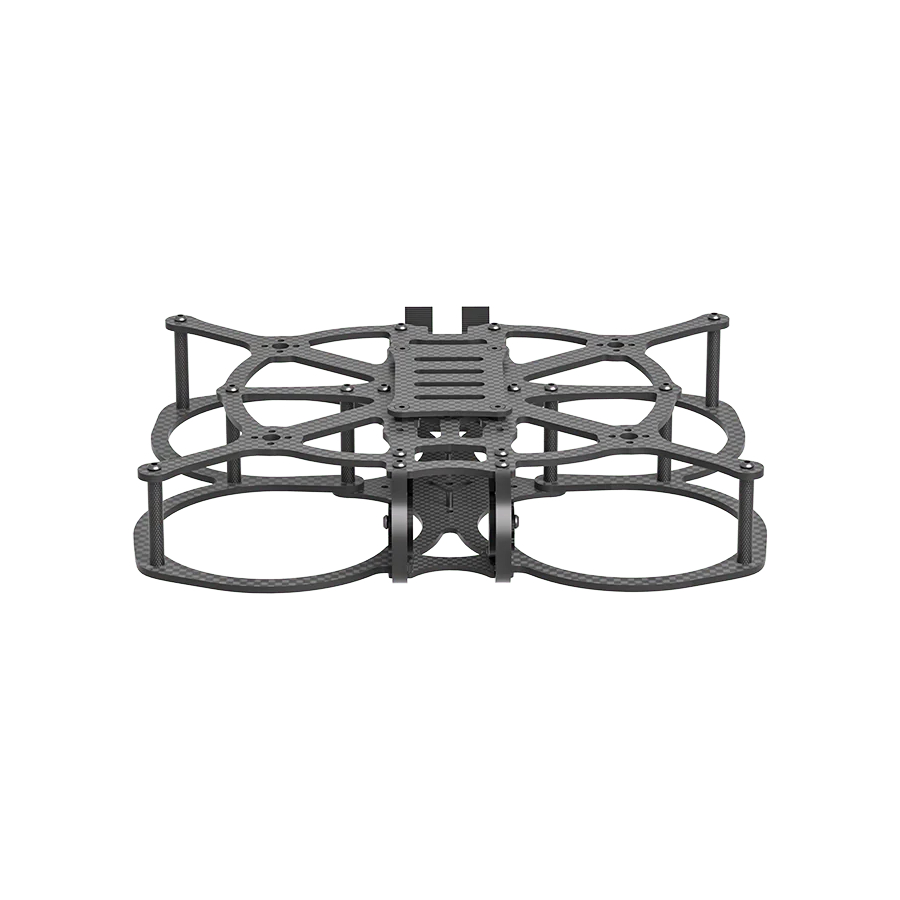

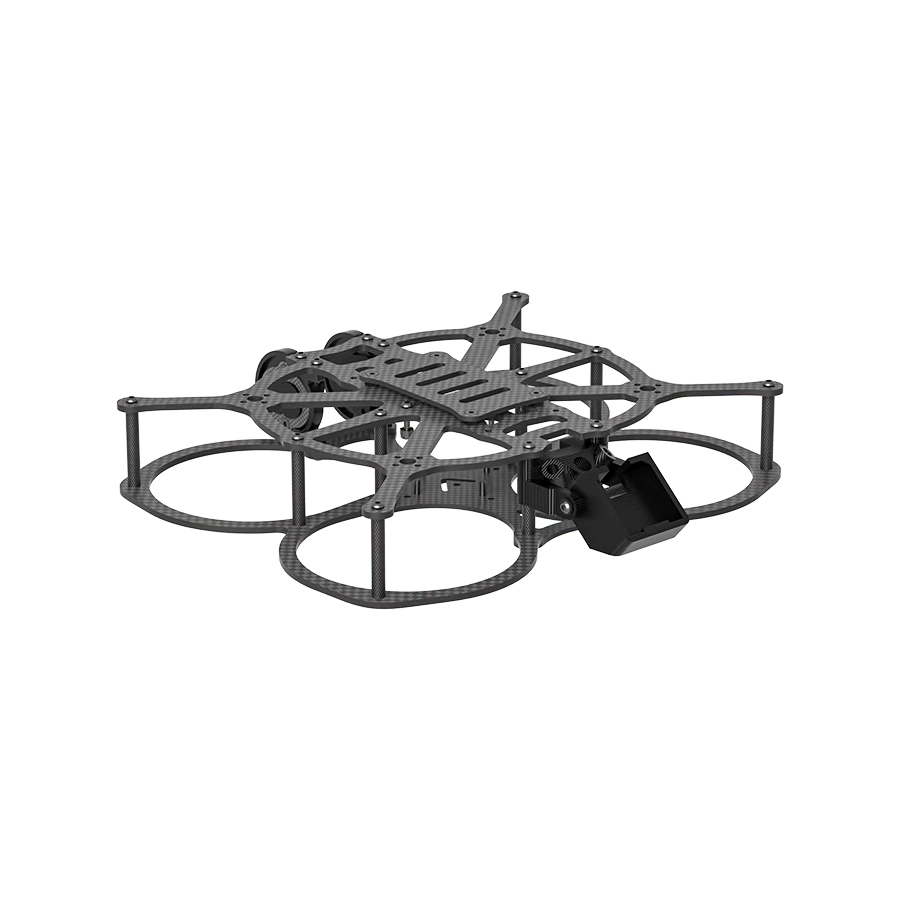

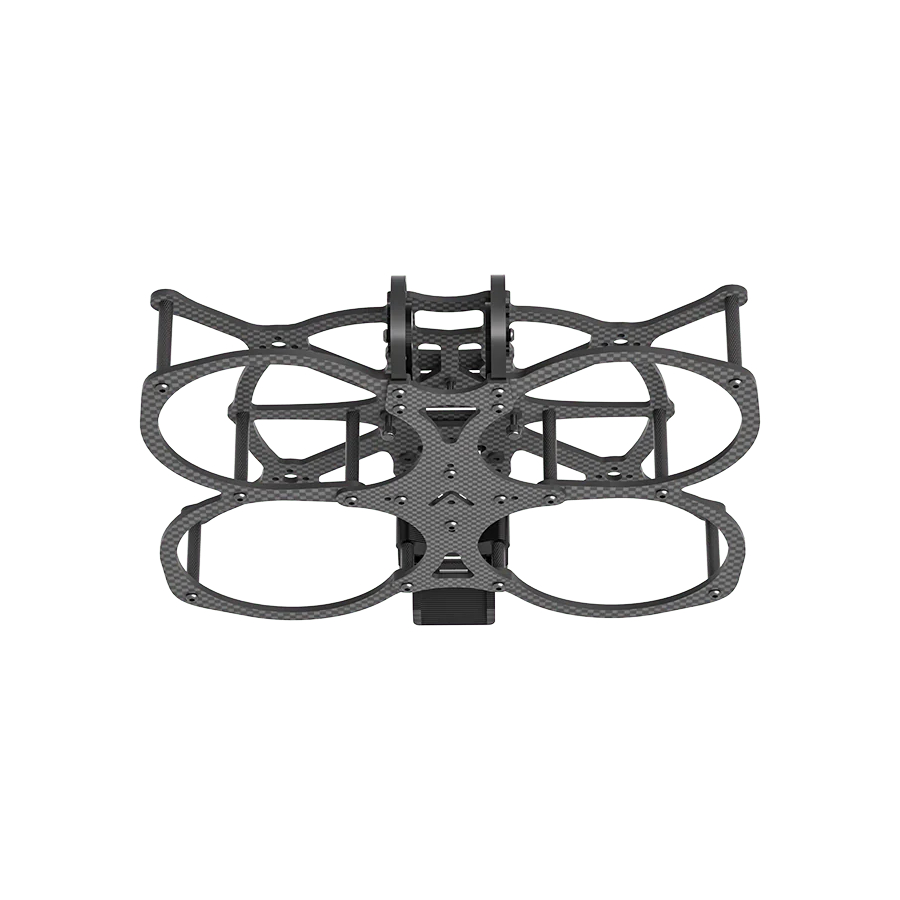

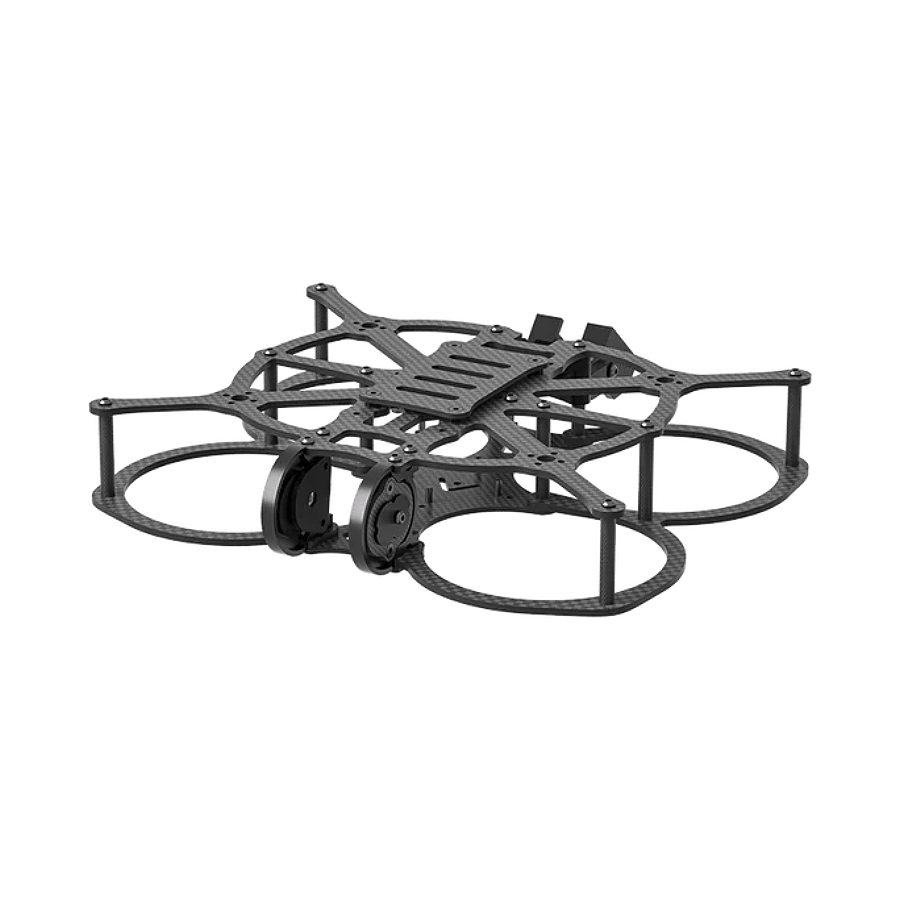

iFlight AOS Cine25 V5 Frame Kit

Overview:
The iFlight AOS Cine25 V5 is a premium 2.5" cinewhoop frame designed by Chris Rosser and manufactured by iFlight. Developed for compact cinematic FPV builds, it combines a lightweight carbon fibre structure with integrated prop guards and a rigid 7075 aluminium camera cage. This produces a resilient and versatile platform ideal for capturing smooth footage.

Supporting propellers up to 2.5", the AOS Cine25 V5 is designed to keep props out of view when used with wide-angle FPV cameras, helping to produce clean onboard footage without compromising the compact size of the airframe.

Enjoy a wide 155-degree field of view (FOV) with no props in sight, perfect for DJI O3 and O4 users. This feature offers an immersive flight experience, ensuring you capture stunning, unobstructed footage.

Batteries can be mounted either lengthwise or toilet-tank style to help balance your drone’s centre of mass.

Compatible with DJI O4 Air Unit Pro, DJI O3 Air Unit, Walksnail Avatar, HDZero and analogue FPV systems, the AOS Cine25 V5 provides an excellent foundation for lightweight cinematic builds where durability, ease of maintenance and FOV are equally important.

Features:
- Integrated carbon fibre prop guards provide lightweight propeller protection
- 155° unobstructed camera field of view with compatible wide-angle FPV cameras
- Reinforced 7075 aluminium camera cage improves camera protection
- Supports forward and rear action camera mounting
- Flexible battery mounting supports both longitudinal and toilet-tank battery positions
- Compatible with DJI O4 Air Unit Pro, DJI O3 Air Unit, Walksnail Avatar, HDZero and analogue FPV systems
- Spacious frame layout simplifies installation and maintenance
- Suitable for custom cinewhoop builds and HD video platforms

Specification:
- Model: AOS Cine25 V5 Frame Kit
- Wheelbase: 120mm
- Frame dimensions: 171x147x34mm
- Supported propeller size: Up to 2.5"
- Frame material: Carbon fibre
- Top plate thickness: 2mm
- Bottom plate thickness: 1.5mm
- Battery plate thickness: 1.5mm
- Flight stack mounting: 20x20mm (M2)/25.5x25.5mm (M2)
- VTX mounting: 20x20mm (M2) / 25.5x25.5mm (M2)
- Maximum flight stack height: 25mm
- Maximum VTX height: 25mm
- Motor mounting: 9x9mm (M2)
- Camera compatibility: 19-20mm
- Camera cage material: 7075 aluminium

Included:
- 1x iFlight AOS Cine25 V5 Frame Kit (C018040)
- Accessories
