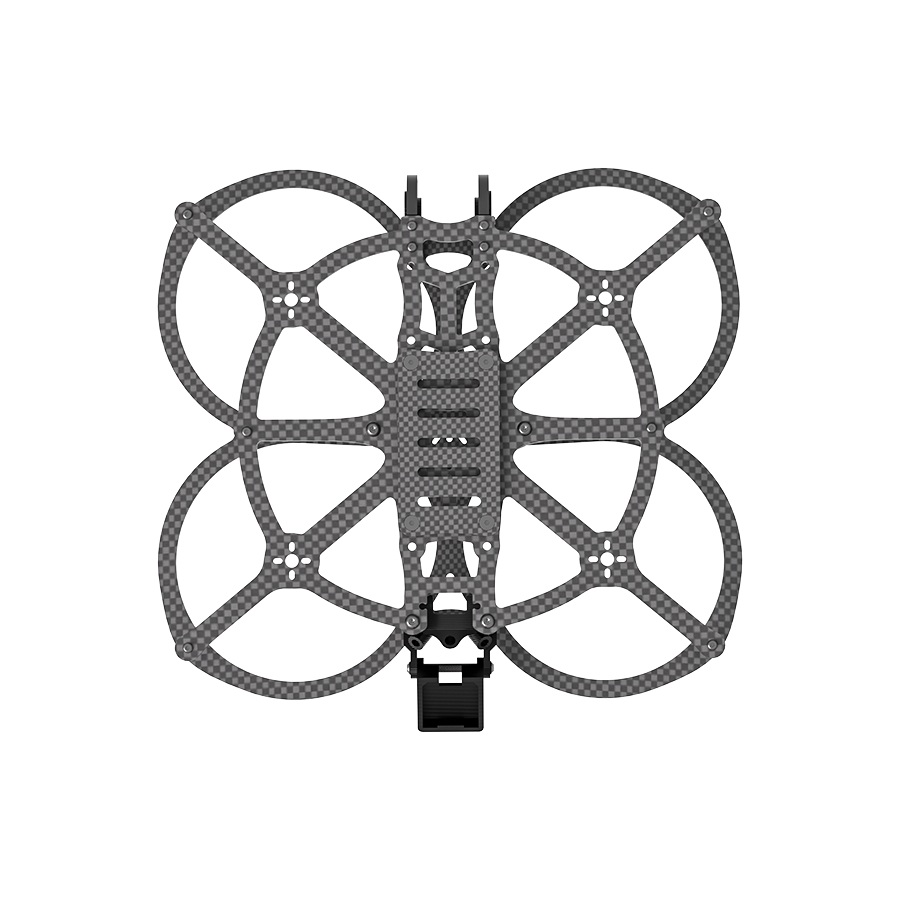

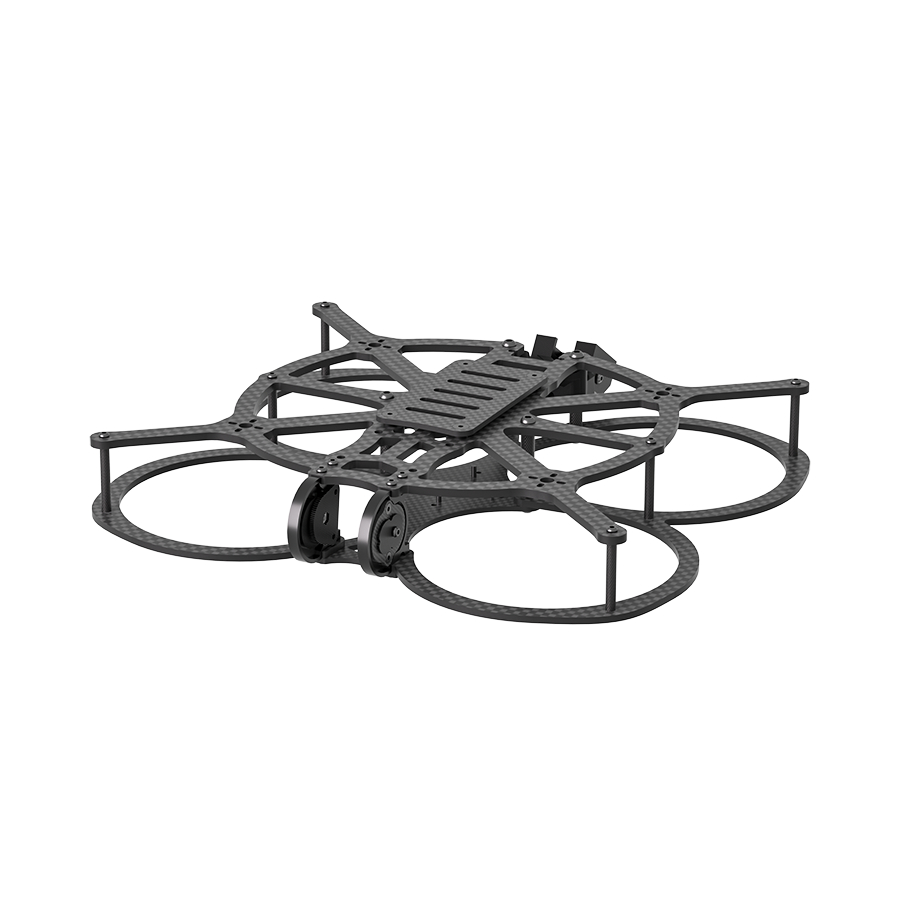

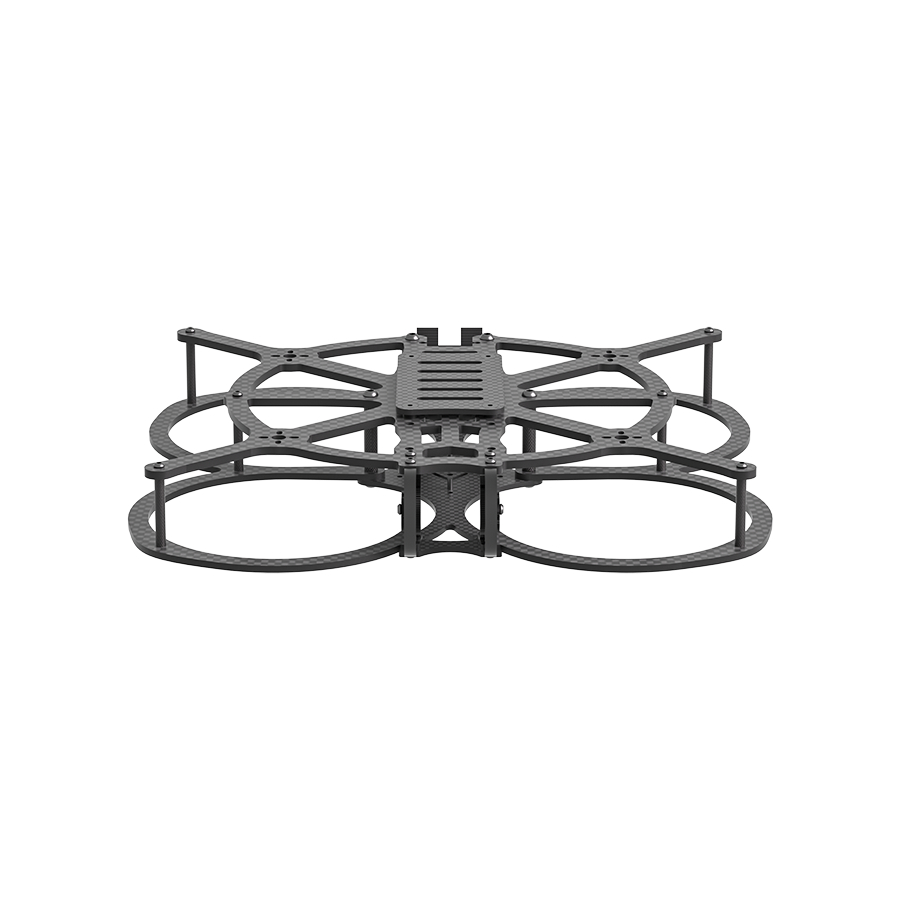

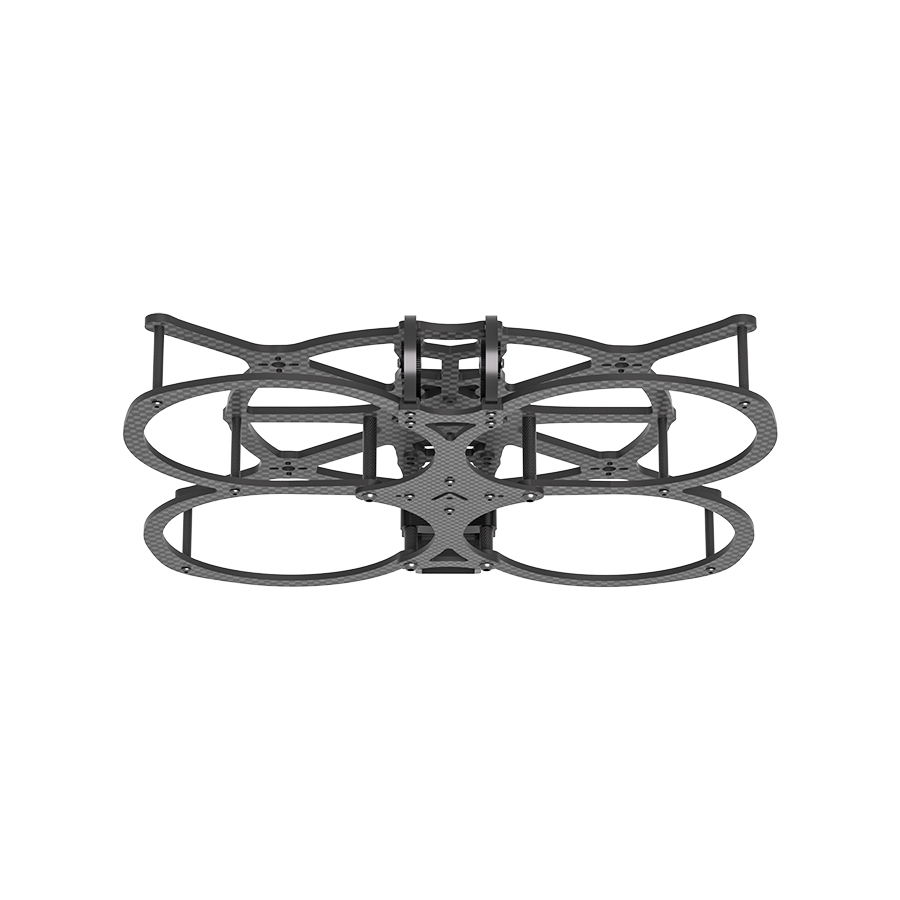

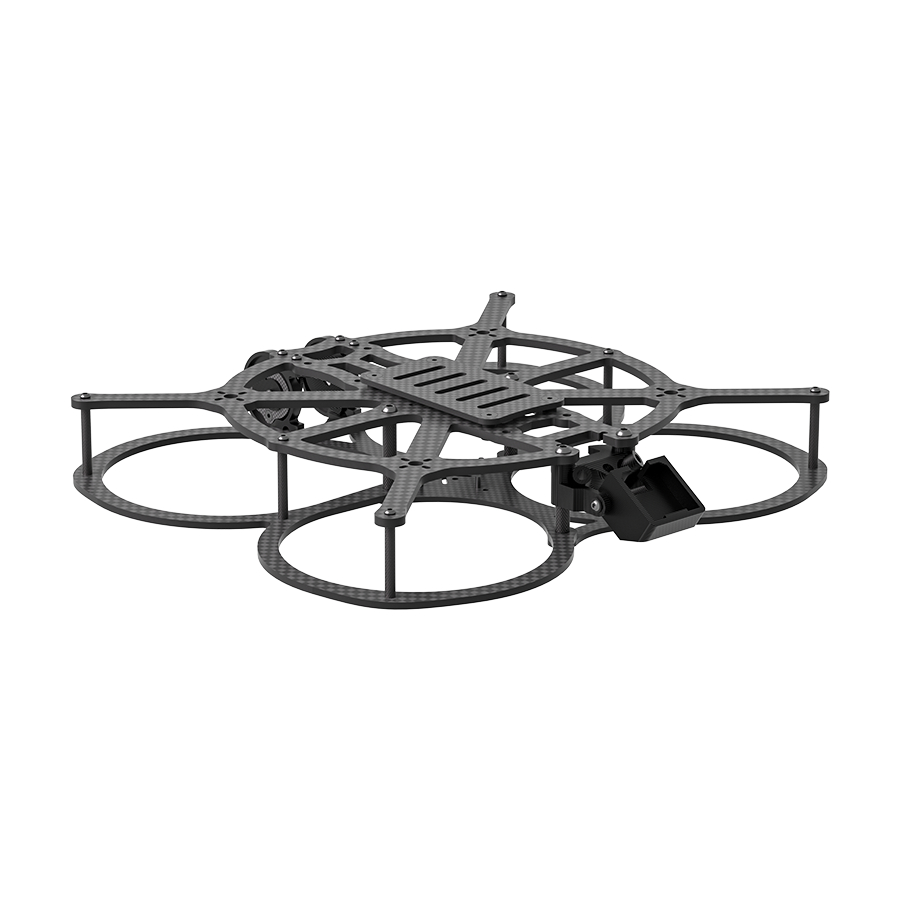

iFlight AOS Cine35 V5 Frame Kit

Overview:
The iFlight AOS Cine35 V5 is a premium 3.5" cinewhoop frame designed for pilots who aim to capture smooth cinematic footage. The frame combines a lightweight carbon fibre structure with integrated prop guards. While a rigid aluminium camera cage provides resilient protection for your HD camera.

The V5 design incorporates a 155° unobstructed camera field of view, allowing compatible wide-angle FPV cameras to record without propellers appearing in the image. Flexible battery mounting options make it easy to fine-tune the centre of gravity for different camera setups, while the reinforced carbon prop guards and optimised airflow help maintain efficient propeller performance without adding unnecessary weight.

Supporting a wide range of FPV systems, including the DJI O4 Air Unit Pro, DJI O3 Air Unit, HDZero and Walksnail Avatar, the AOS Cine35 V5 offers excellent flexibility for pilots building a dedicated cinematic quad.

Features:
- Designed by Chris Rosser and manufactured by iFlight
- Optimised for cinematic FPV and HD video capture
- Integrated carbon fibre prop guards for lightweight propeller protection
- 155° camera field of view with no props visible when used with compatible cameras
- Flexible battery mounting supports both longitudinal and toilet-tank battery positions
- Reinforced 7075 aluminium camera cage for improved camera protection
- Soft-mount support for DJI O3 Air Unit camera with full ND filter compatibility
- Supports DJI O4 Air Unit Pro, DJI O3 Air Unit, Walksnail Avatar, HDZero and analogue FPV systems
- Front and rear GoPro mounting positions
- Spacious frame layout simplifies installation and maintenance

Specification:
- Model: iFlight AOS Cine35 V5 Frame Kit (C018041)
- Wheelbase: 153mm
- Frame dimensions: 223x203x36.5mm
- Recommended Prop size: Up to 3.5inch
- Weight: 145g
- Frame material: Carbon fibre
- Top plate thickness: 3mm
- Bottom plate thickness: 2mm
- Battery plate thickness: 2mm
- Flight stack mounting: 20x20mm/25.5x25.5mm
- VTX mounting: 20x20mm/25.5x25.5mm
- Maximum flight stack height: 25mm
- Maximum VTX height: 25mm
- Motor mounting: 9x9mm/12x12mm (M2)
- Camera compatibility: 19-20mm micro cameras. 14mm cameras supported via an optional 3D-printed mount (not included)
- Camera cage material: 7075 aluminium
- Suggested battery: 4-6S

Included:
- 1x iFlight AOS Cine35 V5 Frame Kit
